Eaton 9SX Gen2 11kVA 11kW Online Double-Conversion UPS, 8x C13 + 4x C19 + Hardwired
PRODUCT DESCRIPTION
Eaton 9SX Gen2 11kVA/11kW Online Tower UPS (9SX11KIG2, 9104-32729) - 3 Years Local Warranty
Online Double-Conversion Power for Server Rooms and Edge Sites
The Eaton 9SX Gen2 9SX11KIG2 is an 11 kVA / 11 kW online double-conversion UPS. The inverter regenerates every watt your equipment draws, so servers, storage, network cores and telecom gear see a clean sine wave (max. 1% distortion on linear loads) regardless of sags, surges or frequency drift on the incoming supply.
For Singapore server rooms, comms rooms and branch sites that cannot tolerate a transfer gap, the 9SX Gen2 tower models give true online protection with a unity (1.0) output power factor, so the kW rating equals the kVA rating.
Unity Power Factor and High Efficiency
With an output power factor of 1, the 9SX11KIG2 delivers its full 11 kW as real power. Eaton publishes 97% efficiency at maximum load, and input power factor above 0.99. The input window is 176–276 V (100–276 V with derating), so routine dips are handled without drawing on the battery.
Hot-Swappable Batteries with ABM+ Predictive Battery Life
The internal battery set (20 x 12 V / 7 Ah, sealed lead-acid) and external battery modules (EBMs) are hot-swappable. Eaton lists ABM+ (predictive battery life) or temperature-compensated charging (user selectable), automatic battery test, deep discharge protection and automatic recognition of external battery units. An internal bypass keeps the load powered while the UPS needs attention.
Graphical LCD, Monitoring Ports and a Card Slot

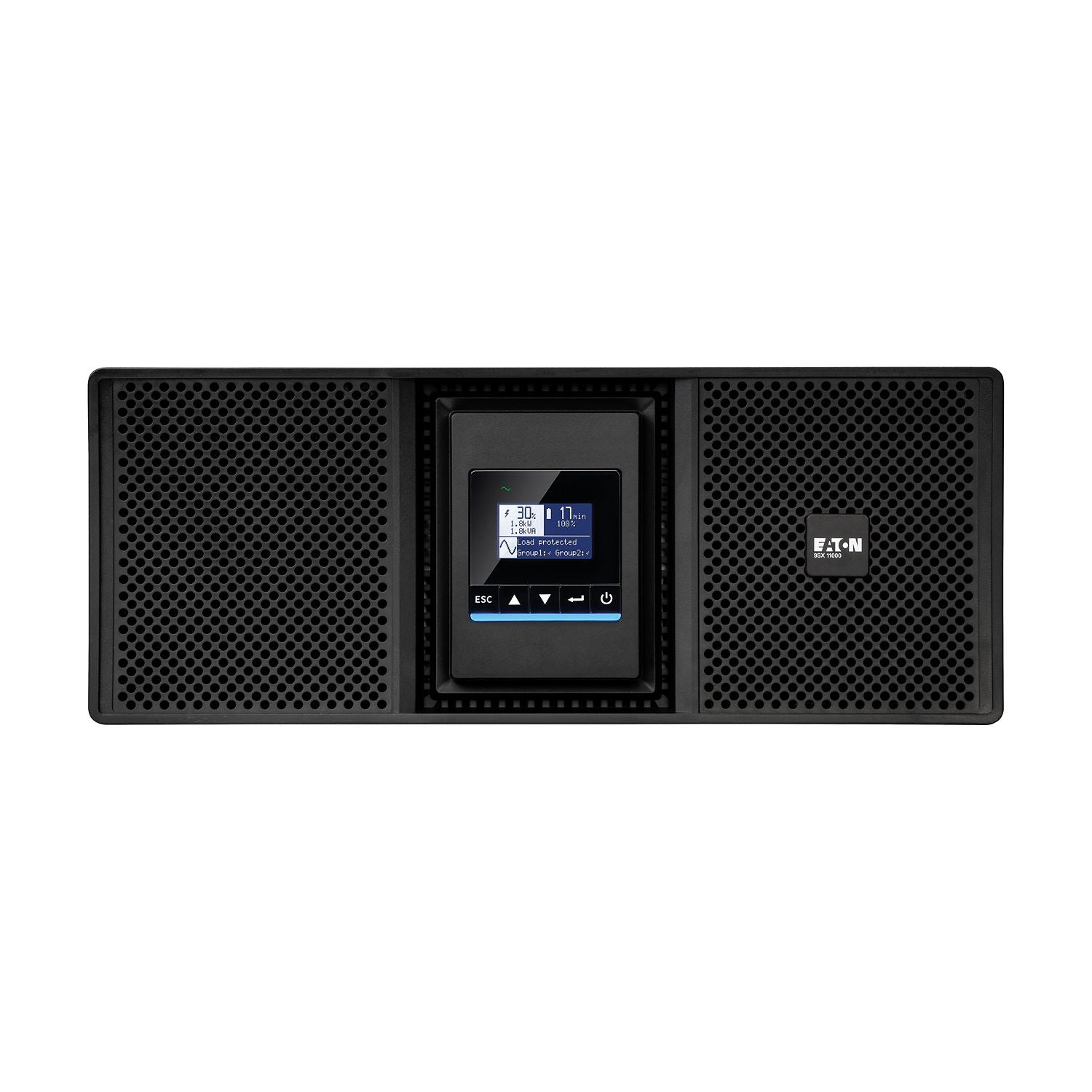

A multilingual graphical LCD shows status and measurements. Eaton lists USB port (HID compliant), serial port (RS232), mini-terminal block for remote On/Off, mini-terminal block for remote power off, mini-terminal block for dry contact outputs (2 contacts), plus one expansion slot for an optional network card (not included). The UPS works with the Eaton Brightlayer software suite for monitoring and orderly shutdown.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the Eaton 9SX Gen2 in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives this model 3 years on the UPS and its internal battery.
Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 9SX11KIG2 Datasheet — Technical Specifications
General
| Product Name | Eaton 9SX Gen2 UPS |
| Model Code | Eaton 9SX 11000i G2 |
| Catalogue Number | 9SX11KIG2 |
| Part Number (SKU) | 9104-32729 |
| EAN | 3553340710698 |
| Range | Eaton 9SX Gen2 |
| Topology | Online double-conversion |

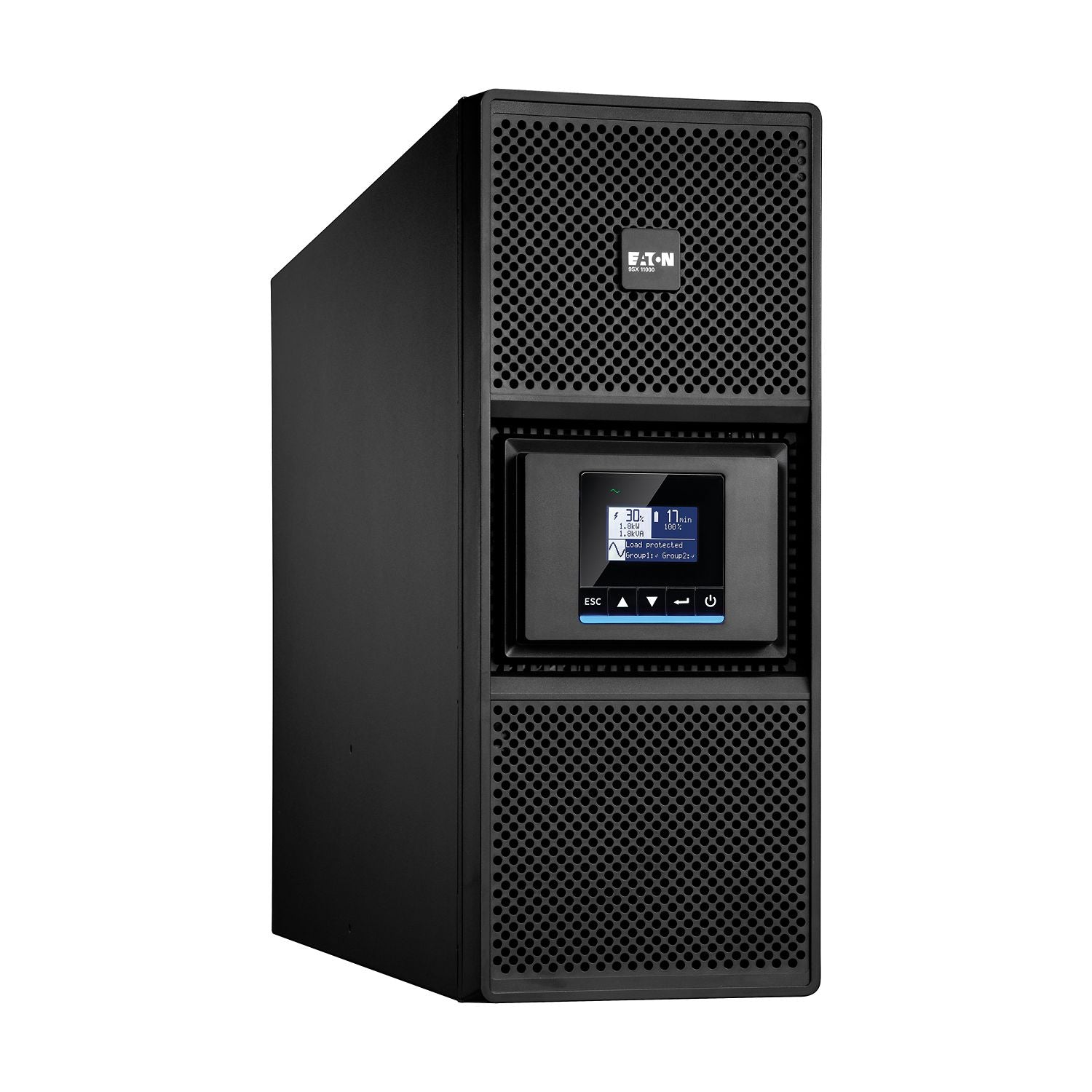

| Form Factor | Free-standing model (tower) |
| Rack Mounting Kit | Not included — Eaton Singapore price list: 1 set of 744-A1994 rail kit required for rack mounting |
| Colour | Black |
| Local Warranty (Singapore) | 3 years on the UPS and its internal battery (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Rated Power | 11 kVA / 11 kW |
| Output Power Factor | 1 |
| Input Voltage Range | 176–276 V (100–276 V with derating) |
| Input Frequency Range | 40–70 Hz |
| Nominal Frequency | 50/60 Hz |
| Input Power Factor | >0.99 |
| Output Voltage | 230 V default (200/208/220/230/240 V) |
| Output Waveform | Sine wave (max. 1% distortion, linear load) |
| Output Connections | 8 x IEC C13 + 4 x IEC C19 + hardwired |
| Internal Bypass | Yes |
| Efficiency at Max. Load | 97% |
Battery
| Internal Battery | 20 x 12 V / 7 Ah, sealed lead-acid |
| Battery Management | ABM+ (predictive battery life) or temperature-compensated charging (user selectable); Automatic battery test; Deep discharge protection; Automatic recognition of external battery units |
| Battery Replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Extended Battery Capability | Yes |
Communications
| Communication Ports | USB port (HID compliant), serial port (RS232), mini-terminal block for remote On/Off, mini-terminal block for remote power off, mini-terminal block for dry contact outputs (2 contacts) |
| Potential-Free Switch Contact | Yes |
| Expansion Slot | One slot |
| Network Card Included | No |
| User Interface | Multilingual graphical LCD display |
| Software | Eaton Brightlayer software suite |
| Auto Shutdown | Yes |
Physical & Environmental
| Dimensions (W x H x D) | 440 x 174 x 724 mm |
| Weight | 78.8 kg |
| Noise Level | <37 dB at 1 m |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–95% non-condensing |
| Altitude | 3000 m |
| Compliances | LVD Directive (CB), EMC Directive, RoHS Directive, REACH, WEEE Directive, Packaging Directive, Batteries Directive |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR certified, CE, cULus, UKCA, Cm, Ukr, RCM, KCC, BSMI |
Compatibility & Software Support
What It Is Suited To
Server racks, storage, core switches, telecom and edge equipment that need a continuously regenerated sine-wave supply. The watt rating (11 kW) is the limit: total the continuous watts of everything you connect and leave headroom for growth.
Operating Systems and Software
The USB port is HID compliant, so common operating systems recognise the UPS as a power source. Eaton's Brightlayer software suite handles monitoring and orderly shutdown; the expansion slot takes an optional Eaton network card for monitoring over the LAN.
Connections and Installation

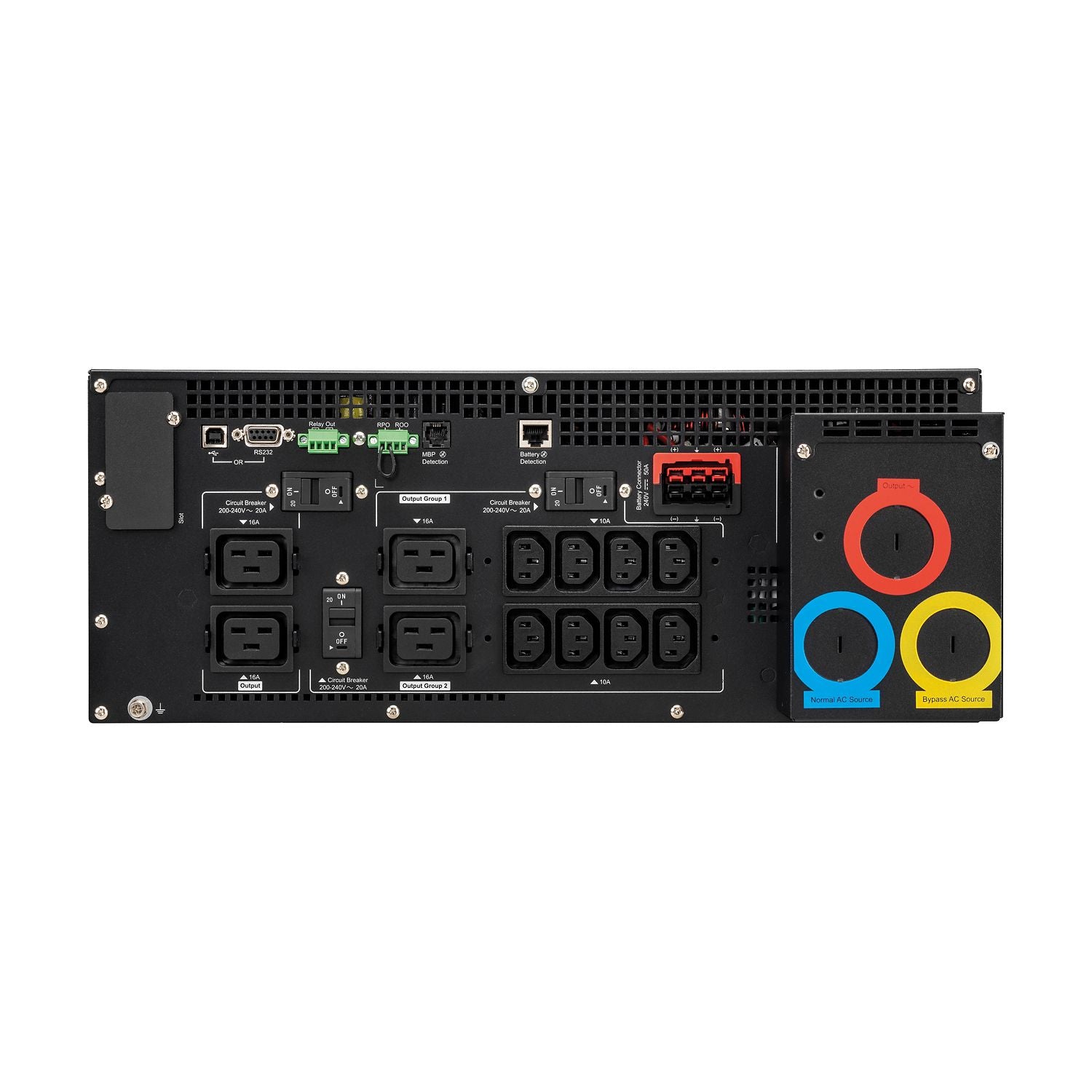

Output is 8 x IEC C13 + 4 x IEC C19 + hardwired. Eaton includes two IEC-IEC output cables (1.2 m) in the box. The hardwired output connection should be made by a licensed electrician; IEC outlets are not BS 1363 (Type G) sockets, so equipment with Type G plugs needs IEC leads or an IEC-input PDU. For maintenance without interrupting the load, pair it with the matching Eaton HotSwap MBP (MBP11KIG2).
Package Contents & 9SX Gen2 Ordering Information
In the Box
Per Eaton: UPS, 3 cable glands, 2 IEC-IEC output cables (1.2 m), USB cable (1.8 m), cable locking systems, supports for tower mounting, safety instructions and quick start guide.
Eaton 9SX Gen2 5–20 kVA Range — Ordering Information
| 9SX5KIRT3UG2 | 5000 VA / 5000 W | Rack/tower 3U, 8 x IEC C13 + 3 x IEC C19 + hardwired | 9104-52007 |
| 9SX6KIRT3UG2 | 6000 VA / 6000 W | Rack/tower 3U, 8 x IEC C13 + 3 x IEC C19 + hardwired | 9104-12943 |
| 9SX8KIG2 | 8 kVA / 8 kW | Free-standing, 8 x IEC C13 + 4 x IEC C19 + hardwired; rail kit 744-A1994 sold separately | 9104-22017 |
| 9SX11KIG2 (this listing) | 11 kVA / 11 kW | Free-standing, 8 x IEC C13 + 4 x IEC C19 + hardwired; rail kit 744-A1994 sold separately | 9104-32729 |
| 9SX15KPM | 15 kVA | Power module; external battery module purchased separately | 9106-52226EA1 |
| 9SX20KPM | 20 kVA | Power module; external battery module purchased separately | 9106-52217EA1 |
| MBP6KIG2 | HotSwap maintenance bypass | For 9PX Gen2 / 9SX Gen2 5–6 kVA | 9001-2054 |
| MBP11KIG2 | HotSwap maintenance bypass | For 9PX Gen2 / 9SX Gen2 8–11 kVA | 9001-2051 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 9SX11KIG2 specifications (eaton.com) |
| Eaton spec sheet | Eaton 9SX11KIG2 product specifications (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9SX11KIG2.
Frequently Asked Questions — Eaton 9SX11KIG2
What does online double-conversion mean?
The UPS converts incoming AC to DC and back to AC continuously, so the load always runs from the inverter. There is no transfer gap when the mains fails.
How do I size it — VA or watts?
With a unity power factor both are the same here: 11 kW. Total the continuous watts of your equipment and leave headroom.
How long will it run on battery?
Eaton's specification page for this model does not list runtimes. Runtime depends on load, battery age and temperature, and can be extended with external battery modules — send us your load in watts and we will estimate it.
Can I monitor it over the network?
Yes, with an optional Eaton network card in the expansion slot (not included). USB and RS232 are built in.
Can it be rack-mounted?
Eaton lists it as a free-standing model without a rack-mounting kit; Eaton's Singapore price list notes that 1 set of 744-A1994 rail kit is required for rack installation. Ask us to quote it together.
What warranty do I get?
3 years on the UPS and its internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
