Eaton 9SX 20kVA 20kW Online Double-Conversion Rack/Tower UPS Power Module, 3U (Battery Module Sold Separately)
PRODUCT DESCRIPTION
Eaton 9SX 20kVA/20kW Online Rack/Tower UPS Power Module (9SX20KPM, 9106-52217EA1) - 3 Years Local Warranty
20 kVA of Unity Power Factor Protection in 3U
The Eaton 9SX20KPM is a 20 kVA / 20 kW online double-conversion UPS power module with an output power factor of 1.0, so the full 20 kW is available to real IT load. It is built for Singapore server rooms, comms rooms and edge sites that have outgrown 11 kVA single-phase units but still want a compact rack/tower UPS rather than a floor-standing frame.
Eaton describes it as installable as either a tower or a rack model, taking 3U of rack space with a 438 mm, 19-inch width and a reduced depth suitable for racks down to 800 mm.
Power Module Only — Pair It with Eaton Battery Modules
This listing is the power module: it has no internal battery. Eaton lists the 9SXEBM384RT6U (±192 V) and 9SXEBM480RT6U (±240 V) external battery modules for the 9SX 15/20 kVA, and the battery voltage is adjustable between ±192 V and ±240 V with a 0–13 A adjustable charger (3 hours to 90% with 2 EBMs). Eaton's Singapore price list notes that the EBM must be purchased separately — tell us the runtime you need and we will size and quote the battery string.
Wide Input Window and High Efficiency
The module runs at full load from 160 V to 300 V, with linear derating from 100 V to 160 V, and keeps output within ±1% with under 1% THDv on linear loads. Input power factor is above 0.995 with input current THD of 3% (linear load), which keeps it friendly to generators and building supply.
Efficiency is up to 96% in online mode and up to 98.8% in Eaton ESS mode, cutting heat load and running cost in air-conditioned rooms.
Parallel for Capacity or Redundancy

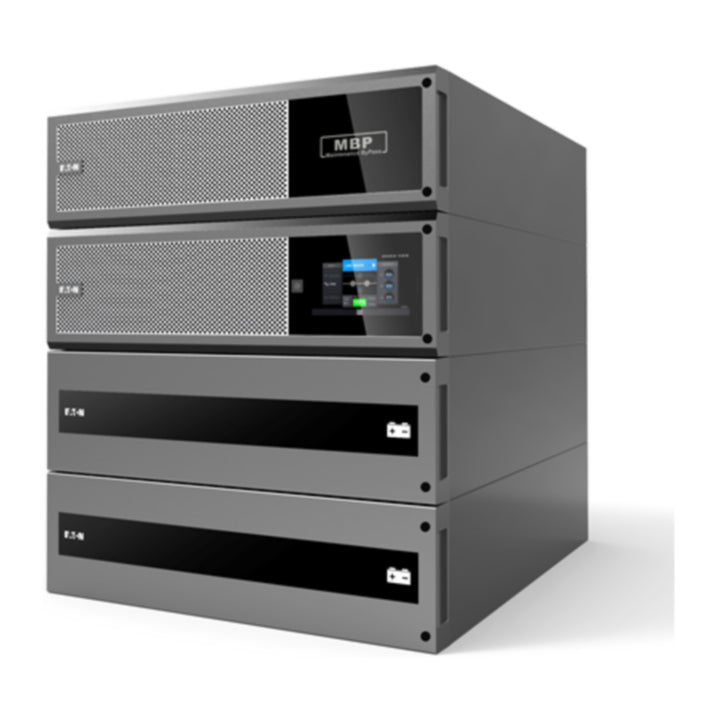

An integrated parallel card allows up to 3 units in parallel. Combine with the MBP20KPARA 1+1 parallel maintenance bypass for a redundant pair, or with the MBP20KPDU maintenance bypass for single-unit installs with IEC output sockets.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the 9SX in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives the 9SX 15/20 kVA power module 3 years.
Planning a 15–20 kVA single-phase-output UPS? Email sales@sourceit.com.sg with your load and runtime target.
Eaton 9SX20KPM Datasheet — Technical Specifications
General
| Product Name | Eaton 9SX 20kVA power module |
| Catalogue Number | 9SX20KPM |
| Part Number (SKU) | 9106-52217EA1 |
| Range | Eaton 9SX 15/20 kVA |
| Topology | Online double conversion |
| Form Factor | Rack/tower, 3U (19-inch, 438 mm wide) |
| Display | Colour touch LCD with gravity sensor |
| Manufacturer Warranty | 3 years on the UPS power module (Eaton Singapore price list) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Input
| Input Voltage | 160–300 V at full load; 100–160 V with linear derating |
| Input Frequency | 40–70 Hz |
| Input Power Factor | >0.995 |
| Input Current THD (THDi) | 3% linear load; 5% non-linear load |
Output
| Rated Power | 20 kVA / 20 kW |
| Output Power Factor | 1.0 |
| Output Voltage | Single-phase 220 / 230 / 240 V |
| Output Frequency | 50 / 60 Hz |
| Output Voltage Regulation | ±1% |
| Output Voltage THD | 1% linear load; 3% non-linear load |
| Crest Factor | 3:1 |
| Overload | 105–125%: 10 min; 125–150%: 1 min; >150%: 0.5 s |
| Efficiency | Up to 96% online; up to 98.8% in ESS mode |
| Parallel Operation | Up to 3 units (integrated parallel card) |
Battery
| Internal Battery | None — external battery modules required |
| Compatible Eaton EBMs | 9SXEBM384RT6U (±192 V), 9SXEBM480RT6U (±240 V) |
| Battery Voltage | ±192 V to ±240 V, adjustable |
| Charge Current | 0–13 A, adjustable |
| Recharge Time | 3 hours to 90% (2 EBMs) |
Communications
| Ports | RS232, USB 2.0 Type B, dry contacts, smart slot |
| Optional Accessories | Network-M3, INDGW-M2, EMPDT1H1C2 |
Physical & Environmental
| Dimensions (H x W x D) | 129 x 438 x 589 mm |
| Net Weight | 23.7 kg |
| Operating Temperature | 0–50 °C (no derating 0–40 °C; 50% derating 40–50 °C) |
| Storage Temperature | -25 to 60 °C |
| Humidity | 0–95% |
| Operating Altitude | 0–4000 m (no derating to 1000 m; 1% derating per 100 m above 1000 m) |
| Noise Level | ≤55 dB |
| Certifications | CE, TLC, RCM, CQC (per Eaton 9SX 15/20 kVA brochure) |
Compatibility & Software Support
What It Is Suited To
Server rooms, network and comms rooms, CCTV head-ends, lab and light-industrial IT loads up to 20 kW on single-phase 220–240 V output. Size on watts: total the continuous load and leave headroom for growth and inrush.
Monitoring and Shutdown
RS232 and USB 2.0 are built in, with dry contacts and a smart slot for an Eaton Network-M3 card (SNMP/web monitoring and network shutdown) or an INDGW-M2 industrial gateway card. Eaton also lists the EMPDT1H1C2 environmental monitoring probe as an accessory.
Batteries and Bypass
There is no internal battery: plan the 9SXEBM384RT6U or 9SXEBM480RT6U battery modules with the power module. For maintenance without dropping the load, Eaton offers the MBP20KPDU (bypass with IEC output sockets) and MBP20KPARA (1+1 parallel bypass).
Package Contents & 9SX 15–20 kVA Ordering Information
In the Box
Eaton 9SX power module with user documentation. Eaton's 9SX 15/20 kVA brochure does not list the carton contents, so confirm installation accessories with us before ordering. Battery modules are not included.
Eaton 9SX 15–20 kVA — Ordering Information
| 9SX15KPM | 15 kVA / 15 kW UPS power module (EBM sold separately) | 9106-52226EA1 |
| 9SX20KPM (this listing) | 20 kVA / 20 kW UPS power module (EBM sold separately) | 9106-52217EA1 |
| MBP20KPDU | Maintenance bypass with IEC output sockets, 20 kVA | 9001-2044 |
| MBP20KPARA | 1+1 parallel maintenance bypass, 40 kVA | 9001-2045 |
External battery modules 9SXEBM384RT6U / 9SXEBM480RT6U are ordered separately; ask SourceIT for pricing and runtime sizing.
Datasheet & Downloads
| Eaton brochure | Eaton 9SX 15/20 kVA UPS brochure (PDF, Spanish) |
| Eaton MBP specification | Eaton 9SX 15-20kVA MBP Technical Specification (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9SX20KPM.
Frequently Asked Questions — Eaton 9SX20KPM
Does it include batteries?
No. This is the power module only. Eaton's Singapore price list states the EBM must be purchased separately; Eaton lists the 9SXEBM384RT6U and 9SXEBM480RT6U for this model.
Is the output single-phase?
Yes. Eaton specifies single-phase 220 / 230 / 240 V output at 50 / 60 Hz.
Can I rack-mount it?
Yes. Eaton describes it as rack or tower installable, 3U high and 438 mm wide, suited to racks from 800 mm deep.
Can two units run in parallel?
Yes. The integrated parallel card supports up to 3 units. For a 1+1 pair with maintenance bypass, add the MBP20KPARA.
How long will it run on battery?
Runtime depends on the number and type of battery modules and the load. Send us your load in kW and target runtime and we will quote a battery configuration from Eaton's runtime table.
What warranty do I get?
3 years on the power module per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
