Eaton 9PX Gen2 Lithium-ion 11000VA 11000W Online Rack/Tower 4U UPS, 8x C39 + 8x C13, Network Card Included
PRODUCT DESCRIPTION
Eaton 9PX Gen2 Lithium-ion 11 kVA/11 kW RT4U UPS (9PX11KIRTNG2-L, 9104-LB32005) - 5 Years Local Warranty
Next-Generation Efficiency and Lifetime, Powered by Lithium-ion

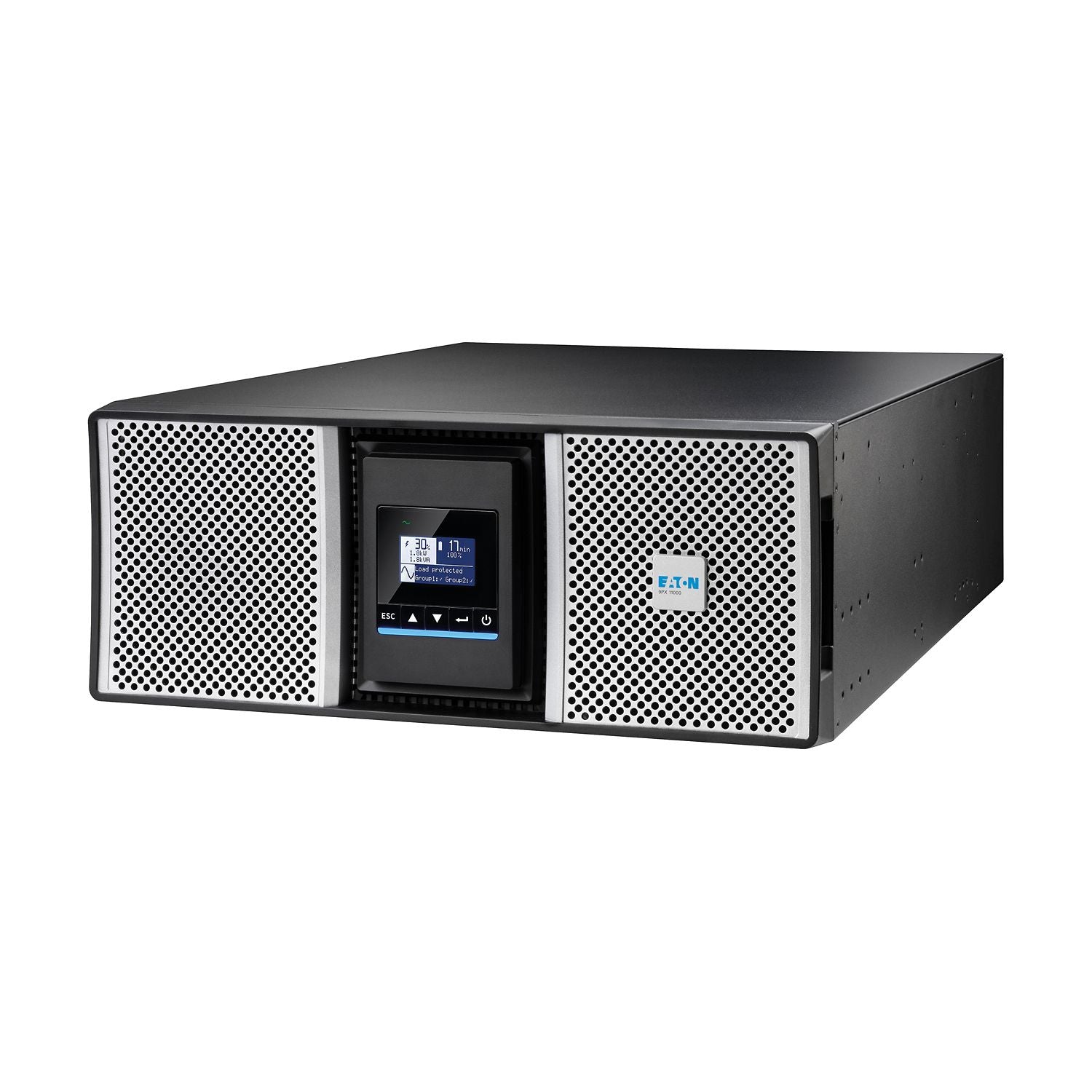

The Eaton 9PX11KIRTNG2-L is an 11000 VA / 11000 W online double-conversion UPS from the 9PX Gen2 Lithium-ion range, in a 4U rack/tower chassis. Eaton rates its lithium iron phosphate (LFP) battery for 8–10 years of service life, so Singapore data rooms and edge sites can avoid the mid-life battery replacement typical of lead-acid UPS.
Efficient, Dense and Metered
Efficiency is up to 97.2% in online mode. Output is via 8 x IEC C39 + 8 x IEC C13 outlets in 2 manageable groups with energy metering, and the input is a hardwired terminal block.
Network Card Included, Scalable Runtime
An Eaton Network-M3 card is included for web/SNMP monitoring and network shutdown. Runtime can be extended with up to four 9PXEBM192RT2UG2-L lithium-ion battery modules.
Supplied Locally with GST Invoice and 5-Year Warranty
SourceIT supplies the 9PX Gen2 Lithium-ion in Singapore with a full GST invoice and local warranty support. Eaton's datasheet lists a 5-year full warranty (electronics, internal batteries and EBM), matching Eaton's Singapore price list.
Need runtime sized for your rack? Email sales@sourceit.com.sg with your load in watts.
Eaton 9PX11KIRTNG2-L Datasheet — Technical Specifications
General
| Product Name | Eaton 9PX Gen2 Lithium-ion 11 kVA |
| Catalogue Number | 9PX11KIRTNG2-L |
| Part Number (SKU) | 9104-LB32005 |
| Range | Eaton 9PX Gen2 Lithium-ion |
| Topology | Online double conversion |
| Form Factor | Rack/tower 4U (RT4U) |

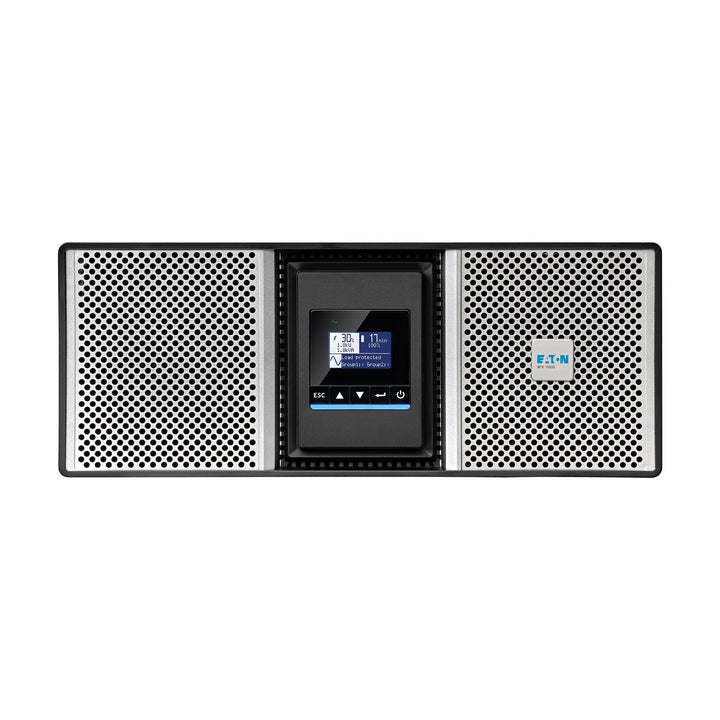

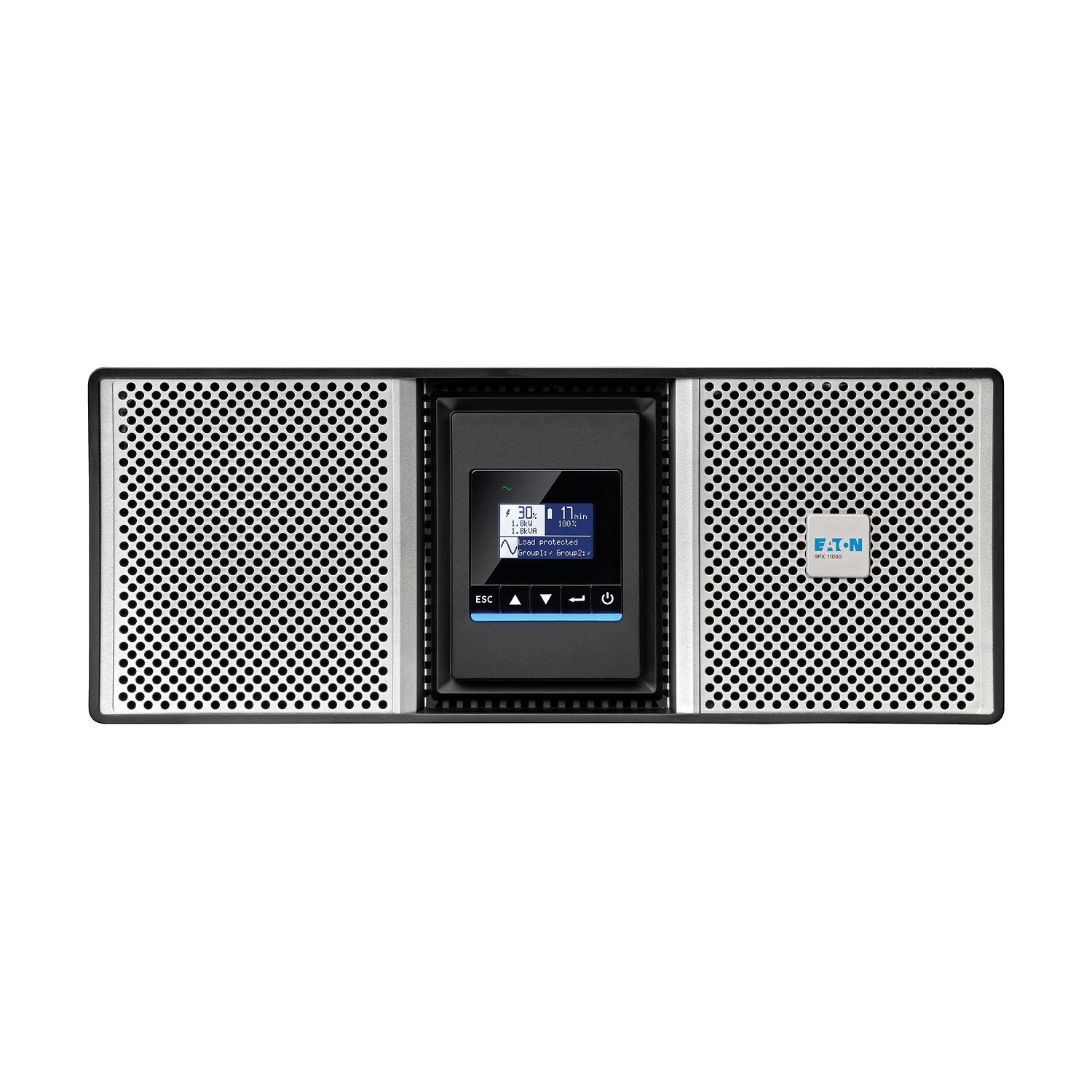

| Display | Graphical LCD display with LED status bar |
| Manufacturer Warranty | 5 years full warranty (electronics, internal batteries and EBM) — Eaton datasheet TD153037EN |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Input
| Input Voltage Range | 176–276 V without derating (100–276 V up to 40% load) |
| Frequency | Input 40–70 Hz; output 50/60 Hz auto-select |
| Input Connection | Terminal block |
Output
| Rated Power | 11000 VA / 11000 W |
| Output Voltage | 230 V (adjustable to 200 / 208 / 220 / 240 V) |
| Output Outlets | 8 x IEC C39 + 8 x IEC C13 (2 manageable groups, energy metering) |
| Efficiency | Up to 97.2% in online mode |
Battery & Runtime (Eaton published: internal / +1 EBM / +4 EBM)
| Battery Type | Lithium-ion (LFP) |
| Battery Service Life | 8–10 years |
| 2200 W | 39 / 90 / 226 min |
| 5500 W | 16 / 36 / 91 min |
| 8800 W | 10 / 22 / 57 min |
| 11000 W | 8 / 18 / 45 min |
| Compatible EBM | 9PXEBM192RT2UG2-L (up to 4) |
Communications

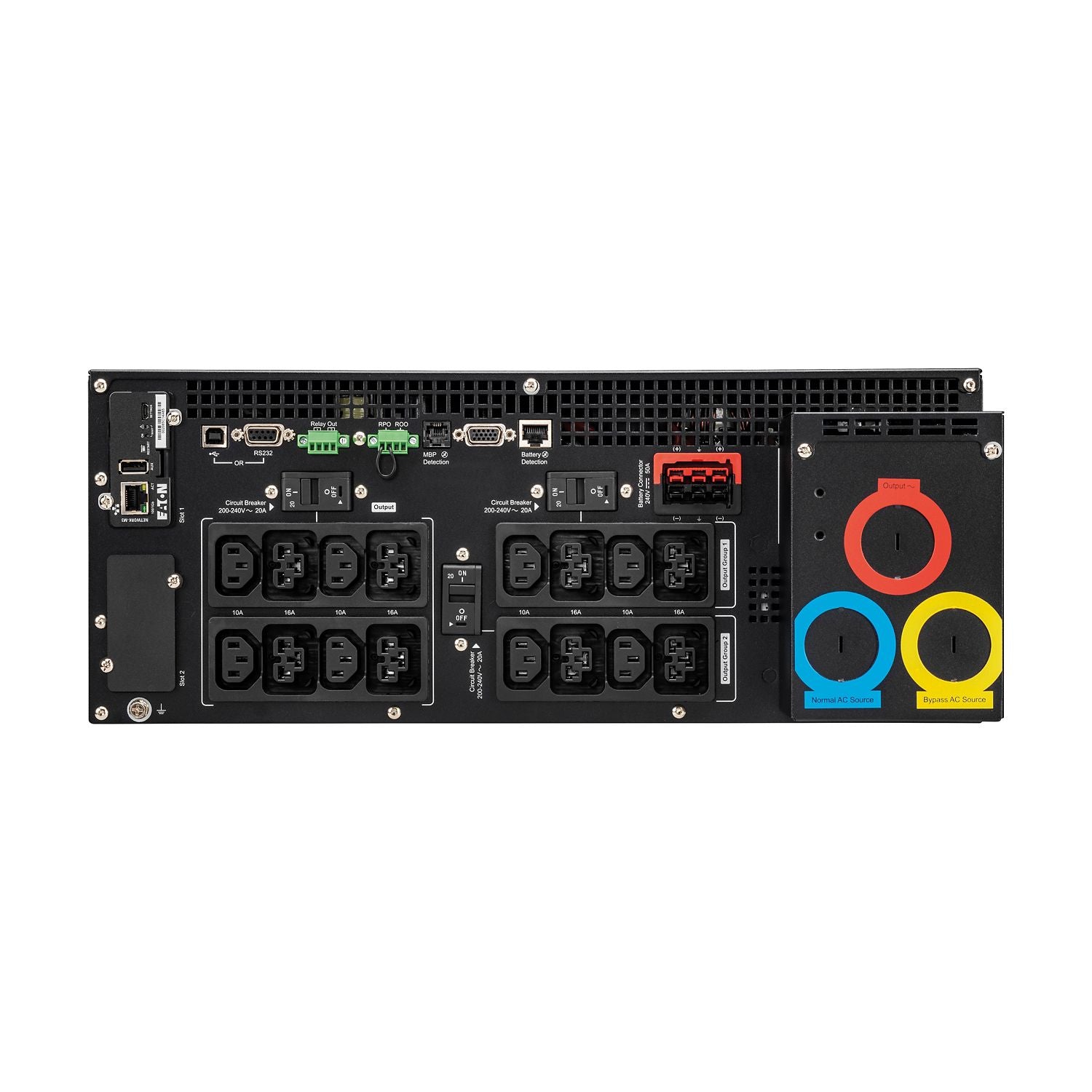

| Ports | 1 x USB, 1 x RS232, 4 dry-contact terminal blocks |
| Card Slots | 2 slots: 1 with Network-M3 card included, 1 for optional cards (INDGW-M3, Relay-MS, INDRELAY-MS) |
Physical & Environmental
| Dimensions (W x H x D) | 440 x 174 x 724 mm |
| Weight | 60 kg |
| Noise Level | 38 dB |
| Operating Temperature | 0–40 °C |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| EMC / Performance | IEC/EN 62040-2, FCC Class A, IEC/EN 62040-3 |
Compatibility & Software Support
What It Is Suited To
The 9PX11KIRTNG2-L suits server racks, storage and critical edge equipment up to 11000 W where long battery life and low maintenance matter. The terminal-block input needs a dedicated circuit installed by a licensed electrician.
Monitoring and Shutdown
The included Network-M3 card provides web and SNMP monitoring and works with Eaton Intelligent Power Manager for orderly shutdown of multiple servers and virtualised hosts.
Package Contents & 9PX Gen2 Ordering Information
In the Box
Eaton 9PX Gen2 Lithium-ion UPS with the Network-M3 card, plus user documentation. Eaton's datasheet does not list the full carton contents, so confirm rail kit and cables with us before ordering.
Eaton 9PX Gen2 5–11 kVA — Ordering Information
| 9PX5KIRTNG2 | 5000 VA / 5000 W, 3U, VRLA | 9104-52006 |
| 9PX6KIRTNG2 | 6000 VA / 6000 W, 3U, VRLA | 9104-12942 |
| 9PX8KIRTNG2 | 8000 VA / 8000 W, 4U, VRLA | 9104-22016 |
| 9PX11KIRTNG2 | 11000 VA / 11000 W, 4U, VRLA | 9104-32727 |
| 9PX6KIRTNG2-L | 6000 VA / 6000 W, 3U, Lithium-ion | 9104-LB12011 |
| 9PX11KIRTNG2-L (this listing) | 11000 VA / 11000 W, 4U, Lithium-ion | 9104-LB32005 |
Eaton notes on the Singapore price list that 9PX Lithium order quantities must be in multiples of the MOQ; ask us for current availability.
Datasheet & Downloads
| Eaton datasheet | Eaton 9PX Gen2 Lithium-ion UPS Datasheet, TD153037EN (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9PX11KIRTNG2-L.
Frequently Asked Questions — Eaton 9PX11KIRTNG2-L
Why choose the lithium-ion version?
Eaton rates the LFP battery for 8–10 years of service life and backs the UPS, internal batteries and EBM with a 5-year full warranty, so you avoid the typical mid-life lead-acid battery swap.
How long will it run on battery?
Eaton publishes 39 min at 2200 W and 8 min at 11000 W on the internal battery; see the runtime table for EBM figures.
Does it plug into a wall socket?
No. The input is a hardwired terminal block and needs a dedicated circuit installed by a licensed electrician.
What warranty do I get?
5 years full warranty on the electronics, internal batteries and EBM, supplied by SourceIT with local Singapore support and a GST invoice.
