Eaton 9PX Gen2 8000VA 8000W Online Rack/Tower 4U UPS, 8x C39 + 8x C13, Network Card Included
PRODUCT DESCRIPTION
Eaton 9PX Gen2 8 kVA/8 kW RT4U Netpack UPS (9PX8KIRTNG2, 9104-22016) - 3 Years Local Warranty

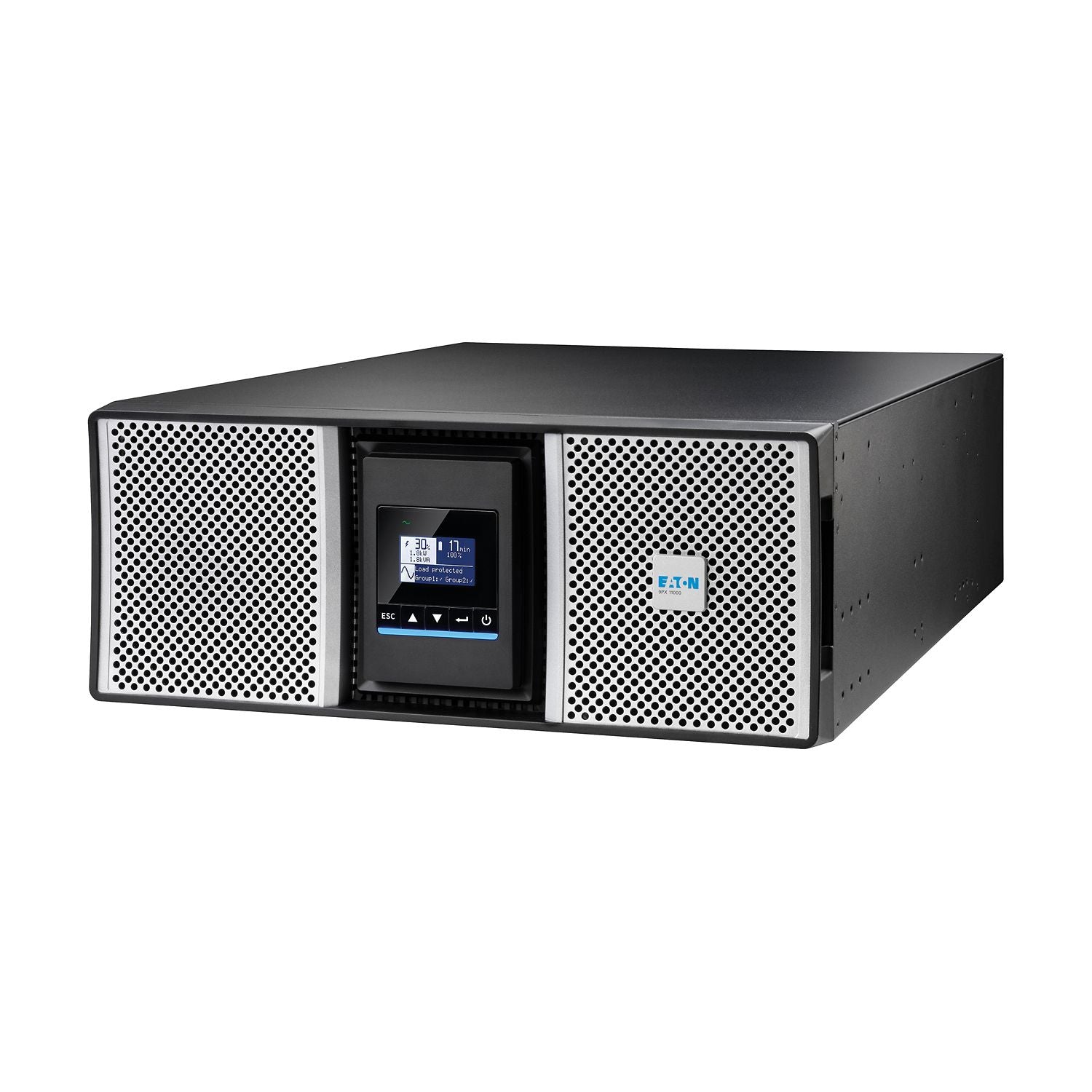

8 kW of Online Power in 4U
The Eaton 9PX8KIRTNG2 is an 8000 VA / 8000 W online double-conversion UPS from the 9PX Gen2 range, in a 4U rack/tower chassis. For Singapore server rooms, comms rooms and edge sites it regulates voltage and frequency continuously, with a unity power factor so the full kVA rating is usable as kW. Eaton highlights power density of up to 11 kW in 4U and 6 kW in 3U across the range.
Silicon Carbide Efficiency
Eaton uses the latest generation of silicon carbide (SiC) components in the 9PX Gen2 for efficiency of up to 97.2% in online mode, helping to cut energy and cooling costs in a warm Singapore equipment room.
Combo C39 Outlets and Terminal Block Output
Output is via 8 x IEC C39 + 8 x IEC C13 + terminal block in 2 controlled groups, and the input is hardwired to a terminal block (up to 16 mm²). Plan for an electrician to wire the input and, where needed, the output terminal block.
Network Card Included, Scalable Runtime
The "N" Netpack model ships with an Eaton Network-M3 card for web/SNMP monitoring and network shutdown. Runtime can be extended with up to four 9PXEBM240RT3UG2 battery modules, and Eaton's ABM+ battery management provides predictive battery-life information.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the 9PX Gen2 in Singapore with a full GST invoice and local warranty support; Eaton's Singapore price list gives 3 years on the UPS and its internal battery.
Need runtime sized for your rack? Email sales@sourceit.com.sg with your load in watts.
Eaton 9PX8KIRTNG2 Datasheet — Technical Specifications
General
| Product Name | Eaton 9PX Gen2 8 kVA |
| Catalogue Number | 9PX8KIRTNG2 |
| Part Number (SKU) | 9104-22016 |
| Range | Eaton 9PX Gen2 5–11 kVA |
| Topology | Online double conversion with Power Factor Correction (PFC) |
| Form Factor | Rack/tower 4U (19") |

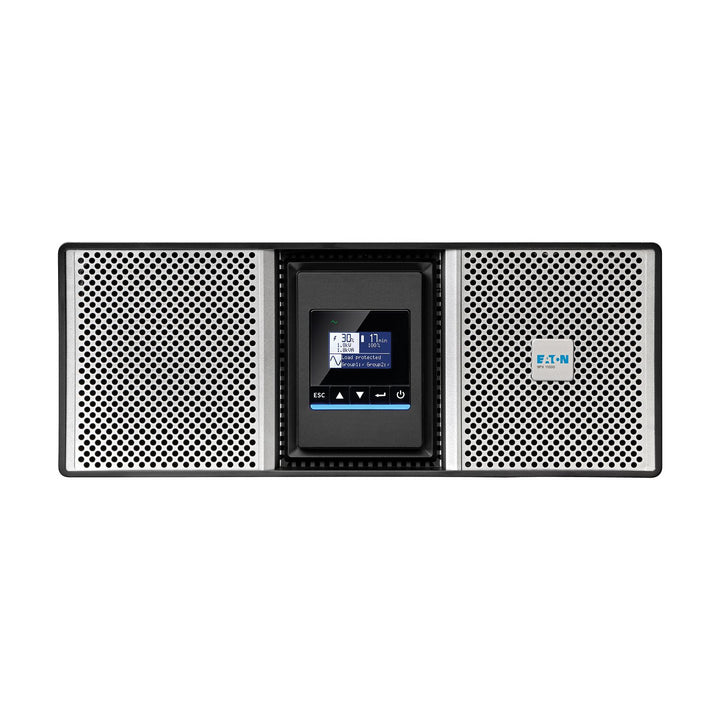

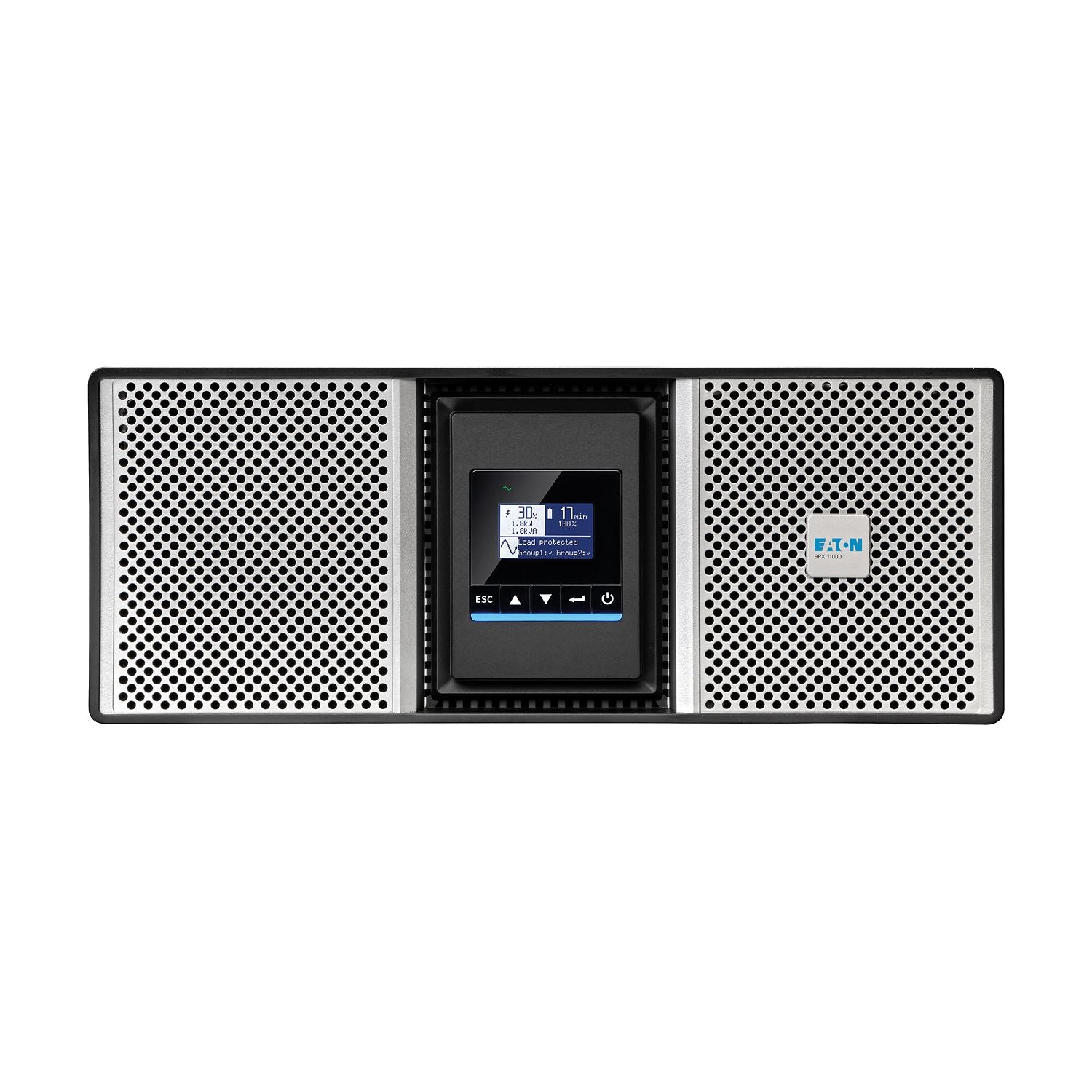

| Display | Graphical LCD display with LED status bar |
| Local Warranty (Singapore) | 3 years on the UPS and internal battery (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Input
| Nominal Voltage | 200 / 208 / 220 / 230 / 240 V |
| Input Voltage Range | 176–276 V without derating (up to 100–276 V with derating) |
| Frequency | 40–70 Hz, 50/60 Hz auto-selection, frequency converter as standard |
| Input Connection | Terminal block (up to 16 mm²) |
Output
| Rated Power | 8000 VA / 8000 W |
| Output Voltage | 200 / 208 / 220 / 230 / 240 V ±1%; THDv <1% |
| Output Connections | 8 x IEC C39 + 8 x IEC C13 + terminal block (2 controlled groups) |
| Efficiency | Up to 97.2% in online mode |
Battery & Runtime (Eaton published: internal / +1 EBM / +4 EBM)
| Battery Management | ABM+ (predictive battery life) and temperature-compensated charging, automatic battery test, deep discharge protection, automatic recognition of external battery units |
| 1000 W | 82 / 180 / 515 min |
| 2000 W | 38 / 85 / 235 min |
| 4000 W | 15 / 37 / 111 min |
| 6000 W | 8.5 / 22 / 70 min |
| 8000 W | 5.5 / 15 / 51 min |
| Compatible EBM | 9PXEBM240RT3UG2 (up to 4) |
Communications
| Ports | 1 x USB, 1 x RS232 (not usable simultaneously), 4 mini terminal blocks |
| Card Slots | 2 slots: 1 with Network-M3 card included, 1 for optional cards |
Physical & Environmental
| Dimensions (W x H x D) | 440 x 174 x 725 mm |
| Weight | 78.8 kg |
| Noise Level | 38 dB (below 66% load, ambient below 30 °C) |
| Operating Temperature | 0–40 °C continuous |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| EMC / Performance | IEC/EN 62040-2, FCC Class A, IEC/EN 62040-3 |
Compatibility & Software Support
What It Is Suited To
The 9PX8KIRTNG2 suits server racks, storage, network cores and critical edge equipment up to 8000 W. Because input is a hardwired terminal block, installation needs a suitably rated dedicated circuit from a licensed electrician.
Monitoring and Shutdown
The included Network-M3 card provides web and SNMP monitoring and works with Eaton Intelligent Power Manager for orderly shutdown of multiple servers and virtualised hosts. USB and RS232 are available for a single host.
Maintenance Bypass
Eaton lists the HotSwap maintenance bypass MBP11KIG2 for the 9PX Gen2, allowing the UPS to be serviced or replaced without powering down the load.
Package Contents & 9PX Gen2 Ordering Information
In the Box
Eaton 9PX Gen2 UPS with the Network-M3 card fitted, plus user documentation. Eaton's datasheet does not list the full carton contents, so confirm rail kit and cables with us before ordering.
Eaton 9PX Gen2 5–11 kVA — Ordering Information
| 9PX5KIRTNG2 | 5000 VA / 5000 W, 3U, VRLA | 9104-52006 |
| 9PX6KIRTNG2 | 6000 VA / 6000 W, 3U, VRLA | 9104-12942 |
| 9PX8KIRTNG2 (this listing) | 8000 VA / 8000 W, 4U, VRLA | 9104-22016 |
| 9PX11KIRTNG2 | 11000 VA / 11000 W, 4U, VRLA | 9104-32727 |
| 9PX6KIRTNG2-L | 6000 VA / 6000 W, 3U, Lithium-ion | 9104-LB12011 |
| 9PX11KIRTNG2-L | 11000 VA / 11000 W, 4U, Lithium-ion | 9104-LB32005 |
Accessories: extended battery module 9PXEBM240RT3UG2; HotSwap maintenance bypass MBP11KIG2. Ask us for pricing and availability.
Datasheet & Downloads
| Eaton datasheet | Eaton 9PX Gen2 UPS Datasheet, TD153035EN (PDF) |
| Eaton user manual | Eaton 9PX Gen2 5–11 kVA Advanced User Manual (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9PX8KIRTNG2.
Frequently Asked Questions — Eaton 9PX8KIRTNG2
Does it plug into a wall socket?
No. The input is a hardwired terminal block, so it needs a dedicated circuit installed by a licensed electrician.
How long will it run on battery?
Eaton publishes 82 min at 1000 W and 5.5 min at 8000 W on the internal battery; see the runtime table for figures with one and four 9PXEBM240RT3UG2 modules.
What does the "N" in NG2 mean?
It is the Netpack version: an Eaton Network-M3 card is included for network monitoring and shutdown.
What warranty do I get?
3 years on the UPS and internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
