Eaton 9PX 8kVA 7.2kW Online Rack/Tower UPS, 6U, 3-Phase In / 1-Phase Out, Hot-Swap Batteries
PRODUCT DESCRIPTION
Eaton 9PX 8kVA 3:1 Online Rack/Tower UPS (9PX8KIRT31, 9PX8KiRT31) - 3 Years Local Warranty
Three-Phase Input, Single-Phase Output for Server Rooms and Critical Loads
The Eaton 9PX8KiRT31 is an 8000 VA / 7200 W online double-conversion UPS in Eaton's "3:1" configuration: it takes a 380/400/415 V three-phase supply and delivers a regulated single-phase output. For Singapore server rooms, labs, clinics and control rooms that have three-phase distribution but single-phase IT loads, this spreads the UPS draw across all three phases of the incoming supply instead of loading one.
Online double conversion means the load always runs from the inverter, so it is isolated from sags, surges, frequency drift and electrical noise on the mains. Eaton rates output voltage at ±1% with THDu below 2%.
Wide Input Window and High Efficiency
Eaton specifies an input range of 305–480 V without derating (down to 175 V with derating) at 40–70 Hz, with input THDi below 5%. Efficiency is up to 94% in online mode and up to 98% in Eaton's Hi-Efficiency mode, which keeps running costs and heat load in the room down.
Rack/Tower 6U with Hot-Swappable Batteries

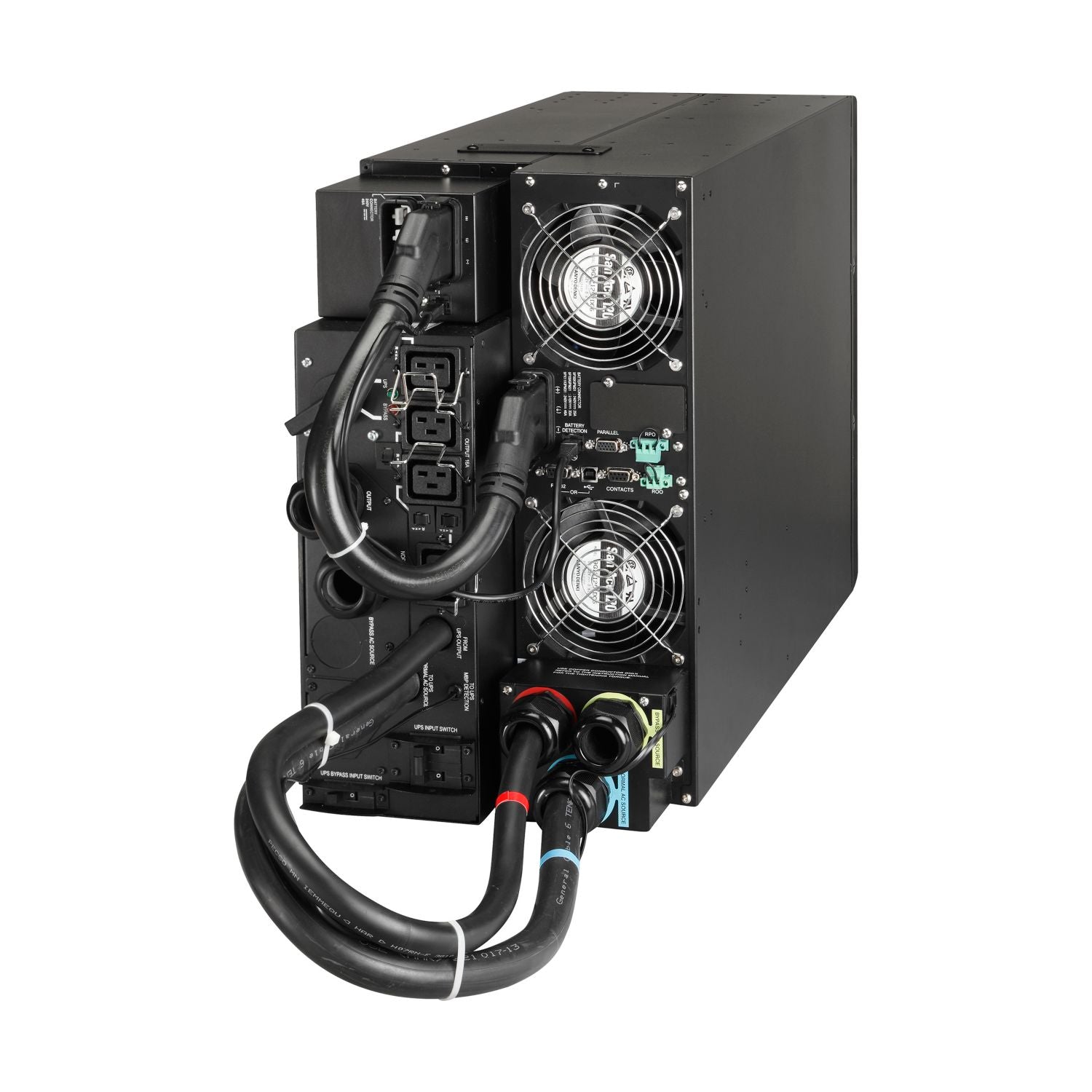

The 9PX8KiRT31 is a 6U unit made of a 3U power module and a 3U battery module, supplied with a rack kit and able to stand as a tower. Batteries can be replaced without powering down the load, and Eaton allows up to 12 external hot-swappable battery modules (9PXEBM240RT) for extended runtime. Two units can be paralleled for twice the power.
Runtime You Can Plan Around
Eaton publishes these backup times for the 8 kVA 3:1 model: 50% load: 20 min; 70% load: 15 min; 50% / 70% load + 1 EBM: 48 min / 32 min; 50% / 70% load + 4 EBM: 140 min / 100 min. Runtime depends on the actual load, battery age and room temperature, so treat these as planning figures and size with headroom.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the Eaton 9PX in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives 3 years on the UPS and its battery. Three-phase UPS installations need a licensed electrician for the terminal-block wiring; tell us about your site and we can help plan it.
Need help choosing between 6, 8 and 11 kVA? Email sales@sourceit.com.sg with your load and runtime target.
Eaton 9PX8KiRT31 Datasheet — Technical Specifications
General
| Product Name | Eaton 9PX 8kVA 3:1 RT6U |
| Catalogue Number | 9PX8KIRT31 |
| Part Number (SKU) | 9PX8KiRT31 |
| Range | Eaton 9PX (5–11 kVA) |
| Topology | Online double conversion |
| Form Factor | Rack/Tower, 6U (3U power module + 3U battery module), rack kit included |
| Manufacturer Warranty | 3 years (Eaton 9PX 5–11 kVA East Asia brochure) |
| Local Warranty (Singapore) | 3 years on the UPS and battery, supplied by SourceIT with a GST invoice |
Input
| Input Voltage | 380/400/415 V three-phase (3:1) |
| Input Voltage Range | 305–480 V without derating (175–480 V with derating) |
| Input Frequency | 40–70 Hz, 50/60 Hz auto-selection, frequency converter as standard |
| Input THDi | <5% |
| Input Connection | Terminal block (up to 16 mm²) |
Output
| Rated Power | 8000 VA / 7200 W |
| Output Voltage | 200/208/220/230/240 V ±1% (single-phase) |
| Output THDu | <2% |
| Output Connections | Terminal block + 2 x IEC C19 (16 A) |
| Overload | 102–110%: 120 s; 110–125%: 60 s; 125–150%: 10 s; >150%: 900 ms |
| Efficiency | Up to 94% online mode; up to 98% Hi-Efficiency mode |
Backup Time (Eaton published)
| 50% load | 20 min |
| 70% load | 15 min |
| 50% / 70% load + 1 EBM | 48 min / 32 min |
| 50% / 70% load + 4 EBM | 140 min / 100 min |
Battery
| Battery Replacement | Hot-swappable battery modules |
| Extended Battery Module | 9PXEBM240RT (3U, with rack kit) |
| Maximum External Battery Modules | Up to 12 |
Communications
| Ports | 1 x USB, 1 x RS232 serial, 4 dry contacts (DB9) |
| Remote Control | 1 mini terminal block for remote On/Off, 1 for remote power off (RPO) |
| Parallel | 1 x DB15 for parallel operation (up to twice the power) |
| Card Slot | 1 communication slot for an optional Eaton network card |

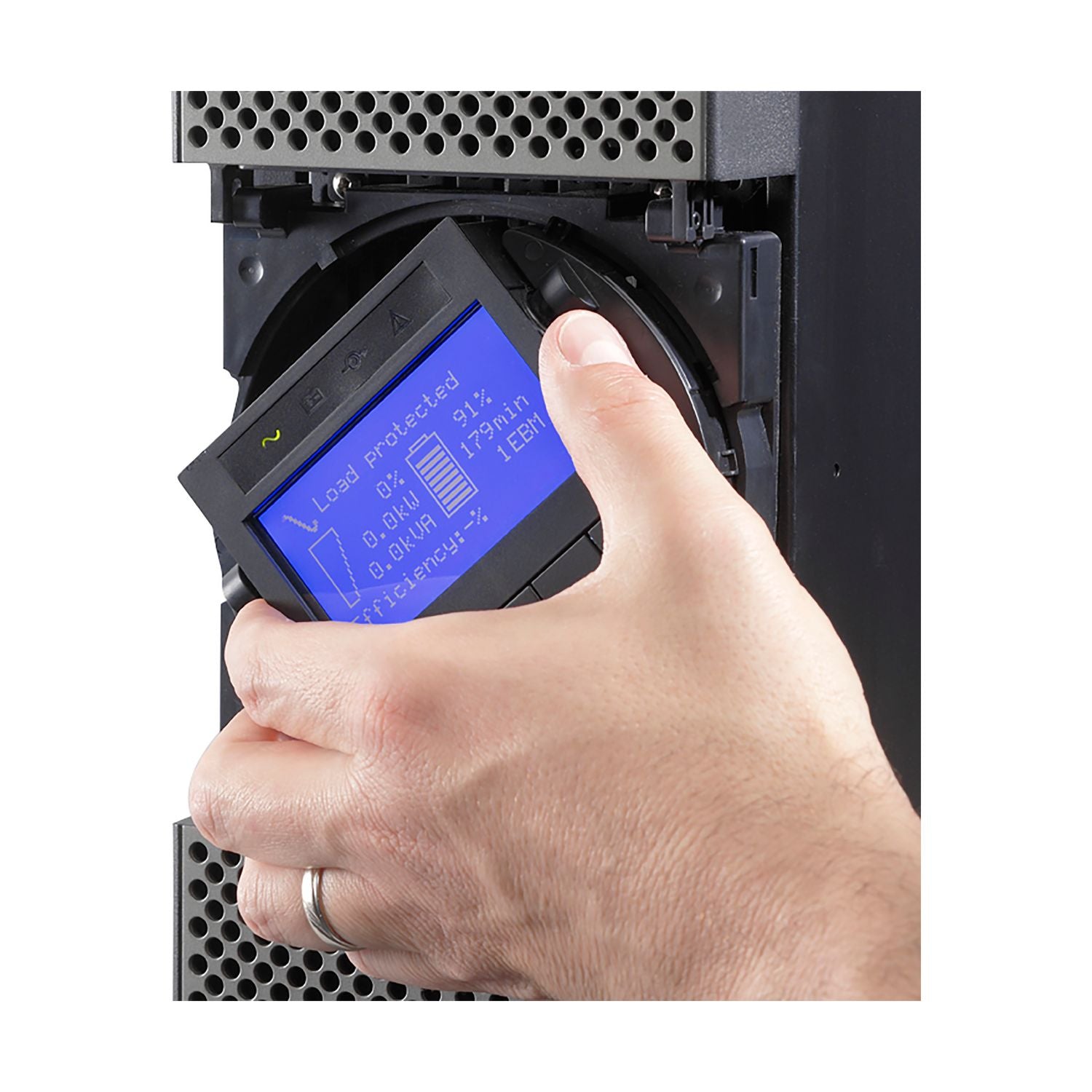

| Display | Graphical LCD, tilts 45° |
Physical & Environmental
| Dimensions — UPS (W x H x D) | 440 x 260 (3U + 3U) x 700 mm |
| Dimensions — Power Module | 440 x 130 (3U) x 700 mm |
| Dimensions — EBM | 440 x 130 (3U) x 680 mm |
| Weight — UPS | 88 kg |
| Weight — Power Module | 23 kg |
| Weight — EBM | 65 kg |
| Noise Level | <48 dB |
| Operating Temperature | 0–40 °C continuous |
| Standards | IEC/EN 62040-1 (safety), IEC/EN 62040-2 (EMC) |
| Certifications | CE, CB report (TÜV) |
Compatibility & Software Support
What It Is Suited To
The 9PX8KiRT31 suits sites with a three-phase supply feeding single-phase critical loads: server and network racks, storage, lab and medical equipment, and building control systems. Keep the total continuous load under 7.2 kW and leave headroom for growth; the watt figure, not the VA figure, is the limit.
Monitoring and Shutdown
USB and RS232 ports connect the UPS to a host for monitoring and shutdown, dry contacts signal alarms to building management, and the communication slot takes an optional Eaton network card for SNMP/web monitoring and network-wide shutdown.
Electrical Installation

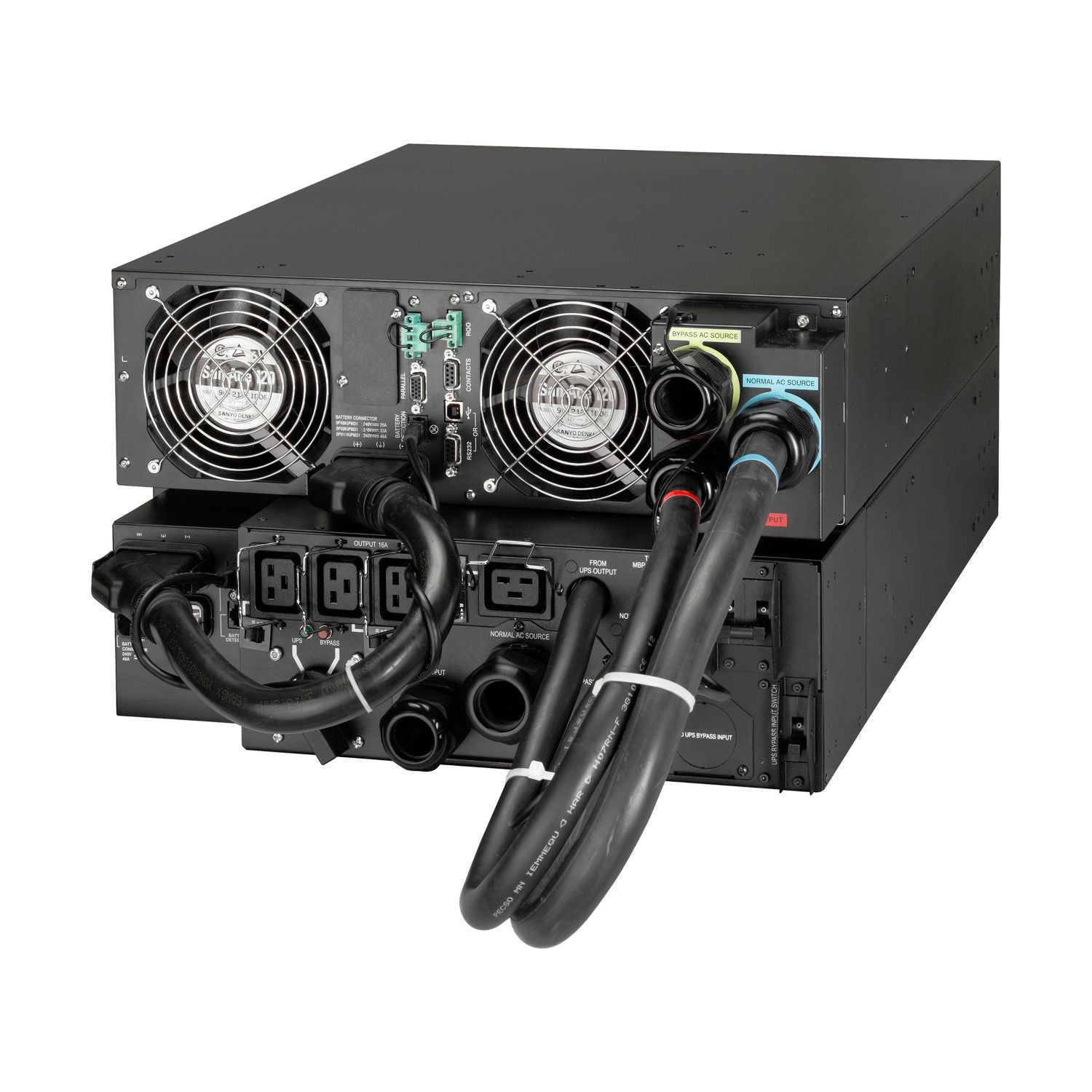

Input and main output are on terminal blocks, so installation must be carried out by a qualified electrician. Two IEC C19 (16 A) sockets are also provided on the output. For maintenance without shutting the load down, add the HotSwap MBP11Ki31 bypass.
Package Contents & 9PX 3:1 Ordering Information
In the Box
Eaton lists the 9PX8KiRT31 as "UPS with rack kit" (power module and battery module). The brochure does not detail the other carton contents, so confirm cables and accessories with us before ordering if they matter to your installation.
Eaton 9PX 6–11 kVA 3:1 Range — Ordering Information
| 9PX6KiRT31 | 6000 VA / 5400 W | 3-phase in / 1-phase out, RT6U | 9PX6KiRT31 |
| 9PX8KiRT31 (this listing) | 8000 VA / 7200 W | 3-phase in / 1-phase out, RT6U | 9PX8KiRT31 |
| 9PX11KiRT31 | 11000 VA / 10000 W | 3-phase in / 1-phase out, RT6U | 9PX11KiRT31 |
| MBP11Ki31 | HotSwap maintenance bypass, 11 kVA 3:1 | 4 x IEC C19 + hardwired | MBP11Ki31 |
| 9PXEBM240RT | Extended battery module (with rack kit) | 3U, 65 kg | Ask us |
Eaton also offers the newer 9PX Gen2 5–11 kVA (single-phase input) range; ask us if your site has no three-phase supply.
Datasheet & Downloads
| Eaton brochure | Eaton 9PX UPS 5–11 kVA Brochure — East Asia (PDF) |
| Eaton datasheet | Eaton 9PX UPS 5/6/8/11 kVA Datasheet (PDF) |
| Maintenance bypass | Eaton HotSwap MBP11Ki31 specifications |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9PX8KiRT31.
Frequently Asked Questions — Eaton 9PX8KiRT31
What does "3:1" mean?
Three-phase input, single-phase output. The UPS connects to a 380/400/415 V three-phase supply and delivers 200–240 V single-phase to the load.
How long will it run on battery?
Eaton publishes 50% load: 20 min; 70% load: 15 min; 50% / 70% load + 1 EBM: 48 min / 32 min; 50% / 70% load + 4 EBM: 140 min / 100 min. Send us your load in watts and target runtime and we will size the number of 9PXEBM240RT modules.
Can I replace batteries without shutting down?
Yes. Eaton specifies hot-swappable battery modules, and up to 12 external battery modules can be connected.
Does it support network monitoring?
It has one communication slot for an optional Eaton network card, plus USB, RS232 and dry-contact ports as standard.
What warranty do I get?
3 years on the UPS and battery, supplied by SourceIT with local Singapore support and a GST invoice.
