Eaton 3P Ellipse 700VA 420W Standby UPS, 4x IEC C13, USB Charging
PRODUCT DESCRIPTION
Eaton 3P Ellipse 700VA/420W USB IEC UPS (3P700UI, 9400-5367) - 3 Years Local Warranty
Compact Back-Up Power for Home Offices, Counters and Small Networks

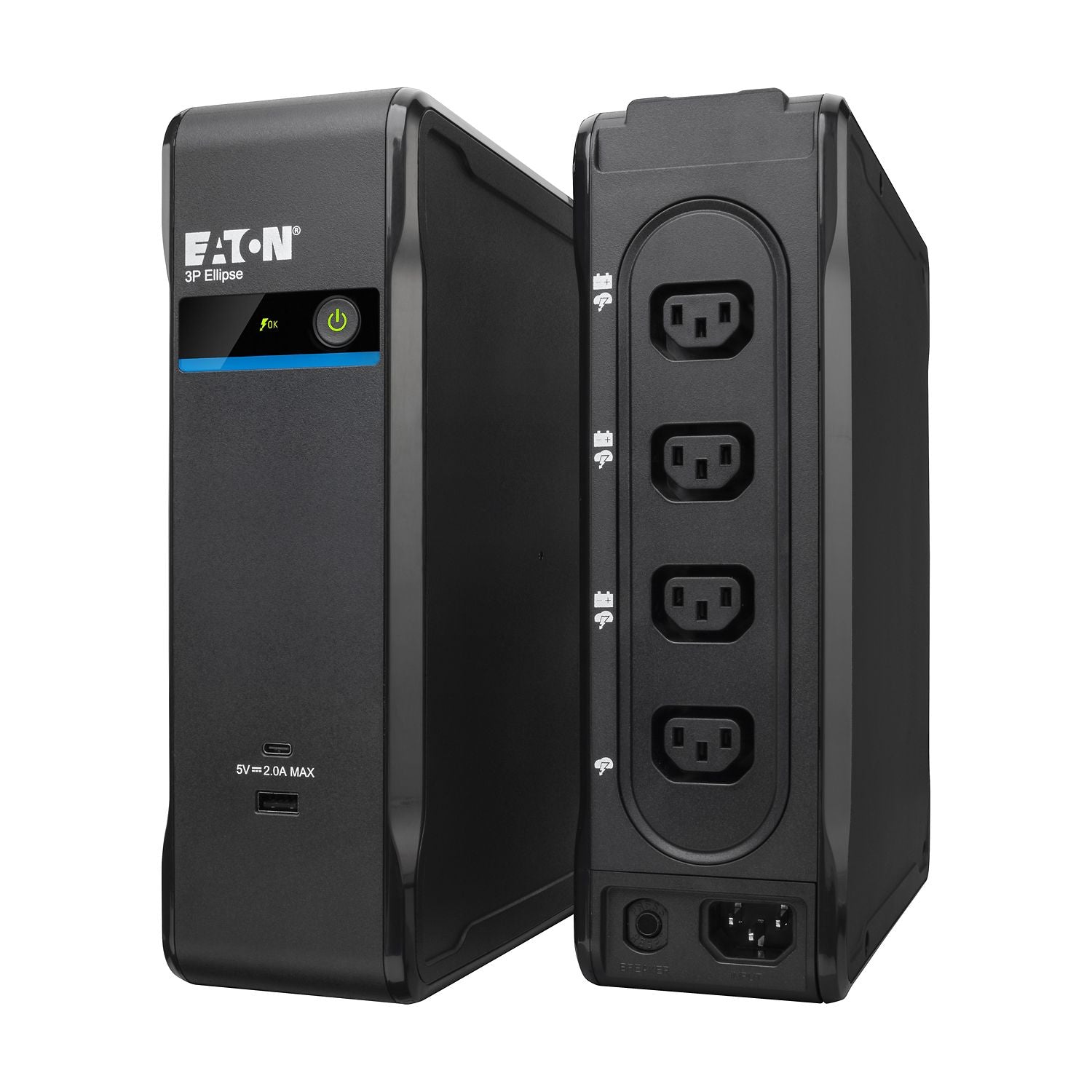

The Eaton 3P Ellipse 3P700UI is a 700 VA / 420 W offline (standby) UPS in a slim 81 mm-wide case, built for the short outages and surges that interrupt PCs, routers, NAS drives, POS terminals and CCTV recorders in Singapore homes, shops and small offices. When the mains fails it switches to battery so you can keep working or save and shut down cleanly.
Eaton positions the 3P Ellipse as the successor to the Ellipse ECO, with up to 12% more power than the previous Ellipse ECO models.

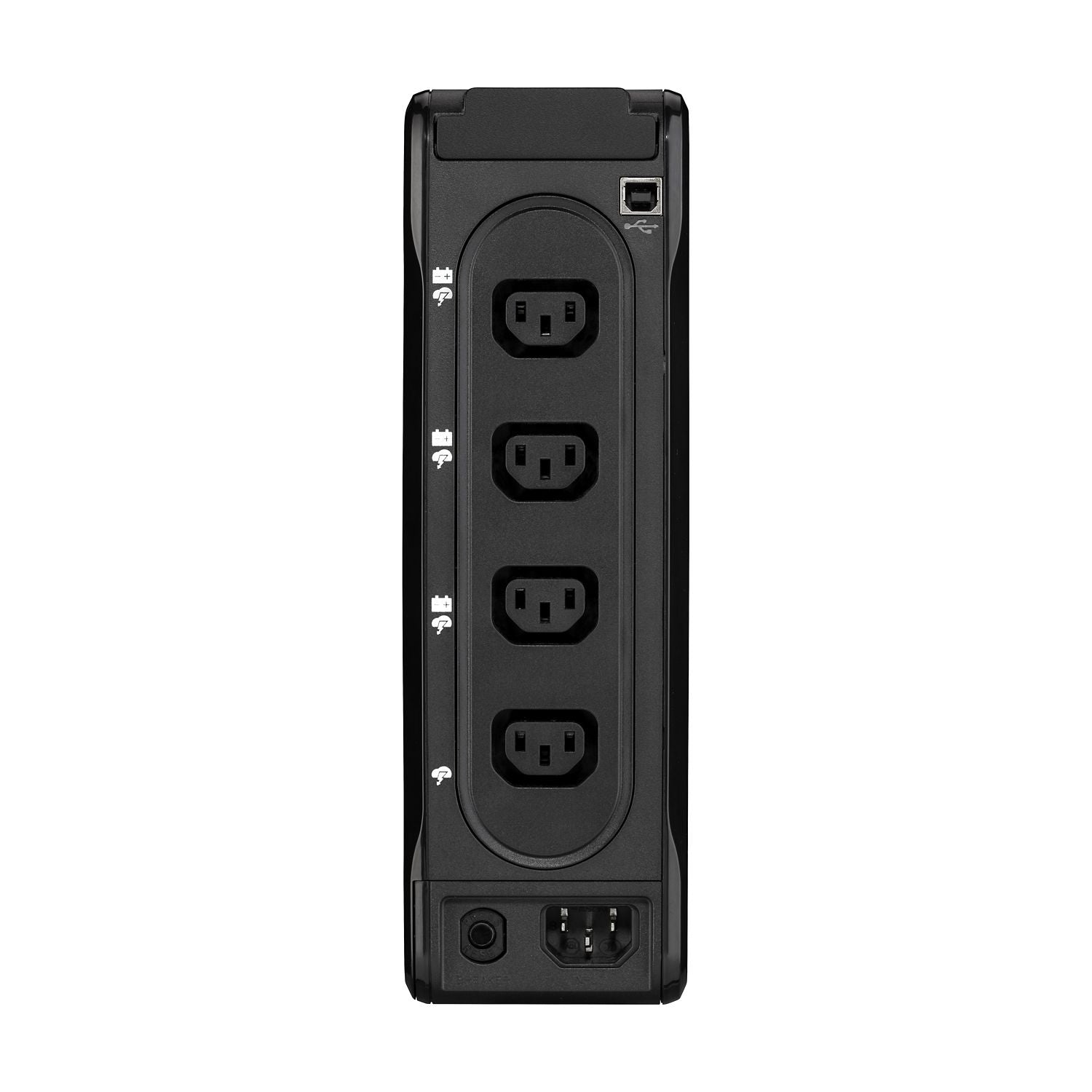

4 IEC C13 Outlets: 3 on Battery, 1 Surge-Only
3 outlets are backed by battery and surge protection for the equipment that must stay on; 1 more is surge-protected only, for printers, speakers or chargers that do not need backup. Built-in surge protection meets IEC 61643-11, and a 10 A resettable circuit breaker protects the input.
USB Charging Ports and Automatic Shutdown

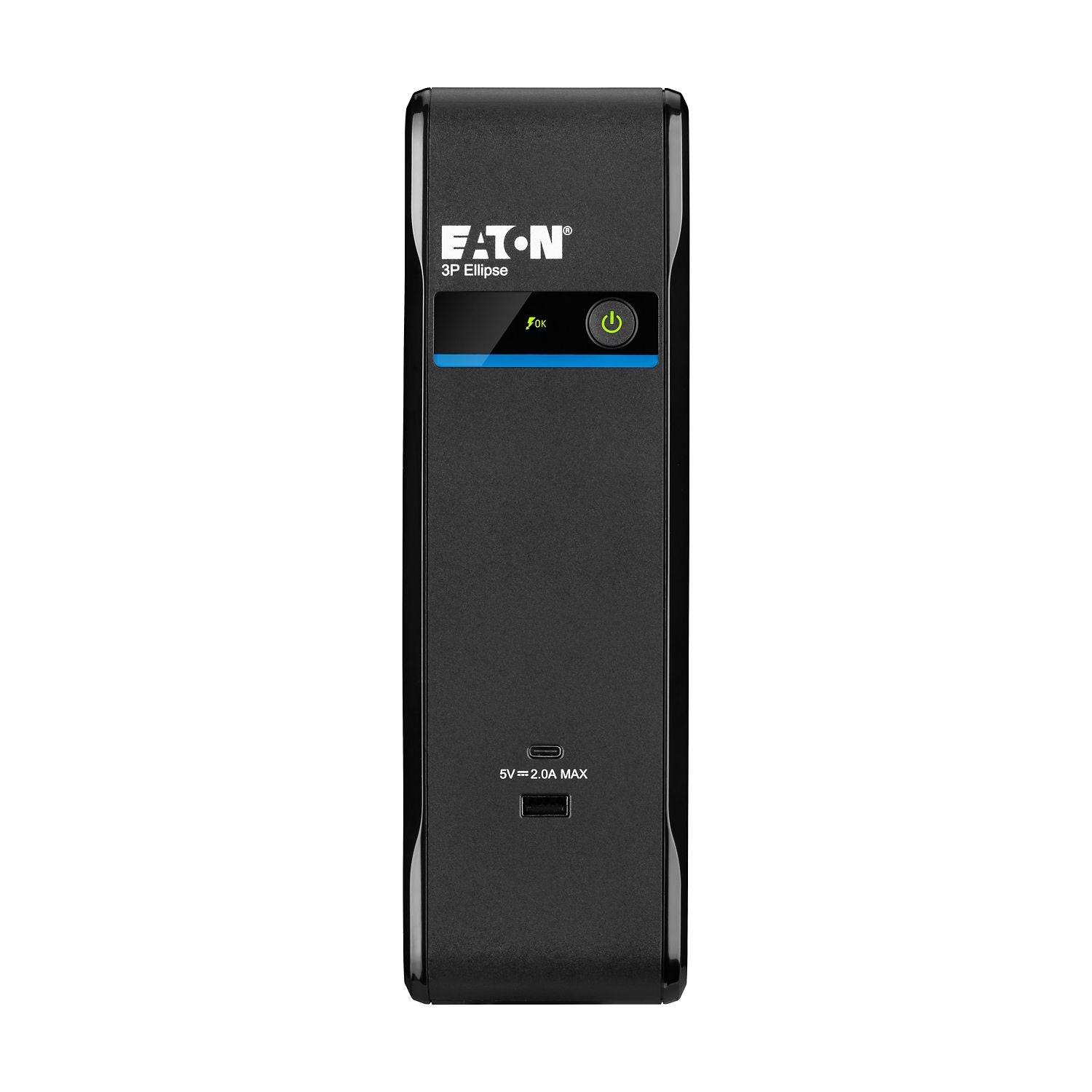

Two USB charging ports (Type A and Type C) keep a phone or tablet topped up from the same unit. A separate HID-compliant USB communication port works with Eaton UPS Companion software for automatic, unattended shutdown.
Silent, Fanless and Flexible to Place
Eaton rates the 3P Ellipse below 25 dB with no-fan engineering, so it can sit on or under a desk. Optional Eaton wall-mounting and 19-inch (2U) rack-mounting kits are available, and the slot accepts Eaton's optional CLOUD-PS card for cloud monitoring.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the 3P Ellipse in Singapore with a full GST invoice and local warranty support; Eaton's Singapore price list gives 3 years on the UPS and 3 years on the internal battery. Need help choosing a size? Email sales@sourceit.com.sg.
Eaton 3P700UI Datasheet — Technical Specifications
General
| Product Name | Eaton 3P Ellipse UPS |
| Model Code | Eaton 3P Ellipse 700 USB IEC |
| Catalogue Number | 3P700UI |
| Part Number (SKU) | 9400-5367 |
| Range | Eaton 3P Ellipse |
| Topology | Offline (standby) |
| Form Factor | Free-standing |
| Colour | Black |
| Local Warranty (Singapore) | 3 years UPS / 3 years internal battery (Eaton Singapore price list), with GST invoice from SourceIT |
Power
| Rated Power | 700 VA / 420 W |
| Input Connection | IEC C14 |
| Input Nominal Voltage | 230 V default (220/230/240 V) |
| Input Voltage Range | 184–264 V (adjustable to 161–284 V) |
| Frequency | 50/60 Hz (46–70 Hz input range) |
| Output Nominal Voltage | 230 V default (220/230/240 V) |
| Output Outlets | 3 x IEC C13 battery + surge; 1 x IEC C13 surge only |
| Surge Protection | IEC 61643-11 |
| Input Protection | 10 A resettable circuit breaker |
| Efficiency at Max. Load | 97% |
Battery
| Battery Type | Sealed lead-acid, replaceable |
| Internal Batteries | 1 x 12 V / 7 Ah |
| Battery Management | Automatic battery test, deep-discharge protection, cold-start capable |
| Extended Battery Capability | No |
Typical Backup Time (Eaton published)
| 1 PC | 22 min |
| 2 PC | 8 min |
Communications
| Communication Port | 1 x USB (HID compliant) |
| USB Charging | 2 ports (Type A and Type C) |
| Expansion | Slot for optional Eaton CLOUD-PS card (not included) |
| User Interface | LED display |
| Software | Eaton UPS Companion |
Physical & Environmental
| Dimensions (W x H x D) | 81 x 263 x 235 mm |
| Weight | 3.9 kg |
| Noise Level | <25 dB at 1 m |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–95% non-condensing |
| Altitude | 3000 m |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, IEC 61643-11, CE, UKCA |
Compatibility & Software Support
What It Is Suited To
The 3P700UI is sized for desktop PCs and monitors, home and small-office network gear, NAS units, POS terminals and CCTV recorders. Keep the total continuous load on the battery outlets under 420 W; the watt figure, not the VA figure, is the limit.
Operating Systems and Software
The USB communication port is HID-compliant, so most operating systems see the UPS as a power source without extra drivers. Eaton UPS Companion (free from eaton.com) adds automatic shutdown and monitoring.
Outlets
All outlets are IEC C13. Equipment with BS 1363 (Type G) plugs needs an IEC C14 lead or an IEC-input power strip; two IEC-IEC cables are included.
Package Contents & 3P Ellipse Ordering Information
In the Box
UPS, (2) IEC-IEC cables, USB cable, quick start guide, safety instructions (per Eaton).
Eaton 3P Ellipse USB IEC Range — Ordering Information
| 3P700UI (this listing) | 700 VA / 420 W | 3 x C13 battery + 1 x C13 surge | 9400-5367 |
| 3P900UI | 900 VA / 540 W | 3 x C13 battery + 1 x C13 surge | 9400-A310 |
| 3P1300UI | 1300 VA / 840 W | 4 x C13 battery + 4 x C13 surge | 9400-7302 |
| 3P1700UI | 1700 VA / 1040 W | 4 x C13 battery + 4 x C13 surge | 9400-8304 |
Optional Accessories and Extended Warranty
Eaton lists a 19-inch rack-mounting kit (2U), a wall-mounting kit and the CLOUD-PS card as options, and offers Warranty+1 and Warranty+3 extensions. Ask us for pricing.
Datasheet & Downloads
| Eaton product page | Eaton 3P700UI specifications |
| Eaton datasheet | Eaton 3P Ellipse Datasheet (PDF) |
| Eaton user guide | Eaton 3P Ellipse Advanced User Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 3P700UI.
Frequently Asked Questions — Eaton 3P700UI
How much can I connect?
Up to 420 W across the battery-backed outlets. Total the continuous watts of your equipment and leave headroom.
How long will it run on battery?
Eaton publishes typical backup times of 22 min with 1 PC, 8 min with 2 PC. Actual runtime depends on load, battery age and temperature.
What is the difference between the battery and surge-only outlets?
The 3 battery outlets stay powered during an outage; the surge-only outlet is protected against spikes but switches off when the mains fails.
Is it noisy?
No. Eaton specifies below 25 dB with a fanless design.
Can I monitor it over the network?
Not out of the box. It has USB communication; Eaton's optional CLOUD-PS card adds cloud monitoring.
What warranty do I get?
3 years on the UPS and 3 years on the internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
