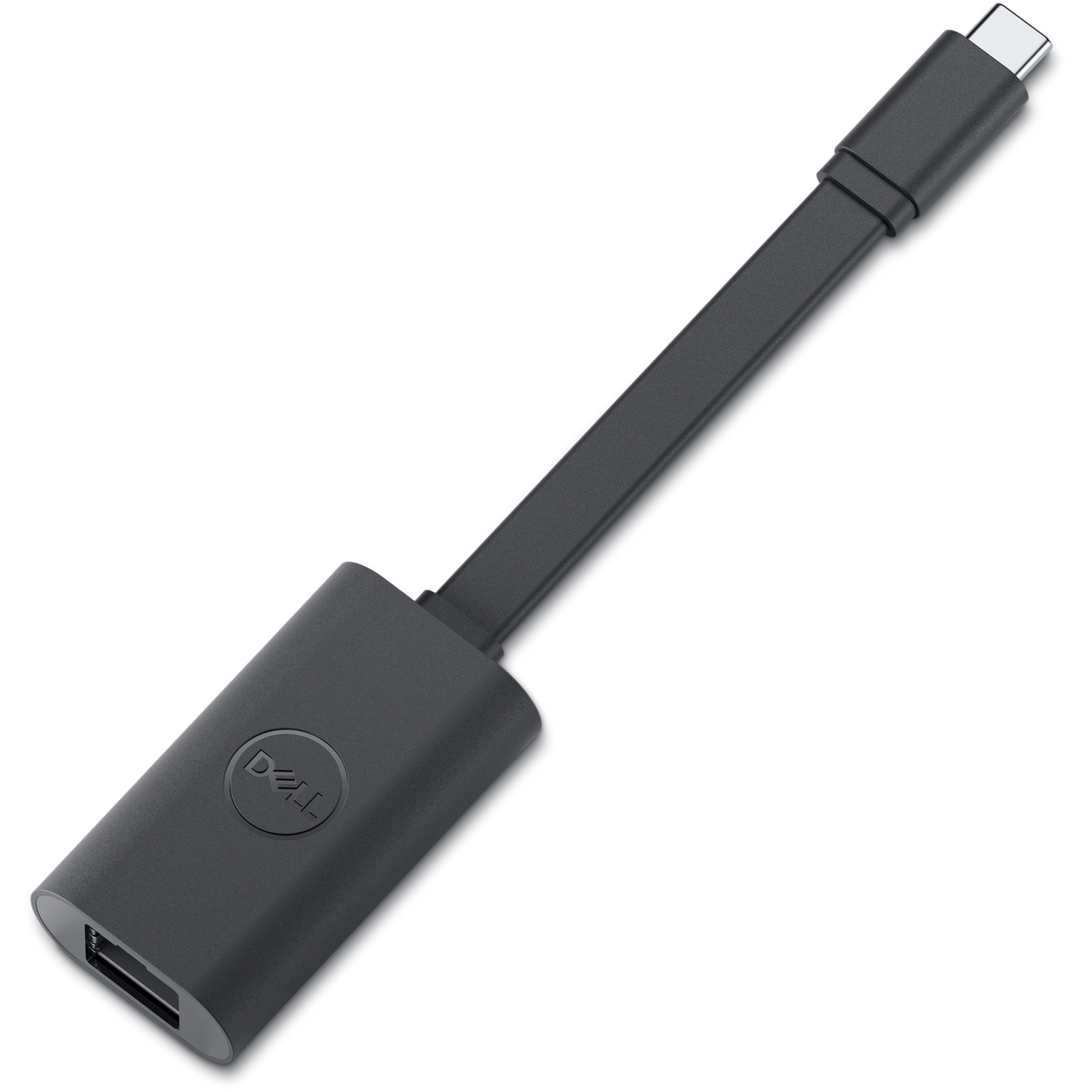

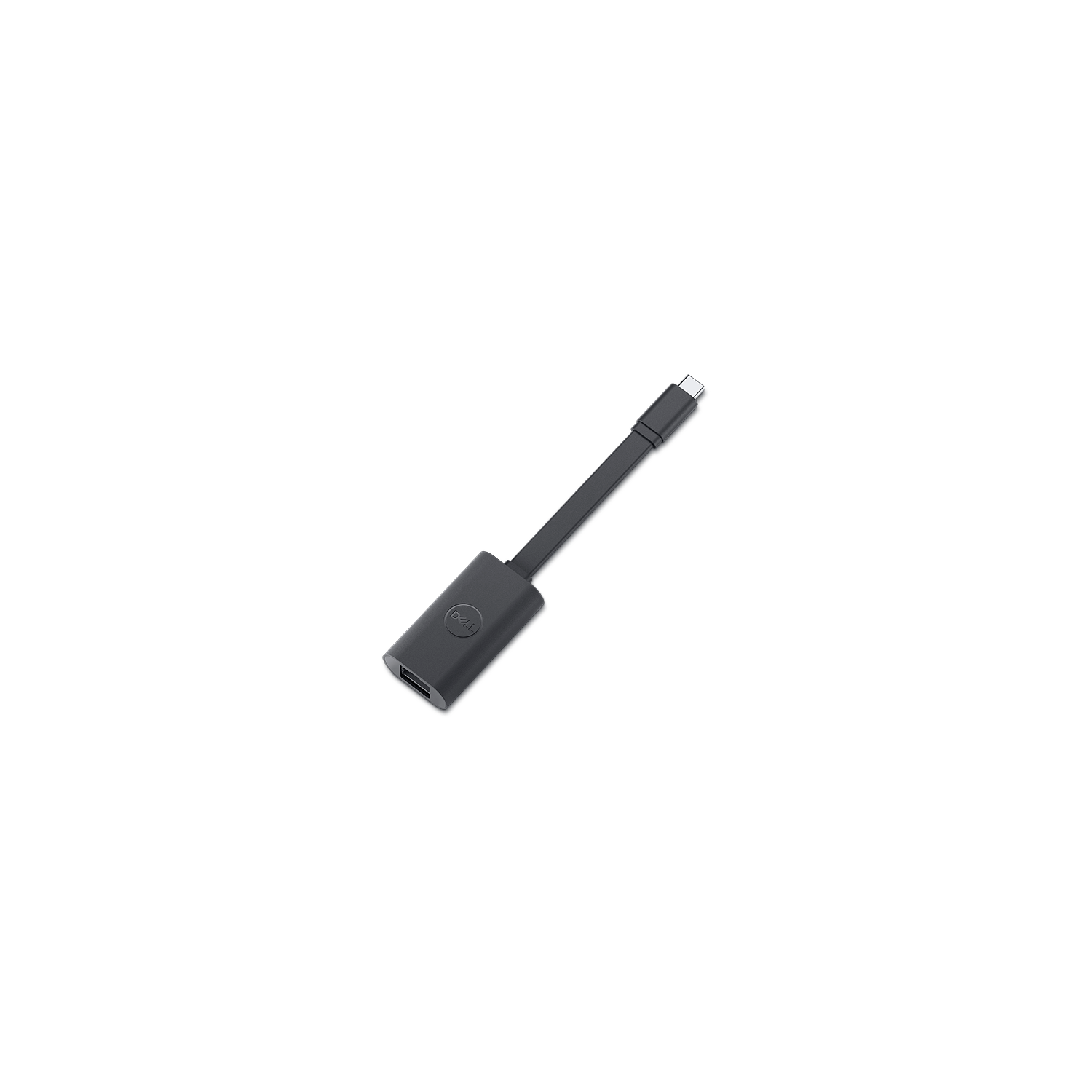

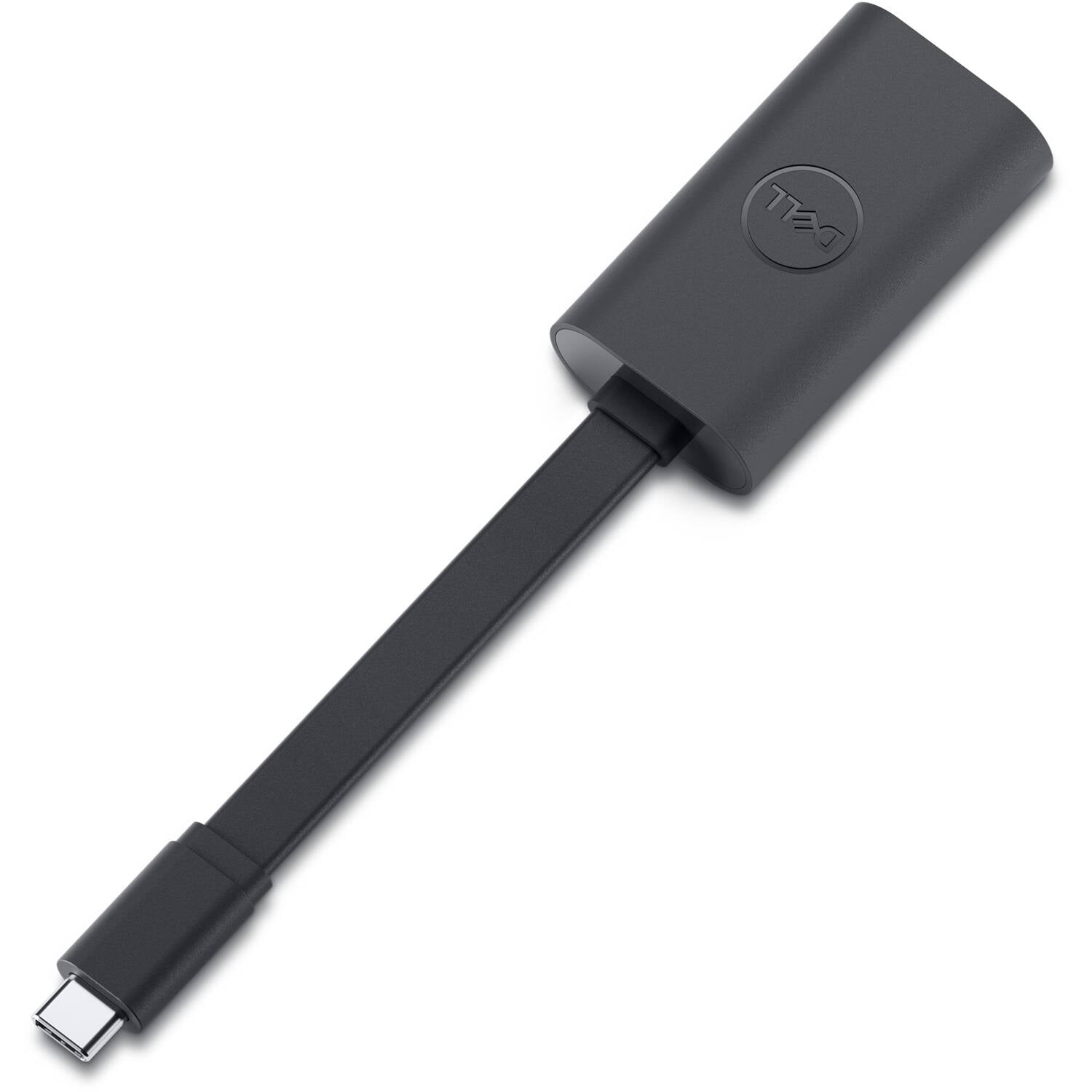

Dell USB-C to 2.5Gbps Ethernet Adapter SA224
PRODUCT DESCRIPTION
Dell USB-C to 2.5Gbps Ethernet Adapter - SA224 (492-BDMW) - 1 Year Dell Warranty
Wired 2.5 Gigabit on USB-C
Add an RJ-45 port to any USB-C laptop and connect at up to 2.5 Gbps where the network supports it, falling back to 10/100/1000 Mbps on older switches.
Ready for IT Deployment
UEFI PXE boot, Wake-on-LAN (S3/S0) and MAC address pass-through are supported, subject to the laptop.
Small Enough for Every Bag
A slim black adapter measuring 6.0 x 1.14 x 0.55 in, easy to keep with a travel laptop.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell SA224 Datasheet — Technical Specifications
General
| Product Name | Dell USB-C to 2.5Gbps Ethernet Adapter |
| Model | SA224 |
| Dell SKU (Singapore) | 492-BDMW |
| Colour | Black |
| Local Warranty (Singapore) | Dell lists a 1 Year Limited Warranty; supplied by SourceIT with a GST invoice |
Interfaces
| Host Connector | USB-C (male) |
| Network Connector | RJ-45 (female) |
| Speeds | 10/100/1000 Mbps and 2.5 Gbps (2.5GBASE-T) |
| Data Rate | Up to 2.5 Gbps, subject to network infrastructure |
Management
| IT Features | UEFI PXE boot, Wake-on-LAN (S3/S0), MAC address pass-through, subject to laptop support |
Physical
| Dimensions (W x D x H) | 6.0 x 1.14 x 0.55 in |
Compatibility & Software Support
Host Devices
Laptops, tablets and desktops with a USB-C port.
Network
Runs at 2.5 Gbps on 2.5GBASE-T capable switches and ports; otherwise at 1 Gbps or lower. Dell does not publish an OS list on its shop page; ask sales if you need confirmation for a specific OS.
Package Contents & Dell USB-C Adapters & Hubs Ordering Information
In the Box
Dell USB-C to 2.5Gbps Ethernet Adapter (SA224).
Dell USB-C Adapters & Hubs
| Model | Key feature |
| DA305 6-in-1 USB-C Multiport Adapter (450-ALWY) | HDMI 2.0 + DisplayPort + USB-C video, Gigabit Ethernet |
| DA310 7-in-1 USB-C Mobile Adapter (450-AKMS) | HDMI 2.0 / DP 1.4 at 4K60, VGA, Gigabit Ethernet, 90 W pass-through |
| DA326 Pro 7-in-1 USB-C Travel Hub (450-BHBS) | HDMI 2.1 + DP 1.4 up to 6K, 2.5GbE, 100 W pass-through |
| USB-C to 2.5Gbps Ethernet Adapter SA224 (492-BDMW) (this listing) | USB-C to RJ45 up to 2.5 Gbps, PXE / WoL / MAC pass-through |
| USB 3.0 to Gigabit Ethernet Adapter (492-11726) | USB-A to Gigabit Ethernet with PXE boot |
Datasheet & Downloads
| Dell product page | Product page on dell.com (USA, SKU 750-BBKR) |
| Manuals & drivers | SA224 on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting SA224.
Frequently Asked Questions — Dell SA224
Will it work at 2.5 Gbps on my network?
Only where the switch or router port supports 2.5GBASE-T; it also works at 10/100/1000 Mbps.
Does it support PXE boot?
Yes, UEFI PXE boot, Wake-on-LAN and MAC address pass-through are supported, subject to the laptop.
What warranty do I get?
1 Year Dell Limited Warranty, supplied locally by SourceIT with a GST invoice.
