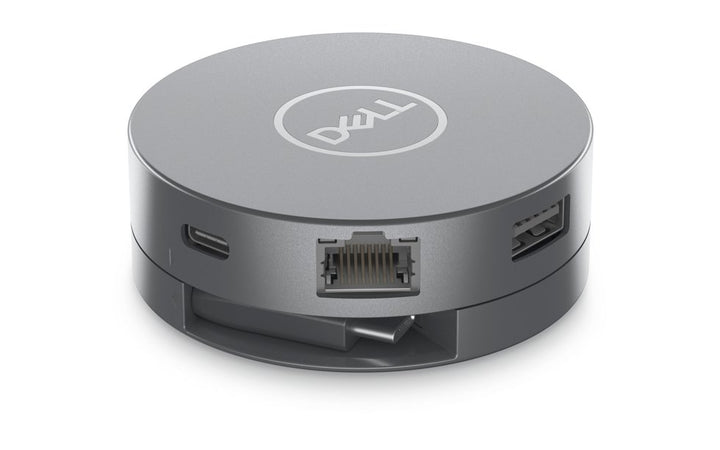

Dell DA305 6-in-1 USB-C Multiport Adapter
PRODUCT DESCRIPTION
Dell 6-in-1 USB-C Multiport Adapter - DA305 (450-ALWY) - Local Dell Warranty
Six Ports from One USB-C Cable
The DA305 turns a single USB-C port into two USB-A 3.1 Gen 2 ports, a USB-C 3.1 Gen 2 port with DisplayPort, HDMI, DisplayPort and Gigabit Ethernet.
4K Video for Presentations
Connect a projector or monitor at up to 4K 60Hz over HDMI 2.0 or DisplayPort, or 4K 30Hz over USB-C.
Compact Round Design
A 69.8 mm puck weighing 84 g with an integrated 120 mm USB-C cable, sized for a laptop bag.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell DA305 Datasheet — Technical Specifications
General
| Product Name | Dell 6-in-1 USB-C Multiport Adapter - DA305 |
| Model | DA305 |
| Dell SKU (Singapore) | 450-ALWY |
| Local Warranty (Singapore) | Dell datasheet lists 3 years Advanced Exchange Service; supplied by SourceIT with a GST invoice (confirm the term with sales) |
Host Connection
| Host Interface | Integrated USB-C cable |
| Host Cable | Round coaxial, 120 mm |
Ports
| USB-A | 2 x USB 3.1 Gen 2 Type-A |
| USB-C | 1 x USB-C 3.1 Gen 2 / DisplayPort |
| Video | 1 x HDMI 2.0, 1 x DisplayPort |
| Ethernet | 1 x RJ-45 Gigabit (1000) |
Video Support
| HDMI 2.0 | 4K (3840 x 2160) @ 60Hz |
| DisplayPort | 4K (3840 x 2160) @ 60Hz |
| USB-C | 4K (3840 x 2160) @ 30Hz, HDR supported |
Physical
| Dimensions | Diameter 69.8 mm x height 24.5 mm |
| Weight | 84 g |
Compatibility & Software Support
Supported Operating Systems
Windows 10 64-bit, Windows 11 64-bit, Apple macOS, Red Hat Enterprise Linux, Ubuntu and Google Chrome OS, per the Dell datasheet.
Host Laptops
Connects to laptops with a USB-C port; video output depends on the host port supporting DisplayPort over USB-C.
Package Contents & Dell USB-C Adapters & Hubs Ordering Information
In the Box
Dell 6-in-1 USB-C Multiport Adapter - DA305, documentation.
Dell USB-C Adapters & Hubs
| Model | Key feature |
| DA305 6-in-1 (450-ALWY) (this listing) | USB-C, HDMI 2.0 + DisplayPort + USB-C video, Gigabit Ethernet |
| DA310 7-in-1 (450-AKMS) | 7-in-1 USB-C mobile adapter |
| DA326 Pro 7-in-1 Travel Hub (450-BHBS) | HDMI 2.1 + DP 1.4 up to 6K, 2.5GbE, 100 W pass-through to Dell PCs |
Datasheet & Downloads
| Dell datasheet | Dell DA305 Datasheet (PDF, Traditional Chinese) |
| Quick start guide | DA305 Quick Start Guide (PDF) |
| Manuals & drivers | DA305 on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DA305.
Frequently Asked Questions — Dell DA305
How many displays can I connect?
Video ports are HDMI 2.0, DisplayPort and USB-C with DisplayPort; HDMI and DisplayPort support 4K 60Hz. Multi-display support depends on the host laptop.
Does it have Ethernet?
Yes, one Gigabit RJ-45 port.
Which operating systems are supported?
Windows 10/11 64-bit, macOS, Red Hat Enterprise Linux, Ubuntu and Chrome OS.
What warranty do I get?
Dell lists 3 years Advanced Exchange Service for the DA305; supplied locally by SourceIT with a GST invoice. Please confirm the term with sales.
