Dell Pro P 24 P2426HE 24" FHD 120Hz USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell Pro P 24 USB-C Hub Monitor P2426HE (210-BVLN) - 3 Years Local Warranty
120 Hz Full HD on One Cable
A 23.8-inch Full HD IPS panel at 120 Hz, connected to your laptop by a single USB-C cable carrying video, data, Ethernet and up to 100 W of power.
Easy on the Eyes
300 nits, 99% sRGB and 99% BT.709, 1,500:1 contrast, low blue light and flicker-free operation with Eye Comfort certification.
Hub, Ethernet and Daisy Chain
HDMI and DisplayPort 1.4 inputs, DisplayPort-out for a second screen, two front 15 W USB-C ports, two USB-A ports and Gigabit Ethernet.
Rolling out monitors across an office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell P2426HE Datasheet — Technical Specifications
General
| Product Name | Dell Pro P 24 USB-C Hub Monitor - P2426HE |
| Model | P2426HE |
| Dell SKU | 210-BVLN |
| Local Warranty (Singapore) | 3 Year Limited Hardware Warranty with 3-Year Advanced Exchange Service and Premium Panel Exchange (Dell), supplied by SourceIT with a GST invoice |
| Product Line | Pro P |
Display
| Viewable Screen Size | 60.5 cm (23.8") |
| Screen Mode | Full HD |
| Panel Technology | In-plane Switching (IPS) Technology |
| Maximum Resolution | 1920 x 1080 |
| Standard Refresh Rate | 120 Hz |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.27450 mm x 0.27450 mm |
| Colour Supported | 16.7 Million Colours |
| Colour Depth | 8-bit (6-bit + FRC) |
| Native Contrast Ratio | 1,500:1 |
| Brightness | 300 cd/m² |
| Color Gamut | 99% BT.709 (CIE 1931); 99% sRGB (CIE 1931) |
| Response Time | 5 ms GTG (Fast); 8 ms GTG |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Pixel Per Inch (PPI) | 93 |
| Glass Hardness | 3H |
| Flicker Free | Yes |

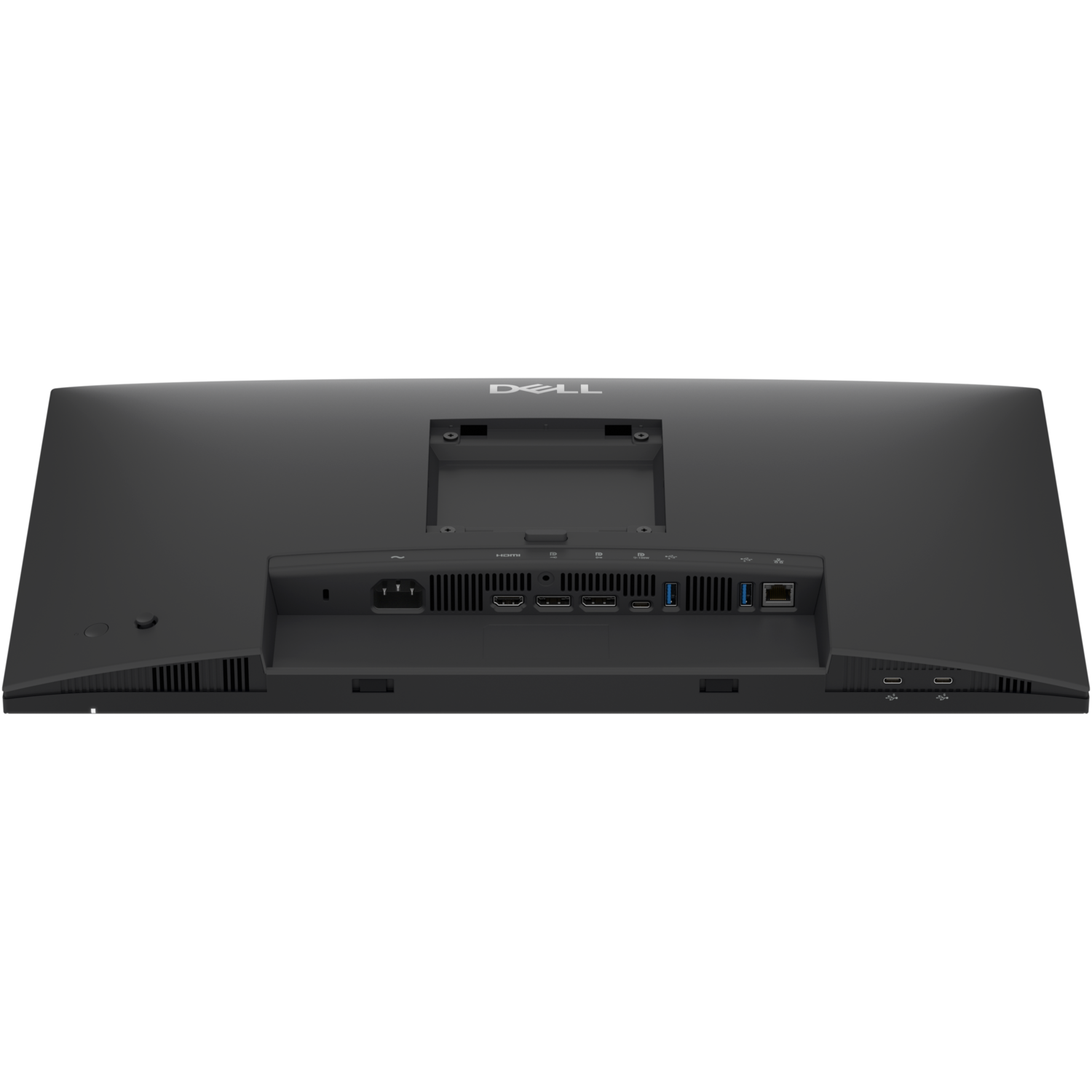

Connectivity
| Network (RJ-45) | Yes (1 x RJ-45 Gigabit Ethernet) |
| HDMI | Yes (1 port, HDMI 2.1, HDCP 1.4) |
| DisplayPort | Yes (2 ports, DisplayPort 1.4, HDCP 1.4) |
| Number of DisplayPort 1.4 Ports | 1 |
| Number of DisplayPort Output Ports (Rear) | 1 |
| DisplayPort Output Version (Rear) | 1.4 |
| USB Type-C | Yes (3 ports total) |
| USB Type-C (Power Delivery) Upstream | 100 W |
| USB Type-C (Power Delivery) Downstream | 15 W |
| Number of USB Ports | 5 |
| Number of USB Type-A Downstream Ports (Rear) | 2 |
| USB Type-A Downstream Data Rate (Rear) | 640 MB/s |
| Number of USB Type-C Downstream Ports (Front) | 2 |
| USB Type-C Downstream Data Rate (Front) | 640 MB/s |
| USB Type-C Power Delivery Downstream (Front) | 15 W |
| USB Type-C Upstream Data Rate (Rear) | 5 GB/s |
| USB Type-C Upstream Alternate Mode Version (Rear) | 1.4 |
| Daisy Chain Port Type | DisplayPort |
| Built-in Devices | USB Hub |
Audio & Camera
| Speakers | No |
| Webcam | No |
Ergonomics
| Stand Adjustments | Height, Pivot, Swivel, Tilt |
| Maximum Adjustable Height | 150 mm |
| Tilt Angle | -5° to 21° |
| Swivel Angle | -45° to 45° |
| Pivot Angle | +/-90° |
| VESA Mount Standard | 100 x 100 |
Power
| Input Voltage Range/Current Details | 100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/2.25 A |
| Operating Power Consumption | 13.80 W |
| Maximum Power Consumption | 215 W |
| Standby Power Consumption | 300 mW |
| Off-Mode Power Consumption | 300 mW |
Physical
| Height | 314.23 mm |
| Width | 538.64 mm |
| Depth | 50.03 mm |
| Height with Stand (Extended) | 496.53 mm |
| Height with Stand (Compressed) | 364 mm |
| Width with Stand | 538.64 mm |
| Depth with Stand | 181.75 mm |
| Stand Height (Extended) | 410.80 mm |
| Stand Height (Compressed) | 364.00 mm |
| Stand Width | 249.80 mm |
| Stand Depth | 181.75 mm |
| Bezel Width (Top) | 5.80 mm |
| Bezel Width (Bottom) | 12 mm |
| Bezel Width (Left) | 5.80 mm |
| Bezel Width (Right) | 5.80 mm |
| Weight (Approximate) | 3.45 kg |
| Weight with Stand & Cables (Approximate) | 5.20 kg |
| Weight (with Packaging) with Stand | 6.96 kg |
| Weight (with Packaging) without Stand | 5.45 kg |
Environmental & Certifications
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Certification | China Environmental United Certification Center (CEC); Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+); Electronic Product Environmental Assessment Tool Gold (EPEAT Gold); TCO Certified 10.0; TCO Certified Edge |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS); Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH); Restriction of Hazardous Substances (RoHS); Waste Electrical and Electronic Equipment Directive (WEEE) |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 5 (ErP Lot 5); Korea Minimum Energy Performance Standards (MEPS); Minimum Energy Performance Standards (MEPS) |
| Eye Comfort Certification | Yes |
| Certifications & Standards | BFR/PVC free monitor (excluding external cables); Arsenic-Free glass and Mercury-Free for the panel only; California CEC; Meets NFPA 99 leakage current requirements; GS Mark |
| Operating Temperature Range | 0°C to 40°C |
| Non-operating Temperature Range | -20°C to 60°C |
| Operating Humidity Range | 10% to 80% (Non-condensing) |
| Non-operating Humidity Range | 5% to 90% (Non-condensing) |
| Maximum Operating Altitude | 5 km |
| Maximum Non-operating Altitude | 12.19 km |
Software & Management
| Platform Supported | Mac, Windows |
| Operating System Supported | macOS |
| Dell Display and Peripheral Manager Compatibility | Yes |
| Remote Asset Management | Dell Display and Peripheral Manager (DDPM) |
Compatibility & Software Support
PC Connection
Connect a USB-C laptop (DisplayPort 1.4 Alt Mode) for video, USB data, Ethernet and up to 100 W charging over one cable (USB-C to USB-C cable included). HDMI and DisplayPort 1.4 inputs are available for desktops.
Daisy Chain
The DisplayPort 1.4 output supports daisy-chaining a second compatible monitor.
Management
Dell Display and Peripheral Manager (DDPM) with remote asset management. Mac and Windows supported.
Mounting
VESA 100 x 100 mm for monitor arms and wall brackets.
Package Contents & Dell Pro P 24 & 27 Monitors Ordering Information
In the Box
Monitor, Stand, Power cable, 1 x USB Type-C to Type-C 5Gbps 100 W cable - 1.80 m, QR card, Safety, Environmental, and Regulatory Information.
Dell Pro P 24 & 27 Monitors
| Model | Key feature |
| P2226H | 22" FHD 100 Hz |
| P2426H | 24" FHD 120 Hz |
| P2426 | 24" WUXGA 16:10, 100 Hz |
| P2426E | 24" WUXGA 16:10, USB-C 100 W, RJ45 |
| P2426HE (this listing) | 24" FHD 120 Hz, USB-C 100 W, RJ45 |
| P2426HEB | 24" FHD 120 Hz, 4MP camera, mic, 2 x 5 W speakers |
| P2426HEV | 24" FHD 120 Hz, 4MP camera |
| P2726HE | 27" FHD USB-C hub |
| P2726DEB | 27" QHD 100 Hz, 4MP camera, mic, 2 x 5 W speakers |
| P2726DEV | 27" QHD 100 Hz, 4MP camera |
Datasheet & Downloads
| Dell monitors brochure (PDF) | Dell monitors family brochure on delltechnologies.com |
| Manuals & drivers | P2426HE manuals and documents on Dell Support |
| Dell product page | P2426HE on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P2426HE.
Frequently Asked Questions — Dell P2426HE
How much power does USB-C deliver?
Up to 100 W through the USB-C upstream port; the two front USB-C ports each provide up to 15 W.
What refresh rate does it support?
Up to 120 Hz at 1920 x 1080.
Does it have Ethernet?
Yes, one Gigabit Ethernet (RJ-45) port.
Does it have speakers or a webcam?
No. For a built-in 4MP camera, see the Dell P2426HEV (camera) or P2426HEB (camera, microphone and speakers).
What warranty do I get?
3 Year Limited Hardware Warranty with 3-Year Advanced Exchange Service and Premium Panel Exchange (Dell), supplied locally by SourceIT with a GST invoice.
