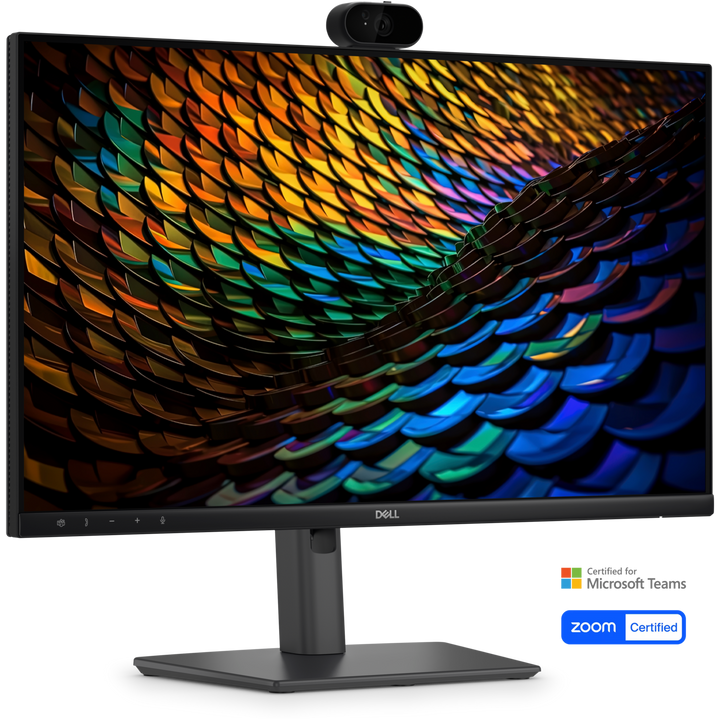

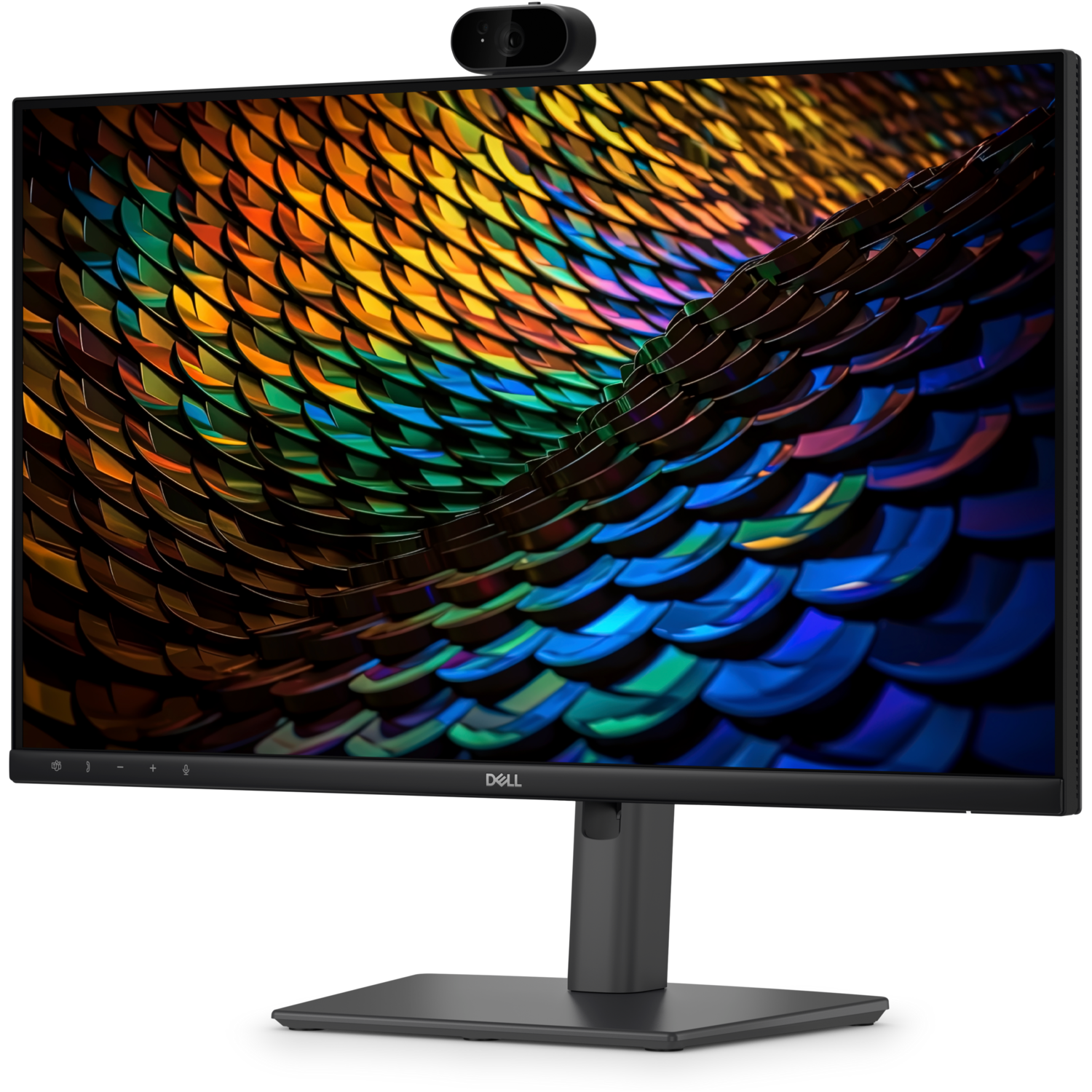

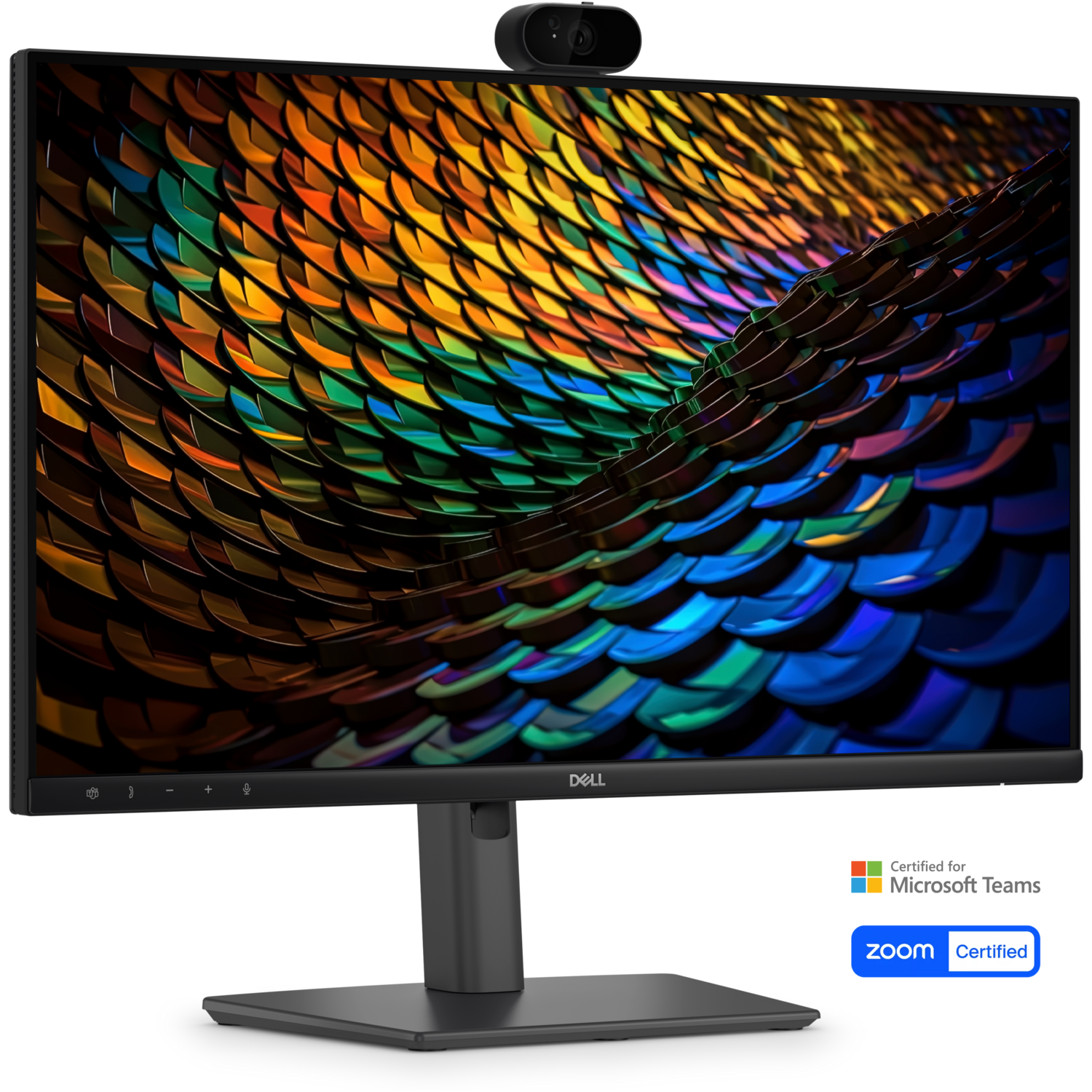

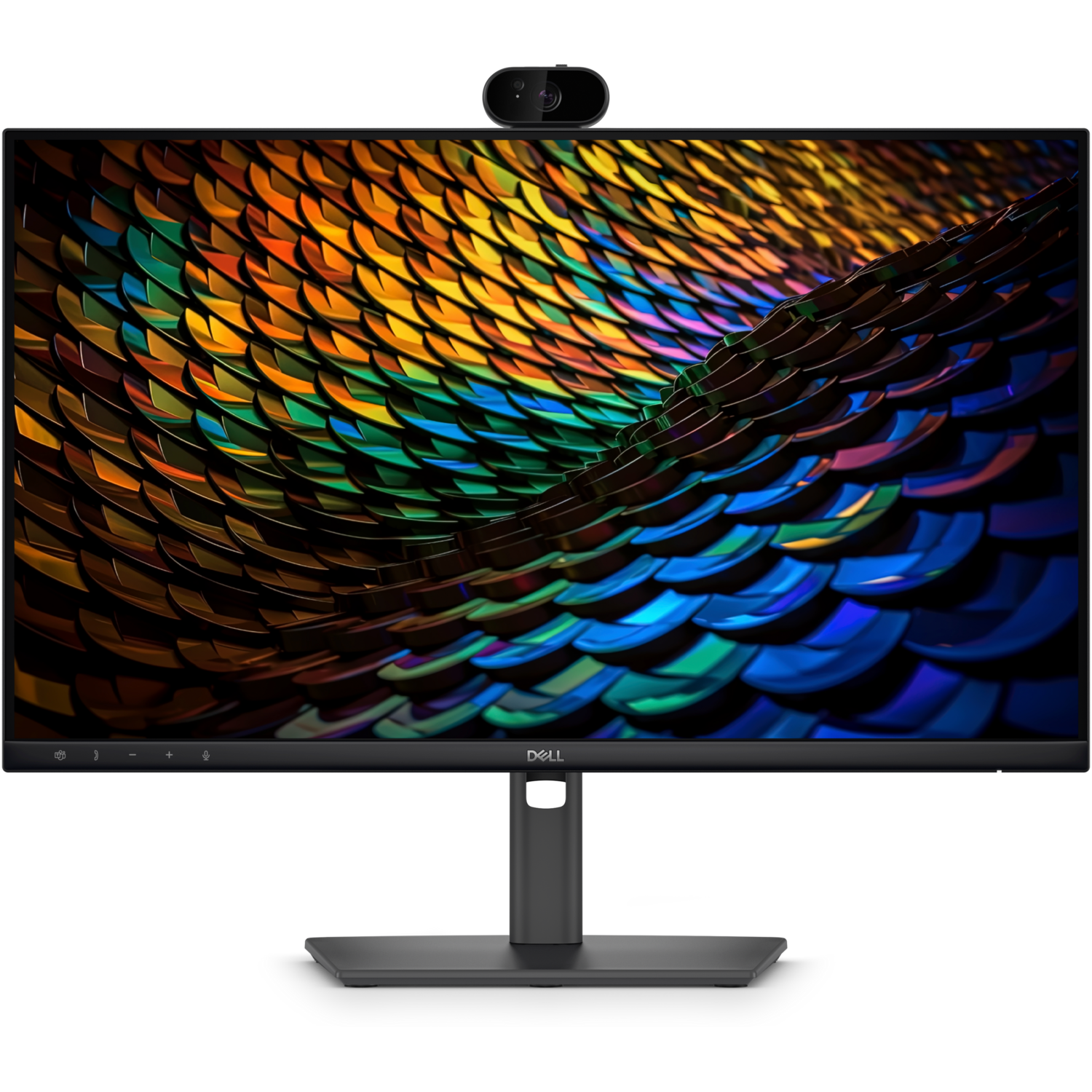

Dell Pro P 24 P2426HEB 24" USB-C Hub Conferencing Monitor
PRODUCT DESCRIPTION
Dell Pro P 24 USB-C Hub Conferencing Monitor P2426HEB (210-BVTN) - 3 Years Local Warranty
Video Calls Without Extra Gear
A built-in 4MP HDR camera with AI Auto Framing, dual beamforming microphones with AI noise cancellation and 2 x 5 W speakers, certified for Microsoft Teams and Zoom.
Private by Design
A mechanical tilt-and-shutter camera covers the lens when not in use, and the camera supports Windows Hello sign-in.
One-Cable Desk
USB-C with DisplayPort Alt Mode and up to 90 W charging, Gigabit Ethernet, USB KVM, DisplayPort-out daisy chain and a 23.8-inch Full HD 120 Hz IPS panel.
Equipping a team or meeting rooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell P2426HEB Datasheet — Technical Specifications
General
| Product Name | Dell Pro P 24 USB-C Hub Conferencing Monitor - P2426HEB |
| Model | P2426HEB |
| Dell SKU | 210-BVTN |
| Local Warranty (Singapore) | 3 Year Limited Hardware Warranty with 3-Year Advanced Exchange Service and Premium Panel Exchange (Dell), supplied by SourceIT with a GST invoice |
| Colour | Black |
| Platform Supported | Windows / Mac |
| Software | Dell Display and Peripheral Manager (DDPM) |
Display
| Diagonal Viewing Size | 60.47 cm (23.8") |
| Aspect Ratio | 16:9 |
| Maximum Preset Resolution | 1920 x 1080 |
| Refresh Rate | Up to 120 Hz |
| Panel Type | In-Plane Switching (IPS) Technology |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Display Screen Coating | Anti-Glare (AG) with hard-coating 3H |
| Pixel Pitch | Horizontal: 0.275 mm Vertical: 0.275 mm |
| Pixels Per Inch (PPI) | 93 |
| Contrast Ratio | 1,500:1 (typical) |
| Brightness | 300 cd/m2 (typical) |
| Response Time | 8 ms (gray to gray normal mode) 5 ms (gray to gray fast mode) |
| Color Gamut | sRGB 99% (CIE 1931) (typical) |
| Color Depth | 16.70 million colors |
| Panel Bits | 8-bit (6-bit+FRC) |
| TÜV Rheinland Eye Comfort | 4-Star |
| Low Blue Light | Hardware Solution Category II |
| Flicker Free | Yes |

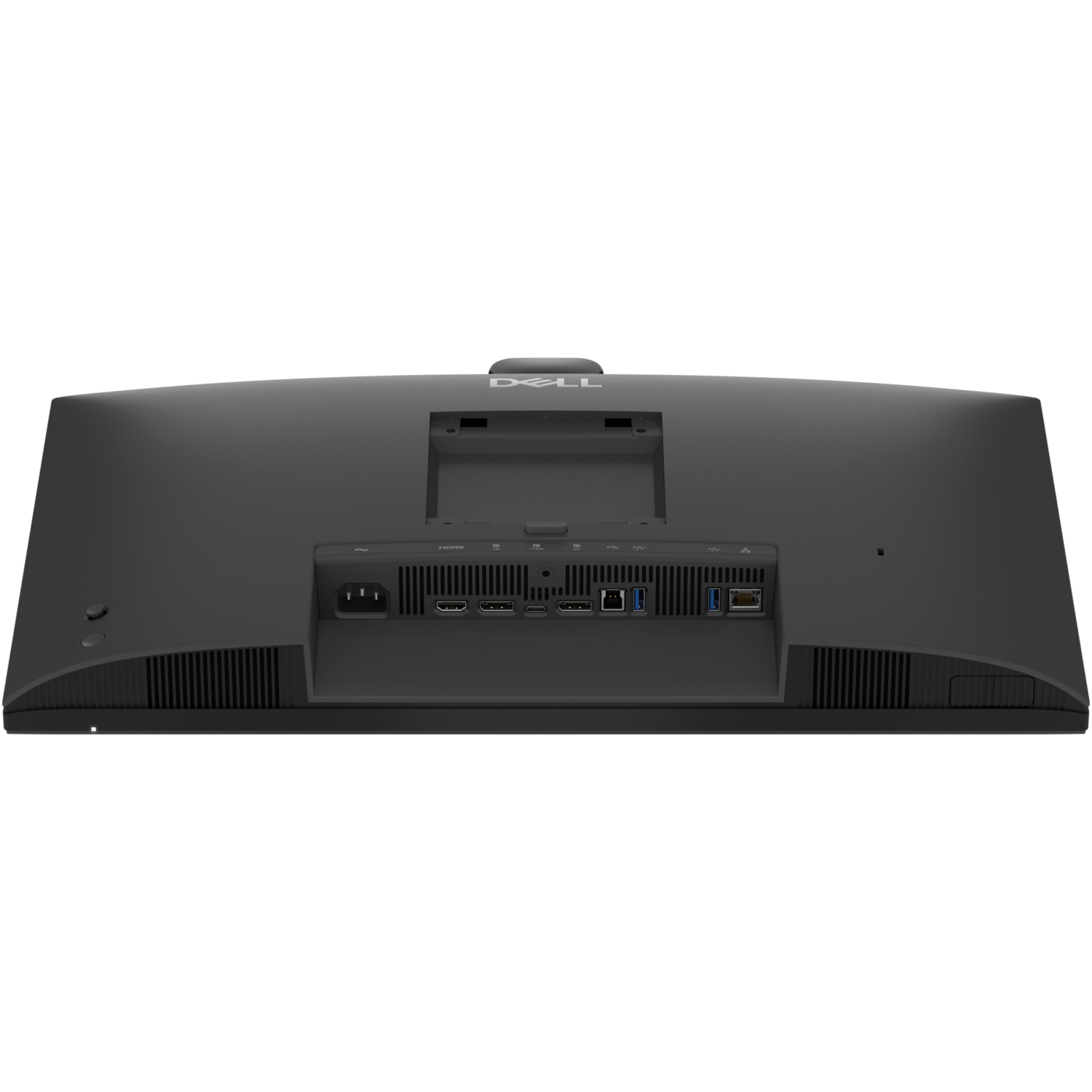

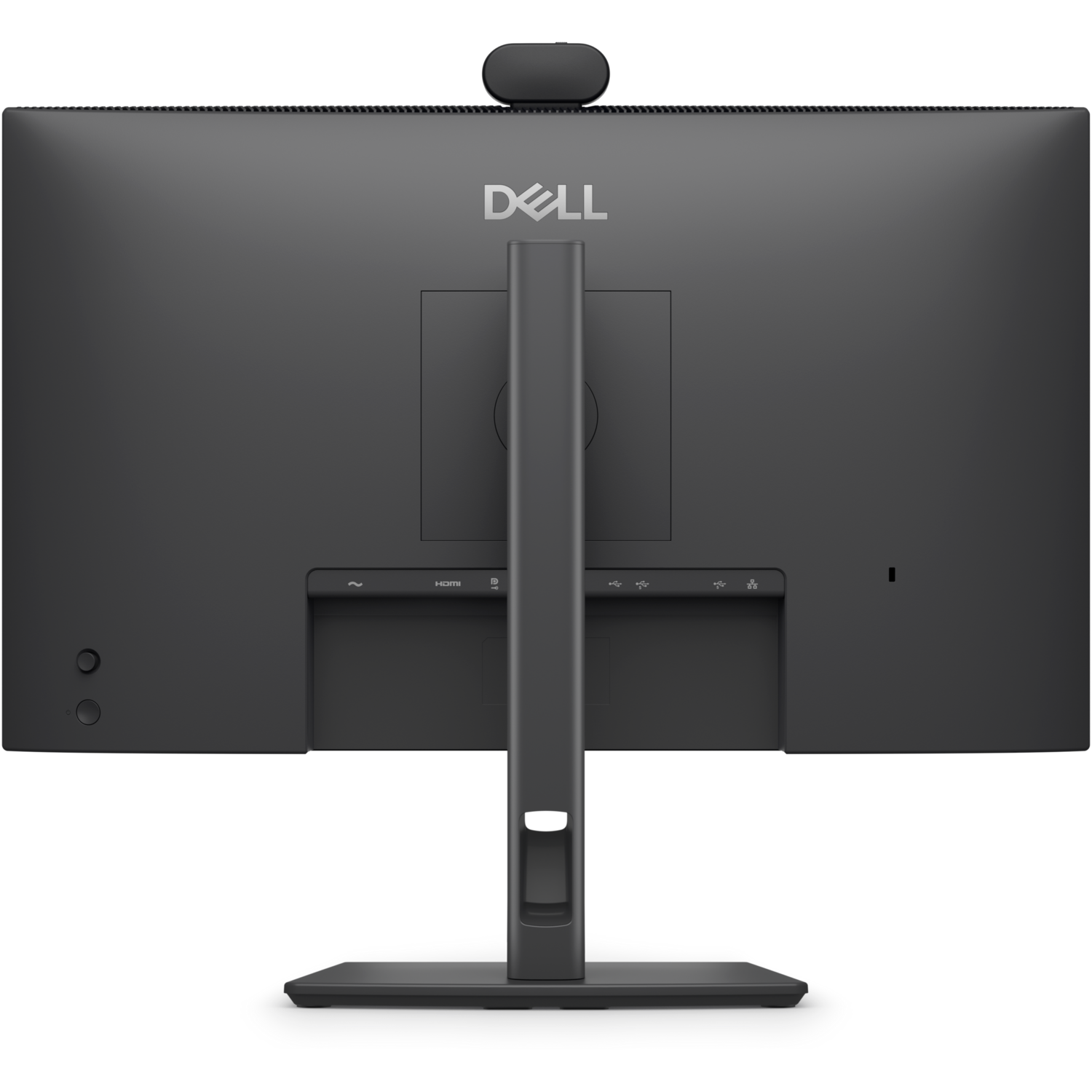

Connectivity
| HDMI | 1 x HDMI port (HDCP 1.4) |
| DisplayPort | 1 x DisplayPort 1.4 (HDCP 1.4) |
| DisplayPort Out | 1 x DisplayPort Out 1.4 |
| USB Type-A (back) | 2 x USB Type-A 5Gbps downstream ports |
| USB Type-B | 1 x USB Type-B 5Gbps upstream port |
| USB-C (back) | 1 x USB-C 5Gbps upstream port (DisplayPort 1.4 Alt Mode, Power Delivery up to 90 W) |
| Ethernet | 1 x RJ45 Ethernet port, 1GbE |
| USB Type-A (front) | 1 x USB Type-A 5Gbps downstream port with Battery Charging 1.2 |
| USB-C (front) | 1 x USB-C 5Gbps downstream port, Power Delivery up to 15 W |
| PBP/PIP/KVM | USB Keyboard Video Mouse (USB KVM) |
| Built-in Hub | USB Hub, KVM Switch |
Audio & Camera
| Camera Resolution | 4 Megapixel |
| Video Resolution & Frame Size | 4 Megapixel RGB camera at 30 fps |
| Camera features | HDR; AI Auto Framing; 0-20 degree tilt adjustability |
| Camera privacy | mechanical tilt and shutter |
| Microphone | Yes |
| Microphone features | dual beamforming AI noise cancellation |
| Number of Speakers | 2 |
| Speaker Output Power | 2 x 5 W |
| Certification | Certified for Microsoft Teams and Zoom |
| Windows Hello Compatible | Yes |

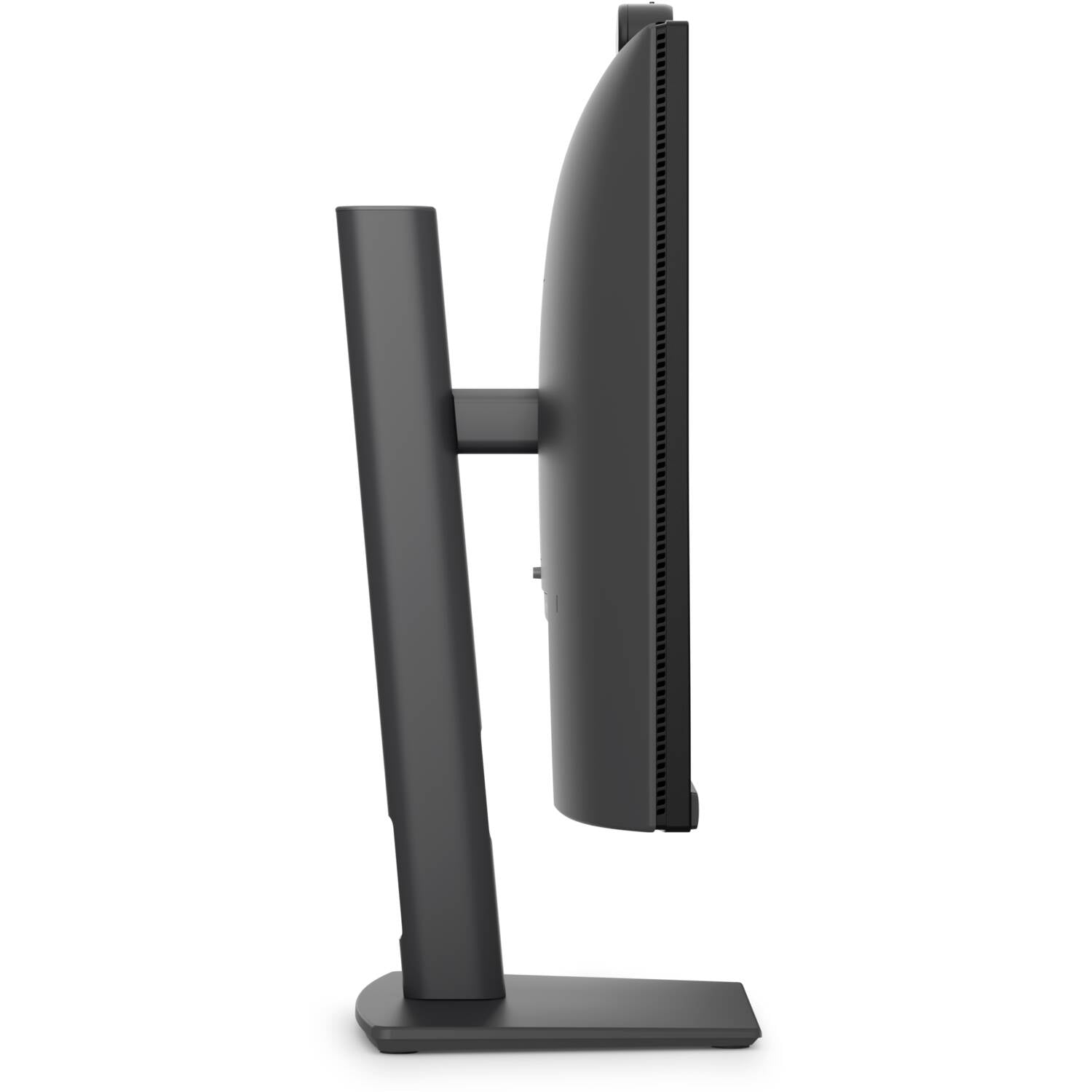

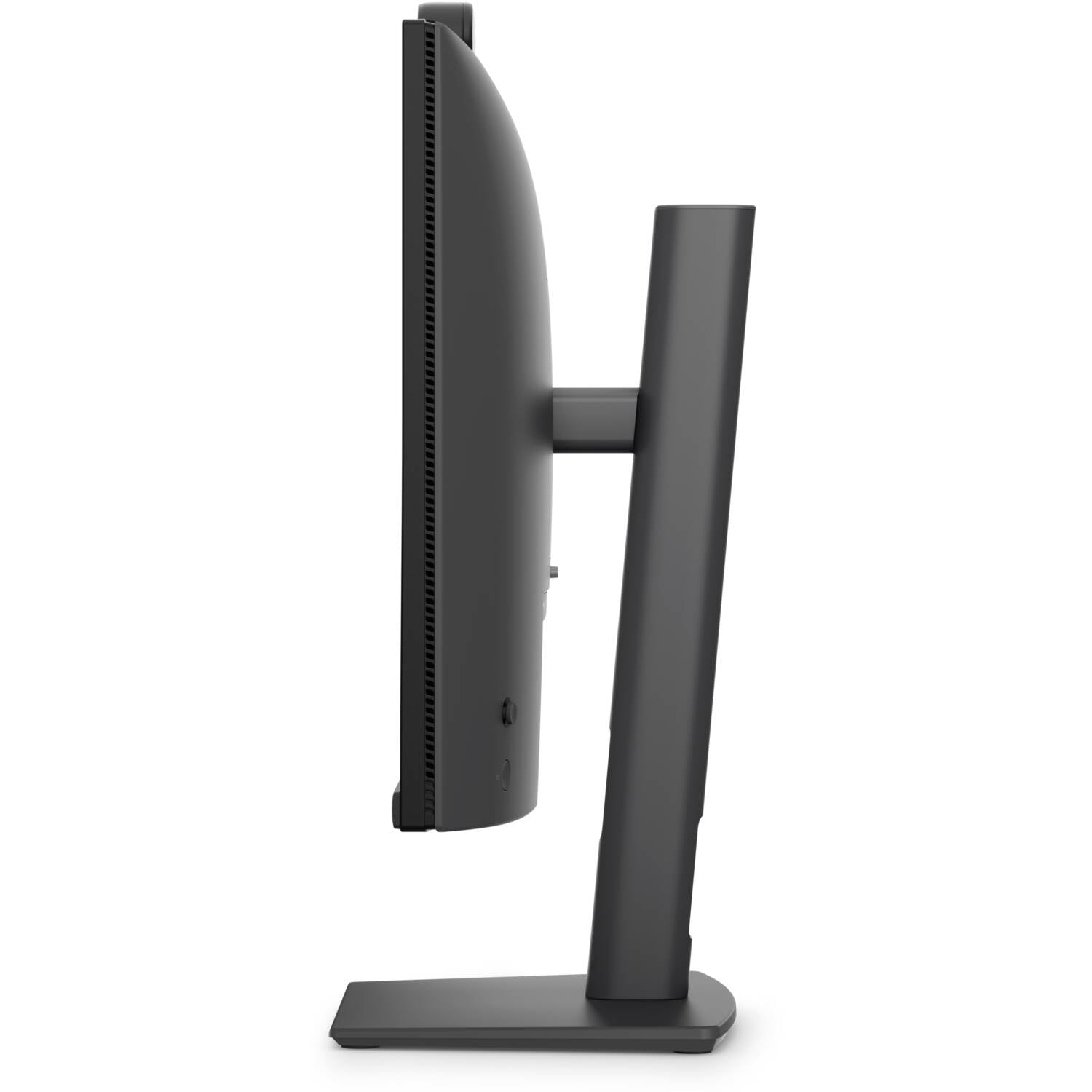

Ergonomics
| Height Adjustment | 150 mm |
| Tilt Angle | -5° to 21° |
| Swivel Angle | -45° to 45° |
| Pivot Angle | -90° to +90° |
| Flat Panel VESA Mount Interface | 100 mm x 100 mm |
| Security | Security lock slot (cable lock sold separately) |
Power
| Voltage Required | 100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/2.5 A |
| Power Consumption (Off mode) | 0.30 W |
| Power Consumption (Standby mode) | 0.50 W |
| Power Consumption (On mode) | 14.50 W |
| Power Consumption (Max) | 195.00 W |
Physical
| Height (without stand) | 351.38 mm (13.83 in.) |
| Width (without stand) | 538.64 mm (21.21 in.) |
| Depth (without stand) | 64.06 mm (2.52 in.) |
| Bezel Width (Top) | 5.80 mm (0.23 in.) |
| Bezel Width (Left or Right) | 5.80 mm (0.23 in.) |
| Bezel Width (Bottom) | 16.95 mm (0.67 in.) |
| Stand Height (Extended) | 410.90 mm (16.18 in.) |
| Stand Height (Compressed) | 364.00 mm (14.33 in.) |
| Stand Width | 249.80 mm (9.83 in.) |
| Stand Depth | 186.25 mm (7.33 in.) |
| Weight (with Packaging) | 7.90 kg (17.41 lbs) |
| Weight with Stand & Cables | 5.95 kg (13.12 lbs) |
| Weight without Stand & Cables | 4.10 kg |
| Stand Assembly Weight | 1.47 kg (3.24 lbs) |
Environmental & Certifications
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Non-Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 10% to 80% (non-condensing) |
| Non-Operating Humidity | 5% to 90% (non-condensing) |
| Operating Altitude | 5,000 m (16,404 ft) maximum |
| Non-Operating Altitude | 12,192 m (40,000 ft) maximum |
| EPEAT | EPEAT Gold, EPEAT Climate+ |
| TCO | TCO Certified 10 / TCO Certified Edge |
| ENERGY STAR | ENERGY STAR 8.0 |
| RoHS | Restriction of Hazardous Substances (RoHS) |
| Materials | BFR/PVC free monitor (excluding external cables) |
| Other compliance | ErP Lot 5 / Korea E-Standby / GS Mark |
| Recycled materials | up to 95% post-consumer recycled plastic; 100% recycled aluminum in the stand; up to 50% recycled steel in the monitor head and stand; up to 20% recycled glass in the panel |
Compatibility & Software Support
PC Connection
Connect a USB-C laptop (DisplayPort 1.4 Alt Mode) for video, camera, audio, USB data, Ethernet and up to 90 W charging over one cable. HDMI and DisplayPort 1.4 inputs are available for desktops; connect the USB Type-B or USB-C upstream to use the camera, audio and hub.
Conferencing
Certified for Microsoft Teams and Zoom. Windows Hello compatible.
KVM and Daisy Chain
Built-in USB KVM to control two computers with one keyboard and mouse; DisplayPort Out 1.4 for a second monitor.
Management
Dell Display and Peripheral Manager (DDPM). Windows and Mac supported. VESA 100 x 100 mm mounting.
Package Contents & Dell Pro P 24 & 27 Monitors Ordering Information
In the Box
Monitor, Stand, Power cable, 1 x DisplayPort-DisplayPort cable - 1.80 m, 1 x USB Type A to Type B downstream cable 1.80 m, 1 x USB-C to C 5Gbps 100 W cable 1.80 m, Quick Start guide, Safety Information.
Dell Pro P 24 & 27 Monitors
| Model | Key feature |
| P2226H | 22" FHD 100 Hz |
| P2426H | 24" FHD 120 Hz |
| P2426 | 24" WUXGA 16:10, 100 Hz |
| P2426E | 24" WUXGA 16:10, USB-C 100 W, RJ45 |
| P2426HE | 24" FHD 120 Hz, USB-C 100 W, RJ45 |
| P2426HEB (this listing) | 24" FHD 120 Hz, 4MP camera, mic, 2 x 5 W speakers |
| P2426HEV | 24" FHD 120 Hz, 4MP camera |
| P2726HE | 27" FHD USB-C hub |
| P2726DEB | 27" QHD 100 Hz, 4MP camera, mic, 2 x 5 W speakers |
| P2726DEV | 27" QHD 100 Hz, 4MP camera |
Datasheet & Downloads
| Datasheet (PDF) | P2426HEB datasheet on delltechnologies.com |
| Manuals & drivers | P2426HEB manuals and documents on Dell Support |
| Dell product page | P2426HEB on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P2426HEB.
Frequently Asked Questions — Dell P2426HEB
What camera does it have?
A 4 Megapixel RGB camera at 30 fps with HDR, AI Auto Framing, 0-20 degree tilt and a mechanical privacy shutter.
Does it have speakers and a microphone?
Yes: 2 x 5 W speakers and a microphone with dual beamforming AI noise cancellation.
How much power does USB-C deliver?
Up to 90 W through the rear USB-C upstream port, plus 15 W from the front USB-C port.
What is the difference from the P2426HEV?
The P2426HEB adds a microphone and 2 x 5 W speakers; the P2426HEV has the camera only and no speakers.
What warranty do I get?
3 Year Limited Hardware Warranty with 3-Year Advanced Exchange Service and Premium Panel Exchange (Dell), supplied locally by SourceIT with a GST invoice.
