Dell Pro 20 E2026H 20" HD+ 100Hz Monitor
PRODUCT DESCRIPTION
Dell Pro 20 Monitor E2026H (210-BSYL) - 3 Years Local Warranty
Compact 20-inch Workspace Screen
The Dell Pro 20 E2026H gives counters, reception desks and compact workstations a 19.5-inch viewable HD+ (1600 x 900) screen with an anti-glare 3H coating.
Smoother at 100 Hz
A 100 Hz refresh rate and 5 ms GTG response time keep scrolling and cursor movement smooth over HDMI or DisplayPort.
Connects to New and Legacy PCs
HDMI 1.4, DisplayPort 1.2 and VGA inputs, a tilt stand, VESA 100 x 100 mounting and just 9.20 W typical power, with ENERGY STAR 8.0 and EPEAT Gold Climate+ ratings.
Rolling out screens to a branch, clinic or front office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell E2026H Datasheet — Technical Specifications
General
| Dell SKU (dell.com Singapore) | 210-BSYL |
| Local Warranty (Singapore) | 3-Year Limited Hardware Warranty with Advanced Exchange Service (Dell), supplied by SourceIT with a GST invoice |
| Manufacturer Part Number | NM5D5 |
| Product Line | Pro |
| Product Model | E2026H |
| Product Name | Pro 20 Monitor - E2026H |
| Product Type | LED Monitor |
| Number of Screens | 1 |
| Operation Hours | 12 Hours/7 Days |
| Product Color | Black |
| Remote Asset Management | Dell Display and Peripheral Manager (DDPM) |
Display
| Screen Size Class | 20" |
| Viewable Screen Size | 49.5 cm (19.5") |
| Panel Technology | Twisted nematic (TN) |
| Aspect Ratio | 16:9 |
| Maximum Resolution | 1600 x 900 |
| Standard Refresh Rate | 100 Hz |
| Response Time Details | 5 ms GTG |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 250 cd/m² |
| Color Gamut | 72% NTSC (CIE 1931) |
| Colour Supported | 16.7 Million Colours |
| Pixel Pitch | 0.27060 mm x 0.26450 mm |
| Pixel Per Inch (PPI) | 94 |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Backlight Technology | LED Edgelight System |
| Surface Treatment | Anti-glare |
| Glass Hardness | 3H |
| Maximum Preset Resolutions | 1600 x 900 at 100Hz (DisplayPort 1.2); 1600 x 900 at 100Hz (HDMI); 1600 x 900 at 60Hz (VGA) |
Connectivity

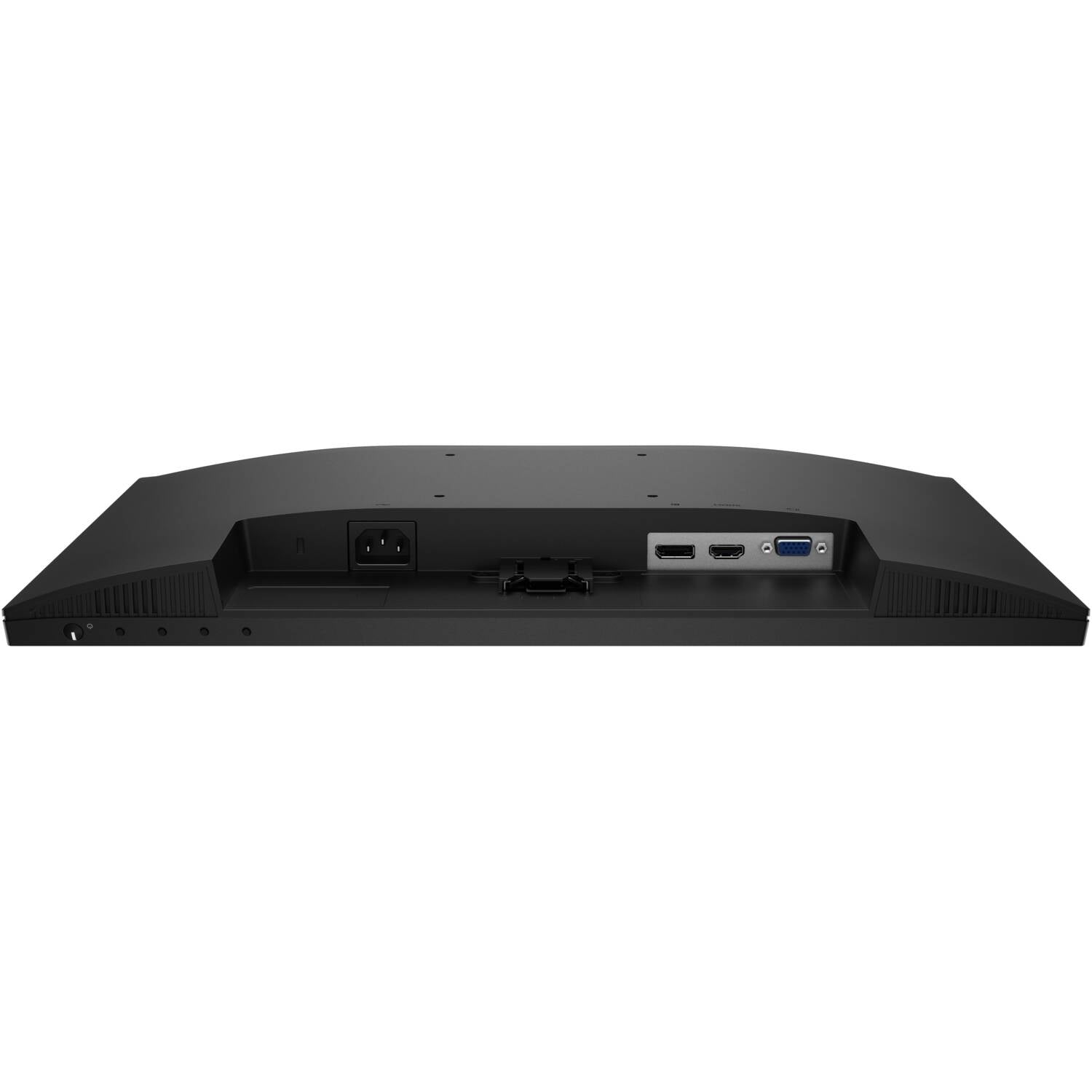

| Interface/Port Details | 1 HDMI port (HDCP 1.4) (Supports up to 1600 x 900, 100 Hz as per specified in HDMI 1.4); 1 DisplayPort 1.2 (HDCP 1.4) port (Supports up to 1600 x 900, 100 Hz); 1 VGA port |
| HDMI Version | 1.4 |
| HDCP Supported | Yes |
Audio & Camera
| Speakers | No |
Ergonomics
| Adjustable Stand | Yes |
| Tilt Angle | -5° to 21° |
| Mount Type | Panel Mount |
| VESA Mount Standard | 100 x 100 |
| Security | Security Lock, Cable Lock Slot |
Power
| Input Voltage Range | 100V AC to 240V AC |
| Frequency | 50 Hz; 60 Hz |
| Voltage Current | 700 mA |
| Operating Power Consumption | 9.20 W |
| Standby Power Consumption | 300 mW |
| Off-Mode Power Consumption | 300 mW |
| Maximum Power Consumption | 18 W |
Physical
| Height | 277.13 mm |
| Width | 464 mm |
| Depth | 47.12 mm |
| Height with Stand | 366.54 mm |
| Width with Stand | 464 mm |
| Depth with Stand | 171 mm |
| Stand Height | 161.94 mm |
| Stand Width | 222.03 mm |
| Stand Depth | 171 mm |
| Bezel Width (Top) | 16.85 mm |
| Bezel Width (Bottom) | 17.07 mm |
| Bezel Width (Left) | 15.52 mm |
| Bezel Width (Right) | 15.52 mm |
| Weight (Approximate) | 2.20 kg |
| Weight with Stand (Approximate) | 3.05 kg |
| Operating Temperature Range | 0°C to 40°C |
| Non-operating Temperature Range | -20°C to 60°C |
| Operating Humidity Range | 10% to 80% (Non-condensing) |
| Non-operating Humidity Range | 5% to 90% (Non-condensing) |
| Maximum Operating Altitude | 5 km |
| Maximum Non-operating Altitude | 12.19 km |
Certifications
| Environmental Certification | Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+); Electronic Product Environmental Assessment Tool Gold (EPEAT Gold); TCO Certified Edge |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| TCO Certified | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Materials | Arsenic-free Glass, BFR Free, Mercury-free, PVC Free |
Compatibility & Software Support
PC Connection
Connect over HDMI 1.4 or DisplayPort 1.2 for 1600 x 900 at 100 Hz, or VGA for 1600 x 900 at 60 Hz on older PCs. A DisplayPort cable is included.
Management
Manageable with Dell Display and Peripheral Manager (DDPM) for remote asset management.
Mounting
VESA 100 x 100 mm for monitor arms and wall brackets.
Package Contents & Dell Pro E-Series Monitors Ordering Information
In the Box
Pro 20 Monitor - E2026H; Stand; Power Cable; 1 x DisplayPort-DisplayPort Cable - 1.80 m; QR Card; Safety Information.
Dell Pro E-Series Monitors
| Model | Key feature |
| E2026H (this listing) | 20" HD+ 1600 x 900, 100 Hz, tilt stand |
| E2225HM | 22" FHD, tilt stand |
| E2225HSM | 22" FHD, height-adjustable stand |
| E2425HM | 24" FHD, tilt stand |
| E2425HSM | 24" FHD, height-adjustable stand |
| E2426HB | 24" FHD 120 Hz, 5MP webcam, mics, speakers |
| E2725HM | 27" FHD, tilt stand |
| E2726HS | 27" FHD 100 Hz, height-adjustable stand, speakers |
| E2726DS | 27" QHD 100 Hz, height-adjustable stand, speakers |
Datasheet & Downloads
| Manuals & drivers | E2026H manuals and documents on Dell Support |
| Dell product page | E2026H on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting E2026H.
Frequently Asked Questions — Dell E2026H
What resolution is the E2026H?
HD+ 1600 x 900 at up to 100 Hz on a 19.5-inch viewable (20-inch class) TN panel.
Does it have USB-C or USB ports?
No. Inputs are HDMI 1.4, DisplayPort 1.2 and VGA.
Does it have built-in speakers?
No.
Is the stand height-adjustable?
No, the stand tilts from -5° to 21°. Use a VESA 100 x 100 arm for height adjustment.
What warranty do I get?
3-Year Limited Hardware Warranty with Advanced Exchange Service (Dell), supplied locally by SourceIT with a GST invoice.
