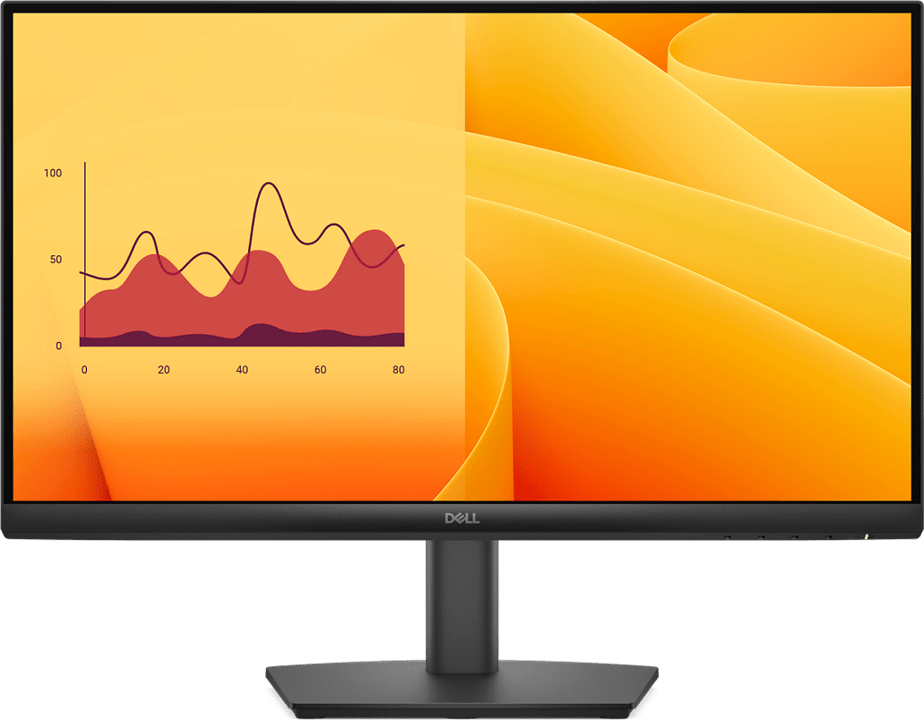

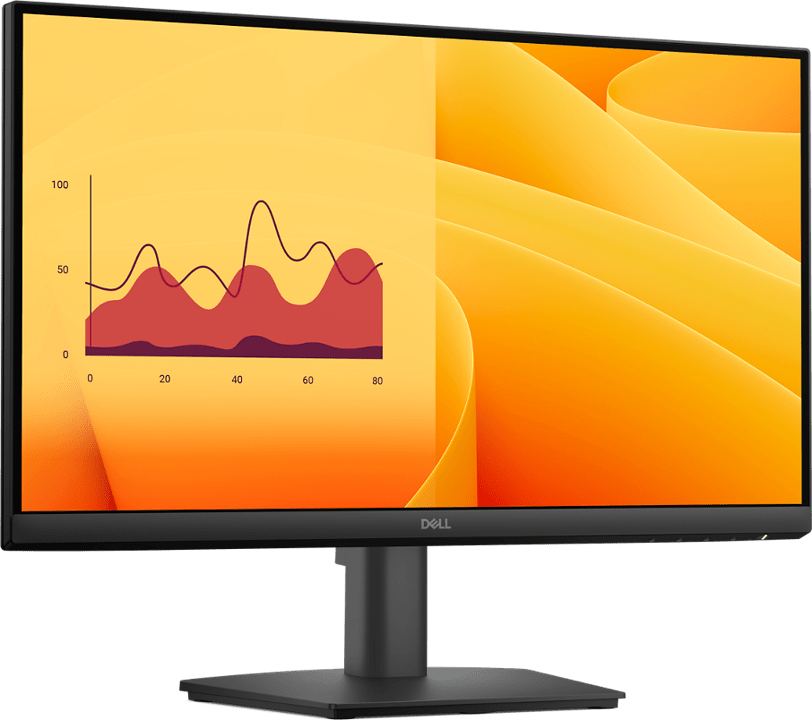

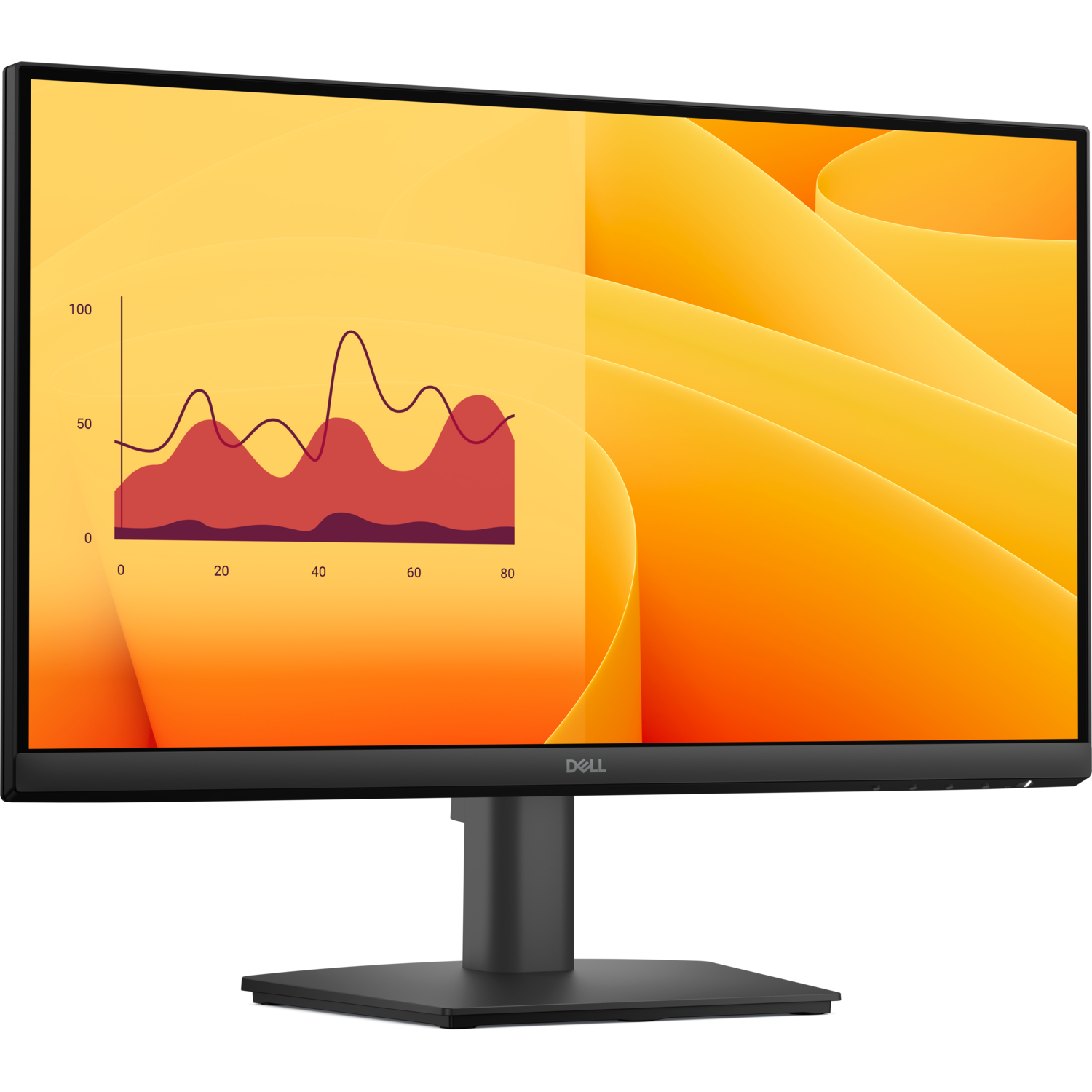

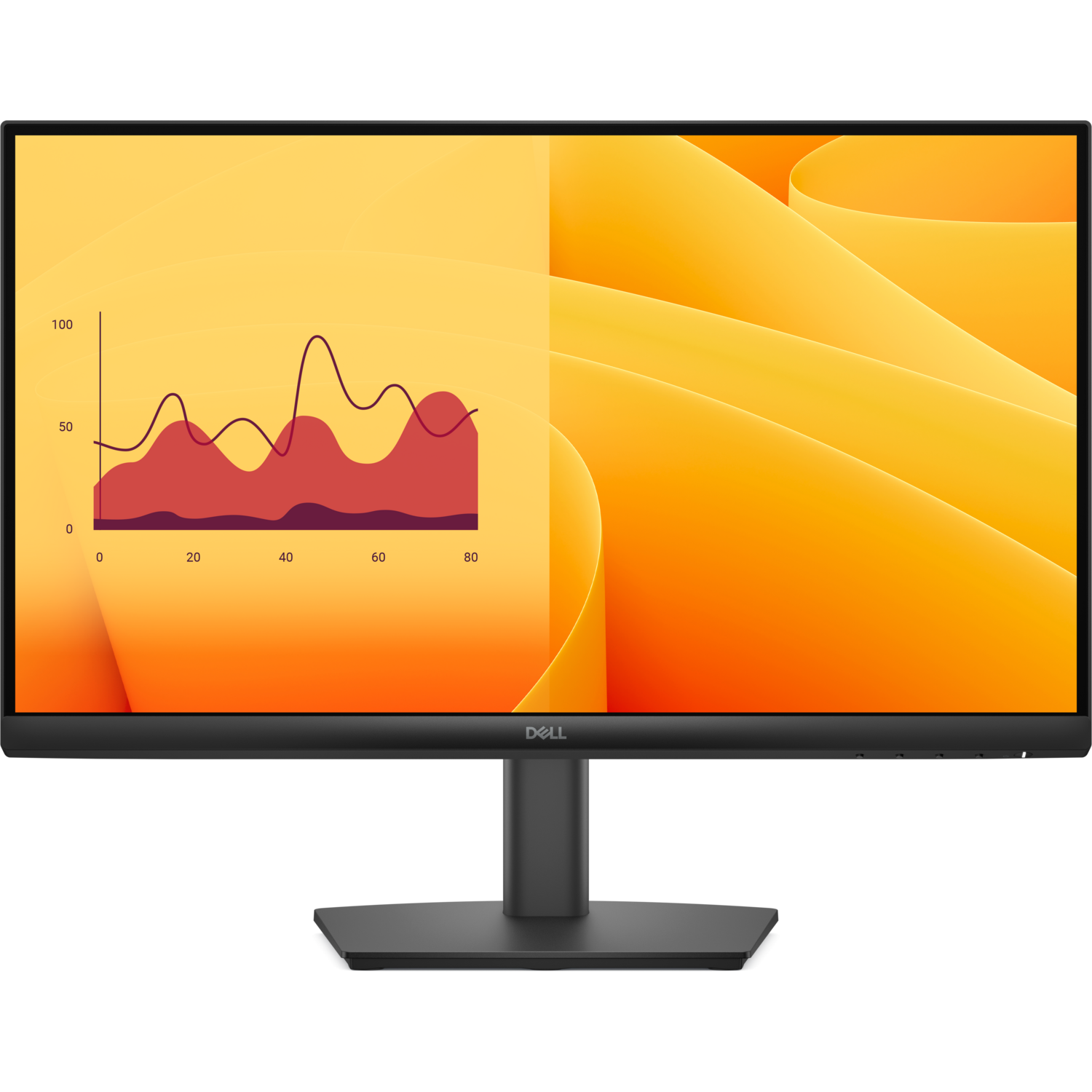

Dell Pro 22 E2225HM 22" Monitor
PRODUCT DESCRIPTION
Dell Pro 22 Monitor E2225HM (210-BRCL) - 3 Years Local Warranty
22-inch Full HD at 100 Hz
The Dell Pro 22 E2225HM gives a compact 21.5-inch 1920 x 1080 VA panel with 3,000:1 contrast and up to 100 Hz over HDMI or DisplayPort, for smoother scrolling than a standard 60 Hz screen.
Connects to New and Older PCs
HDMI, DisplayPort 1.2 and VGA inputs cover current desktops and legacy machines, so one model can be standardised across an office.
Comfortable for Long Days
TÜV Rheinland 3-star Eye Comfort certification, a 3H anti-glare surface and a tilt stand (-5° to 21°) keep the screen easy on the eyes, and VESA 100 x 100 mounting suits monitor arms.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell E2225HM Datasheet — Technical Specifications
General
| Product Name | Dell Pro 22 Monitor - E2225HM |
| Model | E2225HM |
| Dell SKU (Singapore) | 210-BRCL |
| Product Line | Dell Pro |
| Local Warranty (Singapore) | 3 years Limited Hardware and Advanced Exchange Service, supplied by SourceIT with a GST invoice |
Display
| Screen size | 21.5" viewable (22" class) |
| Panel type | Vertical Alignment (VA) Technology |
| Resolution / refresh | 1920 x 1080 (Full HD) up to 100 Hz (DP/HDMI) |
| Aspect ratio | 16:9 |
| Pixel pitch | 0.2493 mm x 0.2410 mm |
| PPI | 103 |
| Brightness | 250 cd/m² (typical) |
| Contrast ratio | 3000:1 (typical) |
| Colour gamut | 72% NTSC (CIE 1931) |
| Colour support | 16.7 million colours |
| Response time | 8 ms GTG (Normal); 5 ms GTG (Fast) |
| Viewing angle | 178° horizontal / 178° vertical |
| Backlight | LED Edgelight System |
| Surface | Anti-glare with 3H hard coating |
| Eye comfort | TÜV Rheinland 3-star eye comfort; Eye Comfort Technology |
Audio
| Speakers | None |

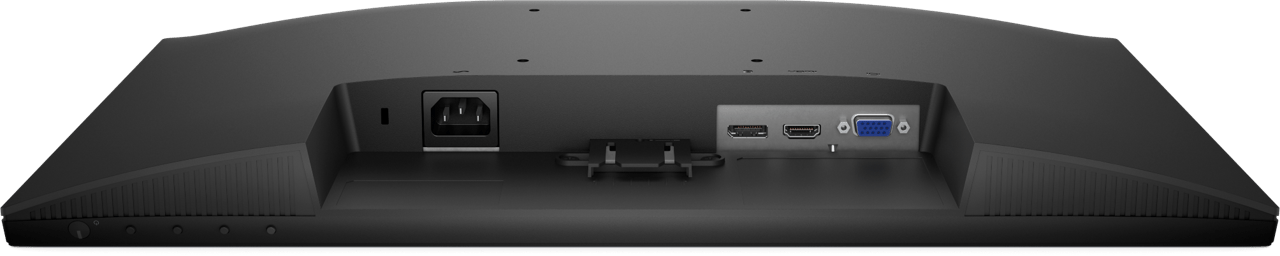

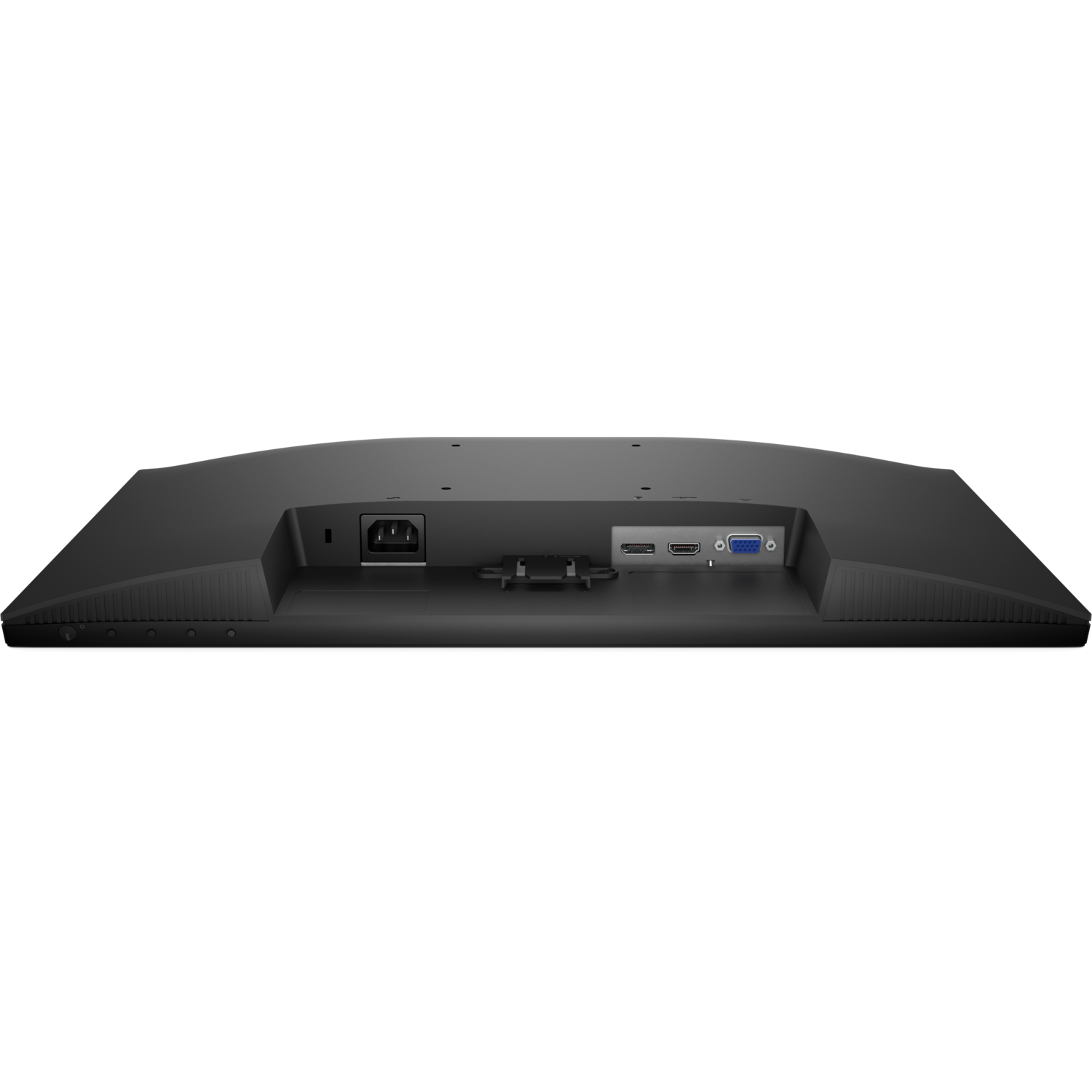

Connectivity
| HDMI | 1 x HDMI port (HDCP 1.4) - supports FHD 1920 x 1080 100 Hz per HDMI 1.4 |
| DisplayPort | 1 x DisplayPort 1.2 (HDCP 1.4) - supports FHD 1920 x 1080 100 Hz |
| VGA | 1 x VGA port (1920 x 1080 up to 60 Hz) |
| Security | Security lock slot (cable lock sold separately) |
Ergonomics

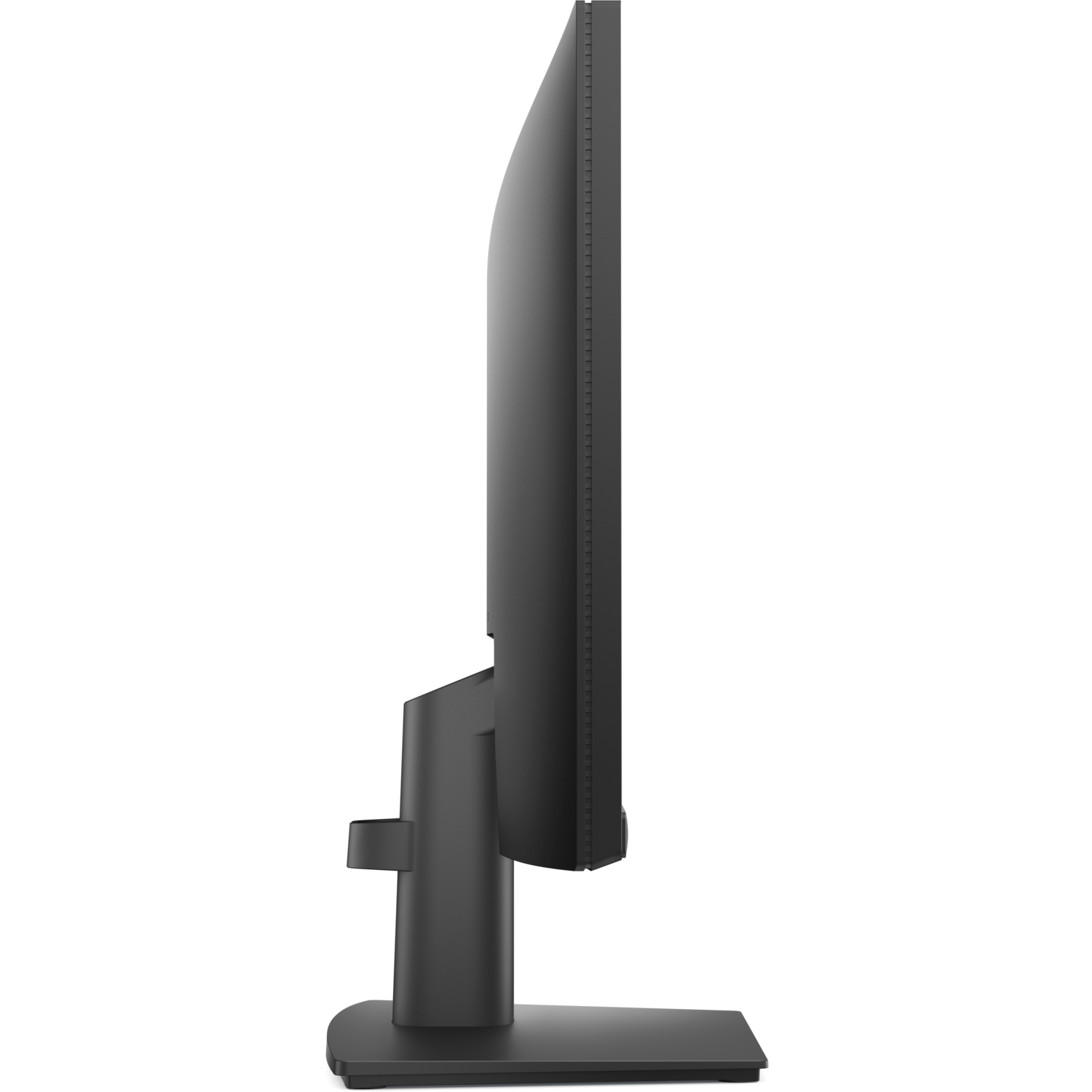

| Tilt | -5° to 21° |
| Height/Swivel/Pivot | Not supported (tilt-only stand) |

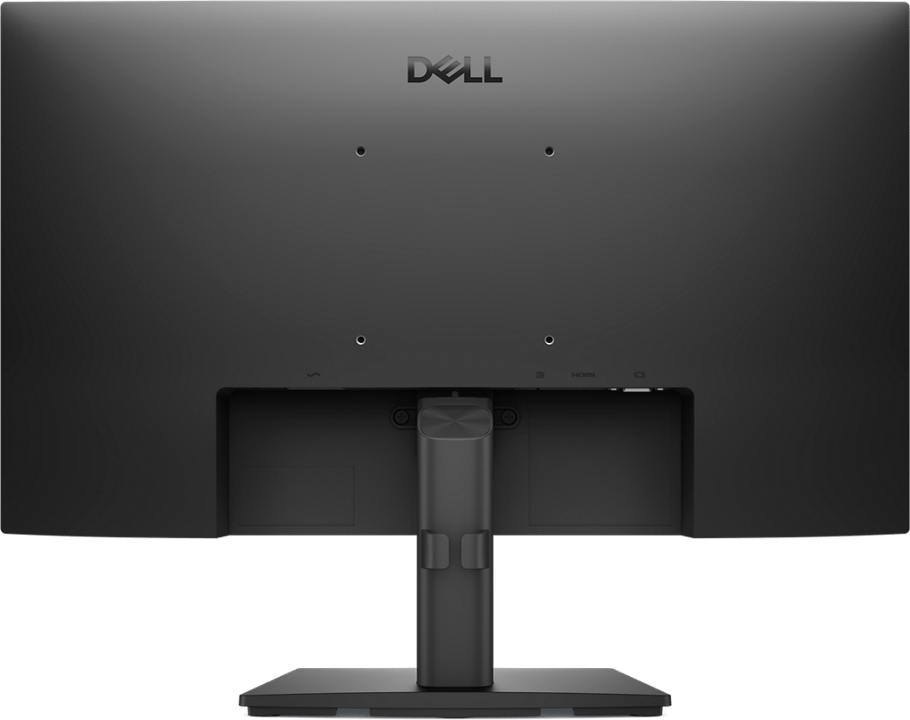

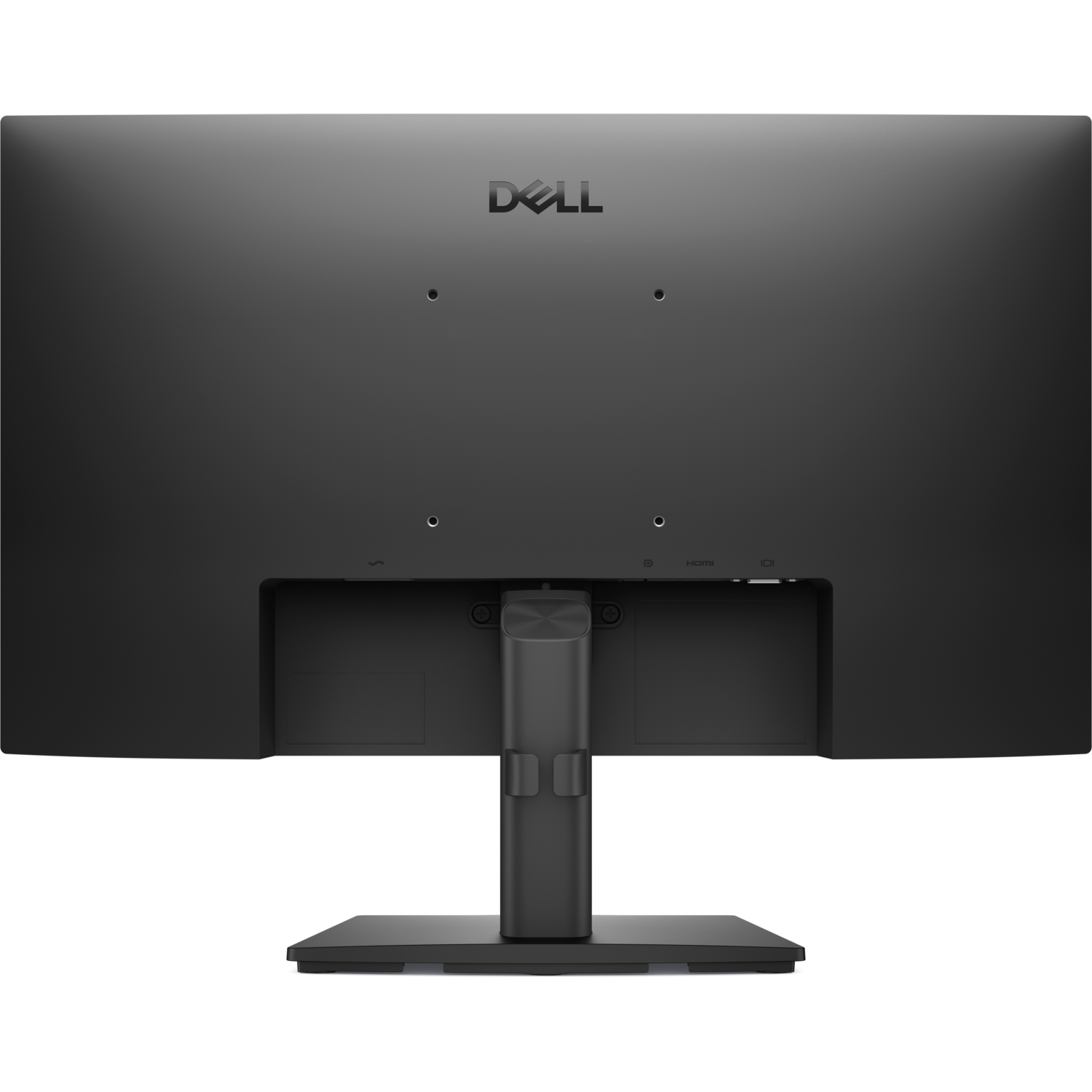

| VESA | 100 mm x 100 mm |
Power
| Input voltage | 100 VAC to 240 VAC, 50/60 Hz ± 3 Hz, 0.7 A |
| On mode | 11.9 W |
| Standby / Off | 0.3 W |
| Maximum | 25 W |
Environment
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Non-operating temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating humidity | 10% to 80% (non-condensing) |
| Non-operating humidity | 5% to 90% (non-condensing) |
| Operating altitude | 5,000 m (16,400 ft) |
| Non-operating altitude | 12,192 m (40,000 ft) |
Dimensions
| With stand | 376.88 x 491.86 x 171.00 mm (H x W x D) |
| Without stand | 288.60 x 491.86 x 50.37 mm (H x W x D) |
| Stand | 174.02 x 222.03 x 171.00 mm |
| Bezel | Top/Left/Right 6.60 mm, Bottom 17.20 mm |
Weight
| With stand and cables | 2.92 kg |
| Panel only (without stand) | 2.29 kg |
| Stand only | 0.33 kg |
| With packaging | 3.99 kg |
Certifications
| Certifications | ENERGY STAR 8.0, EPEAT Gold with Climate+, TCO Certified and TCO Certified Edge, RoHS Compliant, TÜV Rheinland Eye Comfort 3 Star |
| Environmental | Mercury-free, Arsenic-free glass, BFR/PVC-reduced |
Compatibility & Software Support
Connecting Your PC
Connect over HDMI or DisplayPort 1.2 for 1920 x 1080 at 100 Hz, or over VGA at 60 Hz. USB-C laptops need a USB-C to HDMI or DisplayPort adapter.
Mounting
VESA 100 x 100 for monitor arms and wall mounts.
Typical Use
Office desks, point-of-sale and reception counters, classrooms and budget multi-screen set-ups.
Package Contents & Dell Pro 22, 24 & 27 Monitors Ordering Information
In the Box
Monitor, Stand, Power cable, 1 x DisplayPort-DisplayPort cable - 1.80 m, Quick Start guide, Safety Information.
Dell Pro 22, 24 & 27 Monitors
| Model | Key feature |
| E2225HM (this listing) | 22" FHD, tilt stand |
| E2225HSM | 22" FHD, adjustable stand, speakers |
| E2425HM | 24" FHD IPS, tilt stand |
| E2425HSM | 24" FHD, adjustable stand, speakers |
| E2725HM | 27" FHD |
Datasheet & Downloads
| Dell datasheet | Dell Pro 22 Monitors E2225HM / E2225HSM Datasheet (PDF) |
| Manuals & drivers | E2225HM manuals and documents on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting E2225HM.
Frequently Asked Questions — Dell E2225HM
Is the stand height-adjustable?
No, the stand is tilt-only (-5° to 21°). For height, swivel and pivot adjustment see the E2225HSM.
Does it have speakers?
No.
What refresh rate does it support?
Up to 100 Hz at 1920 x 1080 over HDMI or DisplayPort.
Can it be wall- or arm-mounted?
Yes, it is VESA 100 x 100 compatible.
What warranty do I get?
3 years Dell Limited Hardware and Advanced Exchange Service, supplied locally by SourceIT with a GST invoice.
