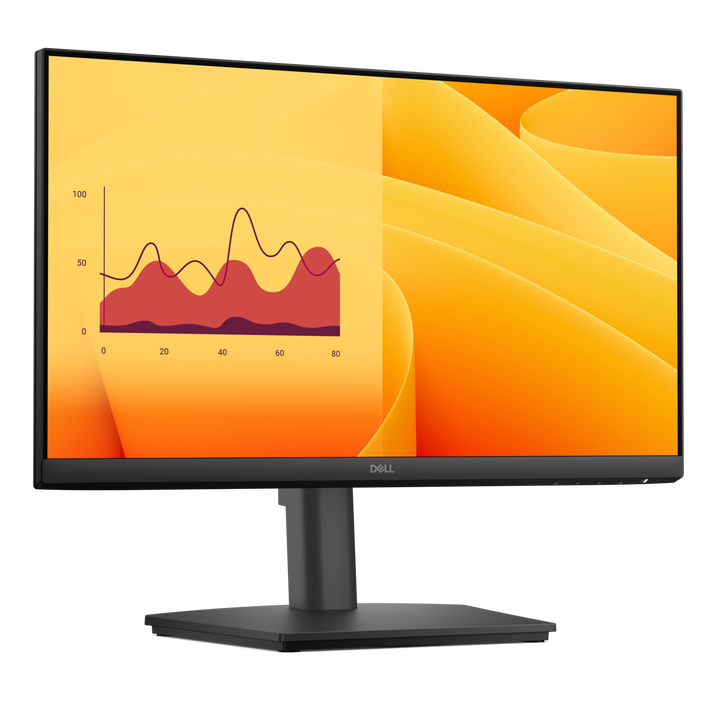

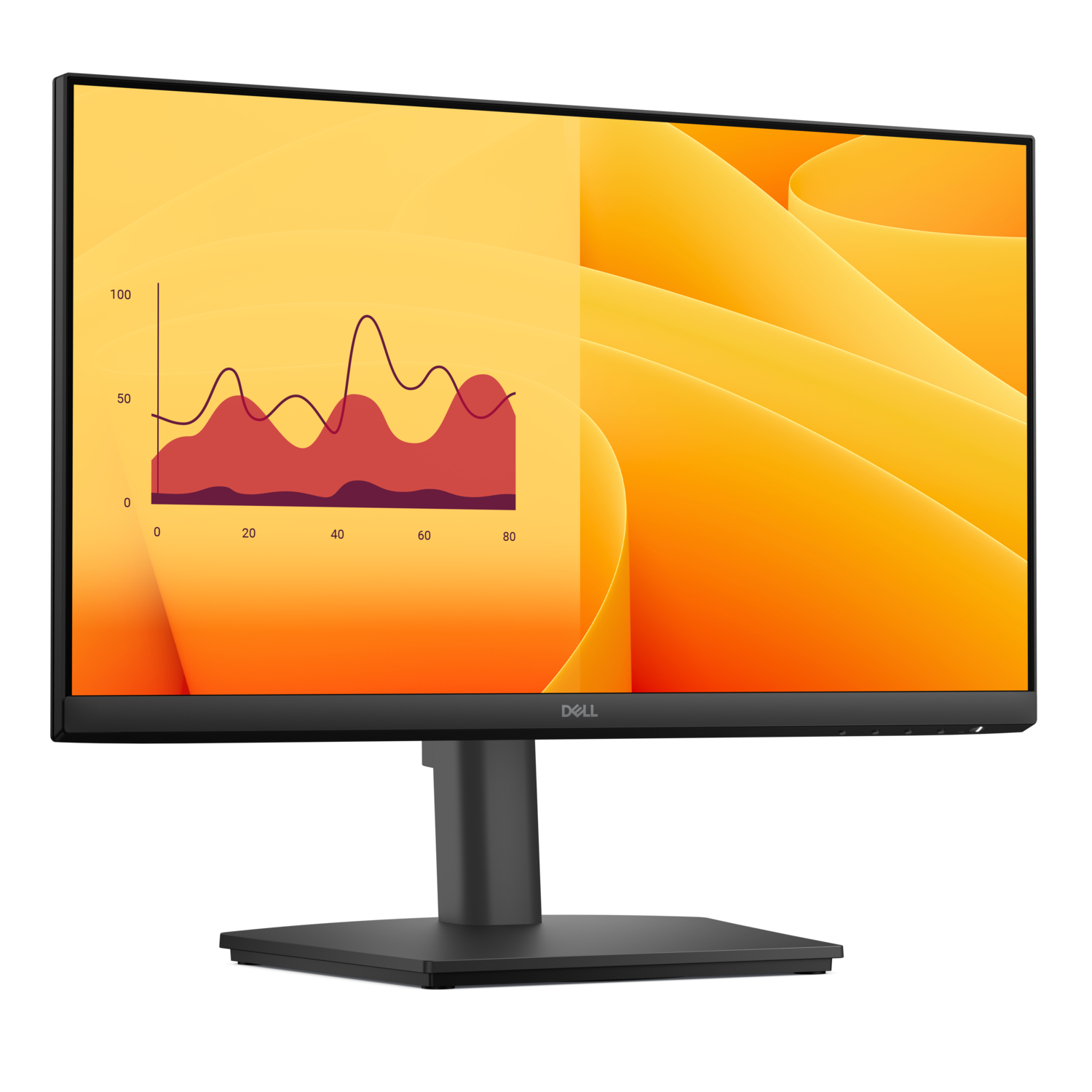

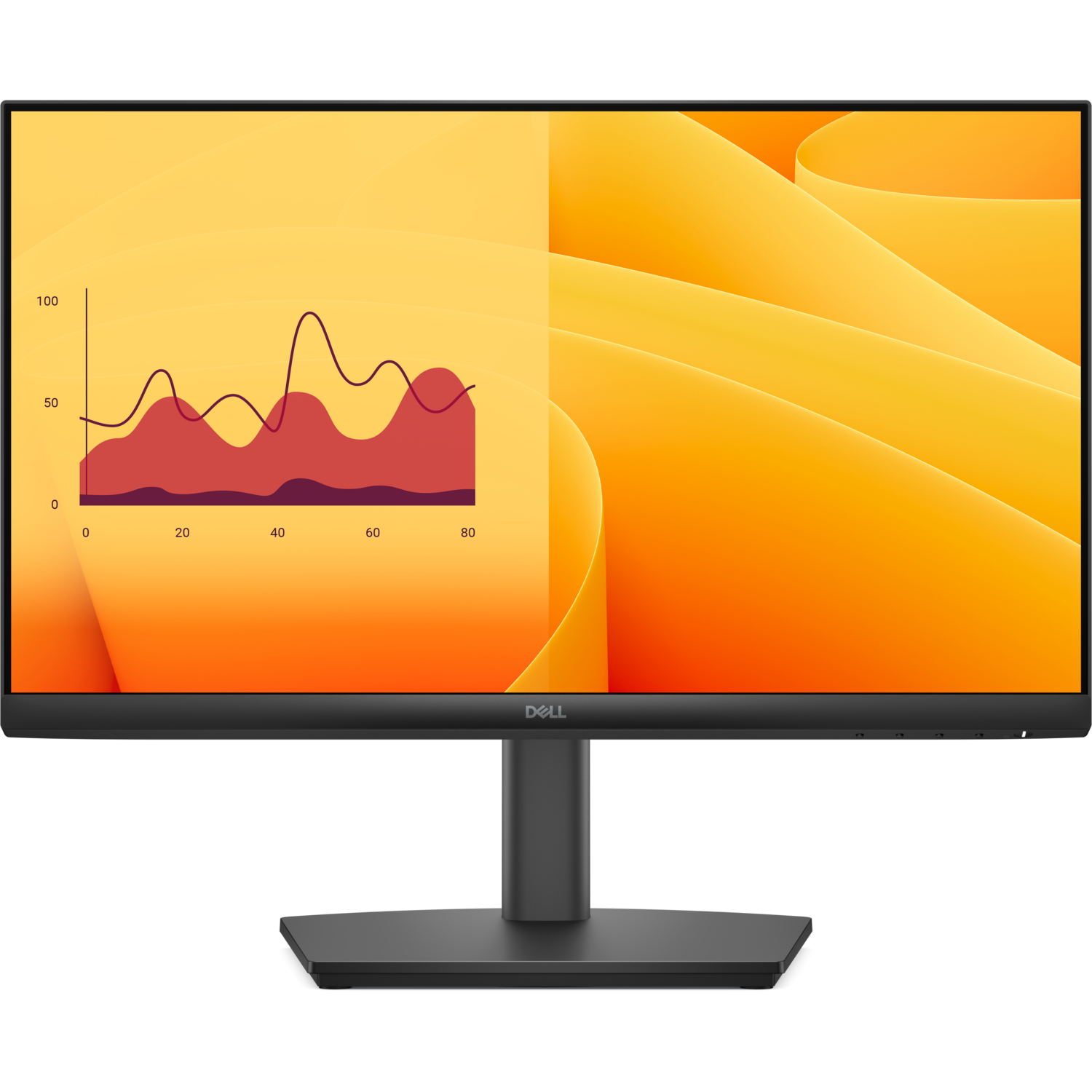

Dell Pro 22 E2225HSM 22" Adjustable Stand Monitor
PRODUCT DESCRIPTION
Dell Pro 22 Adjustable Stand Monitor E2225HSM (210-BRCP) - 3 Years Local Warranty

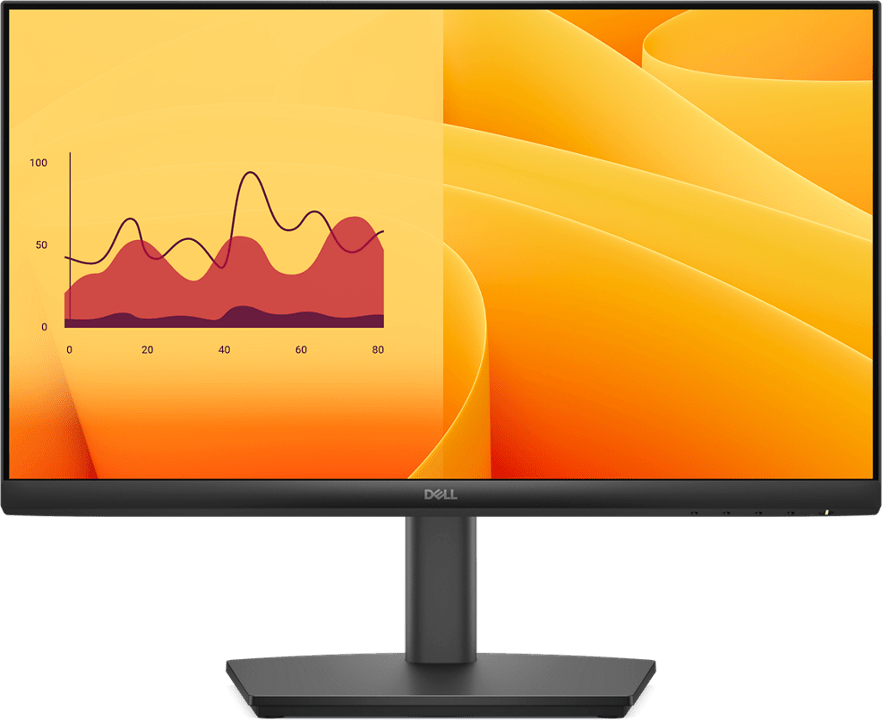

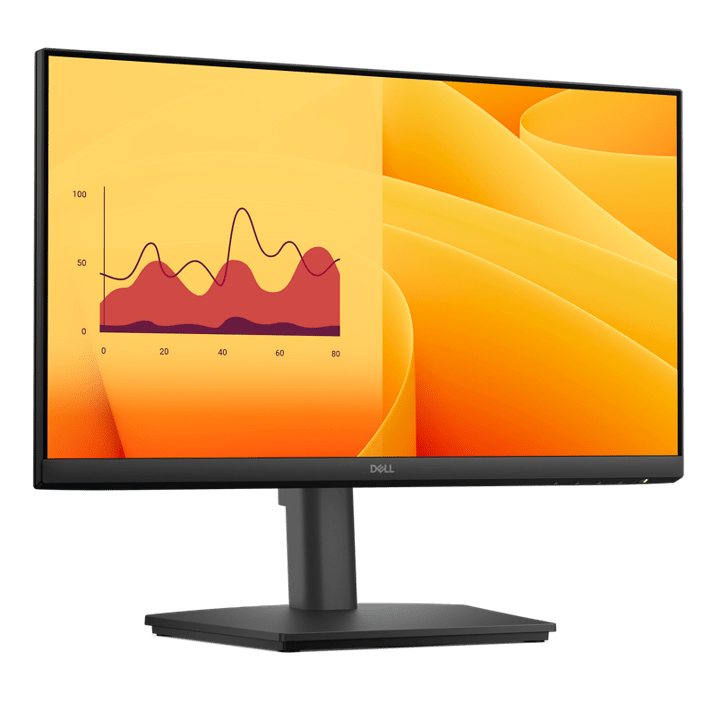

22-inch Full HD at 100 Hz
The Dell Pro 22 E2225HSM uses a 21.5-inch 1920 x 1080 VA panel with 3,000:1 contrast and up to 100 Hz over HDMI or DisplayPort, a step up from standard 60 Hz office screens.

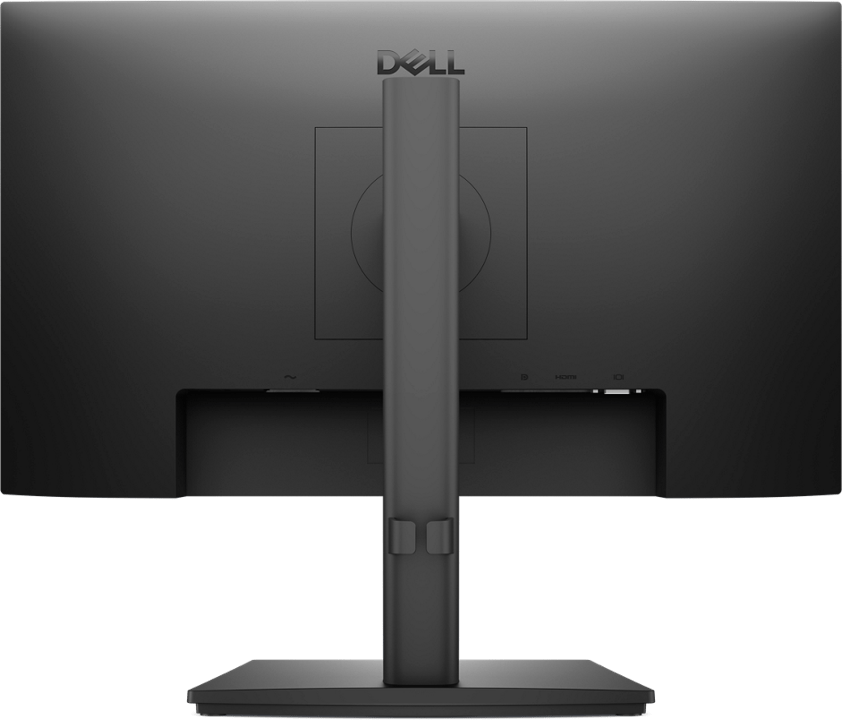

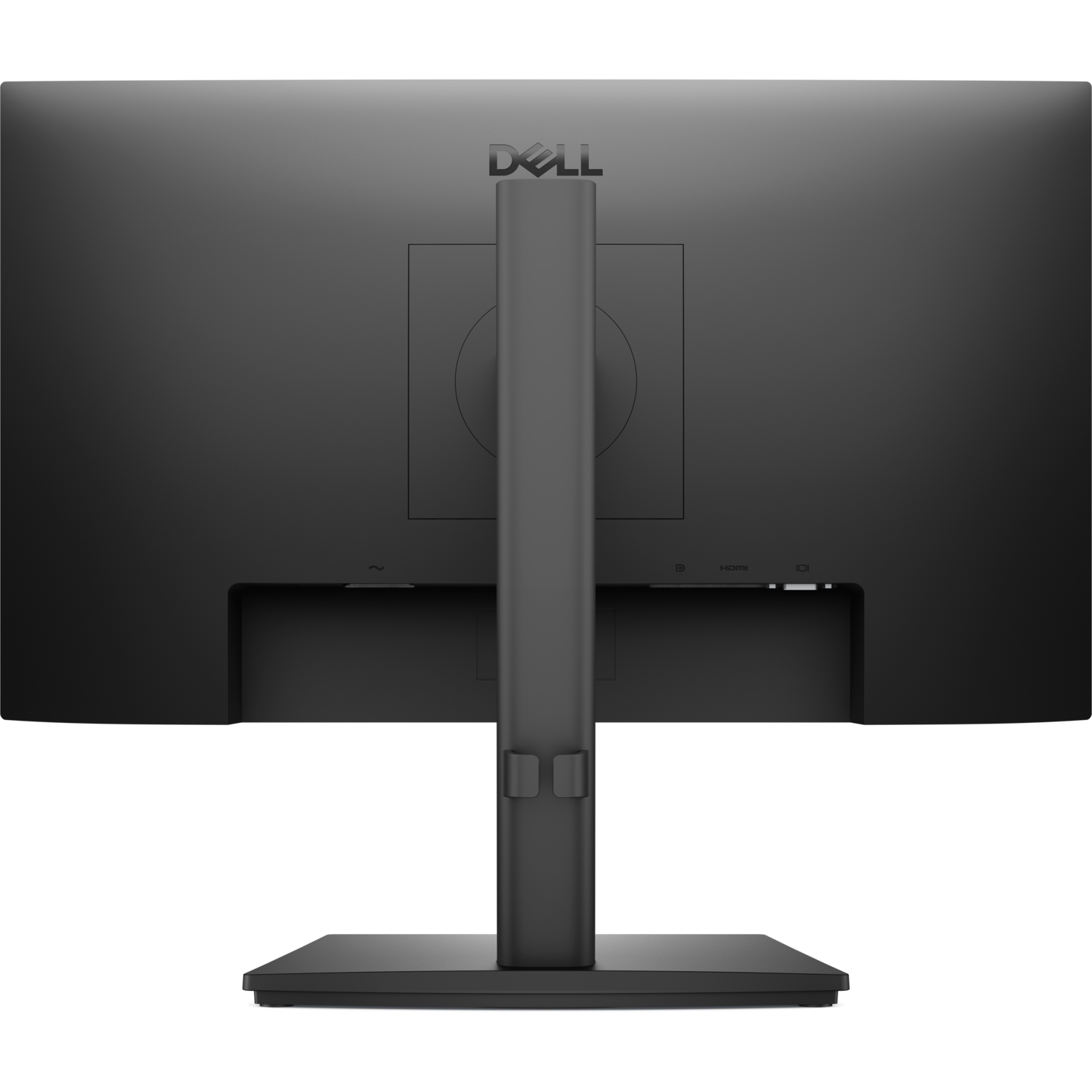

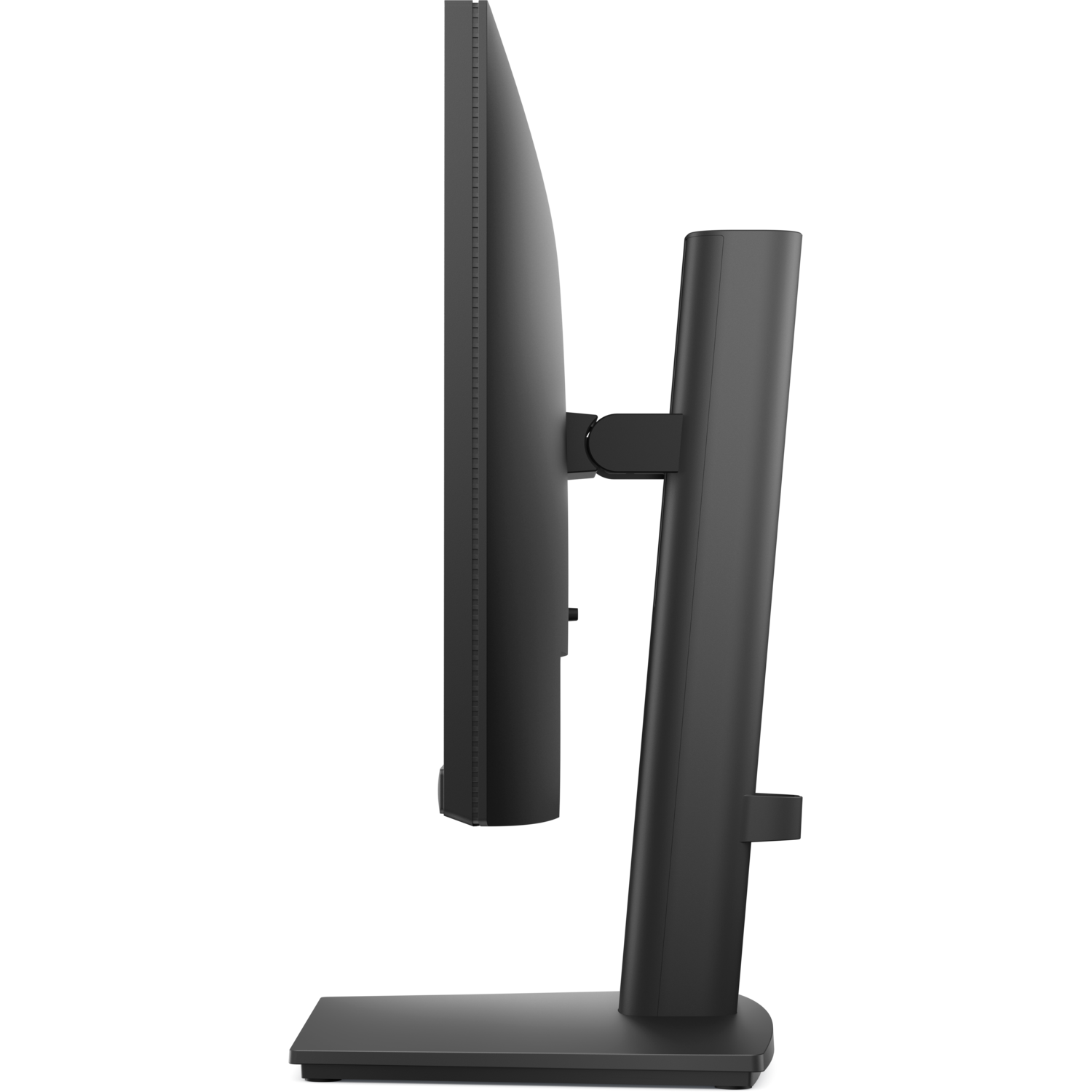

Fully Adjustable Stand
The stand offers 130 mm of height adjustment, -5° to 21° tilt, -173° to 173° swivel and ±90° pivot, so each user can set a comfortable position. Two 2 W speakers are built in.
Office-Ready Connectivity
HDMI, DisplayPort 1.2 and VGA inputs connect new and older PCs alike, and TÜV Rheinland 3-star Eye Comfort certification and a 3H anti-glare surface suit long working days.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell E2225HSM Datasheet — Technical Specifications
General
| Product Name | Dell Pro 22 Adjustable Stand Monitor - E2225HSM |
| Model | E2225HSM |
| Dell SKU (Singapore) | 210-BRCP |
| Product Line | Dell Pro |
| Local Warranty (Singapore) | 3 years Limited Hardware and Advanced Exchange Service, supplied by SourceIT with a GST invoice |
Display
| Screen size | 21.5" viewable (22" class) |
| Panel type | Vertical Alignment (VA) Technology |
| Resolution / refresh | 1920 x 1080 (Full HD) up to 100 Hz (DP/HDMI); 60 Hz via VGA |
| Aspect ratio | 16:9 |
| Pixel pitch | 0.2493 mm x 0.2410 mm |
| PPI | 103 |
| Brightness | 250 cd/m² (typical) |
| Contrast ratio | 3000:1 (typical) |
| Colour gamut | 72% NTSC (CIE 1931) |
| Colour support | 16.7 million colours |
| Response time | 8 ms GTG (Normal); 5 ms GTG (Fast) |
| Viewing angle | 178° horizontal / 178° vertical |
| Backlight | LED Edgelight System |
| Surface | Anti-glare with 3H hard coating |
| Eye comfort | TÜV Rheinland 3-star eye comfort; Eye Comfort Technology |
Audio
| Speakers | 2 x integrated 2 W speakers (4 W total) |

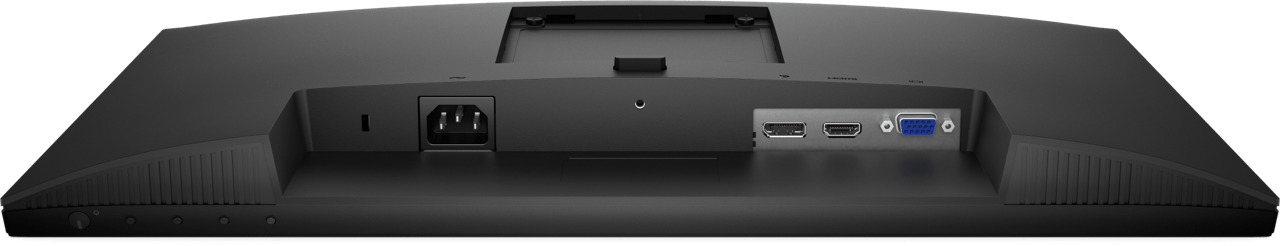

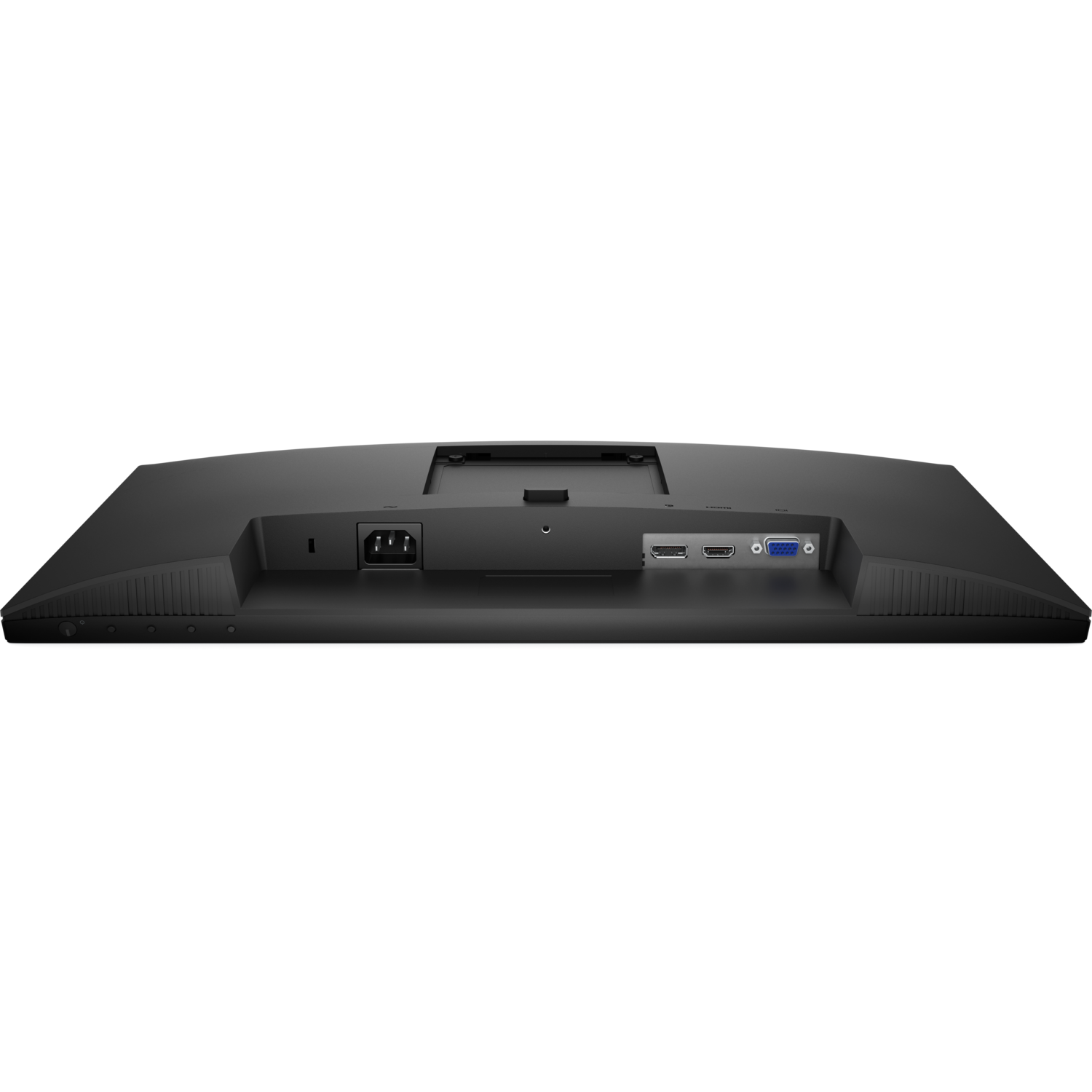

Connectivity
| HDMI | 1 x HDMI port (HDCP 1.4) - supports FHD 1920 x 1080 100 Hz per HDMI 1.4 |
| DisplayPort | 1 x DisplayPort 1.2 (HDCP 1.4) - supports FHD 1920 x 1080 100 Hz |
| VGA | 1 x VGA port (1920 x 1080 up to 60 Hz) |
| Security | Security lock slot (cable lock sold separately) |

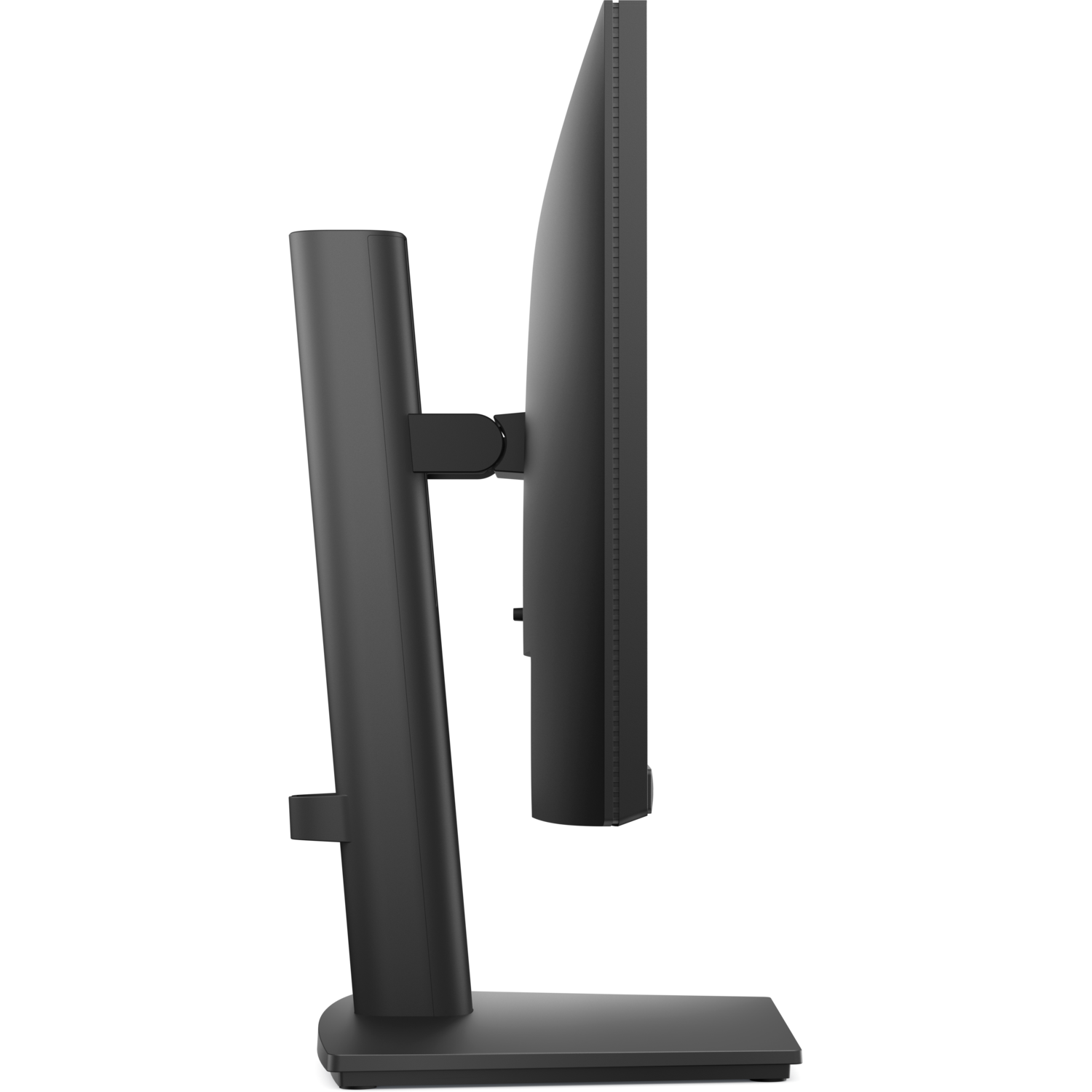

Ergonomics
| Height adjustment | 130 mm (±5 mm) |
| Tilt | -5° to 21° |
| Swivel | -173° to 173° |
| Pivot | -90° to 90° |
| VESA | 100 mm x 100 mm |
Power
| Input voltage | 100 VAC to 240 VAC, 50/60 Hz ± 3 Hz, 0.7 A |
| On mode | 11.4 W |
| Standby / Off | 0.3 W |
| Maximum | 25.0 W |
Environment
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Non-operating temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating humidity | 10% to 80% (non-condensing) |
| Non-operating humidity | 5% to 90% (non-condensing) |
| Operating altitude | 5,000 m (16,400 ft) |
| Non-operating altitude | 12,192 m (40,000 ft) |
Dimensions
| With stand (extended) | 468.59 x 492.06 x 211.60 mm (H x W x D) |
| With stand (compressed) height | 348.07 mm |
| Without stand | 288.93 x 492.06 x 54.33 mm (H x W x D) |
| Stand (extended) | 400.04 x 257.02 x 211.60 mm |
| Bezel | Top/Left/Right 6.70 mm, Bottom 17.15 mm |
Weight
| With stand and cables | 4.11 kg |
| Panel only (without stand) | 2.26 kg |
| Stand only | 1.51 kg |
| With packaging | 5.92 kg |
Certifications
| Certifications | ENERGY STAR 8.0, EPEAT Gold with Climate+, TCO Certified and TCO Certified Edge, RoHS Compliant, TÜV Rheinland Eye Comfort 3 Star |
| Environmental | Mercury-free, Arsenic-free glass, BFR/PVC-reduced |
Compatibility & Software Support
Connecting Your PC
Connect over HDMI or DisplayPort 1.2 for 1920 x 1080 at 100 Hz, or over VGA at 60 Hz for older desktops. There is no USB-C input; USB-C laptops need a USB-C to HDMI or DisplayPort adapter.
Mounting
VESA 100 x 100 for monitor arms and wall mounts.
Typical Use
Office desks, reception and front-desk counters, classrooms and hot desks that need an adjustable, low-cost screen.
Package Contents & Dell Pro 22, 24 & 27 Monitors Ordering Information
In the Box
Monitor, Stand, Power cable, 1 x HDMI cable - 1.80 m, Quick Start guide, Safety Information.
Dell Pro 22, 24 & 27 Monitors
| Model | Key feature |
| E2225HM | 22" FHD, tilt stand |
| E2225HSM (this listing) | 22" FHD, adjustable stand, speakers |
| E2425HM | 24" FHD IPS, tilt stand |
| E2425HSM | 24" FHD, adjustable stand, speakers |
| E2725HM | 27" FHD |
Datasheet & Downloads
| Dell datasheet | Dell Pro 22 Monitors E2225HM / E2225HSM Datasheet (PDF) |
| Manuals & drivers | E2225HSM manuals and documents on Dell Support |
| Dell product page | E2225HSM on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting E2225HSM.
Frequently Asked Questions — Dell E2225HSM
Is the stand height-adjustable?
Yes, 130 mm of height adjustment plus tilt, swivel and pivot.
Does it have speakers?
Yes, 2 x 2 W integrated speakers.
What refresh rate does it support?
Up to 100 Hz at 1920 x 1080 over HDMI or DisplayPort; 60 Hz over VGA.
Can it be wall- or arm-mounted?
Yes, it is VESA 100 x 100 compatible.
What warranty do I get?
3 years Dell Limited Hardware and Advanced Exchange Service, supplied locally by SourceIT with a GST invoice.
