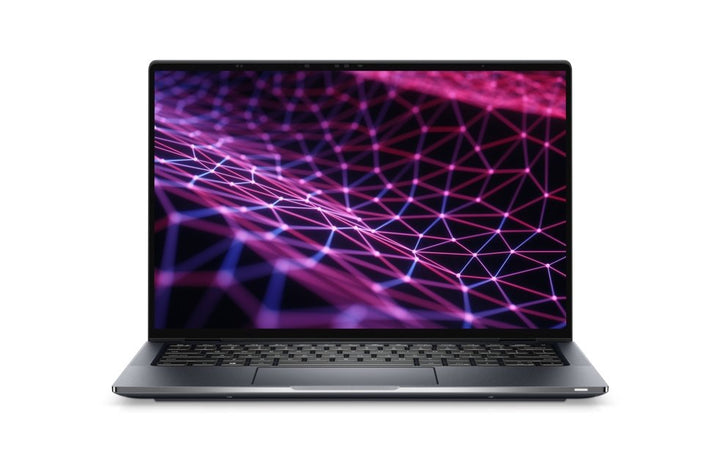

Dell Latitude 9430 14" 12th Gen Intel Core Laptop
PRODUCT DESCRIPTION
Dell Latitude 9430 14-inch Laptop Series 12th Gen Intel Core i5-1245U / i7-1265U / 16GB / 512GB SSD (210-BDRH) - 3 Years Local Onsite Warranty
12th Gen Intel Core i5 or i7
Choose the Intel Core i5-1245U (up to 4.40 GHz) or Core i7-1265U (up to 4.80 GHz), both with 10 cores and 12 threads, paired with 16GB of dual-channel LPDDR5-5200 memory and a 512GB PCIe Gen 4 NVMe SSD.
14-inch 16:10 Display at 500 nits

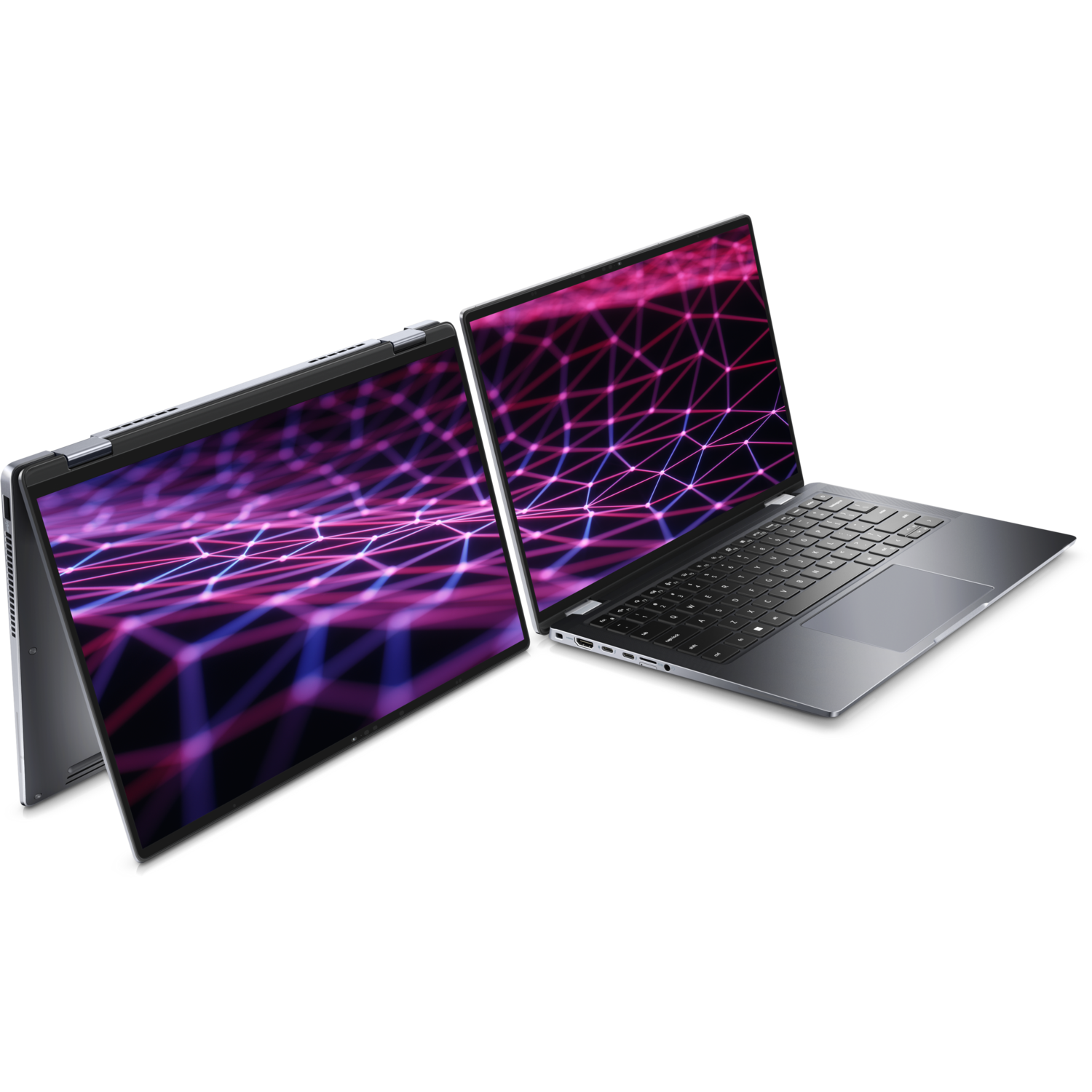

A 14-inch 16:10 panel at 500 nits with 100% sRGB — FHD+ non-touch on the laptop or QHD+ touch on the 2-in-1 — in a chassis from 8.46 mm thin, with an FHD IR camera, four speakers and quad-array microphones.
Thunderbolt 4, Wi-Fi 6E and Optional 5G
Two Thunderbolt 4 ports, USB-A, HDMI 2.0 and microSD, Intel Wi-Fi 6E with Bluetooth 5.2, and optional 4G LTE or 5G mobile broadband, secured by TPM 2.0 and Windows Hello IR sign-in.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Latitude 9430 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Latitude 9430 (14-inch) |
| Part Number | 210-BDRH |
| Configurations offered | Intel Core i5-1245U / 16GB / 512GB SSD (Lati9430i545) Intel Core i7-1265U / 16GB / 512GB SSD (Lati9430i765) |
| Memory | 16GB LPDDR5 5200 MT/s, on-board (dual-channel) |
| Storage | 512GB M.2 2230 PCIe NVMe Gen 4 SSD |
| Display | 14-inch 16:10, 500 nits (FHD+ non-touch or QHD+ touch, depending on version) |
| Camera | FHD RGB + IR camera |
| Local Warranty (Singapore) | 3 years local onsite |
Processor & Graphics
| Core i5 option | 12th Gen Intel Core i5-1245U: 10 cores / 12 threads, 12 MB cache, 1.60 GHz to 4.40 GHz, 15 W |
| Core i7 option | 12th Gen Intel Core i7-1265U: 10 cores / 12 threads, 12 MB cache, 1.80 GHz to 4.80 GHz, 15 W |
| Graphics | Integrated Intel Iris Xe Graphics |
Memory & Storage
| Memory | 16GB LPDDR5 5200 MT/s, dual-channel, on-board (integrated, not upgradeable); platform max 32GB at time of order |
| Storage | 512GB M.2 2230 PCIe NVMe Gen 4 x4 SSD (Dell offers up to 1TB) |
| Card Reader | microSD card slot |
Display
| Laptop version | 14" FHD+ (1920 x 1200), non-touch, anti-glare, 500 nits, 100% sRGB, 1200:1 contrast, low blue light |
| 2-in-1 version | 14" QHD+ (2560 x 1600), touch, anti-reflection / anti-smudge, 500 nits, 100% sRGB, 1000:1 contrast, low blue light |
| Refresh Rate | 60 Hz |

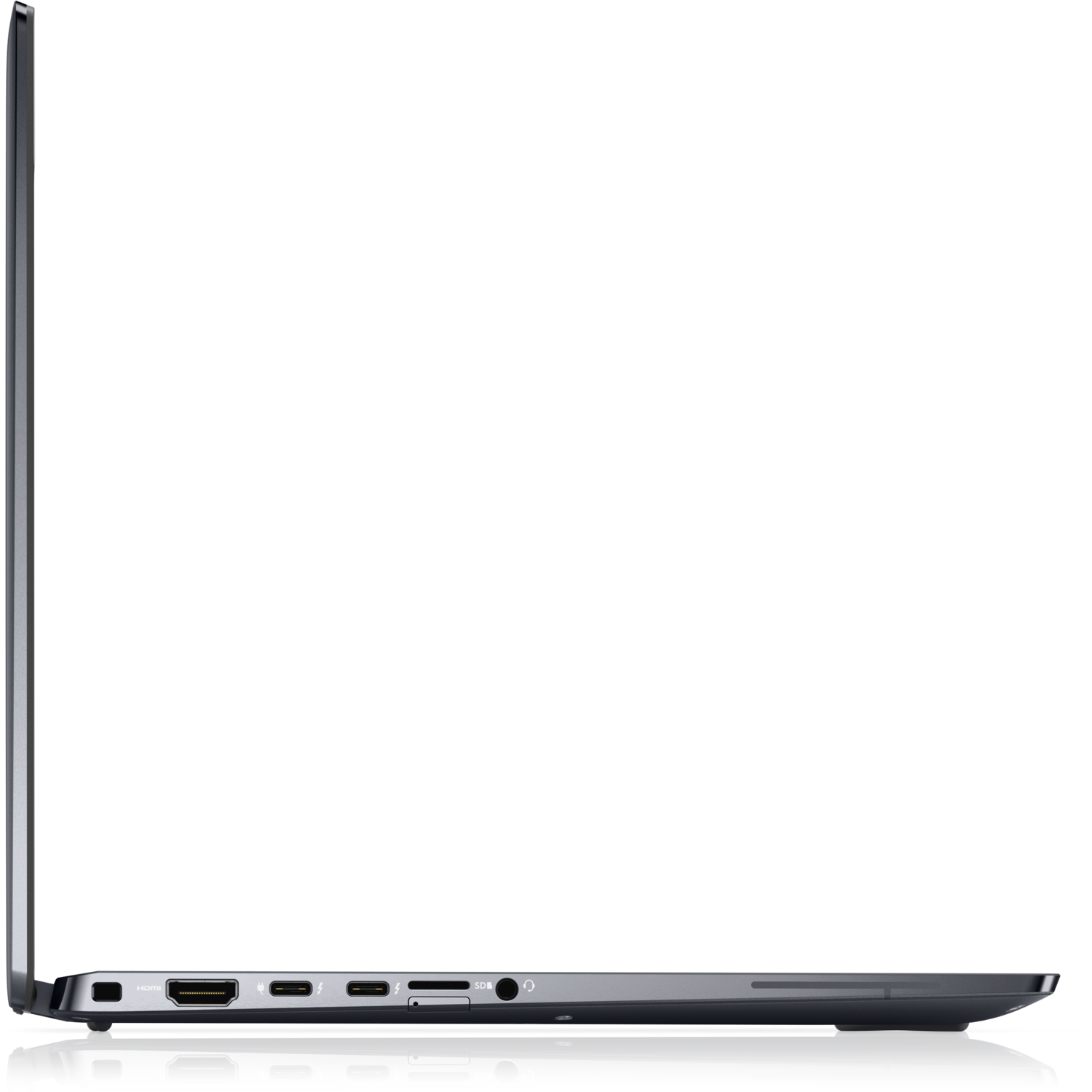

Ports
| Thunderbolt / USB-C | 2 x Thunderbolt 4 with DisplayPort Alt Mode / USB4 / Power Delivery |
| USB-A | 1 x USB 3.1 Gen 1 with PowerShare |
| Video | 1 x HDMI 2.0 |
| Network | No RJ45 Ethernet port |
| Other | Universal audio jack, microSD card slot, USB Type-C power input (via a Thunderbolt port), wedge-shaped security-cable slot |
Wireless, Audio & Camera
| Wireless | Intel AX211 Wi-Fi 6E (802.11ax, 2.4 / 5 / 6 GHz, up to 2400 Mbps) with Bluetooth 5.2 |
| Mobile Broadband (optional) | Qualcomm Snapdragon X20 4G LTE or Snapdragon X55 5G module, where configured |
| Camera | FHD RGB + IR camera (1920 x 1080 at 30 fps) |
| Audio | Four speakers (8 W average / 10 W peak), Realtek ALC711-CG, quad-array microphones |
Power
| Battery | 2-cell 39.7 Wh or 3-cell 59.6 Wh, ExpressCharge Boost |
| Charging | USB Type-C AC adapter (Dell 60 W / 65 W / 90 W USB-C adapters supported) |
Security
| Hardware | TPM 2.0 (FIPS 140-2 / TCG certified), optional fingerprint reader in power button (ControlVault 3.0), IR camera for Windows Hello with ExpressSign-in, wedge-shaped lock slot |

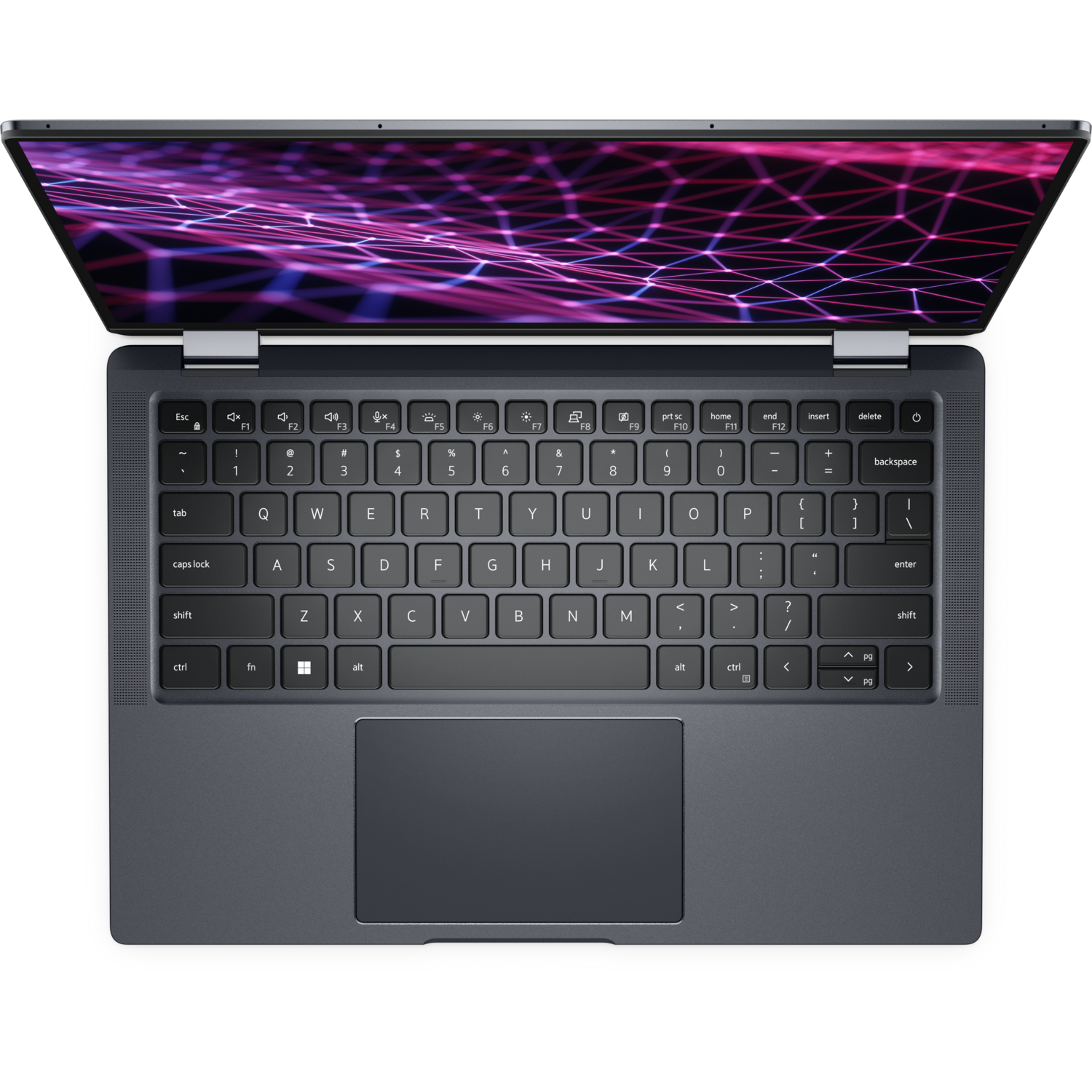

| Keyboard | Backlit keyboard, English US 79-key |
| Touchpad | 116 x 72 mm |
Physical
| Dimensions (W x D x H) | 310.59 x 215.18 x 8.46–13.94 mm |
| Weight | Laptop 1.29 kg / 2-in-1 1.44 kg (varies by configuration) |
| Operating temperature | 0°C to 40°C |
Compatibility & Software Support
Operating System
Dell supports Windows 11 Pro and Windows 11 Home (64-bit), Windows 10 (64-bit) and Ubuntu 20.04 LTS on the Latitude 9430. Contact sales to confirm the OS supplied with this configuration.
Docks & Displays
Two Thunderbolt 4 ports with DisplayPort Alt Mode and Power Delivery work with Dell Thunderbolt and USB-C docks; HDMI 2.0 adds another display. There is no built-in RJ45 port, so use a dock or USB-C adapter for wired Ethernet.
Mobile Broadband
Dell offered optional 4G LTE (Snapdragon X20) and 5G (Snapdragon X55) WWAN modules on the Latitude 9430. Check with sales whether your unit includes WWAN.
Upgrades
Memory is LPDDR5 integrated on the system board and cannot be upgraded. Storage uses a single M.2 2230 PCIe NVMe Gen 4 slot (Dell offers up to 1TB). The Wi-Fi module is integrated and not replaceable.
Package Contents & Dell Latitude Series Ordering Information
In the Box
Dell Latitude 9430, USB Type-C AC adapter and documentation.
Dell Latitude Series at SourceIT
| Model / Processor | Memory / SSD |
| Latitude 9430 Core i5-1245U / Core i7-1265U (this listing) | 16GB / 512GB SSD |
| Latitude 7330 / 7430 | 12th Gen Intel Core — multiple options (7000 series, same generation) |
| Latitude 5330 / 5430 | 12th Gen Intel Core — multiple options (5000 series, same generation) |
| Latitude 5530 | 12th Gen Intel Core — multiple options (15.6-inch, same generation) |
| Latitude 3430 | 12th Gen Intel Core — multiple options (3000 series, same generation) |
| Latitude 7440 | 13th Gen Intel Core — multiple options (next generation, 14-inch) |
| Latitude 7450 Core Ultra 5 125U | 16GB / 512GB SSD |
| Latitude 7450 Core Ultra 7 165U vPro | 16GB / 512GB SSD |
| Latitude 7450 Core Ultra 7 165U vPro | 16GB / 1TB SSD |
Looking for the current generation? See the Dell Pro 14 Premium PA14250, which succeeds the Latitude 9000 series, and the Dell Pro 14 Plus PB14250. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Setup & specifications | Dell Latitude 9430 / 9430 2-in-1 Setup and Specifications |
| Manuals & drivers | Dell Latitude 9430 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Latitude 9430.
Frequently Asked Questions — Dell Latitude 9430
Is this the laptop or the 2-in-1 version?
Dell sold the Latitude 9430 as a clamshell laptop (FHD+ non-touch, from 1.29 kg) and as a 2-in-1 (QHD+ touch, from 1.44 kg). Please confirm which version is supplied with sales before ordering.
Can I upgrade the memory?
No. The 16GB of LPDDR5 memory is integrated on the system board and cannot be upgraded. The single M.2 2230 SSD slot can be replaced with a larger drive.
What is the difference between the i5 and i7 options?
Both are 12th Gen Intel Core U-series processors with 10 cores, 12 threads and 12 MB cache. The Core i7-1265U reaches up to 4.80 GHz versus up to 4.40 GHz for the Core i5-1245U.
Does it have an Ethernet port?
No. There is no RJ45 Ethernet port. You get two Thunderbolt 4 ports, one USB-A port, HDMI 2.0, a microSD slot and a universal audio jack.
Does it support Windows Hello?
Yes. The IR camera supports Windows Hello face sign-in, and Dell offered an optional fingerprint reader in the power button.
Is it still available?
The Latitude 9430 is no longer available for order. Check remaining stock with sales, or see the current Dell Pro 14 Premium PA14250 listing.
What warranty do I get?
3 years local onsite warranty, supplied locally by SourceIT with a GST invoice.
