Dell Latitude 7330 / 7430 12th Gen Intel Core Laptop
PRODUCT DESCRIPTION
Dell Latitude 7330 13.3-inch / 7430 14-inch Business Laptop 12th Gen Intel Core i5 / i7 (210-BDRQ / 210-BDSQ) - 3 Years Local Onsite Warranty
12th Gen Intel Core i5 / i7 Options
Choose 12th Gen Intel Core i5 or i7 with 8GB or 16GB of dual-channel memory integrated on the system board and a 256GB, 512GB or 1TB PCIe NVMe SSD, with Intel Iris Xe graphics.
13.3-inch Latitude 7330 or 14-inch Latitude 7430
Pick the compact 13.3-inch Full HD Latitude 7330 or the 14-inch Full HD Latitude 7430, both with a 41 Wh or 58 Wh battery and ExpressCharge Boost.
Thunderbolt 4 and Wi-Fi 6E
Two Thunderbolt 4 ports with DisplayPort 1.4 and Power Delivery, a USB-A port and HDMI, plus Intel Wi-Fi 6E (AX211) and Bluetooth 5.2.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Latitude 7330 / 7430 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Latitude 7330 (13.3-inch) / Latitude 7430 (14-inch) |
| Part Number | 210-BDRQ (Latitude 7330); 210-BDSQ (Latitude 7430) |
| Variants (each model) | i5 / 8GB / 256GB SSD; i5 / 16GB / 512GB SSD; i7 / 16GB / 512GB SSD; i7 / 16GB / 1TB SSD |
| Processor | 12th Gen Intel Core i5 or Core i7 (per variant) |
| Memory | 8GB or 16GB, integrated (per variant) |
| Storage | 256GB, 512GB or 1TB PCIe NVMe SSD (per variant) |
| Display | 13.3" FHD (7330) or 14" FHD (7430), panel per configuration |
| Local Warranty (Singapore) | 3 years local onsite warranty |
Processor & Graphics
| Core i5 options (Dell) | Intel Core i5-1235U or i5-1245U vPro: 10 cores / 12 threads, 12 MB cache, up to 4.4 GHz, 15 W (Latitude 7430 was also offered with 28 W P-series CPUs) |
| Core i7 options (Dell) | Intel Core i7-1255U or i7-1265U vPro: 10 cores / 12 threads, 12 MB cache, up to 4.7 / 4.8 GHz, 15 W |
| Graphics | Integrated Intel Iris Xe Graphics |
Memory & Storage
| Memory | Dual-channel DDR4 3200 MT/s integrated on the system board (U-series models); not upgradeable; platform max 32GB |
| Storage | One M.2 PCIe NVMe SSD: M.2 2230 (Class 35) up to 512GB or M.2 2280 (Class 40, Gen4) up to 1TB |
Display
| Spec | Latitude 7330 | Latitude 7430 |
| Size / resolution | 13.3" FHD 1920 x 1080 WVA, 166 ppi | 14" FHD 1920 x 1080 WVA, 157 ppi (UHD 3840 x 2160 option) |
| Dell panel options | 250 nits 45% NTSC; 300 nits touch 72% NTSC; 400 nits ComfortView Plus 100% sRGB | 250 nits 45% NTSC; 300 nits touch 72% NTSC; 300 nits SafeScreen privacy touch; 400 nits ComfortView Plus 100% sRGB |
| Refresh rate | 60 Hz | 60 Hz |

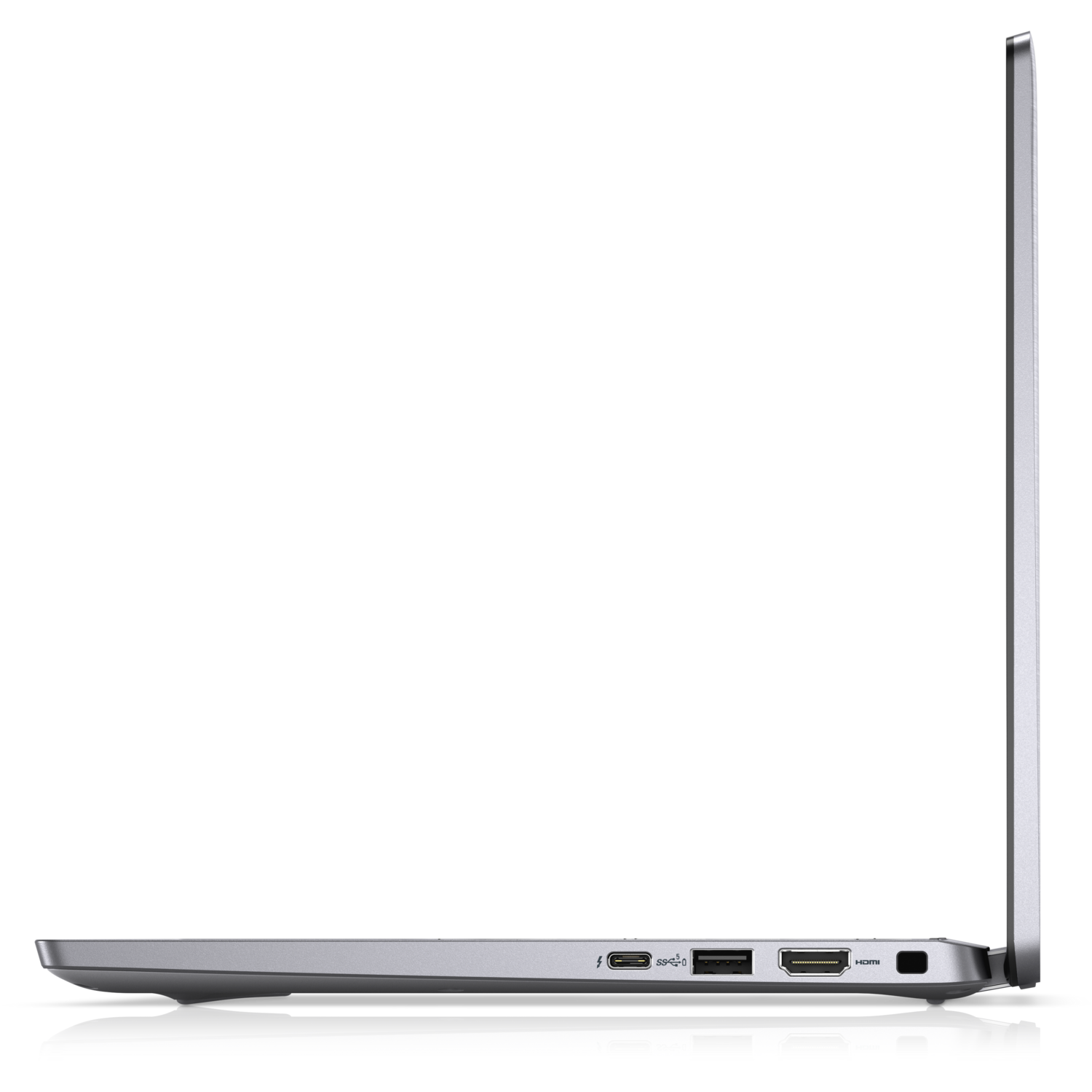

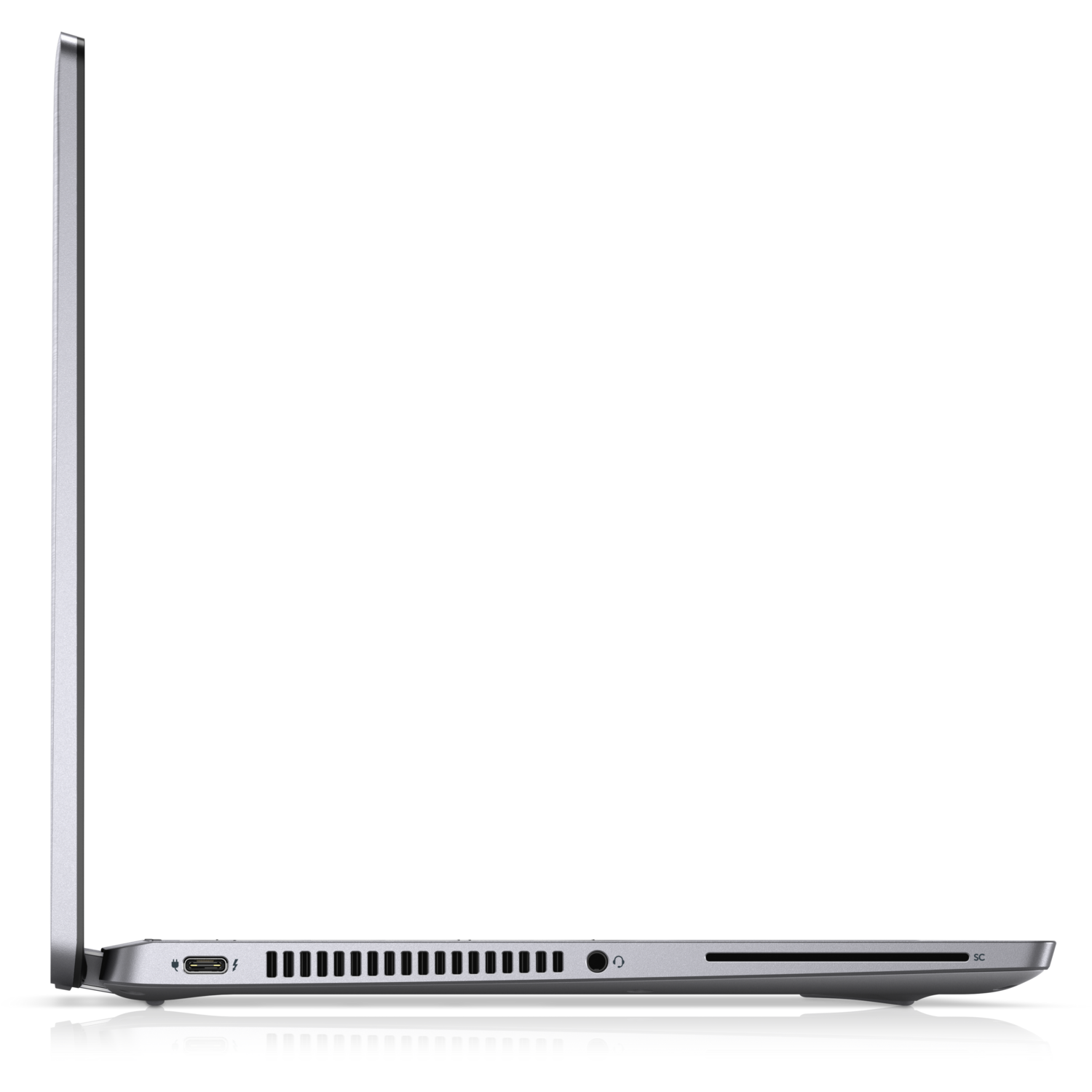

Ports
| Thunderbolt / USB-C | 2 x Thunderbolt 4 with Power Delivery and DisplayPort 1.4 Alt Mode |
| USB-A | 1 x USB 3.2 Gen 1 with PowerShare |
| Video | 1 x HDMI 2.0 (Latitude 7430: HDMI 2.0b / HDCP 2.2) |
| Other | Universal audio port, wedge-shaped lock slot, optional microSIM slot (WWAN models) |
Wireless, Audio & Camera
| Wireless | Intel Wi-Fi 6E AX211 (2.4 / 5 / 6 GHz, up to 2400 Mbps) with Bluetooth 5.2 |
| Camera | HD RGB or FHD RGB/IR webcam with proximity detection and ambient light sensor, per configuration |
| Audio | Realtek ALC3281-CG, two speakers (2 W average / 2.5 W peak), dual-array microphones |
Power
| Battery | 3-cell 41 Wh or 4-cell 58 Wh; ExpressCharge Boost (0–35% in about 20 minutes) |
| Charging | 60 W, 65 W or 90 W USB Type-C AC adapter |
Security
| Hardware | Discrete TPM 2.0 (FIPS 140-2), optional contacted / contactless smart card with NFC (ControlVault 3), optional fingerprint reader in power button, self-encrypting SSD options, wedge-shaped lock slot, camera privacy shutter on aluminium models |
Physical
| Spec | Latitude 7330 | Latitude 7430 |
| Dimensions (W x D) | 306.50 x 199.95 mm | 321.35 x 208.69 mm |
| Height (front–rear) | 16.96–18.36 mm carbon fibre; 16.71–18.00 mm aluminium | 17.27–18.88 mm carbon fibre (U15); 16.90–18.00 mm aluminium |
| Minimum weight | 1.13 kg carbon fibre; 1.21 kg aluminium | 1.22 kg carbon fibre (U15); 1.27 kg aluminium |
Compatibility & Software Support
Operating System
Windows 11 Pro. Dell also supports Windows 11 Pro downgrade (Windows 10 image) and Ubuntu 20.04 LTS on the clamshell Latitude 7330.
Docks & Displays
Two Thunderbolt 4 ports with DisplayPort 1.4 Alt Mode and Power Delivery work with Dell Thunderbolt and USB-C docks; HDMI adds another display. There is no built-in RJ45 port, so use a dock or USB-C Ethernet adapter for wired networking.
Upgrades
Memory is integrated on the system board and cannot be upgraded. Storage is a single replaceable M.2 PCIe NVMe SSD (2230 or 2280; Dell notes clamshells with a magnesium-alloy chassis take M.2 2230 only).
Package Contents & Dell Latitude 7000 Series Ordering Information
In the Box
Dell Latitude 7330 or 7430 laptop (per variant), USB-C AC adapter and documentation.
Dell Latitude 7000 Series at SourceIT
| Model / Processor | Memory / SSD |
| Latitude 7320 | 11th Gen Core i5 / i7 — multiple options (previous generation) |
| Latitude 7420 | 11th Gen Core — multiple options (previous generation) |
| Latitude 7330 / 7430 (this listing) | 12th Gen Core i5 / i7 — multiple options (previous generation) |
| Latitude 7340 | 13th Gen Core i5 / i7 — multiple options (previous generation) |
| Latitude 7440 | 13th Gen Core i5 / i7 — multiple options |
| Latitude 7440 Core i5-1335U | 8GB / 512GB SSD |
| Latitude 7440 Core i5-1335U | 16GB / 512GB SSD |
| Latitude 7440 Core i7-1355U | 16GB / 512GB SSD |
| Latitude 7440 Core i7-1355U | 16GB / 1TB SSD |
| Latitude 7350 Core Ultra 5 125U | 16GB / 512GB SSD (current generation) |
| Latitude 7350 Core Ultra 7 165U | 16GB / 512GB SSD (current generation) |
| Latitude 7350 Core Ultra 7 165U | 16GB / 1TB SSD (current generation) |
| Latitude 7350 Ultra Light Core Ultra 5 125U | 16GB / 512GB SSD (current generation) |
| Latitude 7350 Ultra Light Core Ultra 7 165U | 16GB / 512GB SSD (current generation) |
| Latitude 7450 Core Ultra 5 125U | 16GB / 512GB SSD (current generation) |
| Latitude 7450 Core Ultra 7 165U | 16GB / 512GB SSD (current generation) |
| Latitude 7450 Core Ultra 7 165U | 16GB / 1TB SSD (current generation) |
Looking for a newer model? See the Dell Latitude 7340, the 14-inch Dell Latitude 7440, or the current Dell Latitude 7350. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Setup & specifications (7330) | Dell Latitude 7330 Setup and Specifications |
| Setup & specifications (7430) | Dell Latitude 7430 Setup and Specifications |
| Manuals & drivers (7330) | Dell Latitude 7330 on Dell Support Singapore |
| Manuals & drivers (7430) | Dell Latitude 7430 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Latitude 7330 / 7430.
Frequently Asked Questions — Dell Latitude 7330 / 7430
What is the difference between the 7330 and 7430?
Screen size and footprint: the Latitude 7330 has a 13.3-inch FHD display (306.5 x 199.95 mm), the Latitude 7430 a 14-inch FHD display (321.35 x 208.69 mm). Ports, wireless, battery options and the 12th Gen Intel platform are shared.
Can I upgrade the memory?
No. Memory is integrated on the system board on both models, so choose 8GB or 16GB at purchase. The M.2 SSD can be replaced.
Does it have an Ethernet port?
No built-in RJ45 port. Use a Thunderbolt / USB-C dock or adapter; Wi-Fi 6E is built in.
Is it still available?
The Latitude 7330 and 7430 are previous-generation models, succeeded by the Latitude 7340 and 7440. Check stock with sales, or see the Latitude 7340 and Latitude 7440 listings.
What warranty do I get?
3 years local onsite warranty, supplied locally by SourceIT with a GST invoice.
