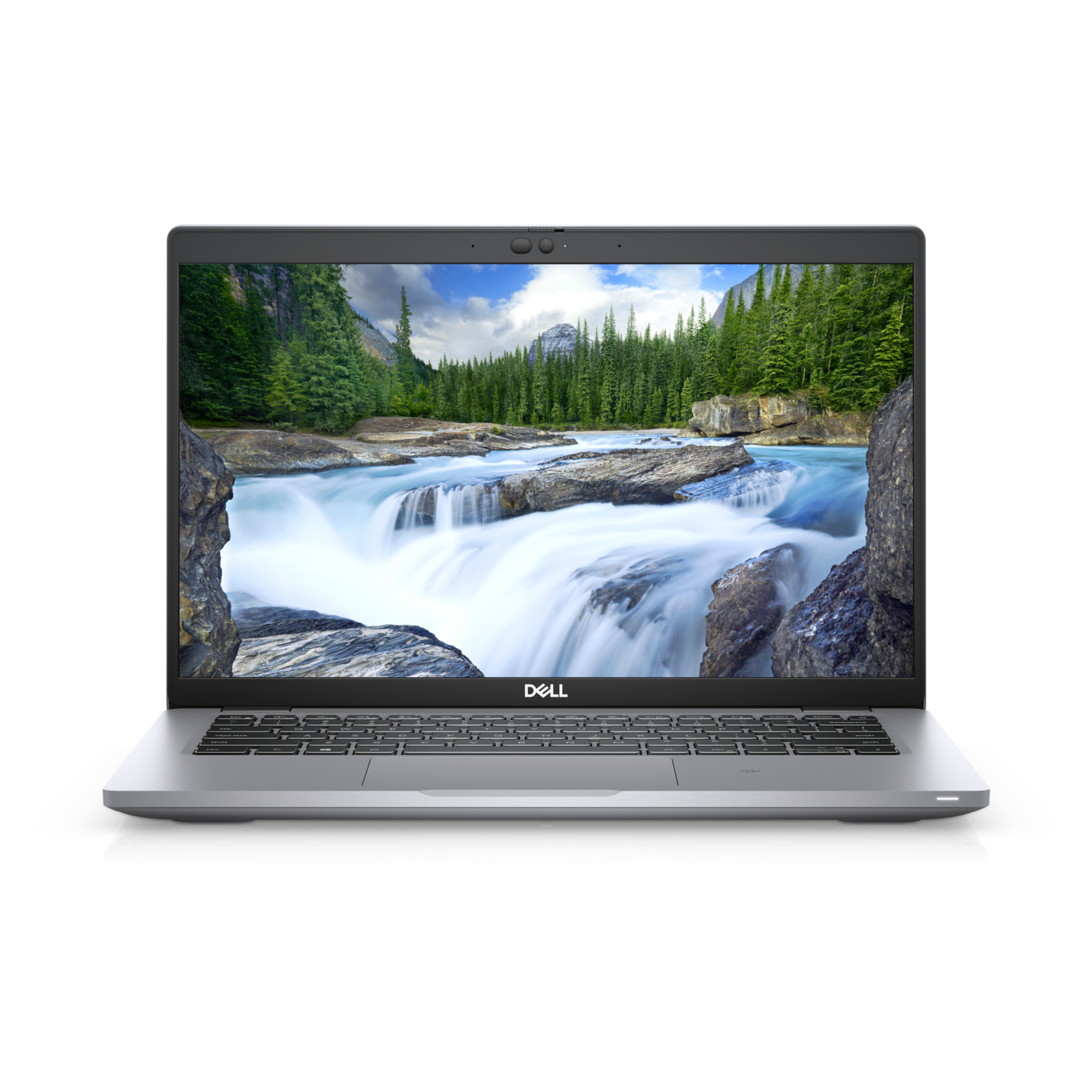

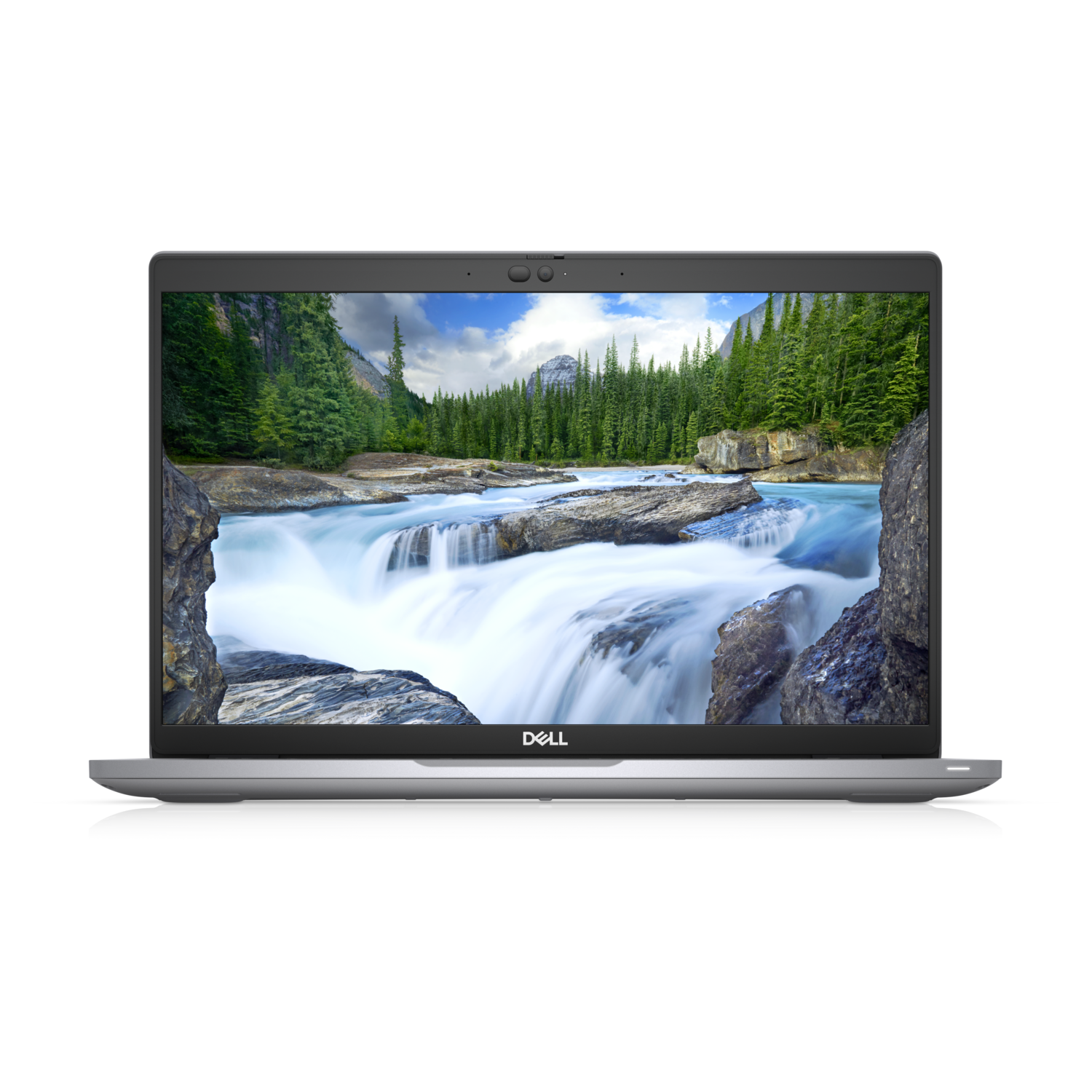

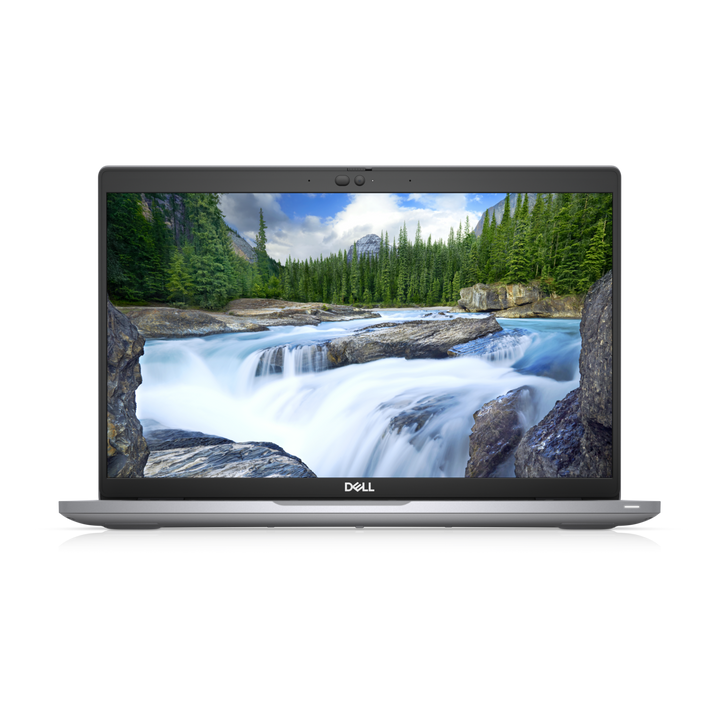

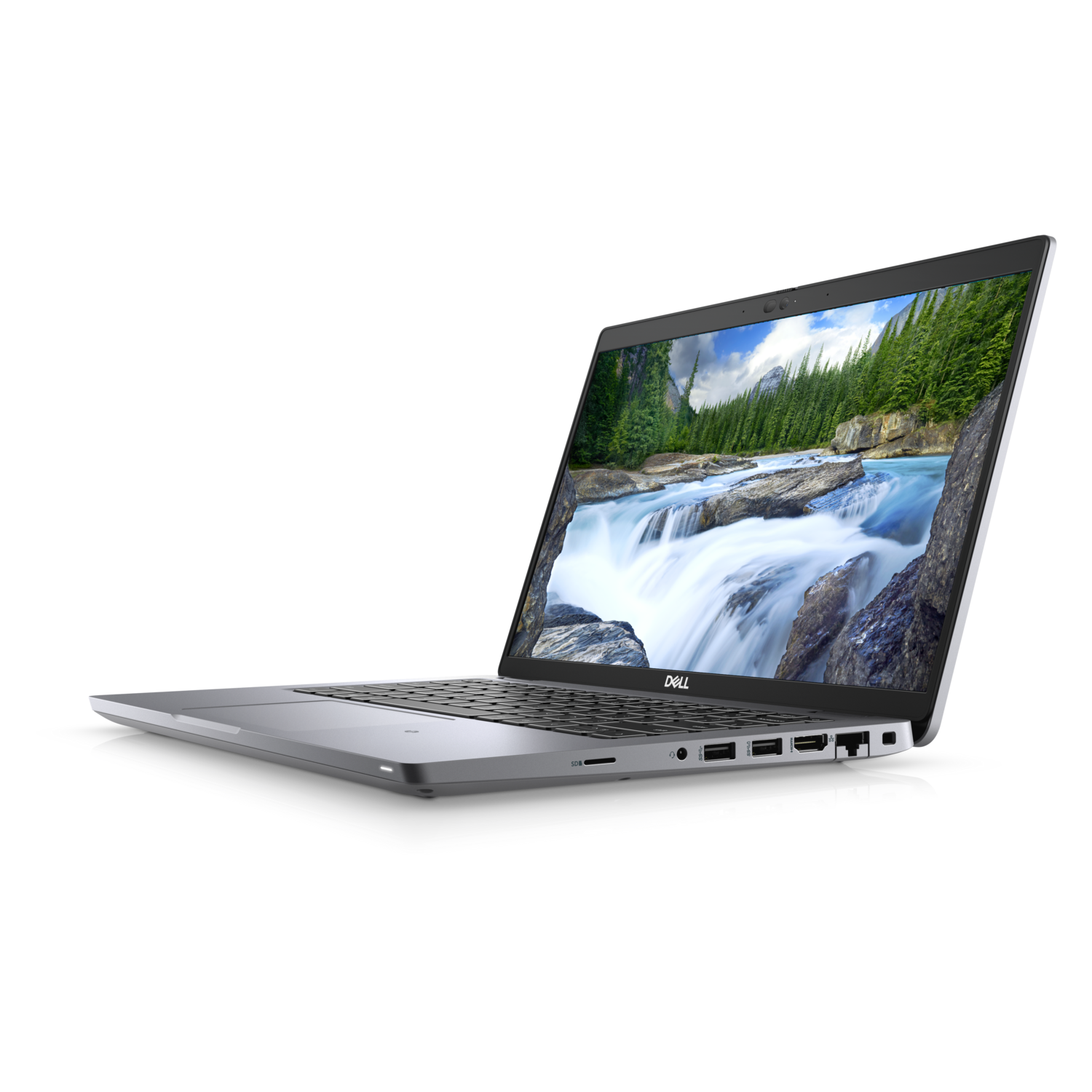

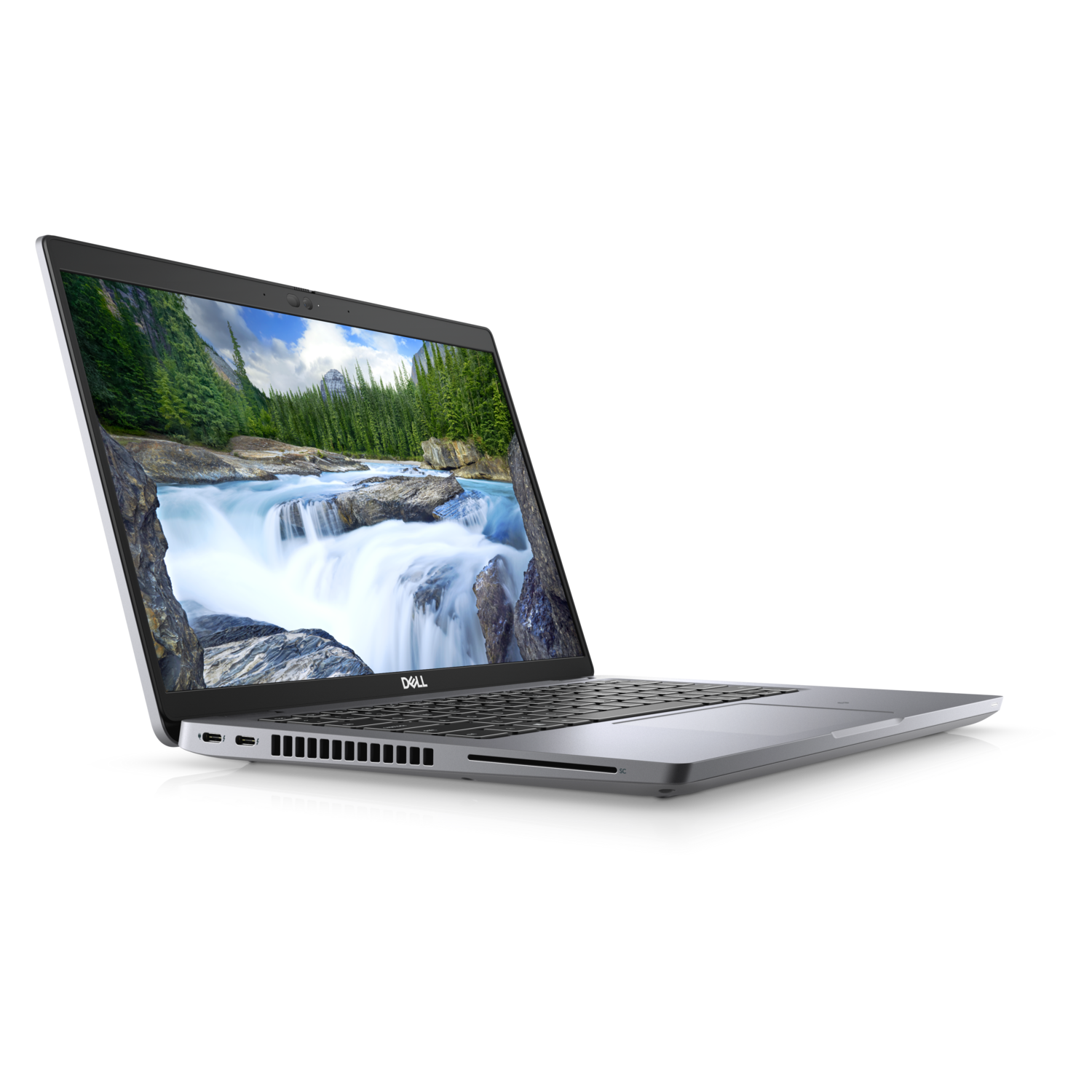

Dell Latitude 5420 14" Intel Core Laptop
PRODUCT DESCRIPTION
Dell Latitude 5420 14-inch Laptop (Intel 11th Gen) - 3 Years Local Onsite Warranty
11th Gen Intel Core i5 / i7
Choose an 11th Gen Intel Core i5 with 8GB / 256GB SSD or 16GB / 512GB SSD, or an 11th Gen Core i7 with 16GB / 512GB SSD, all with DDR4-3200 memory and PCIe NVMe storage.
Full-Size Business Connectivity
Two Thunderbolt 4 ports, two USB-A ports, HDMI 2.0, a built-in RJ45 Gigabit Ethernet port and a microSD card reader, plus Wi-Fi 6 — no dongles needed at the desk.
Upgradeable and Serviceable
Two SO-DIMM slots (up to 64GB DDR4) and an M.2 2230/2280 SSD slot let IT teams extend the life of the fleet, secured with a discrete TPM 2.0.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Latitude 5420 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Latitude 5420 (14-inch) |
| i5 / 8GB / 256GB SSD | SKU 210-AXVO-I5-256 |
| i5 / 16GB / 512GB SSD | SKU 210-AXWR-I5-512 |
| i7 / 16GB / 512GB SSD | SKU 210-AXVO-I7-512 |
| Processor | 11th Gen Intel Core i5 / i7 (exact model per supplied configuration) |
| Memory | 8GB or 16GB DDR4 3200 MHz (per variant) |
| Storage | 256GB or 512GB M.2 PCIe NVMe SSD (per variant) |
| Local Warranty (Singapore) | 3 years local onsite |
Processor & Graphics
| Dell 11th Gen Core i5 options | Core i5-1135G7 (4 cores / 8 threads, 8 MB cache, up to 4.2 GHz) or Core i5-1145G7 (4 cores / 8 threads, 8 MB cache, up to 4.4 GHz) |
| Dell 11th Gen Core i7 options | Core i7-1165G7 (4 cores / 8 threads, 12 MB cache, up to 4.7 GHz) or Core i7-1185G7 (4 cores / 8 threads, 12 MB cache, up to 4.8 GHz) |
| Graphics | Integrated Intel Iris Xe Graphics (shown as Intel UHD Graphics with single-channel memory) |
Memory & Storage
| Memory | DDR4 3200 MHz, two SO-DIMM slots, dual channel; upgradeable to 64GB |
| Storage | One M.2 2230/2280 slot, PCIe Gen 3 x4 NVMe SSD |
| Card Reader | microSD card reader |
Display
| Panel | 14" (panel per supplied configuration) |
| Dell panel options | HD 1366 x 768 TN 220 nits; FHD 1920 x 1080 WVA 250 nits 45% NTSC; FHD WVA low blue light 400 nits 100% sRGB; FHD WVA touch 300 nits — all anti-glare |
| Refresh Rate | 60 Hz |
Ports
| Thunderbolt / USB-C | 2 x Thunderbolt 4 with DisplayPort Alt Mode / USB4 / Power Delivery |
| USB-A | 2 x USB 3.2 Gen 1 (one with PowerShare) |
| Video | 1 x HDMI 2.0 |
| Network | 1 x RJ45 Gigabit Ethernet (Intel I219-LM / I219-V, 10/100/1000 Mbps) |
| Other | Universal audio jack, microSD card reader, USB Type-C power input, wedge-shaped security-cable slot |
Wireless, Audio & Camera
| Wireless | Wi-Fi 6: Intel AX201 (Bluetooth 5.1), Intel AX210 or MediaTek (Bluetooth 5.2) — module per configuration |
| Camera | HD 720p camera, HD + IR camera or FHD + IR camera (per configuration) |
| Audio | Realtek ALC3204, two speakers (2 W average / 2.5 W peak), dual-array microphones |
Power
| Battery | 3-cell 42 Wh or 4-cell 63 Wh (per configuration); ExpressCharge Boost variants |
| Charging | USB Type-C power input (Dell 65 W or 90 W USB-C adapters) |
Security
| Hardware | Discrete TPM 2.0 (FIPS 140-2); optional fingerprint reader in power button and contacted / contactless smart card with ControlVault 3; wedge-shaped lock slot |
| Keyboard | Backlit or non-backlit (per configuration), English US 79-key |
Physical
| Dimensions (W x D x H) | 321.35 x 212.00 x 19.30–20.90 mm |
| Weight | Up to 1.37 kg (varies by configuration) |
| Operating temperature | 0°C to 40°C |
Compatibility & Software Support
Operating System
Dell supports Windows 11 Pro / Home, Windows 10 Pro and Ubuntu 20.04 LTS on the Latitude 5420. Confirm the pre-installed edition for your variant with sales.
Docks & Displays
Two Thunderbolt 4 ports with DisplayPort Alt Mode and Power Delivery work with Dell Thunderbolt and USB-C docks; HDMI 2.0 adds another display.
Upgrades
Memory uses two DDR4-3200 SO-DIMM slots (up to 64GB). Storage uses one M.2 2230/2280 PCIe NVMe slot (Dell offers up to 1TB).
Package Contents & Dell Latitude 5000 Series Ordering Information
In the Box
Dell Latitude 5420 laptop, USB-C AC adapter and documentation.
Dell Latitude 14 5000 Series at SourceIT
| Model / Processor | Memory / SSD |
| Latitude 5420 (this listing) | 11th Gen Core i5 / i7 — 8GB / 256GB, 16GB / 512GB options (previous generation) |
| Latitude 5330 / 5430 | 12th Gen Core i5 / i7 — multiple options (previous generation) |
| Latitude 5440 | 13th Gen Core i5 / i7 — multiple options |
| Latitude 5440 Core i5-1335U | 8GB / 512GB SSD |
| Latitude 5440 Core i5-1335U | 16GB / 512GB SSD |
| Latitude 5440 Core i7-1365U | 16GB / 512GB SSD |
| Latitude 5450 Core Ultra 5 125U | 8GB / 512GB SSD |
| Latitude 5450 Core Ultra 5 125U | 16GB / 512GB SSD |
| Latitude 5450 Core Ultra 7 165U vPro | 16GB / 512GB SSD |
Prefer a smaller 13-inch laptop? See the Dell Latitude 5350 Core Ultra 5. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Setup & specifications | Dell Latitude 5420 Setup and Specifications |
| Manuals & drivers | Dell Latitude 5420 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Latitude 5420.
Frequently Asked Questions — Dell Latitude 5420
Can I upgrade the memory?
Yes. The Latitude 5420 has two DDR4-3200 SO-DIMM slots and supports up to 64GB. Iris Xe graphics need dual-channel memory; with a single module Windows reports Intel UHD Graphics.
Does it have an Ethernet port or SD card reader?
Yes. It has a built-in RJ45 Gigabit Ethernet port and a microSD card reader, plus two Thunderbolt 4 ports, two USB-A ports and HDMI 2.0.
Which processor is in each variant?
The i5 variants use an 11th Gen Intel Core i5 and the i7 variant an 11th Gen Intel Core i7. Email sales for the exact model of the unit supplied.
Is it still available?
The Latitude 5420 is no longer available from our distributor. Check remaining stock with sales, or see the Latitude 5450 Core Ultra 5 and Latitude 5450 Core Ultra 7 listings.
What warranty do I get?
3 years local onsite warranty, supplied locally by SourceIT with a GST invoice.
