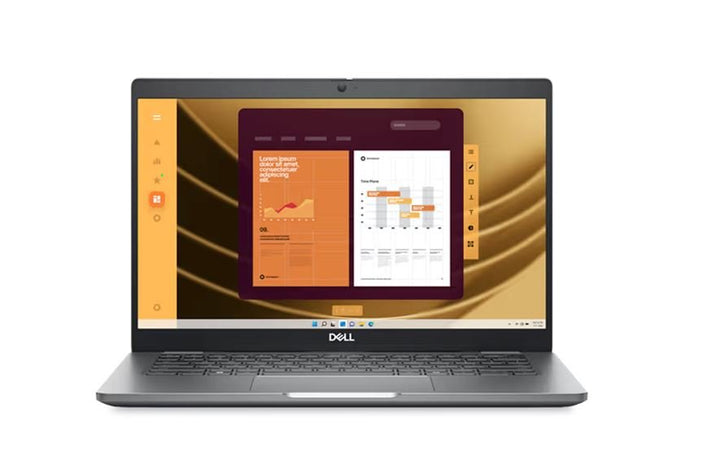

Dell Latitude 5450 Core Ultra 7 165U vPro 16GB 512GB Laptop
PRODUCT DESCRIPTION
Dell Latitude 5450 14-inch Laptop Intel Core Ultra 7 165U vPro / 16GB / 512GB SSD / Windows 11 Pro (210-BMPS / AL5450U716G512) - 3 Years ProSupport NBD Local Warranty
Intel Core Ultra vPro Performance
The Intel Core Ultra 7 165U vPro (12 cores, 14 threads, up to 4.9 GHz) with 16GB of DDR5-5600 memory and a 512GB PCIe Gen4 NVMe SSD, managed with Intel vPro on Windows 11 Pro.
14-inch FHD, Ready to Travel
A 14-inch Full HD anti-glare IPS display, backlit AI hotkey keyboard and FHD camera in a 1.40 kg chassis with a 54 Wh ExpressCharge Boost battery.
Secure Sign-in and Full-Size Connectivity
Smart card reader and a fingerprint reader in the power button with ControlVault 3+, two Thunderbolt 4 ports, two USB-A ports, HDMI 2.1 and Gigabit RJ45 Ethernet, plus Wi-Fi 6/6E and Bluetooth 5.3.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Latitude 5450 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Latitude 5450 (14-inch) |
| Part Number | 210-BMPS / AL5450U716G512 |
| Processor | Intel Core Ultra 7 165U vPro |
| Memory | 16GB (1 x 16GB) DDR5 5600 MT/s |
| Storage | 512GB M.2 2230 PCIe Gen4 NVMe SSD, TLC |
| Display | 14" FHD 1920 x 1080, non-touch, IPS, 250 nits, anti-glare |
| Operating System | Windows 11 Pro |
| Local Warranty (Singapore) | 3 years Dell ProSupport Next Business Day |
Processor & Graphics
| Processor | Intel Core Ultra 7 165U vPro: 12 cores (2P + 8E + 2 LP E) / 14 threads, 12 MB cache, up to 4.9 GHz, 15 W |
| Graphics | Integrated Intel Graphics |
| External displays | Up to 3 external displays with the laptop screen on (4 with it off) |
Memory & Storage
| Memory | 16GB (1 x 16GB) DDR5 5600 MT/s SODIMM, single channel; two SODIMM slots, one free (platform max 64GB, 2 x 32GB) |
| Storage | 512GB M.2 2230 PCIe Gen4 NVMe SSD; one M.2 2230 storage slot (Dell offers up to 2TB) |
| Card Reader | None (media-card reader not supported) |
Display
| Panel | 14" FHD (1920 x 1080) IPS, non-touch, anti-glare |
| Brightness / Colour | 250 nits, 45% NTSC |
| Refresh Rate | 60 Hz |
Ports
| Thunderbolt / USB-C | 2 x Thunderbolt 4 (40 Gbps, USB4 / USB Type-C) with DisplayPort Alt Mode and Power Delivery |
| USB-A | 2 x USB 3.2 Gen 1 (one with PowerShare) |
| Video | 1 x HDMI 2.1 (TMDS) |
| Network | 1 x RJ45 Gigabit Ethernet (Intel I219-LM, 10/100/1000 Mbps) |
| Other | Universal audio jack, wedge-shaped security-cable slot; power input via the Thunderbolt 4 ports |
Wireless, Audio & Camera
| Wireless | Wi-Fi 6 (Realtek RTL8852BE) or Wi-Fi 6E (Intel AX211) with Bluetooth 5.3 (module per SKU); WLAN only in this configuration |
| Camera | FHD camera (1080p at 30 fps) |
| Audio | Two 2 W speakers, Waves MaxxAudio Pro, digital-array microphones |
Power
| Battery | 3-cell 54 Wh, ExpressCharge and ExpressCharge Boost |
| Charging | 65 W USB Type-C adapter supplied (Dell 60 W / 65 W / 100 W USB-C adapters supported) |
Security
| Hardware | Discrete TPM 2.0 (FIPS 140-2, TCG certified), smart card reader, fingerprint reader in the power button with ControlVault 3+, wedge-shaped lock slot |
| Keyboard | Backlit AI hotkey keyboard, English US 79-key |
Physical
| Dimensions (W x D x H) | 321.35 x 212.00 x 19.06–21.04 mm |
| Starting weight | 1.40 kg |
| Operating temperature | 0°C to 35°C |
Compatibility & Software Support
Operating System
Windows 11 Pro.
Docks & Displays
Two Thunderbolt 4 ports with DisplayPort Alt Mode and Power Delivery work with Dell Thunderbolt and USB-C docks; HDMI 2.1 adds another display, for up to three external displays. Gigabit RJ45 Ethernet is built in.
Upgrades
Memory uses two DDR5 SODIMM slots; this configuration fills one with a single 16GB module, leaving one slot free (up to 64GB, 2 x 32GB, DDR5-5600). Storage uses a single M.2 2230 PCIe Gen4 NVMe slot (Dell offers up to 2TB).
Package Contents & Dell Latitude 5000 Series Ordering Information
In the Box
Dell Latitude 5450 laptop, 65 W USB-C AC adapter, documentation, plus a Dell Essential Briefcase 15 (ES1520C) per the supplied configuration.
Dell Latitude 14 5000 Series at SourceIT
| Model / Processor | Memory / SSD |
| Latitude 5420 | 11th Gen Core i5 / i7 — 8GB / 256GB, 16GB / 512GB options (previous generation) |
| Latitude 5330 / 5430 | 12th Gen Core i5 / i7 — multiple options (previous generation) |
| Latitude 5440 | 13th Gen Core i5 / i7 — multiple options |
| Latitude 5440 Core i5-1335U | 8GB / 512GB SSD |
| Latitude 5440 Core i5-1335U | 16GB / 512GB SSD |
| Latitude 5440 Core i7-1365U | 16GB / 512GB SSD |
| Latitude 5450 Core Ultra 5 125U | 8GB / 512GB SSD |
| Latitude 5450 Core Ultra 5 125U | 16GB / 512GB SSD |
| Latitude 5450 Core Ultra 7 165U vPro (this listing) | 16GB / 512GB SSD |
Prefer a 13-inch model? See the Dell Latitude 5350 Core Ultra 5. For the current Dell Pro range, see the Dell Pro 14 Premium. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Setup & specifications | Dell Latitude 5450 Owner's Manual — Specifications |
| Owner's manual (PDF) | Dell Latitude 5450 Owner's Manual (PDF) |
| Manuals & drivers | Dell Latitude 5450 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Latitude 5450.
Frequently Asked Questions — Dell Latitude 5450
Can I upgrade the memory?
Yes. The Latitude 5450 has two DDR5 SODIMM slots. This configuration ships with one 16GB module, so a second module can be added for dual-channel memory, up to 64GB (2 x 32GB) in total.
Does it have an Ethernet port or SD card reader?
It has a built-in Gigabit RJ45 Ethernet port, two Thunderbolt 4 ports, two USB-A ports and HDMI 2.1. There is no media-card reader.
Does it support Windows Hello?
Yes, via the fingerprint reader in the power button. The FHD camera in this configuration has no IR. A smart card reader is also fitted.
Is it still available?
Dell no longer sells the Latitude 5450 new. Check stock with sales, or see the Dell Pro 14 Premium Core Ultra 5 and Dell Pro 14 Premium Core Ultra 7 listings.
What warranty do I get?
3 years Dell ProSupport Next Business Day, supplied locally by SourceIT with a GST invoice.
