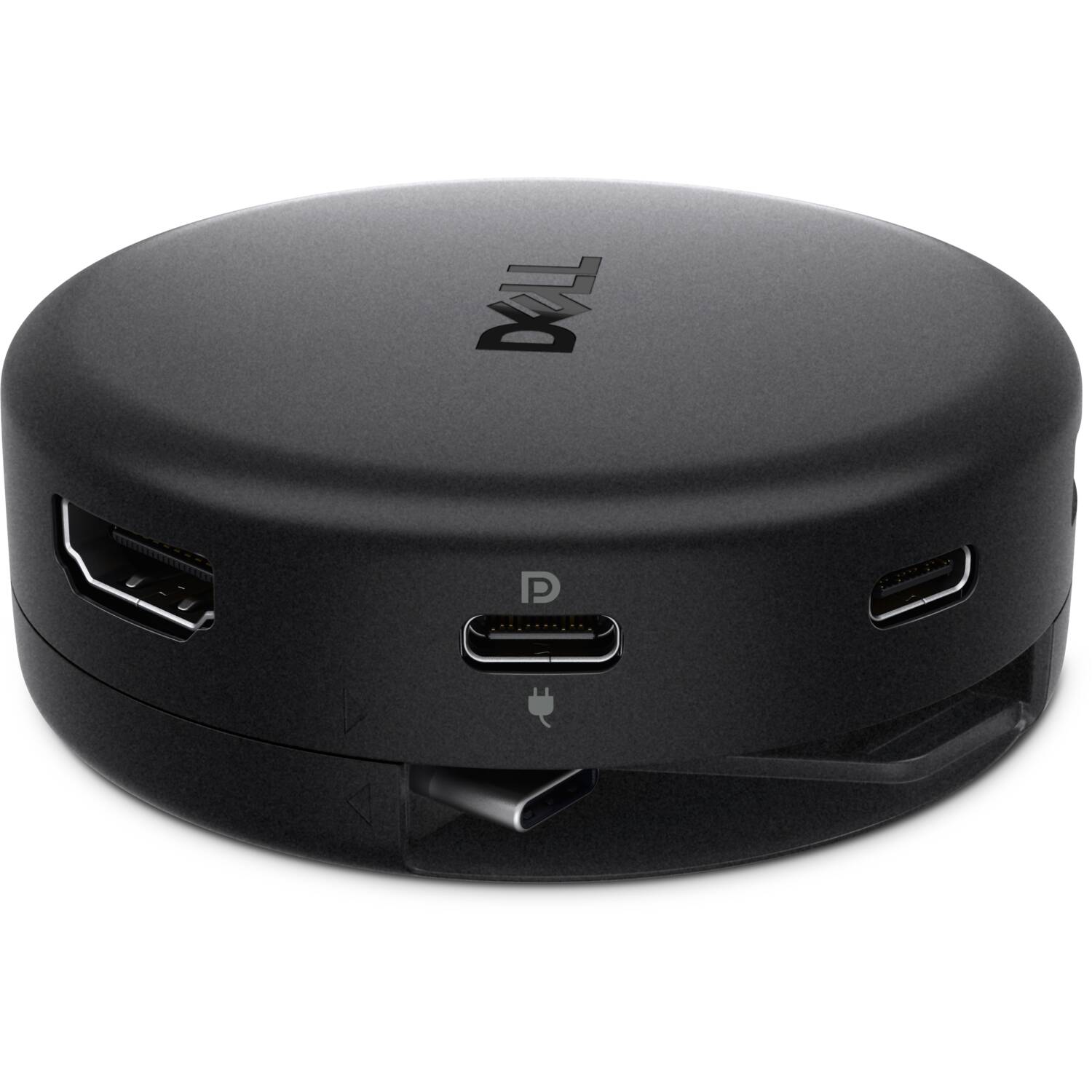

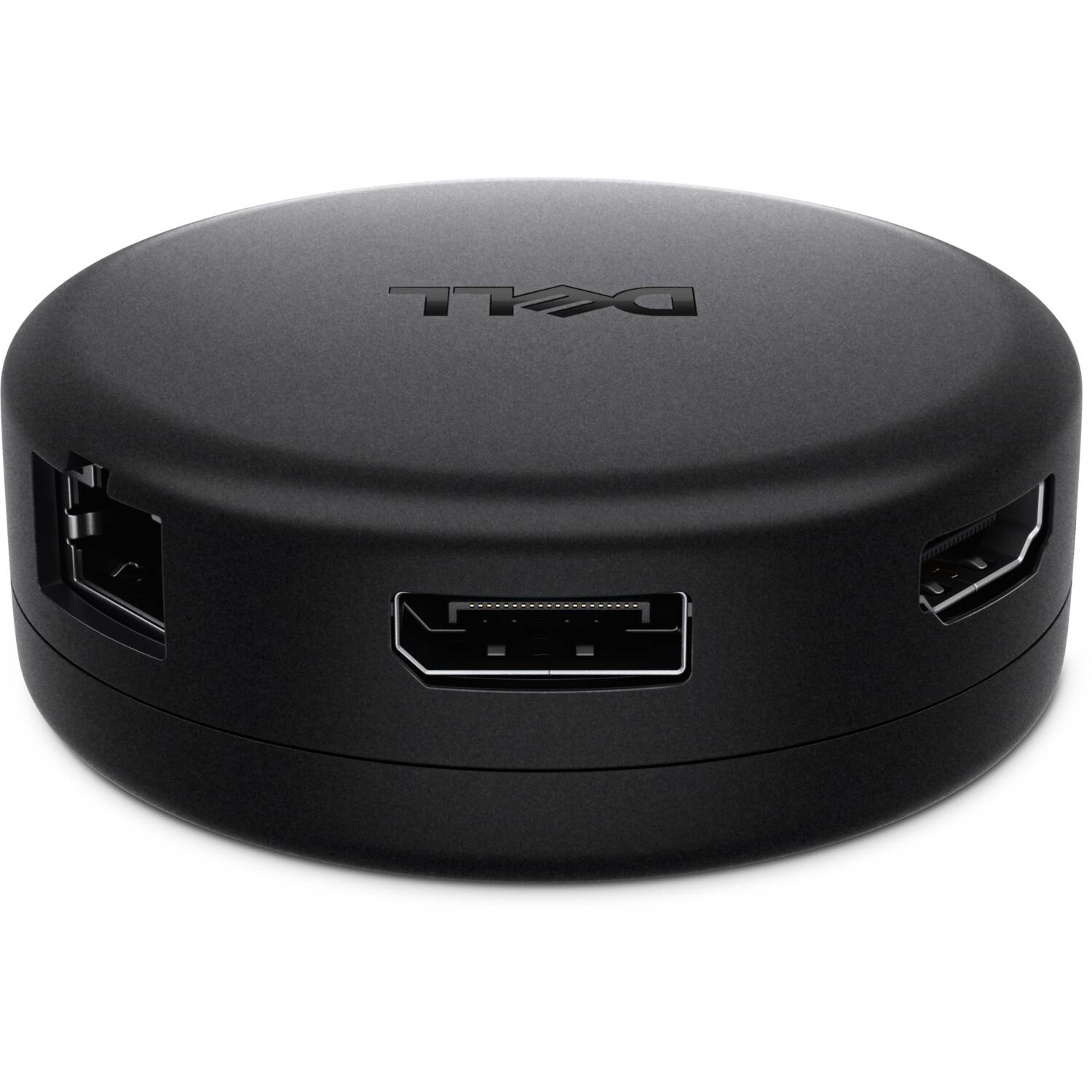

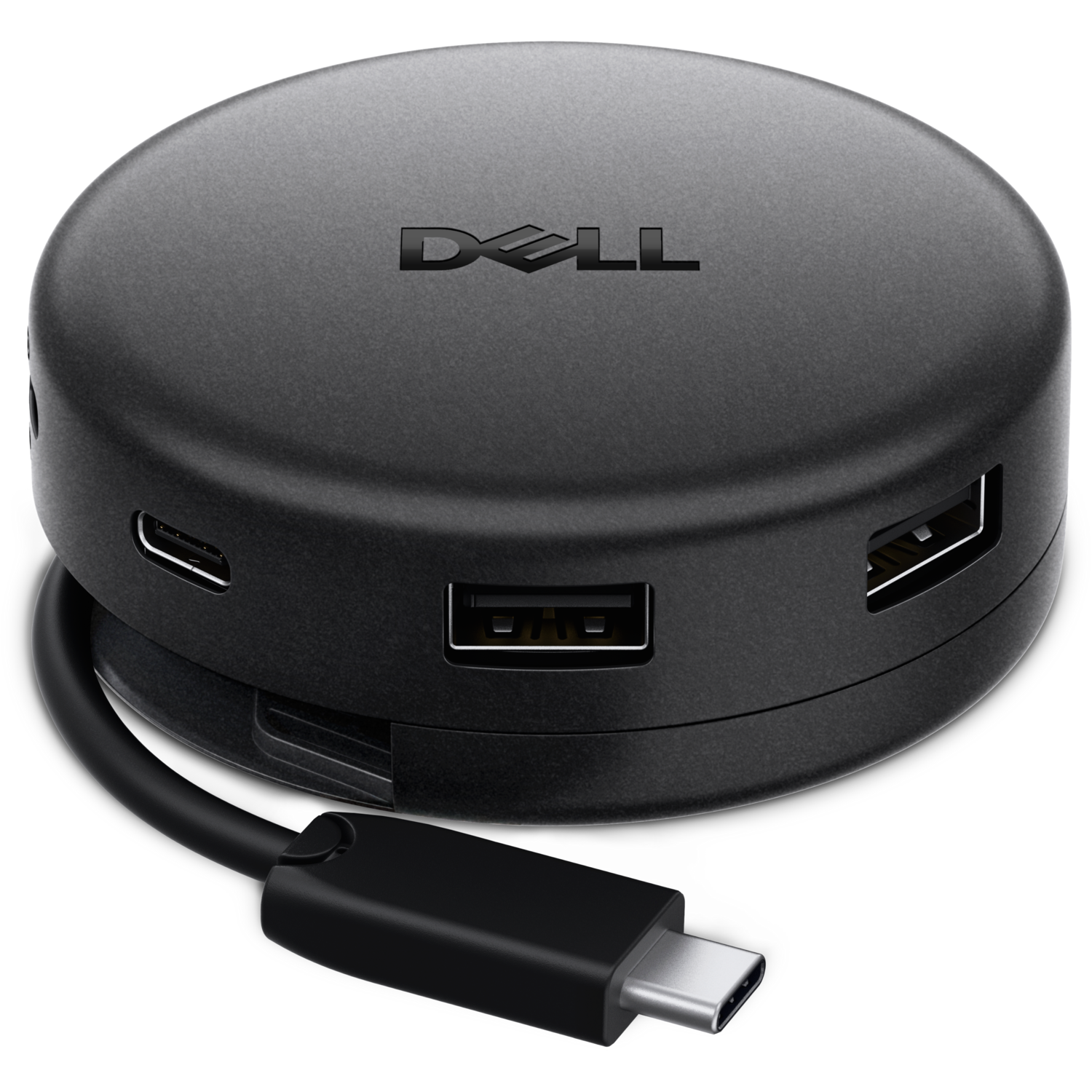

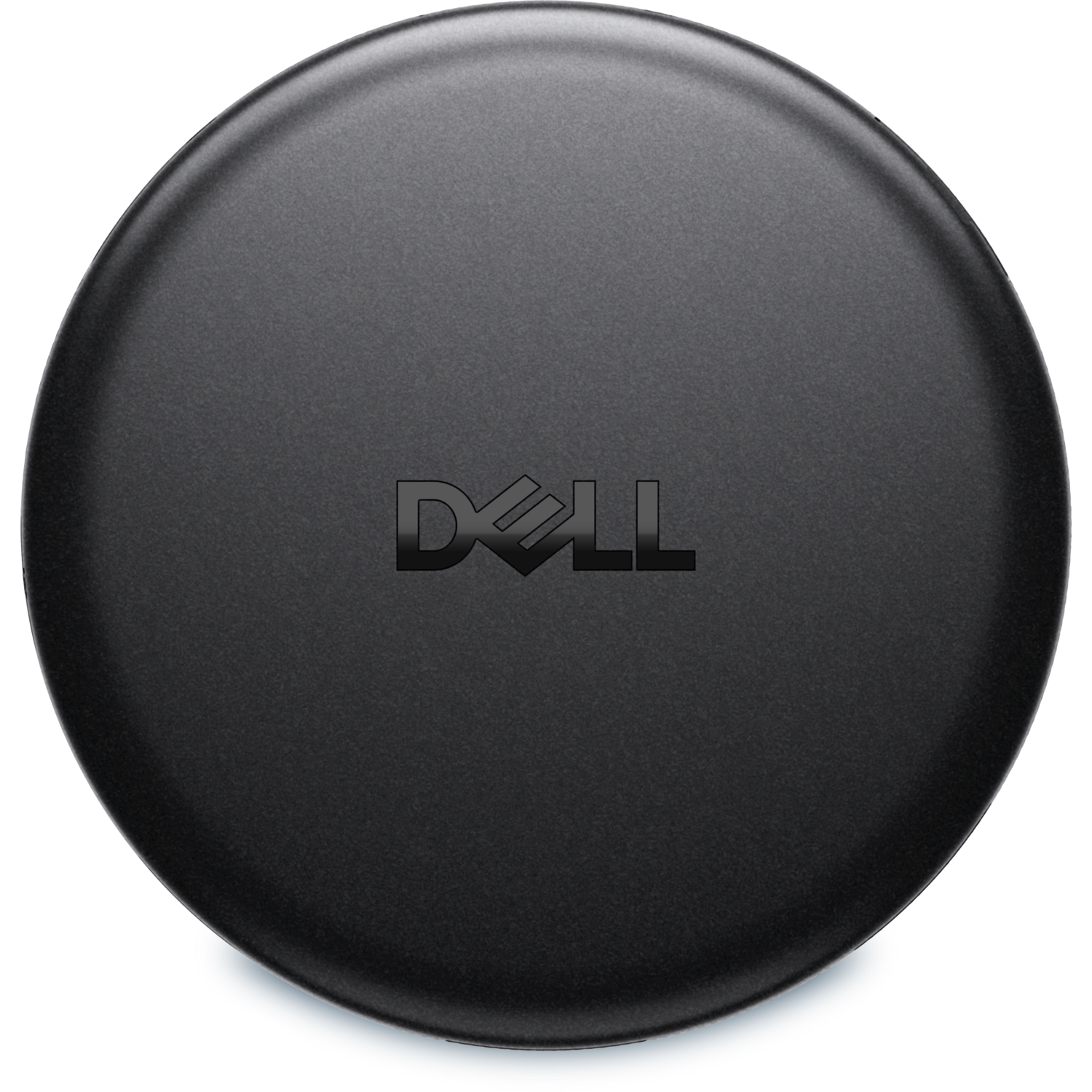

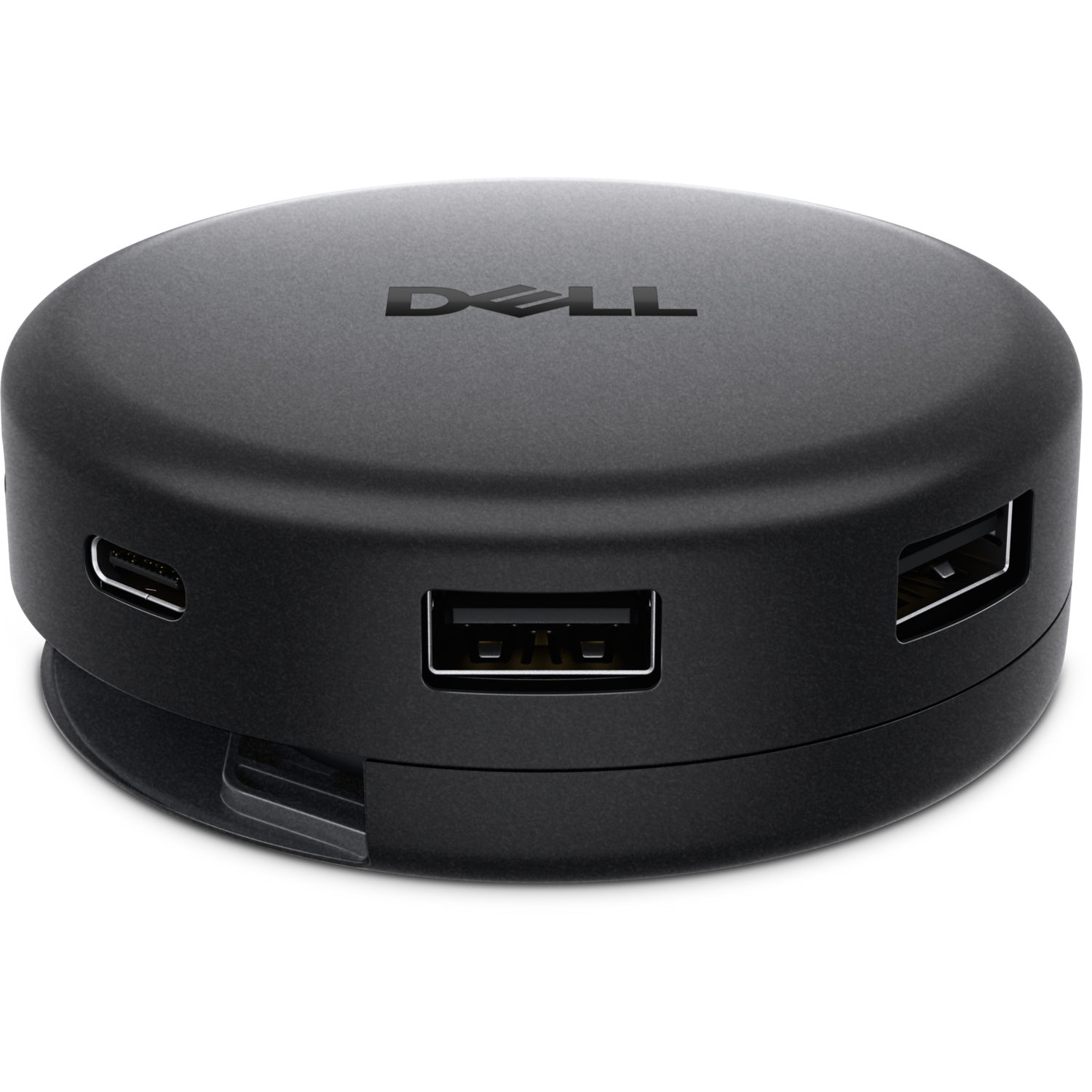

Dell Pro DA326 7-in-1 USB-C Travel Hub
PRODUCT DESCRIPTION
Dell Pro 7-in-1 USB-C Travel Hub - DA326 (450-BHBS) - Local Dell Warranty
Seven Ports, One Winding Cable
The DA326 connects over USB-C with a 248 mm cable that winds into the hub, and adds HDMI 2.1, DisplayPort 1.4, two USB-A, two USB-C and 2.5 Gigabit Ethernet.
Up to 6K or Dual 4K
Drive a single 6K display at 60Hz or up to two 4K displays from one laptop port.
Charges Through and Manages Easily
Up to 100 W power pass-through to Dell systems (85 W to non-Dell devices), with MAC address pass-through, PXE boot and Wake-on-LAN for managed fleets.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell DA326 Datasheet — Technical Specifications
General
| Product Name | Dell Pro 7-in-1 USB-C Travel Hub - DA326 |
| Model | DA326 |
| Dell SKU (Singapore) | 450-BHBS |
| Dell SKU (USA equivalent) | 470-BGCW |
| Colour | Dell Magnetite |
| Local Warranty (Singapore) | Dell lists a 3 Year Limited Warranty; supplied by SourceIT with a GST invoice (confirm the term with sales) |
Host Connection
| Host Interface | USB Type-C |
| Host Cable | Integrated, with winding mechanism, 248 mm |
| Power Pass-through | Up to 100 W for Dell systems; 85 W max for non-Dell devices |
Ports
| USB-A | 1 x USB-A 3.2 Gen 1 (5Gbps), 1 x USB-A 3.2 Gen 2 (10Gbps) |
| USB-C | 1 x USB-C (data/video/power), 1 x USB-C 3.2 Gen 2 |
| Video | 1 x HDMI 2.1 up to 6K @ 60Hz, 1 x DisplayPort 1.4 up to 6K @ 60Hz |
| Ethernet | 1 x RJ-45, up to 2.5Gbps |
Video Support
| Displays | Single 6K @ 60Hz display or up to two 4K displays |
Management
| IT Features | Plug and Play, MAC address pass-through, PXE boot, Wake-on-LAN |
Physical
| Dimensions | Height 1.03 in, diameter 2.80 in |
| Weight | 93.5 g |
| Materials | 26.6% sustainable materials |
Compatibility & Software Support
Supported Operating Systems
Windows 11, macOS, iPadOS, ChromeOS, Ubuntu and Red Hat Enterprise Linux, per Dell.
Host Devices
Laptops and tablets with USB-C; video output needs DisplayPort Alt Mode on the host, and 6K/dual 4K depend on host graphics.
Package Contents & Dell USB-C Adapters & Hubs Ordering Information
In the Box
Dell Pro 7-in-1 USB-C Travel Hub - DA326 with integrated 248 mm USB-C cable (winding mechanism).
Dell USB-C Adapters & Hubs
| Model | Key feature |
| DA305 6-in-1 (450-ALWY) | USB-C, HDMI 2.0 + DisplayPort + USB-C video, Gigabit Ethernet |
| DA310 7-in-1 (450-AKMS) | 7-in-1 USB-C mobile adapter |
| DA326 Pro 7-in-1 Travel Hub (450-BHBS) (this listing) | HDMI 2.1 + DP 1.4 up to 6K, 2.5GbE, 100 W pass-through to Dell PCs |
Datasheet & Downloads
| Dell datasheet | Dell Pro 7-in-1 USB-C Travel Hub DA326 Datasheet (PDF) |
| Manuals & drivers | DA326 on Dell Support |
| Dell product page | Product page on dell.com (USA, SKU 470-BGCW) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DA326.
Frequently Asked Questions — Dell DA326
How many monitors can it drive?
One 6K display at 60Hz, or up to two 4K displays, depending on the host laptop.
Can it charge my laptop?
Yes, with a USB-C power source connected it passes through up to 100 W to Dell systems and up to 85 W to non-Dell devices.
How fast is the Ethernet?
Up to 2.5Gbps, with MAC address pass-through, PXE boot and Wake-on-LAN.
What warranty do I get?
Dell lists a 3 Year Limited Warranty; supplied locally by SourceIT with a GST invoice. Please confirm the term with sales.
