Cisco Table Microphone with 4-Pin Mini-Jack Plug, 7.5m Cable, Omnidirectional, Spare
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Table Microphone with Mini-Jack Plug, Spare (CS-MIC-TABLE-J=) — Local Warranty
An analogue boundary microphone for Cisco video rooms
The Cisco Table Microphone with mini-jack plug (CS-MIC-TABLE-J=) is an analogue microphone for Cisco video systems. This version terminates in a 4-pin mini-jack connector on a 7.5 m cable, for connection to the mini-jack microphone inputs on Cisco devices such as the Room Bar. The = suffix denotes the spare/standalone part number.
Omnidirectional boundary design
The microphone is a balanced omnidirectional table microphone of the boundary layer type, picking up voices around the table within a 1.5 m radius (360 degrees).
Low-profile and discreet

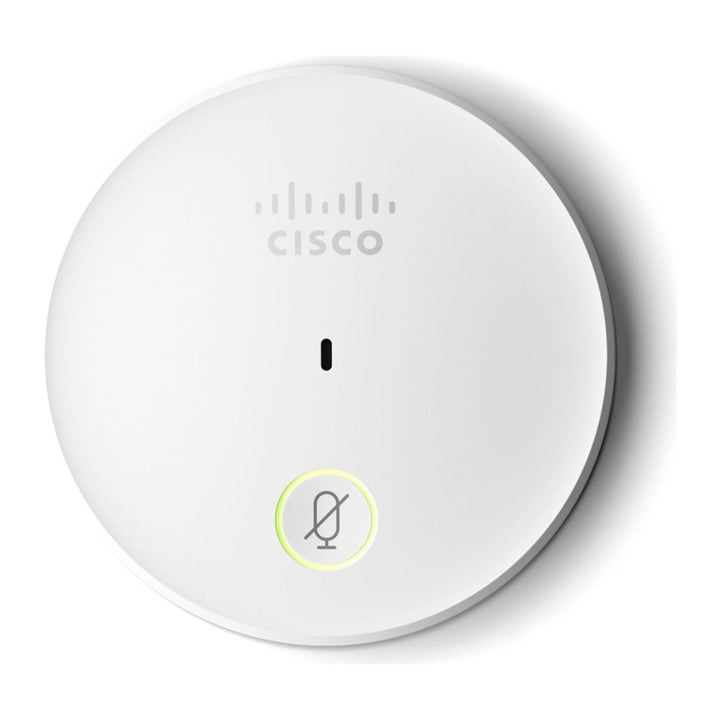

The round housing is just 6.39 cm in diameter and 1.09 cm high and weighs 126 g. It can be recessed into the table or placed on a magnetic table plate.
Mute button with LED
A mute button with an LED status indicator lets participants mute and unmute from their seat and see the mute state.
Phantom powered, with an extension option
The microphone is phantom powered (9V/52V) from the connected Cisco device, so no separate power supply is needed. Cisco offers a 9 m 4-pin mini-jack extension cable (CAB-MIC-EXT-J=) for longer runs.
Cisco Table Microphone Datasheet — Technical Specifications
Acoustic
| Type | Balanced omnidirectional table microphone, boundary layer type |
| Frequency range | 80 Hz to 20 kHz, ±6 dB |
| Sensitivity | -34 dB ±3 dB rel 1 V/Pa, 1 kHz |
| Signal-to-noise ratio | Minimum 70 dB |
| Pickup range | 1.5 m radius (360°) |
Connection & Controls
| Connector | 4-pin mini-jack |
| Cable length | 7.5 m |
| Power | 9V/52V phantom power from the Cisco device |
| Controls | Mute button with LED status indicator |
Physical
| Shape / dimensions | Round, 6.39 cm diameter x 1.09 cm height (2.52 x 0.43 in) |
| Weight | 0.126 kg (0.28 lb) |
| Colour | White |
| Mounting | Tabletop: recessed into the table or on a magnetic table plate |
Compatibility & Software Support
Compatible Cisco devices
Cisco’s microphone data sheet lists the Table Microphone as compatible with the Room Bar, Room Kit, Room 55/70 series, SX10/SX20/SX80, MX700/MX800, Board Pro 55/75 series and the Room Panorama Series. Cisco’s Room Bar data sheet lists the Table Microphone with jack plug (CS-MIC-TABLE-J=) as an optional microphone.
Related SourceIT listings
Cisco Room Bar Carbon Black, Cisco Room Bar BYOD and Cisco Table Microphone with Euroblock plug (CS-MIC-TABLE-E=).
Choosing mini-jack or Euroblock
Both versions share the same acoustic specifications; they differ in connector and cable length. The mini-jack version (CS-MIC-TABLE-J=, 7.5 m cable) suits devices with 4-pin mini-jack microphone inputs, while the Euroblock version (CS-MIC-TABLE-E=, 9 m cable) suits devices and installations with Euroblock inputs.
Features not included
This analogue microphone does not provide adaptive voice capture or speaker tracking. For those features Cisco offers the Table Microphone Pro and Ceiling Microphone Pro.
Warranty
This unit is supplied with Local Warranty. Cisco states a 1-year limited liability warranty for this microphone in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Microphone Ordering Information
What this part number covers
CS-MIC-TABLE-J= is the spare/standalone Cisco Table Microphone with an attached 7.5 m cable and 4-pin mini-jack connector.
Cisco Microphone Family
| Model | Key difference |
| Cisco Table Microphone, mini-jack (CS-MIC-TABLE-J=) (this listing) | Analogue omnidirectional, 4-pin mini-jack, 7.5 m cable |
| Cisco Table Microphone, Euroblock (CS-MIC-TABLE-E=) | Same microphone with 4-pin Euroblock, 9 m cable |
| Mini-jack extension cable (CAB-MIC-EXT-J=) | 4-pin mini-jack extension, 9 m |
| Cisco Table Microphone Pro | Cisco’s higher-end table microphone (separate data sheet) |
| Cisco Ceiling Microphone Pro | Ceiling-mounted microphone (separate data sheet) |
Datasheet & Downloads
Frequently Asked Questions — Cisco Table Microphone (Mini-Jack)
What is the pickup pattern?
Omnidirectional (boundary layer type), with a 1.5 m pickup radius around the microphone.
How long is the cable?
7.5 m. Cisco offers a 9 m mini-jack extension cable (CAB-MIC-EXT-J=). The Euroblock version (CS-MIC-TABLE-E=) has a 9 m cable.
Does it need a separate power supply?
No. It is phantom powered (9V/52V) by the connected Cisco device.
Does it have a mute button?
Yes, with an LED status indicator.
Which Cisco devices is it compatible with?
Cisco lists the Room Bar, Room Kit, Room 55/70 series, SX10/SX20/SX80, MX700/MX800, Board Pro 55/75 series and the Room Panorama Series.
