Cisco Meraki MS150-24P-4G 24-Port Gigabit PoE 370W, 4x 1G SFP Stackable Cloud-Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

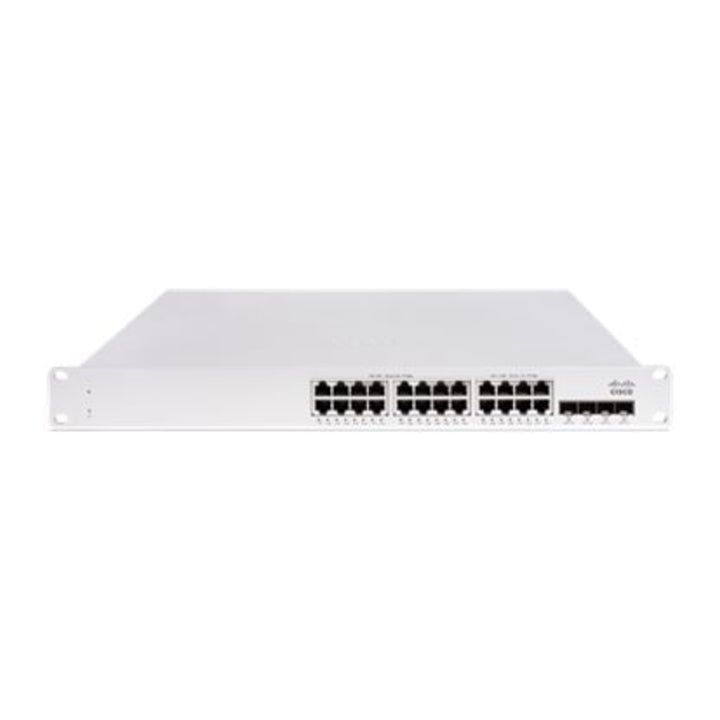

Cisco Meraki MS150-24P-4G Stackable Cloud-Managed Switch (MS150-24P-4G) — Lifetime Hardware Warranty
Layer 2 access switching for branch and campus
The Cisco Meraki MS150-24P-4G is a member of the MS150 stackable switch family, which Cisco Meraki positions for Layer 2 access switching in branch and campus deployments. It provides 24 x 1GbE RJ45 PoE ports and four 1GbE SFP uplinks in a 1U rack-mount chassis.
370 W PoE budget
All 24 RJ45 ports deliver PoE with up to 30 W per port and a total switch PoE budget of 370 W, for access points, IP phones, cameras and other powered devices.
Dedicated 80 Gbps stacking
Two dedicated stack ports provide 80 Gbps of stacking bandwidth. Cisco states the MS150 scales up to 8 stackable switches, managed as one logical switch. Stacking cables (MA-CBL-100G-50CM, -1M or -3M) are ordered separately.
Managed from the Cisco Meraki dashboard
Configuration, monitoring and troubleshooting run from the cloud-based Meraki dashboard, with zero-touch provisioning, automatic firmware upgrades, remote packet capture and cable testing, plus SNMP and Syslog integration.
Built-in access security
802.1X authentication, DHCP snooping, dynamic ARP inspection, IPv4/IPv6 ACLs and broadcast storm control are supported. The Advanced licence tier adds Adaptive Policy segmentation.
Cisco Meraki MS150-24P-4G Datasheet — Technical Specifications
Interfaces
| Access ports | 24 x 1GbE RJ45 PoE (up to 30 W per port) |
| Uplinks | 4 x 1GbE SFP |
| Stack ports | 2 x dedicated, 80 Gbps stacking bandwidth |
| Management interface | 1 x dedicated management port |
Performance
| Switching capacity | 56 Gbps |
| PoE budget | 370 W per switch, 30 W per port |
| Layer 3 | Static routing |
| Stacking | Up to 8 switches per stack |
Software & Security
| Management | Cisco Meraki dashboard (cloud) |
| Security | 802.1X, DHCP snooping, dynamic ARP inspection, IPv4/IPv6 ACLs, broadcast storm control |
| Operations | Zero-touch provisioning, automatic firmware upgrades, remote packet capture, SNMP/Syslog |
Power
| Power supply | Fixed internal, 100-240 VAC |
| Power consumption | 22.9 W idle / 422.2 W max |
Physical & Environmental
| Dimensions (H x W x D) | 4.4 x 48.2 x 25 cm (1.72 x 19 x 9.84 in) |
| Weight | 3.6 kg (7.94 lb) |
| Mounting | Integrated 1U rack mount |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Humidity | 5% to 95% |
| MTBF at 25°C | 1,573,015 hours |
Compatibility & Software Support
Management
The MS150-24P-4G is managed exclusively through the Cisco Meraki dashboard. Switches are claimed into a Meraki organisation, added to a network and configured remotely; firmware updates are delivered automatically with scheduling control.
Meraki licence required (sold separately)
Every Cisco Meraki hardware device requires a Meraki cloud licence to be managed, and Meraki sells licences and hardware separately — no licence is included with this switch. Meraki states that without a valid licence the equipment can no longer be configured or changed and stops passing traffic to the internet. MS150 24-port licences come in Enterprise (LIC-MS150-24-xY) and Advanced (LIC-MS150-24A-xY) tiers, in 1, 3, 5, 7 or 10-year terms; the Advanced tier adds Adaptive Policy. See the Meraki Licensing FAQs for details.
Supported optics
1GbE SFP uplinks support Meraki MA-SFP-1GB-SX, MA-SFP-1GB-LX10 and MA-SFP-1GB-TX modules.
Warranty
Sold by SourceIT as a Singapore unit. Cisco states a lifetime warranty for MS150 Series switches (accessories such as SFP modules, stacking cables and power cords carry a 1-year warranty) in its MS150 Series Installation Guide. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Meraki MS150 Ordering Information
In the Box
- Cisco Meraki MS150-24P-4G switch
- Rack mount kit
Stacking cables are not included. Power cords are ordered separately as regional MA-PWR-CORD SKUs.
Cisco Meraki MS150 Family
| Model | Key difference |
| MS150-24T-4G | 24 x 1GbE, 4 x 1G SFP, no PoE |
| MS150-24P-4G (this listing) | 24 x 1GbE PoE (370 W), 4 x 1G SFP |
| MS150-48T-4G | 48 x 1GbE, 4 x 1G SFP, no PoE |
| MS150-48LP-4G | 48 x 1GbE PoE, 4 x 1G SFP |
| MS150-48FP-4G | 48 x 1GbE full PoE, 4 x 1G SFP |
| MS150-24T-4X / 48T-4X | 10G SFP+ uplink versions |
| Cisco Meraki MS120-24P | Previous-generation 24-port PoE (370 W) cloud-managed switch |
| Cisco Meraki MS125-48LP | 48-port PoE (370 W) cloud-managed switch with 10G SFP+ uplinks |
Datasheet & Downloads
| Document | Link |
| MS150 Datasheet | documentation.meraki.com |
| MS150 Series Installation Guide | documentation.meraki.com |
| Meraki MS150 At-a-Glance | cisco.com |
| Meraki Licensing FAQs | documentation.meraki.com |
Frequently Asked Questions — Cisco Meraki MS150-24P-4G
Does the MS150-24P-4G need a licence?
Yes. Every Meraki device needs a Meraki cloud licence to be managed, and licences are sold separately. Choose an MS150 24-port Enterprise or Advanced licence.
What is the PoE budget?
370 W across the switch, with up to 30 W per port.
Can MS150 switches be stacked?
Yes. Two dedicated stack ports give 80 Gbps stacking bandwidth, and Cisco states up to 8 switches per stack. Stacking cables are sold separately.
Is a power cord included?
No. Meraki lists regional power cords (MA-PWR-CORD) as separate items; the switch has a fixed internal 100-240 VAC power supply.
What warranty applies?
Cisco Meraki lists a lifetime warranty for MS150 Series switches; accessories carry a 1-year warranty.
