Cisco Meraki MS150-24T-4G 24-Port Gigabit, 4x 1G SFP Stackable Cloud-Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

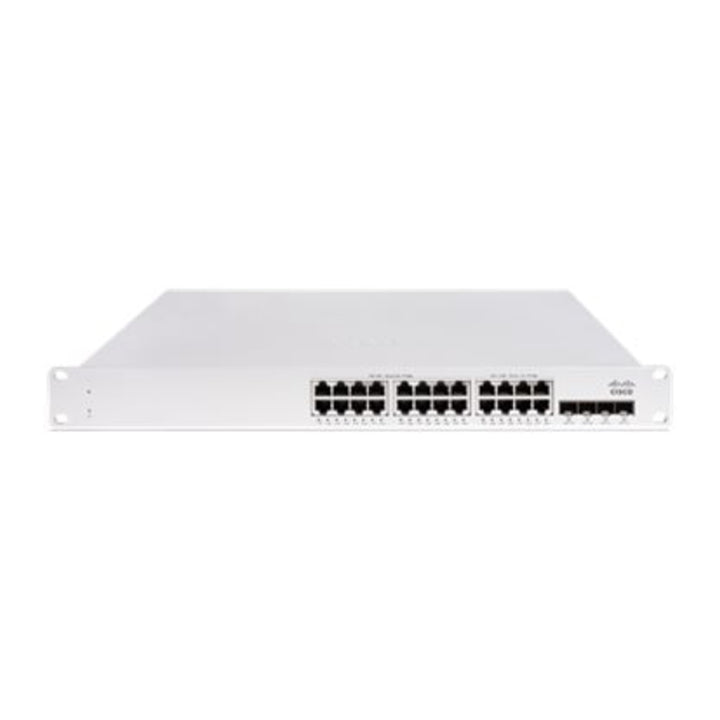

Cisco Meraki MS150-24T-4G Stackable Cloud-Managed Switch (MS150-24T-4G) — Lifetime Hardware Warranty
Layer 2 access switching for branch and campus
The Cisco Meraki MS150-24T-4G is a member of the MS150 stackable switch family, which Cisco Meraki positions for Layer 2 access switching in branch and campus deployments. It provides 24 x 1GbE RJ45 ports and four 1GbE SFP uplinks in a 1U rack-mount chassis.
Dedicated 80 Gbps stacking
Two dedicated stack ports provide 80 Gbps of stacking bandwidth. Cisco states the MS150 scales up to 8 stackable switches, managed as one logical switch. Stacking cables (MA-CBL-100G-50CM, -1M or -3M) are ordered separately.
Managed from the Cisco Meraki dashboard
Configuration, monitoring and troubleshooting run from the cloud-based Meraki dashboard, with zero-touch provisioning, automatic firmware upgrades, remote packet capture and cable testing, plus SNMP and Syslog integration.
Built-in access security
802.1X authentication, DHCP snooping, dynamic ARP inspection, IPv4/IPv6 ACLs and broadcast storm control are supported. The Advanced licence tier adds Adaptive Policy segmentation.
Cisco Meraki MS150-24T-4G Datasheet — Technical Specifications
Interfaces
| Access ports | 24 x 1GbE RJ45 |
| Uplinks | 4 x 1GbE SFP |
| Stack ports | 2 x dedicated, 80 Gbps stacking bandwidth |
| Management interface | 1 x dedicated management port |
Performance
| Switching capacity | 56 Gbps |
| PoE | Not supported (data-only model) |
| Layer 3 | Static routing |
| Stacking | Up to 8 switches per stack |
Software & Security
| Management | Cisco Meraki dashboard (cloud) |
| Security | 802.1X, DHCP snooping, dynamic ARP inspection, IPv4/IPv6 ACLs, broadcast storm control |
| Operations | Zero-touch provisioning, automatic firmware upgrades, remote packet capture, SNMP/Syslog |
Power
| Power supply | Fixed internal, 100-240 VAC |
| Power consumption | 13.7 W idle / 32.4 W max |
Physical & Environmental
| Dimensions (H x W x D) | 4.4 x 48.2 x 25 cm (1.72 x 19 x 9.84 in) |
| Weight | 3.45 kg (7.61 lb) |
| Mounting | Integrated 1U rack mount |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Humidity | 5% to 95% |
| MTBF at 25°C | 2,267,202 hours |
Compatibility & Software Support
Management
The MS150-24T-4G is managed exclusively through the Cisco Meraki dashboard. Switches are claimed into a Meraki organisation, added to a network and configured remotely; firmware updates are delivered automatically with scheduling control.
Meraki licence required (sold separately)
Every Cisco Meraki hardware device requires a Meraki cloud licence to be managed, and Meraki sells licences and hardware separately — no licence is included with this switch. Meraki states that without a valid licence the equipment can no longer be configured or changed and stops passing traffic to the internet. MS150 24-port licences come in Enterprise (LIC-MS150-24-xY) and Advanced (LIC-MS150-24A-xY) tiers, in 1, 3, 5, 7 or 10-year terms; the Advanced tier adds Adaptive Policy. See the Meraki Licensing FAQs for details.
Supported optics
1GbE SFP uplinks support Meraki MA-SFP-1GB-SX, MA-SFP-1GB-LX10 and MA-SFP-1GB-TX modules.
Warranty
Sold by SourceIT as a Singapore unit. Cisco states a lifetime warranty for MS150 Series switches (accessories such as SFP modules, stacking cables and power cords carry a 1-year warranty) in its MS150 Series Installation Guide. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Meraki MS150 Ordering Information
In the Box
- Cisco Meraki MS150-24T-4G switch
- Rack mount kit
Stacking cables are not included. Power cords are ordered separately as regional MA-PWR-CORD SKUs.
Cisco Meraki MS150 Family
| Model | Key difference |
| MS150-24T-4G (this listing) | 24 x 1GbE, 4 x 1G SFP, no PoE |
| MS150-24P-4G | 24 x 1GbE PoE (370 W), 4 x 1G SFP |
| MS150-48T-4G | 48 x 1GbE, 4 x 1G SFP, no PoE |
| MS150-48LP-4G | 48 x 1GbE PoE, 4 x 1G SFP |
| MS150-48FP-4G | 48 x 1GbE full PoE, 4 x 1G SFP |
| MS150-24T-4X / 48T-4X | 10G SFP+ uplink versions |
| Cisco Meraki MS120-24P | Previous-generation 24-port PoE (370 W) cloud-managed switch |
| Cisco Meraki MS125-48LP | 48-port PoE (370 W) cloud-managed switch with 10G SFP+ uplinks |
Datasheet & Downloads
| Document | Link |
| MS150 Datasheet | documentation.meraki.com |
| MS150 Series Installation Guide | documentation.meraki.com |
| Meraki MS150 At-a-Glance | cisco.com |
| Meraki Licensing FAQs | documentation.meraki.com |
Frequently Asked Questions — Cisco Meraki MS150-24T-4G
Does the MS150-24T-4G need a licence?
Yes. Every Meraki device needs a Meraki cloud licence to be managed, and licences are sold separately. Choose an MS150 24-port Enterprise or Advanced licence.
Does the MS150-24T-4G provide PoE?
No. It is a data-only model. The MS150-24P / LP / FP versions add PoE.
Can MS150 switches be stacked?
Yes. Two dedicated stack ports give 80 Gbps stacking bandwidth, and Cisco states up to 8 switches per stack. Stacking cables are sold separately.
Is a power cord included?
No. Meraki lists regional power cords (MA-PWR-CORD) as separate items; the switch has a fixed internal 100-240 VAC power supply.
What warranty applies?
Cisco Meraki lists a lifetime warranty for MS150 Series switches; accessories carry a 1-year warranty.
