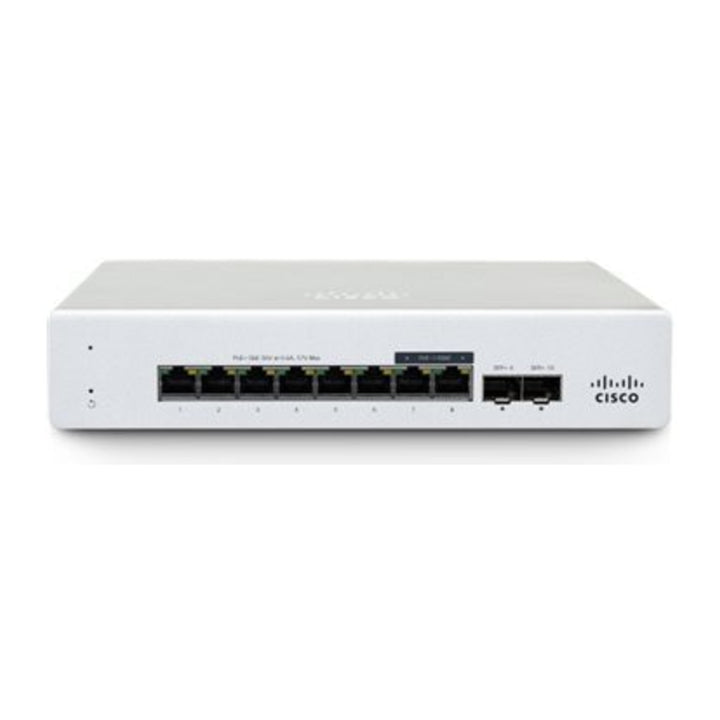

Cisco Meraki MS130-8P 8-Port Gigabit PoE+ 120W, 2x 1G SFP Compact Cloud-Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Meraki MS130-8P Cloud-Managed PoE+ Switch (MS130-8P-HW) — Lifetime Hardware Warranty
Layer 2 access switching
The Cisco Meraki MS130-8P-HW belongs to the MS130 family, which Cisco Meraki positions for Layer 2 access switching in branch and campus deployments. It provides 8 x 1GbE RJ45 PoE+ ports and 2 x 1GbE SFP uplinks.
120 W PoE+ budget
Every access port supports 802.3at PoE+ at up to 30 W, within a total switch PoE budget of 120 W, for access points, IP phones and cameras.
Compact and fanless
The MS130-8P is fanless and measures 22.2 x 15 cm, so it can sit on a desk or mount on a wall using its integrated wall mount. Power comes from an external 54 VDC adapter included in the box.
Managed from the Cisco Meraki dashboard
Setup, configuration and monitoring are done in the cloud-based Meraki dashboard, with remote packet capture, SNMP/Syslog integration and a local status page on the device.
Access security
802.1Q VLAN tagging, DHCP snooping and 802.1X authentication are supported. The Advanced licence tier adds Adaptive Policy.
Cisco Meraki MS130-8P Datasheet — Technical Specifications
Interfaces
| Access ports | 8 x 1GbE RJ45 PoE+ |
| Uplinks | 2 x 1GbE SFP |
Performance & PoE
| Switching capacity | 20 Gbps |
| PoE standard | 802.3at (PoE+), up to 30 W per port |
| PoE budget | 120 W per switch |
| Layer | Layer 2 access switching |
Software & Security
| Management | Cisco Meraki dashboard (cloud) |
| Features | 802.1Q VLAN tagging, DHCP snooping, 802.1X authentication, remote packet capture, SNMP/Syslog |
| Licence | Meraki MS130 licence required (sold separately) |
Power
| Power supply | External 54 VDC power adapter (included) |
| Power consumption | 8 W idle / 128 W max |
Physical & Environmental
| Dimensions (H x W x D) | 2.8 x 22.2 x 15 cm (1.1 x 8.74 x 6 in) |
| Weight | 0.88 kg (1.94 lb) |
| Cooling | Fanless |
| Mounting | Desktop or integrated wall mount |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Humidity | 5% to 95% |
Compatibility & Software Support
Management
The MS130-8P-HW is managed through the Cisco Meraki dashboard: claim it into a Meraki organisation, add it to a network and configure ports and VLANs remotely.
Meraki licence required (sold separately)
Every Cisco Meraki hardware device requires a Meraki cloud licence to be managed, and Meraki sells licences and hardware separately — no licence is included with this switch. Meraki states that without a valid licence the equipment can no longer be configured or changed and stops passing traffic to the internet. The MS130-8P uses LIC-MS130-CMPT-xY (Enterprise) or LIC-MS130-CMPTA-xY (Advanced). Meraki offers the Enterprise tier in 1, 3, 5, 7 and 10-year terms and the Advanced tier in the same terms except 7 and 10 years; Meraki states the MS130 Advanced licence only adds Adaptive Policy. See the Meraki Licensing FAQs.
Warranty
Sold by SourceIT as a Singapore unit. Cisco states a lifetime warranty for MS130 Series switches (accessories such as SFP modules, cables and mounting kits carry a 1-year warranty) in its MS130 Series Installation Guide. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Meraki MS130 Ordering Information
In the Box
- Cisco Meraki MS130-8P switch
- External power supply unit
- Graphical instruction pamphlet
Cisco Meraki MS130 Family
| Model | Key difference |
| MS130-8 | 8 x 1GbE, no PoE, compact |
| MS130-8P (this listing) | 8 x 1GbE PoE+ (120 W), 2 x 1G SFP, compact fanless |
| MS130-8X | Compact model with multigigabit ports and SFP+ uplinks |
| MS130-24P | 24 x 1GbE PoE+ |
| MS130-48 | 48 x 1GbE, no PoE |
| MS130-48P | 48 x 1GbE PoE+ (740 W), 4 x 1G SFP |
| MS130-48X | 48-port model with multigigabit ports and SFP+ uplinks |
| Cisco Meraki MS120-24P | 24-port PoE (370 W) cloud-managed switch |
| Cisco Meraki MS125-48LP | 48-port PoE (370 W) cloud-managed switch with 10G SFP+ uplinks |
Datasheet & Downloads
| Document | Link |
| MS130 Datasheet | documentation.meraki.com |
| MS130 Series Installation Guide | documentation.meraki.com |
| Meraki Licensing FAQs | documentation.meraki.com |
Frequently Asked Questions — Cisco Meraki MS130-8P
Does the MS130-8P need a licence?
Yes. A Meraki MS130 licence is required for cloud management and is sold separately: LIC-MS130-CMPT-xY (Enterprise) or LIC-MS130-CMPTA-xY (Advanced).
What is the PoE budget?
120 W per switch, with 802.3at PoE+ up to 30 W per port on all 8 RJ45 ports.
Is the MS130-8P fanless?
Yes. It uses passive cooling and can be placed on a desk or wall-mounted.
How is it powered?
By an external 54 VDC power adapter, which is included in the box.
What warranty applies?
Cisco Meraki lists a lifetime warranty for MS130 Series switches; accessories carry a 1-year warranty.
