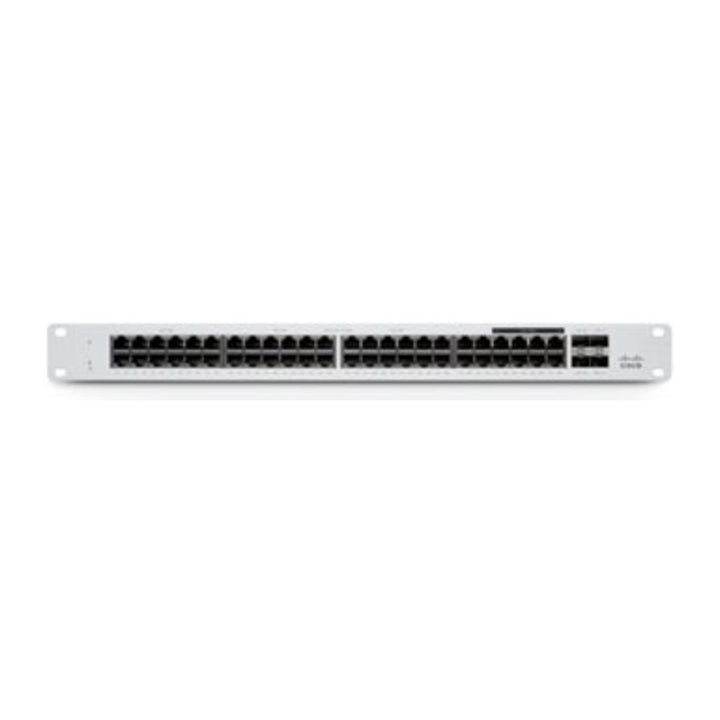

Cisco Meraki MS130-48P 48-Port Gigabit PoE+ 740W, 4x 1G SFP Cloud-Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Meraki MS130-48P Cloud-Managed PoE+ Switch (MS130-48P-HW) — Lifetime Hardware Warranty
Layer 2 access switching
The Cisco Meraki MS130-48P-HW belongs to the MS130 family, which Cisco Meraki positions for Layer 2 access switching in branch and campus deployments. It provides 48 x 1GbE RJ45 PoE+ ports and 4 x 1GbE SFP uplinks.
740 W PoE+ budget
Every access port supports 802.3at PoE+ at up to 30 W, within a total switch PoE budget of 740 W, for access points, IP phones and cameras.
1U rack-mount access switch
The MS130-48P is a 1U rack-mount switch with a fixed internal power supply and internal fans, offering 104 Gbps switching capacity for a full 48-port wiring closet.
Managed from the Cisco Meraki dashboard
Setup, configuration and monitoring are done in the cloud-based Meraki dashboard, with remote packet capture, SNMP/Syslog integration and a local status page on the device.
Access security
802.1Q VLAN tagging, DHCP snooping and 802.1X authentication are supported. The Advanced licence tier adds Adaptive Policy.
Cisco Meraki MS130-48P Datasheet — Technical Specifications
Interfaces
| Access ports | 48 x 1GbE RJ45 PoE+ |
| Uplinks | 4 x 1GbE SFP |
Performance & PoE
| Switching capacity | 104 Gbps |
| PoE standard | 802.3at (PoE+), up to 30 W per port |
| PoE budget | 740 W per switch |
| Layer | Layer 2 access switching |
Software & Security
| Management | Cisco Meraki dashboard (cloud) |
| Features | 802.1Q VLAN tagging, DHCP snooping, 802.1X authentication, remote packet capture, SNMP/Syslog |
| Licence | Meraki MS130 licence required (sold separately) |
Power
| Power supply | Fixed internal power supply |
| Power consumption | 49 W idle / 803 W max |
Physical & Environmental
| Dimensions (H x W x D) | 4.4 x 44 x 34 cm (1.73 x 17.32 x 13.4 in) |
| Weight | 5.5 kg (12.13 lb) |
| Cooling | Fixed internal fans |
| Mounting | Integrated 1U rack mount |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Humidity | 5% to 95% |
| MTBF | 309,196 hours |
Compatibility & Software Support
Management
The MS130-48P-HW is managed through the Cisco Meraki dashboard: claim it into a Meraki organisation, add it to a network and configure ports and VLANs remotely.
Meraki licence required (sold separately)
Every Cisco Meraki hardware device requires a Meraki cloud licence to be managed, and Meraki sells licences and hardware separately — no licence is included with this switch. Meraki states that without a valid licence the equipment can no longer be configured or changed and stops passing traffic to the internet. The MS130-48P uses LIC-MS130-48-xY (Enterprise) or LIC-MS130-48A-xY (Advanced). Meraki offers the Enterprise tier in 1, 3, 5, 7 and 10-year terms and the Advanced tier in the same terms except 7 and 10 years; Meraki states the MS130 Advanced licence only adds Adaptive Policy. See the Meraki Licensing FAQs.
Warranty
Sold by SourceIT as a Singapore unit. Cisco states a lifetime warranty for MS130 Series switches (accessories such as SFP modules, cables and mounting kits carry a 1-year warranty) in its MS130 Series Installation Guide. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Meraki MS130 Ordering Information
In the Box
- Cisco Meraki MS130-48P switch
- Rack-mount screw kit
- Graphical instruction pamphlet
The power cord is ordered separately.
Cisco Meraki MS130 Family
| Model | Key difference |
| MS130-8 | 8 x 1GbE, no PoE, compact |
| MS130-8P | 8 x 1GbE PoE+ (120 W), 2 x 1G SFP, compact fanless |
| MS130-8X | Compact model with multigigabit ports and SFP+ uplinks |
| MS130-24P | 24 x 1GbE PoE+ |
| MS130-48 | 48 x 1GbE, no PoE |
| MS130-48P (this listing) | 48 x 1GbE PoE+ (740 W), 4 x 1G SFP |
| MS130-48X | 48-port model with multigigabit ports and SFP+ uplinks |
| Cisco Meraki MS120-24P | 24-port PoE (370 W) cloud-managed switch |
| Cisco Meraki MS125-48LP | 48-port PoE (370 W) cloud-managed switch with 10G SFP+ uplinks |
Datasheet & Downloads
| Document | Link |
| MS130 Datasheet | documentation.meraki.com |
| MS130 Series Installation Guide | documentation.meraki.com |
| Meraki Licensing FAQs | documentation.meraki.com |
Frequently Asked Questions — Cisco Meraki MS130-48P
Does the MS130-48P need a licence?
Yes. A Meraki MS130 licence is required for cloud management and is sold separately: LIC-MS130-48-xY (Enterprise) or LIC-MS130-48A-xY (Advanced).
What is the PoE budget?
740 W per switch, with 802.3at PoE+ up to 30 W per port on all 48 RJ45 ports.
Is a power cord included?
No. The MS130-48P ships with a rack-mount screw kit; the power cord is ordered separately.
Does it support Layer 3 routing?
Meraki positions the MS130 for Layer 2 access switching.
What warranty applies?
Cisco Meraki lists a lifetime warranty for MS130 Series switches; accessories carry a 1-year warranty.
