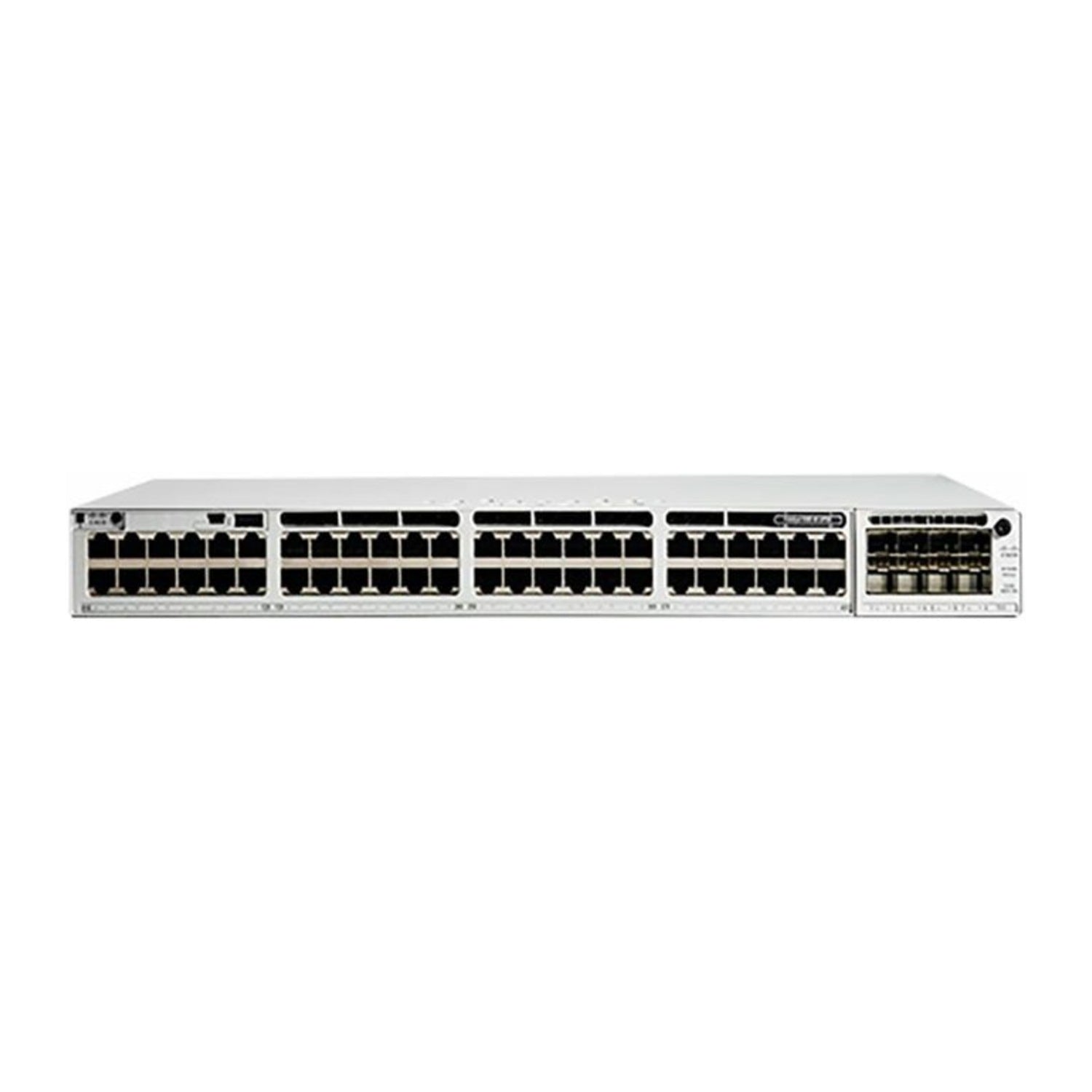

Cisco Catalyst 9300 48-Port Gigabit Data, Modular Uplink Managed Switch, Network Advantage
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Catalyst 9300 48-Port Gigabit Data, Modular Uplink Managed Switch, Network Advantage (C9300-48T-A) — Enhanced Limited Lifetime Warranty
Stackable enterprise access switch
The Cisco C9300-48T-A is a Catalyst 9300 Series switch with 48 x 10/100/1000 Mbps RJ-45 ports and a modular uplink slot. It runs Cisco IOS XE and is supplied with the Network Advantage network stack licence (the -A suffix in the part number).
Modular uplinks
Uplink connectivity is added with a Catalyst 9300 network module, such as the 8 x 10G/1G SFP+ C9300-NM-8X, the 4 x 1G C9300-NM-4G or the 2 x 25G C9300-NM-2Y. Network modules are field-replaceable and hot-swappable.
StackWise-480 and StackPower

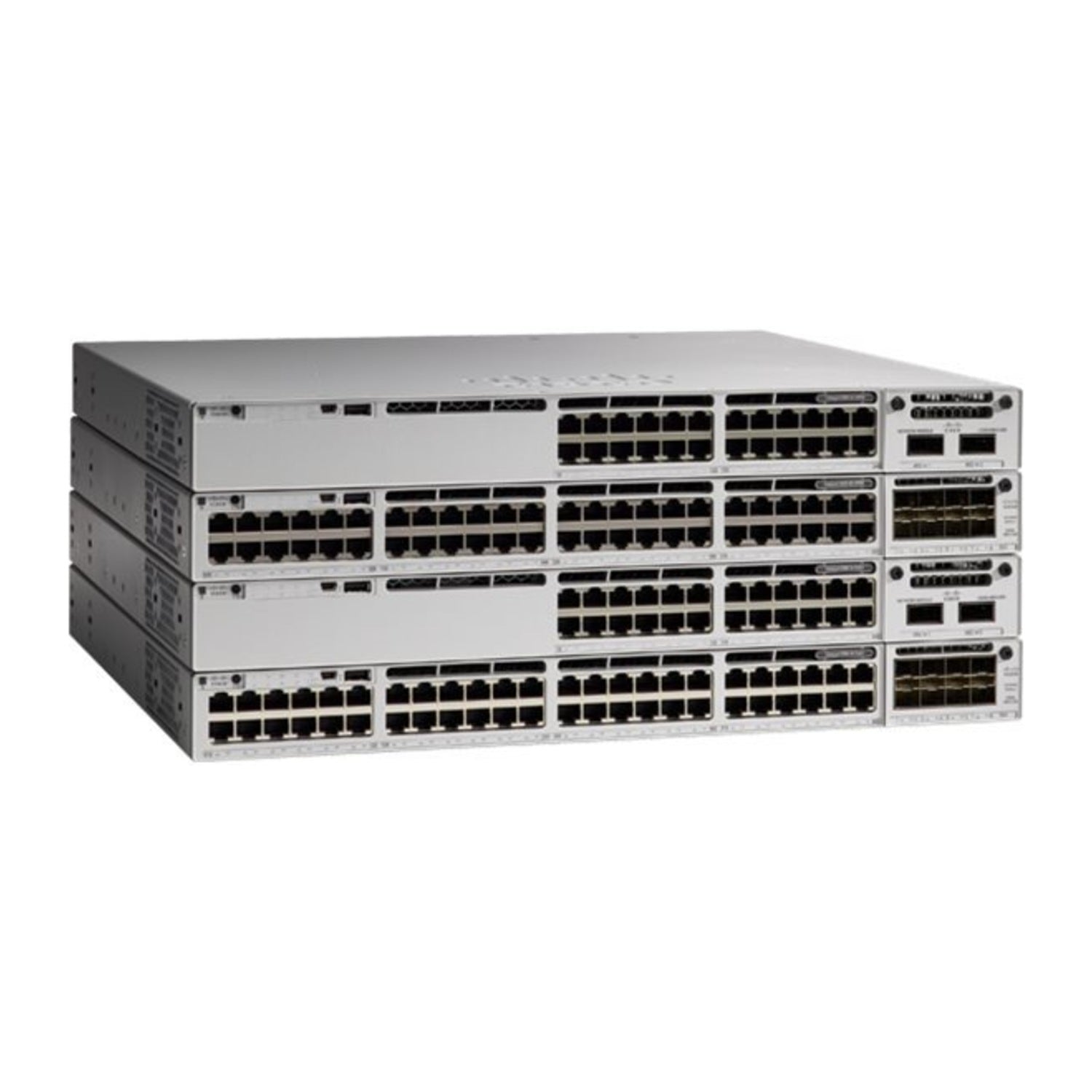

Up to eight switches can be stacked over StackWise-480 (480 Gbps stack bandwidth) and managed as one. Cisco StackPower, supported on modular-uplink C9300 models, shares the power supplies in a stack as a common resource.
Redundant power and cooling
The switch ships with a 350W AC (PWR-C1-350WAC-P) power supply in one of two power supply bays; a second supply can be added for redundancy. Three field-replaceable fans provide N+1 cooling redundancy.
x86 CPU, 8 GB memory, 16 GB flash
Cisco specifies an x86 CPU complex with 8 GB DRAM and 16 GB flash, a USB 3.0 SSD port for optional external storage, and AES-256 MACsec for encrypting links between switches.
Cisco Catalyst 9300 C9300-48T-A Datasheet — Technical Specifications
Interfaces
| Downlink ports | 48 x 10/100/1000 Mbps RJ-45 (data only, no PoE) |
| Uplinks | Modular: one network module slot (C9300-NM series, sold separately) |
| Management | 10/100/1000 Ethernet management port |
| Console | RJ-45 console port and USB mini-Type B console port |
| USB | USB Type A storage port; USB 3.0 SSD port (rear) |
Performance
| Switching capacity | 256 Gbps |
| Forwarding rate | 190.47 Mpps |
| Stacking | StackWise-480 (480 Gbps), up to 8 members |
| DRAM / flash | 8 GB / 16 GB |
| MAC addresses | 32,000 |
| IPv4 routes | 32,000 (24,000 direct, 8,000 indirect) |
| VLAN IDs | 4,094 |
| Jumbo frames | 9,198 bytes |
Software & Licensing
| Operating system | Cisco IOS XE |
| Network stack licence | Network Advantage (included, -A suffix) |
| Subscription licence | Cisco DNA / Catalyst Essentials or Advantage, 3, 5 or 7 years (mandatory, separate part number) |
| Security | AES-256 MACsec |
Power & Cooling
| Default power supply | 350W AC (PWR-C1-350WAC-P) |
| Power supply bays | 2 (second supply optional, for redundancy) |
| Fans | 3 x field-replaceable, hot-swap (N+1 redundancy) |
| StackPower | Supported |
Physical & Environmental
| Form factor | 1U rack mount |
| Dimensions (H x W x D) | 4.4 x 44.5 x 48.8 cm (1.73 x 17.5 x 19.2 in.) |
| Weight | 7.45 kg (16.43 lb) with fans and default power supply |
| Operating temperature | -5° to 45°C |
| Operating humidity | 5% to 90% non-condensing |
| Operating altitude | Up to 3,000 m (10,000 ft) |
Compatibility & Software Support
Licensing
The -A suffix means the switch is supplied with the Network Advantage network stack licence. Cisco's ordering guide states that both the network stack licence and a Cisco DNA or Catalyst software subscription licence (Essentials or Advantage, 3, 5 or 7 years) are mandatory at the time of purchase; the subscription is a separate part number. Cisco describes Network Advantage as adding advanced routing, segmentation, multicast, scale and security capabilities to the Network Essentials foundation.
Management
The switch runs Cisco IOS XE and can be managed by CLI, the IOS XE web interface or Cisco Catalyst Center. The Catalyst 9300 data sheet also notes that Catalyst 9300 switches can be migrated to the Meraki software option for cloud management.
Network Modules & Stacking
Catalyst 3850 and Catalyst 9300 network modules fit modular-uplink Catalyst 9300 models; C9300X network modules do not. Data stacking uses STACK-T1 cables (50 cm, 1 m, 3 m) and StackPower uses CAB-SPWR cables.
Lifecycle Status
As of October 2026, Cisco's Catalyst 9300 Series end-of-life notice listing does not include a hardware end-of-sale notice for the C9300-48T; the listed notices cover IOS XE releases, licences and accessories.
Warranty
Sold by SourceIT as a Singapore unit. Cisco states that Catalyst 9300 Series switches come with an Enhanced Limited Lifetime hardware Warranty (E-LLW), including next-business-day delivery of replacement hardware where available and 90 days of 8x5 Cisco TAC support, in its ordering guide. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Catalyst 9300 Ordering Information
What the Part Number Covers
The C9300-48T-A switch with its default 350W AC (PWR-C1-350WAC-P) power supply and three fan modules installed. Network modules, transceivers, stack cables, a second power supply and the mandatory Cisco DNA/Catalyst subscription licence are separate part numbers.
Cisco Catalyst 9300 Family
| Model | Key difference |
| C9300-48T-A (this listing) | 48 x 1G data, modular uplink, StackWise-480, Network Advantage |
| C9300L-24T-4G-E | 24 x 1G data, 4 x 1G SFP fixed uplinks, StackWise-320, Network Essentials |
| C9300L-48T-4G-E | 48 x 1G data, 4 x 1G SFP fixed uplinks, StackWise-320, Network Essentials |
| C9300L-24T-4X-E | 24 x 1G data, 4 x 10G SFP+ fixed uplinks, StackWise-320, Network Essentials |
| C9300-48T-M | Meraki cloud-managed version of the C9300-48T |
Related Accessories at SourceIT
| Item | Use |
| Cisco Catalyst 9300 8x10G/1G SFP+ Network Module (C9300-NM-8X=) | 8 x 10G/1G SFP+ uplink module for this switch |
| Cisco 350W AC Platinum Config 1 Power Supply (PWR-C1-350WAC-P=) | Default supply for C9300-24T / C9300-48T; also a redundant second supply |
| Cisco 3 m Type 1 Stacking Cable (STACK-T1-3M=) | StackWise data stacking cable for modular-uplink C9300 models |
| Cisco StackPower Cable 150 cm (CAB-SPWR-150CM=) | StackPower power-sharing cable |
Datasheet & Downloads
| Document | Link |
| Cisco Catalyst 9300 Series Switches Data Sheet | www.cisco.com |
| Cisco Catalyst 9300 Series Ordering Guide | www.cisco.com |
| Catalyst 9300 Hardware Installation Guide — Product Overview | www.cisco.com |
| Catalyst 9300 Hardware Installation Guide — Technical Specifications | www.cisco.com |
| Catalyst 9300 Series End-of-Life and End-of-Sale notices | www.cisco.com |
Frequently Asked Questions — Cisco C9300-48T-A
What does the -A suffix mean?
It is the network stack licence supplied with the switch: -E is Network Essentials and -A is Network Advantage. A Cisco DNA or Catalyst subscription licence (Essentials or Advantage, 3, 5 or 7 years) is also mandatory at purchase and is a separate part number.
Does the C9300-48T-A have uplink ports?
Uplinks come from a network module installed in the modular uplink slot, for example the C9300-NM-8X (8 x 10G/1G SFP+). The module is ordered separately.
Does it support PoE?
No. The C9300-48T is a data-only model. PoE+ is provided by the C9300-48P and other PoE models.
Can it be stacked?
Yes. Up to eight switches over StackWise-480 using STACK-T1 cables, with StackPower available for power sharing.
What warranty does Cisco give?
Cisco states an Enhanced Limited Lifetime hardware Warranty (E-LLW) with next-business-day replacement hardware where available and 90 days of 8x5 TAC support.
