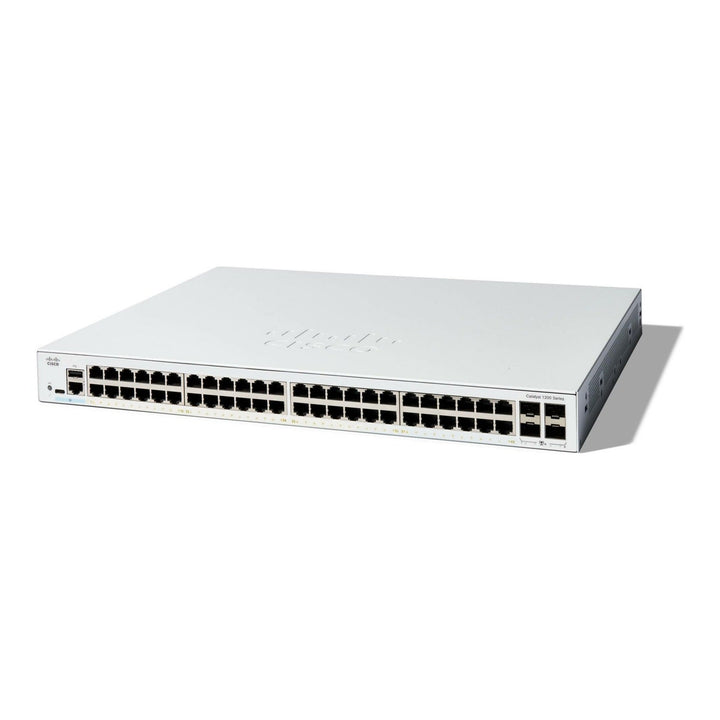

Cisco Catalyst 1200 C1200-48T-4X 48-Port Gigabit, 4x 10G SFP+ Smart Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Catalyst 1200 48-Port Gigabit Smart Switch, 4x 10G SFP+ (C1200-48T-4X) — Limited Lifetime Warranty
Smart switching for growing offices
The Cisco C1200-48T-4X is a Catalyst 1200 Series smart switch with 48 x 10/100/1000 ports and 4 x 10 Gigabit SFP+ uplinks. Cisco positions the Catalyst 1200 for small and medium businesses that need enterprise-class switching that is simple to deploy and manage.
Layer 3 static routing
Beyond Layer 2 switching, the C1200-48T-4X supports up to 32 static routes and 16 IP interfaces with wire-speed IPv4 and IPv6 routing, so inter-VLAN traffic can be routed at the switch.
Simple management, your way
Configure the switch through the built-in web UI (HTTP/HTTPS), a full and menu-based CLI, or SNMP v1/v2c/v3, and monitor it from the Cisco Business Dashboard or the Cisco Business mobile app.
Built-in security
IEEE 802.1X authentication with RADIUS, up to 512 ACL rules, port security with MAC locking, storm control and DoS prevention help protect the network edge.
Energy efficient
Support for IEEE 802.3az Energy Efficient Ethernet reduces power use on idle links. Cooling is by 1 fan (29.7 dBA at 25°C).
Cisco Catalyst 1200 C1200-48T-4X Datasheet — Technical Specifications
Ports
| Downlink ports | 48 x 10/100/1000 RJ-45 |
| Uplink ports | 4 x 10 Gigabit SFP+ |
| Console | Cisco standard RJ-45 console and USB Type-C port |
Performance
| Switching capacity | 176 Gbps |
| Forwarding rate (64-byte packets) | 130.94 mpps |
| Packet buffer | 3 MB |
| MAC table | 8,000 addresses |
| Jumbo frames | Up to 9,000 bytes |
Layer 2 & Layer 3
| VLANs | Up to 255 active VLANs |
| Spanning tree | 802.1D STP, 802.1w RSTP |
| Link aggregation | Up to 4 groups, up to 8 ports per group |
| IGMP snooping | 255 multicast groups |
| QoS | 8 hardware queues |
| Routing | Up to 32 static routes, up to 16 IP interfaces; IPv4 and IPv6 |
System
| CPU | Dual-core ARM, 1.4 GHz |
| DRAM / flash | 1 GB DDR4 / 512 MB |
| Discovery | LLDP (802.1AB) with LLDP-MED, Cisco Discovery Protocol |
| Energy | IEEE 802.3az Energy Efficient Ethernet |
Power & Physical
| Power input | 100-240 V AC, 50-60 Hz |
| Power consumption | 40.01 W (110 V) / 39.77 W (220 V) |
| Heat dissipation | 136.50 BTU/hr |
| Cooling | 1 fan (29.7 dBA at 25°C) |
| Dimensions (W x D x H) | 445 x 288 x 44 mm |
| Weight | 3.95 kg (8.71 lb) |
| MTBF | 1,452,667 hours at 25°C |
Environmental
| Operating temperature | -5° to 50°C (23° to 122°F) |
| Operating humidity | 10% to 90% relative, non-condensing |
| Certifications | UL 62368, CSA 22.2, CE mark, FCC Part 15 |
Compatibility & Software Support
Management
The C1200-48T-4X is managed locally through its web UI, CLI or SNMP. It can also be monitored and managed with Cisco Business Dashboard (the switch includes an embedded probe) and the Cisco Business mobile app. No subscription licence is required to operate the switch.
Interoperability
Standards-based 802.1Q VLANs, 802.1w RSTP, LACP link aggregation and LLDP-MED allow the switch to operate alongside other Cisco and third-party network equipment.
Warranty
Sold by SourceIT as a Singapore unit. Cisco states a limited lifetime warranty for the Catalyst 1200 Series in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Catalyst 1200 Ordering Information
In the Box
- Cisco Catalyst 1200 C1200-48T-4X switch
- Power cord
- Mounting kit
- Pointer card
Cisco Catalyst 1200 Family
| Model | Configuration |
| C1200-24T-4G | 24 x GE + 4 x 1G SFP |
| C1200-24P-4G | 24 x GE PoE+ (195 W) + 4 x 1G SFP |
| C1200-24FP-4G | 24 x GE PoE+ (375 W) + 4 x 1G SFP |
| C1200-48T-4G | 48 x GE + 4 x 1G SFP |
| C1200-48P-4G | 48 x GE PoE+ (375 W) + 4 x 1G SFP |
| C1200-24T-4X | 24 x GE + 4 x 10G SFP+ |
| C1200-24P-4X | 24 x GE PoE+ (195 W) + 4 x 10G SFP+ |
| C1200-48T-4X (this listing) | 48 x GE + 4 x 10G SFP+ |
| C1200-48P-4X | 48 x GE PoE+ (375 W) + 4 x 10G SFP+ |
| Cisco Business 350 CBS350-24P-4G | Cisco Business 350 managed switch: 24 x GE PoE+ (195 W) + 4 x 1G SFP |
Datasheet & Downloads
Frequently Asked Questions — Cisco Catalyst 1200 C1200-48T-4X
Is the C1200-48T-4X a Layer 3 switch?
It supports static routing: up to 32 static routes and 16 IP interfaces, with IPv4 and IPv6. Dynamic routing protocols are not listed for the Catalyst 1200.
How is the switch managed?
Through the built-in web UI, a full or menu-based CLI, SNMP v1/v2c/v3, Cisco Business Dashboard or the Cisco Business mobile app.
Does this model provide PoE?
No. The C1200-48T-4X is a non-PoE model. Catalyst 1200 PoE+ models end in P or FP, such as the C1200-48P-4X.
Is the switch fanless?
No. Cisco specifies 1 fan (29.7 dBA at 25°C).
What warranty applies?
Cisco states a limited lifetime warranty for the Catalyst 1200 Series. SourceIT supplies Singapore units.
