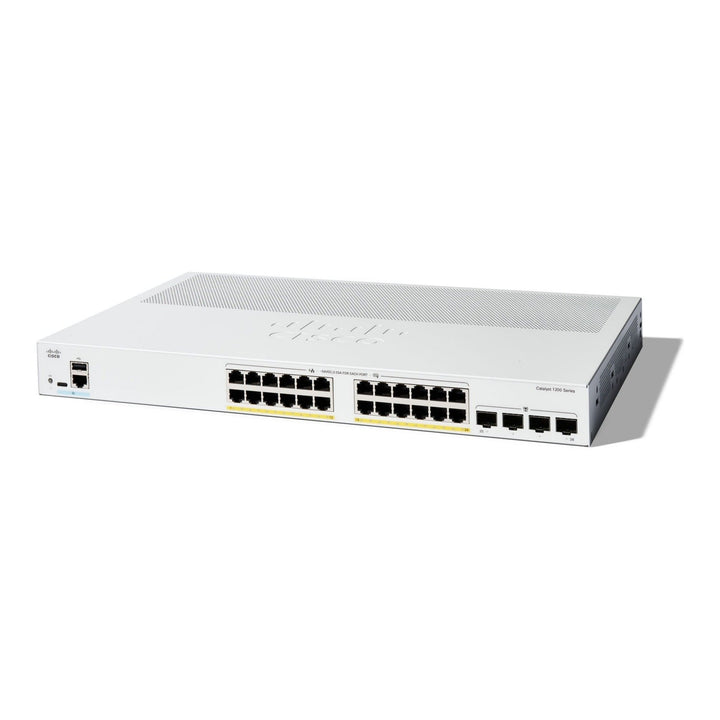

Cisco Catalyst 1200 C1200-24P-4G 24-Port Gigabit PoE+ 195W, 4x 1G SFP Smart Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Catalyst 1200 24-Port Gigabit PoE+ 195W Smart Switch, 4x 1G SFP (C1200-24P-4G) — Limited Lifetime Warranty
Smart switching for growing offices
The Cisco C1200-24P-4G is a Catalyst 1200 Series smart switch with 24 x 10/100/1000 PoE+ ports and 4 x Gigabit SFP uplinks. Cisco positions the Catalyst 1200 for small and medium businesses that need enterprise-class switching that is simple to deploy and manage.
195 W PoE+ budget
All 24 copper ports deliver 802.3at PoE+ and 802.3af PoE from a 195 W power budget, powering IP phones, wireless access points and IP cameras without separate power adapters.
Layer 3 static routing
Beyond Layer 2 switching, the C1200-24P-4G supports up to 32 static routes and 16 IP interfaces with wire-speed IPv4 and IPv6 routing, so inter-VLAN traffic can be routed at the switch.
Simple management, your way
Configure the switch through the built-in web UI (HTTP/HTTPS), a full and menu-based CLI, or SNMP v1/v2c/v3, and monitor it from the Cisco Business Dashboard or the Cisco Business mobile app.
Built-in security
IEEE 802.1X authentication with RADIUS, up to 512 ACL rules, port security with MAC locking, storm control and DoS prevention help protect the network edge.
Silent fanless design
Cisco specifies a fanless design for this model, suitable for open-plan offices and other noise-sensitive spaces.
Cisco Catalyst 1200 C1200-24P-4G Datasheet — Technical Specifications
Ports
| Downlink ports | 24 x 10/100/1000 PoE+ RJ-45 |
| Uplink ports | 4 x Gigabit SFP |
| Console | Cisco standard RJ-45 console and USB Type-C port |
Power over Ethernet
| PoE standard | 802.3at PoE+ and 802.3af PoE |
| PoE ports | 24 |
| PoE power budget | 195 W |
Performance
| Switching capacity | 56 Gbps |
| Forwarding rate (64-byte packets) | 41.67 mpps |
| Packet buffer | 1.5 MB |
| MAC table | 8,000 addresses |
| Jumbo frames | Up to 9,000 bytes |
Layer 2 & Layer 3
| VLANs | Up to 255 active VLANs |
| Spanning tree | 802.1D STP, 802.1w RSTP |
| Link aggregation | Up to 4 groups, up to 8 ports per group |
| IGMP snooping | 255 multicast groups |
| QoS | 8 hardware queues |
| Routing | Up to 32 static routes, up to 16 IP interfaces; IPv4 and IPv6 |
System
| CPU | Dual-core ARM, 1.4 GHz |
| DRAM / flash | 1 GB DDR4 / 512 MB |
| Discovery | LLDP (802.1AB) with LLDP-MED, Cisco Discovery Protocol |
| Energy | IEEE 802.3az Energy Efficient Ethernet |
Power & Physical
| Power input | 100-240 V AC, 50-60 Hz |
| Power consumption | 25.9 W (110 V) / 27.5 W (220 V) system; 235.2 W (110 V) / 230.8 W (220 V) with full PoE load |
| Heat dissipation | 802 BTU/hr |
| Cooling | Fanless |
| Dimensions (W x D x H) | 445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in) |
| Weight | 3.53 kg (7.78 lb) |
| MTBF | 698,220 hours at 25°C |
Environmental
| Operating temperature | -5° to 50°C (23° to 122°F) |
| Operating humidity | 10% to 90% relative, non-condensing |
| Certifications | UL 62368, CSA 22.2, CE mark, FCC Part 15 |
Compatibility & Software Support
Management
The C1200-24P-4G is managed locally through its web UI, CLI or SNMP. It can also be monitored and managed with Cisco Business Dashboard (the switch includes an embedded probe) and the Cisco Business mobile app. No subscription licence is required to operate the switch.
Interoperability
Standards-based 802.1Q VLANs, 802.1w RSTP, LACP link aggregation and LLDP-MED allow the switch to operate alongside other Cisco and third-party network equipment.
Warranty
Sold by SourceIT as a Singapore unit. Cisco states a limited lifetime warranty for the Catalyst 1200 Series in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Catalyst 1200 Ordering Information
In the Box
- Cisco Catalyst 1200 C1200-24P-4G switch
- Power cord
- Mounting kit
- Pointer card
Cisco Catalyst 1200 Family
| Model | Configuration |
| C1200-24T-4G | 24 x GE + 4 x 1G SFP |
| C1200-24P-4G (this listing) | 24 x GE PoE+ (195 W) + 4 x 1G SFP |
| C1200-24FP-4G | 24 x GE PoE+ (375 W) + 4 x 1G SFP |
| C1200-48T-4G | 48 x GE + 4 x 1G SFP |
| C1200-48P-4G | 48 x GE PoE+ (375 W) + 4 x 1G SFP |
| C1200-24T-4X | 24 x GE + 4 x 10G SFP+ |
| C1200-24P-4X | 24 x GE PoE+ (195 W) + 4 x 10G SFP+ |
| C1200-48T-4X | 48 x GE + 4 x 10G SFP+ |
| C1200-48P-4X | 48 x GE PoE+ (375 W) + 4 x 10G SFP+ |
| Cisco Business 350 CBS350-24P-4G | Cisco Business 350 managed switch: 24 x GE PoE+ (195 W) + 4 x 1G SFP |
Datasheet & Downloads
Frequently Asked Questions — Cisco Catalyst 1200 C1200-24P-4G
Is the C1200-24P-4G a Layer 3 switch?
It supports static routing: up to 32 static routes and 16 IP interfaces, with IPv4 and IPv6. Dynamic routing protocols are not listed for the Catalyst 1200.
How is the switch managed?
Through the built-in web UI, a full or menu-based CLI, SNMP v1/v2c/v3, Cisco Business Dashboard or the Cisco Business mobile app.
How much PoE power is available?
195 W shared across all 24 ports, using 802.3at PoE+ (up to 30 W per port) and 802.3af PoE.
Is the switch fanless?
Yes, Cisco specifies a fanless design for this model.
What warranty applies?
Cisco states a limited lifetime warranty for the Catalyst 1200 Series. SourceIT supplies Singapore units.
