Cisco Business 220 CBS220-48FP-4X 48-Port Gigabit PoE+ 740W, 4x 10G SFP+ Smart Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Business 220 48-Port Gigabit PoE+ 740W Smart Switch, 4x 10G SFP+ (CBS220-48FP-4X-UK) — 3-Year Limited Hardware Warranty
Smart switch for small business

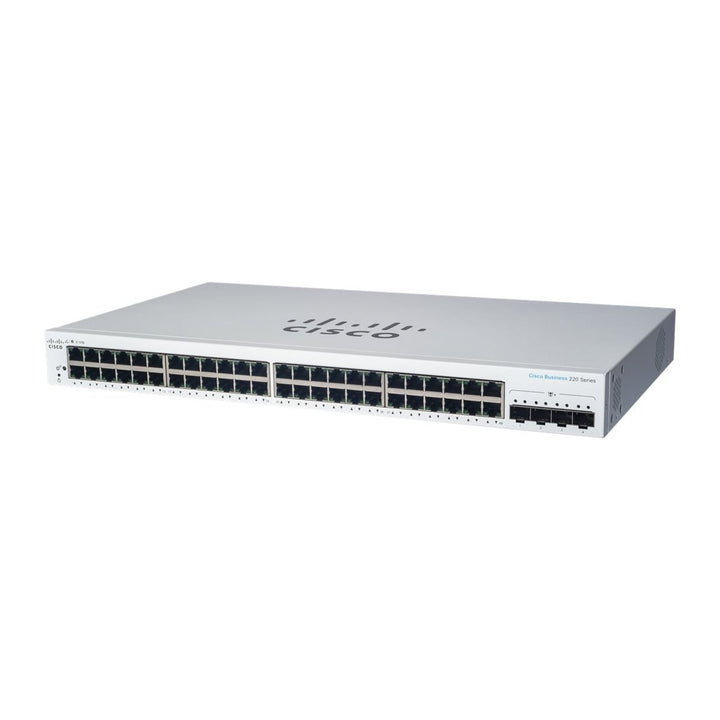

The Cisco CBS220-48FP-4X is a Cisco Business 220 Series smart switch with 48 x 10/100/1000 PoE+ ports and 4 x 10 Gigabit SFP+ uplinks. Cisco designed the CBS220 Series to give small businesses managed-switch features such as VLANs, QoS and security without the complexity of a fully managed switch.
740 W PoE+ on every port
All 48 copper ports support 802.3af, 802.3at and Cisco pre-standard PoE at up to 30 W per port, drawing from a shared 740 W power budget for IP phones, wireless access points and IP cameras.
10G uplinks
Four 10G SFP+ uplinks provide 176 Gbps switching capacity, keeping traffic flowing between the access layer and the core.
Easy setup and management
Configure through the web UI (HTTP/HTTPS) or CLI, monitor with SNMP v1/v2c/v3, and manage from the Cisco Business Dashboard or the Cisco Business mobile app. The Cisco Network Plug and Play agent simplifies deployment.
Security and QoS
IEEE 802.1X with RADIUS/TACACS+, up to 512 ACL rules, port security, storm control and DoS protection secure the edge, while 8 hardware queues per port prioritise voice and video.
UK / Singapore power-cord version
The -UK suffix on CBS220-48FP-4X-UK denotes the UK power-cord version, which Cisco lists for Singapore. It uses the BS 1363 Type G plug, the same plug type used in Singapore.
Cisco Business 220 CBS220-48FP-4X Datasheet — Technical Specifications
Ports
| Downlink ports | 48 x 10/100/1000 PoE+ RJ-45 |
| Uplink ports | 4 x 10 Gigabit SFP+ |
Power over Ethernet
| PoE standard | 802.3af, 802.3at and Cisco pre-standard (legacy) PoE |
| Maximum per port | 30 W |
| PoE ports | 48 |
| PoE power budget | 740 W |
Performance
| Switching capacity | 176 Gbps |
| Forwarding rate (64-byte packets) | 130.94 mpps |
| Packet buffer | 16 Mb |
| MAC table | Up to 8,192 addresses |
| Jumbo frames | Up to 9,216 bytes |
Layer 2 Features
| VLANs | Up to 256 VLANs simultaneously |
| Spanning tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP (16 instances) |
| Link aggregation | IEEE 802.3ad LACP, 8 groups, 8 ports per group |
| IGMP snooping | IGMP v1/v2/v3, 256 multicast groups |
| QoS | 8 hardware queues per port; strict priority and weighted round-robin |
| IPv6 | Dual-stack IPv4/IPv6, IPv6 ACLs and QoS, MLD v1/v2 snooping |
System
| CPU memory | 256 MB |
| Flash | 64 MB |
Power & Physical
| Power supply | Internal, 100-240 V AC, 50-60 Hz |
| Power cord | UK BS 1363 (Type G), as used in Singapore |
| Power consumption | 65.7 W (110 V) / 64.4 W (220 V) system; 900 W (110 V) / 875.3 W (220 V) with full PoE load |
| Heat dissipation | 3,070.92 BTU/hr |
| Cooling | 1 fan (37.7 dB at 25°C) |
| Dimensions (W x D x H) | 440 x 350 x 44 mm (17.3 x 13.8 x 1.7 in) |
| Weight | 5.65 kg (12.46 lb) |
| MTBF | 289,406 hours at 25°C |
Environmental
| Operating temperature | 0° to 50°C |
| Operating humidity | 10% to 90% non-condensing |
| Certifications | UL 60950, CSA 22.2, CE, FCC Part 15 Class A, C-Tick |
Compatibility & Software Support
Management
The CBS220-48FP-4X is managed through its web UI or CLI (privilege levels 1 and 15), with SNMP v1/v2c/v3 for monitoring. It is supported by Cisco Business Dashboard and the Cisco Business mobile app, and includes the Cisco Network Plug and Play agent. No subscription licence is required to operate the switch.
Layer 2 switch
The CBS220 Series is a Layer 2 smart switch. Routing between VLANs needs a router or a Layer 3 switch such as the Cisco Catalyst 1200 Series.
Regional power cord
The -UK suffix denotes the UK power-cord version. Cisco lists the -UK variant for the United Kingdom, Singapore, Hong Kong, Malaysia and other markets that use the BS 1363 (Type G) plug, the same three-pin plug used in Singapore.
Warranty
Sold by SourceIT as a Singapore unit. Cisco states that Cisco Business 220 Series switches are offered with a 3-year limited hardware warranty with return-to-factory replacement, including one year of phone or online chat support from the Small Business Support Center and software updates for the warranty term. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Business 220 Ordering Information
In the Box
- Cisco Business 220 CBS220-48FP-4X switch
- Power cord (UK BS 1363 Type G)
- Mounting kit
- Quick start guide
Cisco Business 220 Family (selected models)
| Model | Configuration |
| CBS220-8T-E-2G | 8 x GE + 2 x 1G SFP |
| CBS220-16T-2G | 16 x GE + 2 x 1G SFP |
| CBS220-16P-2G | 16 x GE PoE+ (130 W) + 2 x 1G SFP |
| CBS220-24T-4G | 24 x GE + 4 x 1G SFP |
| CBS220-24P-4G | 24 x GE PoE+ (195 W) + 4 x 1G SFP |
| CBS220-48T-4G | 48 x GE + 4 x 1G SFP |
| CBS220-48P-4G | 48 x GE PoE+ (382 W) + 4 x 1G SFP |
| CBS220-48T-4X | 48 x GE + 4 x 10G SFP+ |
| CBS220-48P-4X | 48 x GE PoE+ (382 W) + 4 x 10G SFP+ |
| CBS220-48FP-4X (this listing, CBS220-48FP-4X-UK) | 48 x GE PoE+ (740 W) + 4 x 10G SFP+ |
| Cisco Business 350 CBS350-24P-4G | Cisco Business 350 managed switch with Layer 3 static routing: 24 x GE PoE+ (195 W) + 4 x 1G SFP |
Datasheet & Downloads
Frequently Asked Questions — Cisco Business 220 CBS220-48FP-4X
What does the -UK in CBS220-48FP-4X-UK mean?
It is the UK power-cord version. Cisco lists the -UK variant for Singapore, which uses the same BS 1363 Type G plug.
Is the CBS220-48FP-4X a Layer 3 switch?
No. The CBS220 Series is a Layer 2 smart switch with VLAN, QoS, IGMP snooping and security features. For static routing, see the Catalyst 1200 or Cisco Business 350 series.
How is it managed?
Through the web UI or CLI, SNMP v1/v2c/v3, Cisco Business Dashboard or the Cisco Business mobile app.
How much PoE power is available?
740 W shared across all 48 ports, up to 30 W per port (802.3af/at).
What warranty applies?
Cisco states a 3-year limited hardware warranty with return-to-factory replacement for the CBS220 Series, including one year of phone or chat support.
