Cisco Business 110 CBS110-24PP 24-Port Gigabit Unmanaged Switch, 12x PoE 100W, UK Plug
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

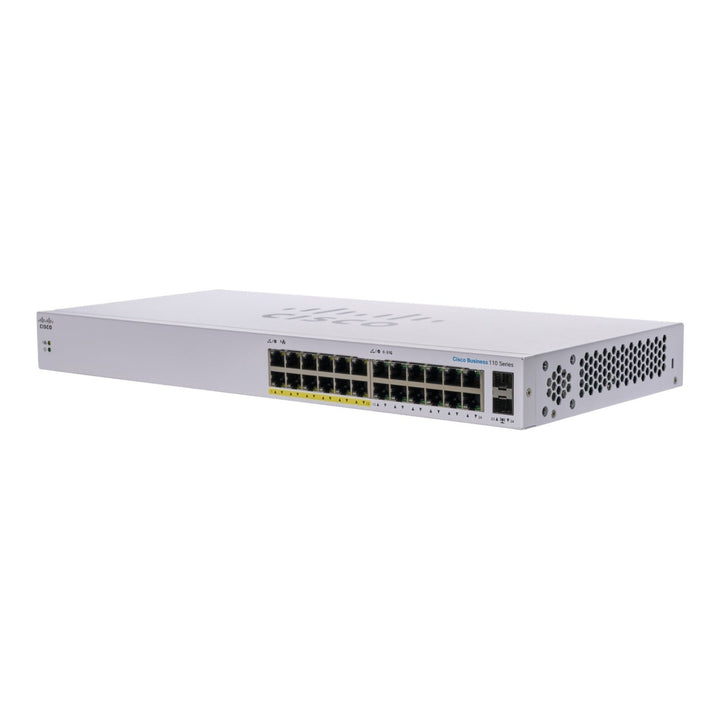

Cisco Business 110 24-Port Gigabit Unmanaged Switch, 12 PoE Ports 100W (CBS110-24PP-UK) — Limited Lifetime Warranty
Plug-and-play switching
The Cisco CBS110-24PP is a Cisco Business 110 Series unmanaged switch with 24 Gigabit Ethernet ports. Cisco designed it for plug-and-play operation with no software installation or configuration: connect devices and it starts switching.
12 PoE ports, 100 W budget
Twelve of the 24 ports deliver 802.3af PoE from a 100 W power budget, enough to run IP phones, access points or IP cameras without separate adapters.
Fibre-ready uplinks
Two Gigabit SFP slots, shared as combo ports with two of the copper ports, let you uplink over fibre to a core switch or across longer distances.
Quiet and efficient
The fanless design runs silently, and Energy Efficient Ethernet cuts power use on idle links. QoS with 802.1p priority and 4 hardware queues keeps voice and video traffic moving.
Built-in loop detection and diagnostics
Loop detection and cable diagnostics help avoid and troubleshoot common wiring problems in small offices.
UK / Singapore power-cord version
The -UK suffix on CBS110-24PP-UK denotes the UK power-cord version, which Cisco lists for Singapore. It uses the BS 1363 Type G plug, the same plug type used in Singapore.
Cisco Business 110 CBS110-24PP Datasheet — Technical Specifications
Ports
| Total ports | 26 (24 x 10/100/1000 RJ-45; 2 x Gigabit SFP combo with 2 copper ports) |
| PoE ports | 12 |
Power over Ethernet
| PoE standard | 802.3af |
| PoE power budget | 100 W |
Performance
| Switching capacity | 48 Gbps |
| Forwarding rate (64-byte packets) | 35.7 mpps |
| Packet buffer | 2 Mbit |
| MAC table | 8K addresses |
| Jumbo frames | 9,216 bytes |
Features
| Management | Unmanaged, plug and play |
| QoS | 802.1p priority based, 4 hardware queues |
| Other | Loop detection, cable diagnostics, Energy Efficient Ethernet |
Power & Physical
| Power supply | Internal, universal, 100-240 V AC, 50-60 Hz |
| Power cord | UK BS 1363 (Type G), as used in Singapore |
| Power consumption | 21.02 W (110 V) / 21.03 W (220 V) system; 124.06 W (110 V) / 122.11 W (220 V) with PoE |
| Heat dissipation | 423.31 BTU/hr |
| Cooling | Fanless |
| Dimensions (W x D x H) | 440 x 203 x 44 mm (17.32 x 7.97 x 1.73 in) |
| Weight | 2.85 kg (6.28 lb) |
| Mounting | Desktop, wall or rack mount (mounting kit included) |
| MTBF | 340,703 hours at 25°C |
Environmental
| Operating temperature | 0° to 50°C (32° to 122°F) |
| Operating humidity | 10% to 90% relative, non-condensing |
| Certifications | UL, CSA, CE mark, FCC Part 15 Class A |
Compatibility & Software Support
Unmanaged operation
The CBS110-24PP is an unmanaged switch: it has no web UI, CLI or VLAN configuration and needs no software or licence. It works with any standards-based Ethernet device and 802.3af PoE device. For VLANs, QoS policy and remote management, consider a Cisco Business 220 smart switch or a Catalyst 1200 Series switch.
Regional power cord
The -UK suffix denotes the UK power-cord version. Cisco lists the -UK variant for the United Kingdom, Singapore, Hong Kong, Malaysia and other markets that use the BS 1363 (Type G) plug, the same three-pin plug used in Singapore.
Warranty
Sold by SourceIT as a Singapore unit. Cisco states a limited lifetime hardware warranty for the Cisco Business 110 Series in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Business 110 Ordering Information
In the Box
- Cisco Business 110 CBS110-24PP switch
- Power cord (UK BS 1363 Type G)
- Mounting kit
- Quick start guide
Cisco Business 110 Family
| Model | Configuration |
| CBS110-8T-D | 8 x GE, desktop |
| CBS110-8PP-D | 8 x GE, 4 PoE ports (32 W), desktop |
| CBS110-16T | 16 x GE |
| CBS110-16PP | 16 x GE, 8 PoE ports (64 W) |
| CBS110-24T | 24 x GE + 2 x SFP combo |
| CBS110-24PP (this listing, CBS110-24PP-UK) | 24 x GE, 12 PoE ports (100 W) + 2 x SFP combo |
| Cisco Business 350 CBS350-24P-4G | Managed alternative: 24 x GE PoE+ (195 W) + 4 x 1G SFP |
Datasheet & Downloads
Frequently Asked Questions — Cisco Business 110 CBS110-24PP
What does the -UK in CBS110-24PP-UK mean?
It is the UK power-cord version. Cisco lists the -UK variant for Singapore, which uses the same BS 1363 Type G plug.
Are all 24 ports PoE?
No. 12 of the 24 ports provide 802.3af PoE, sharing a 100 W power budget.
Does it need configuration?
No. It is an unmanaged, plug-and-play switch with no software installation or configuration required.
Can it be rack mounted?
Yes. Cisco lists desktop, wall-mount and rack-mount options, and a mounting kit is included.
What warranty applies?
Cisco states a limited lifetime hardware warranty for the Cisco Business 110 Series.
