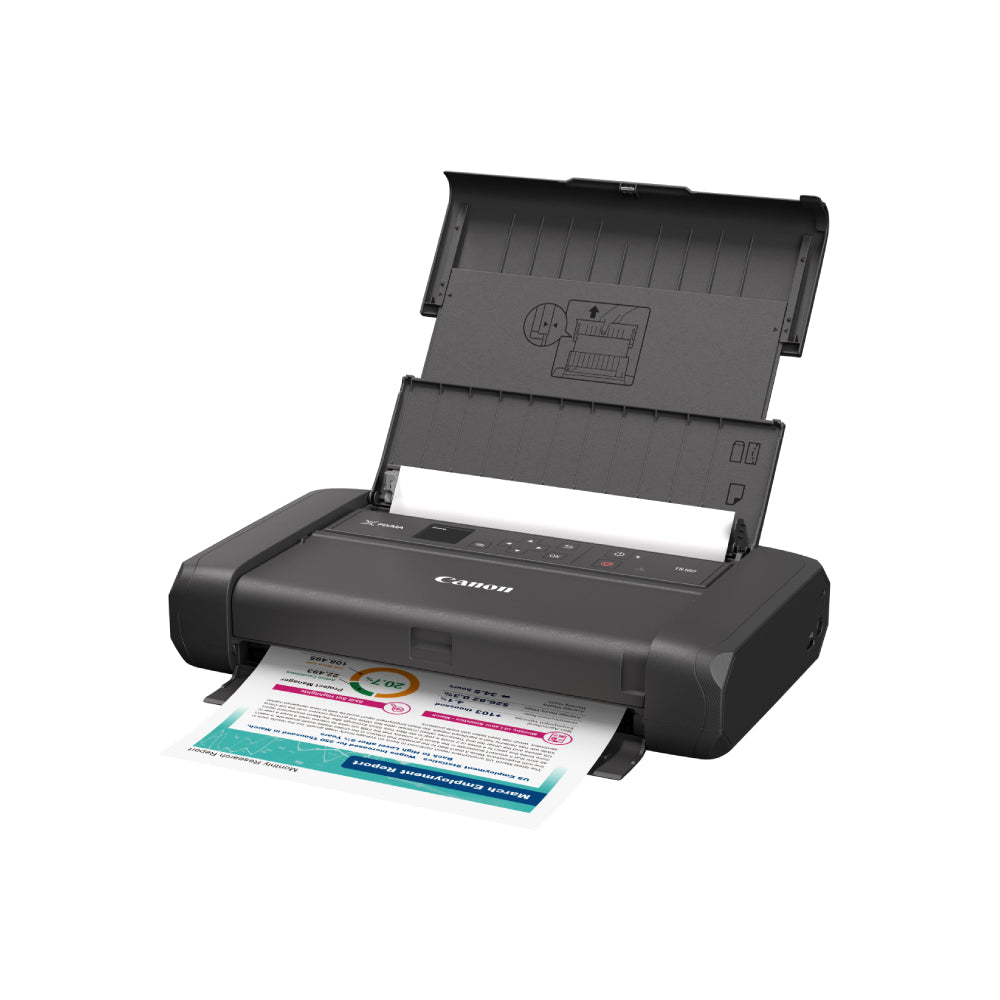

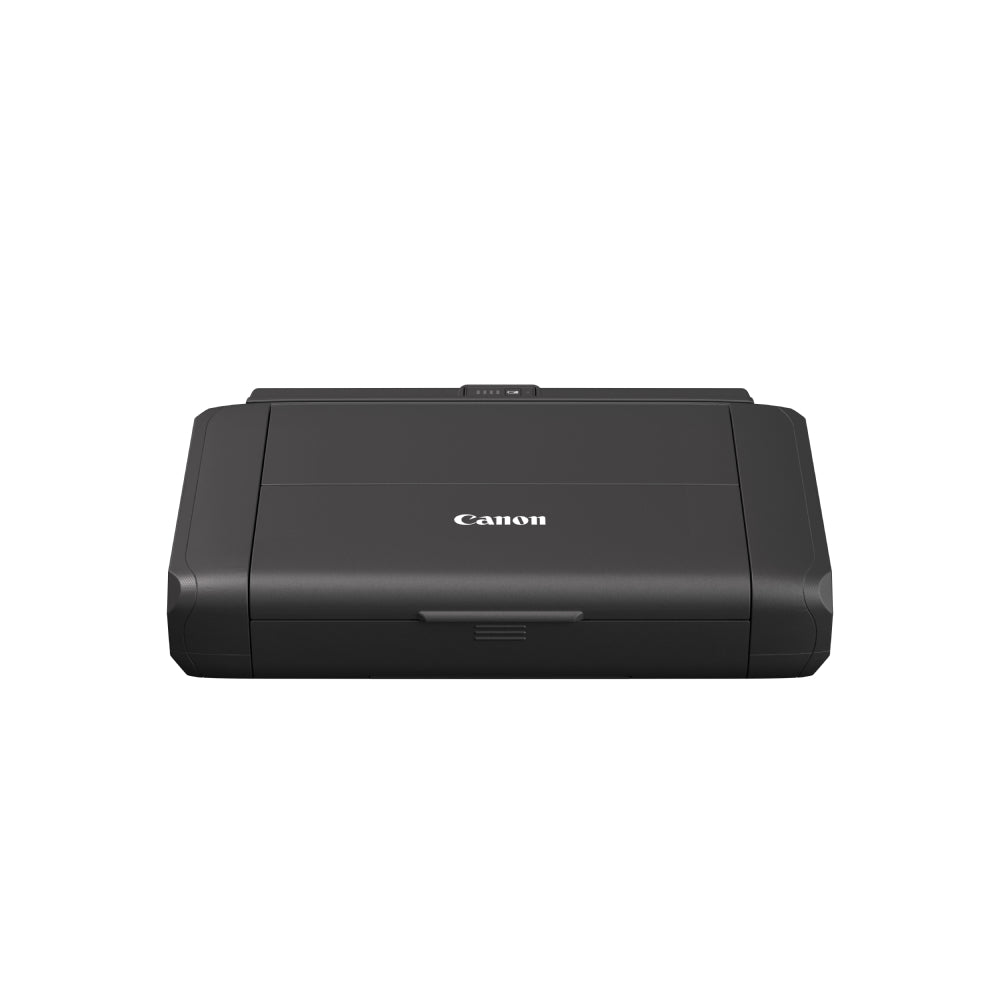

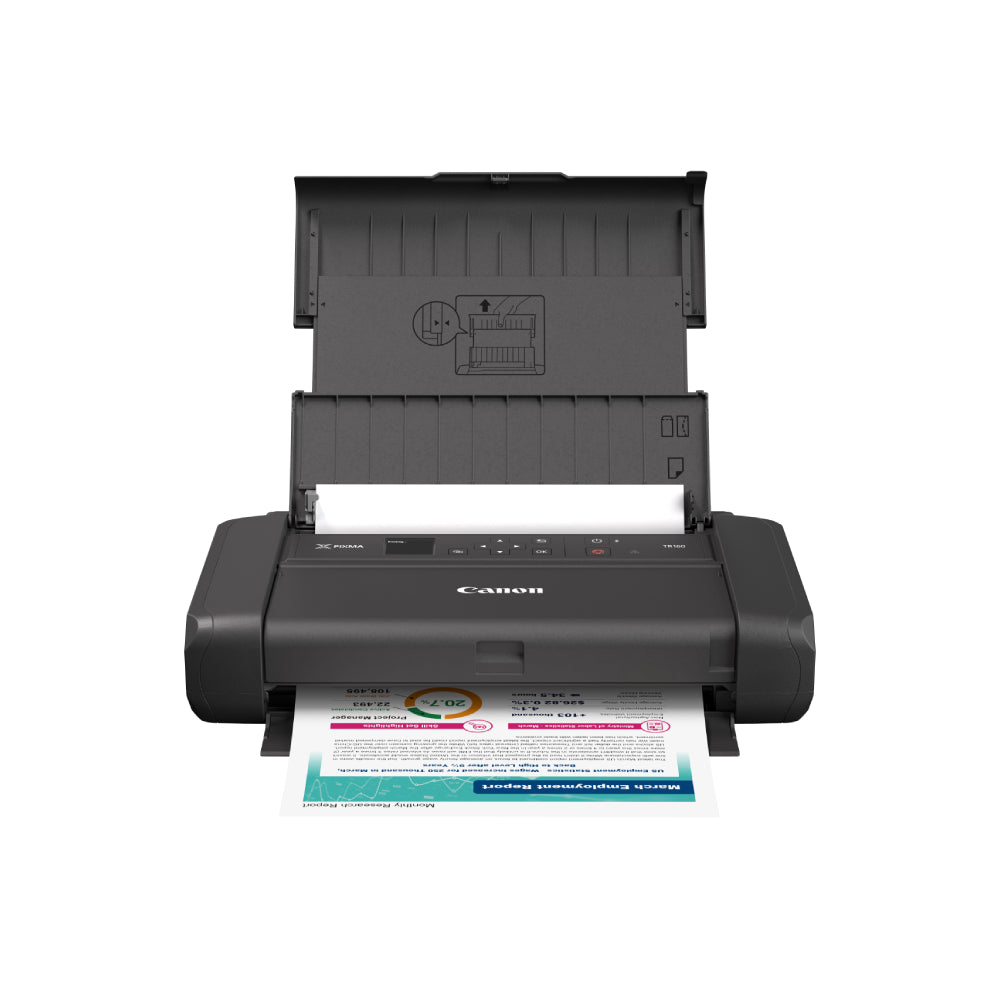

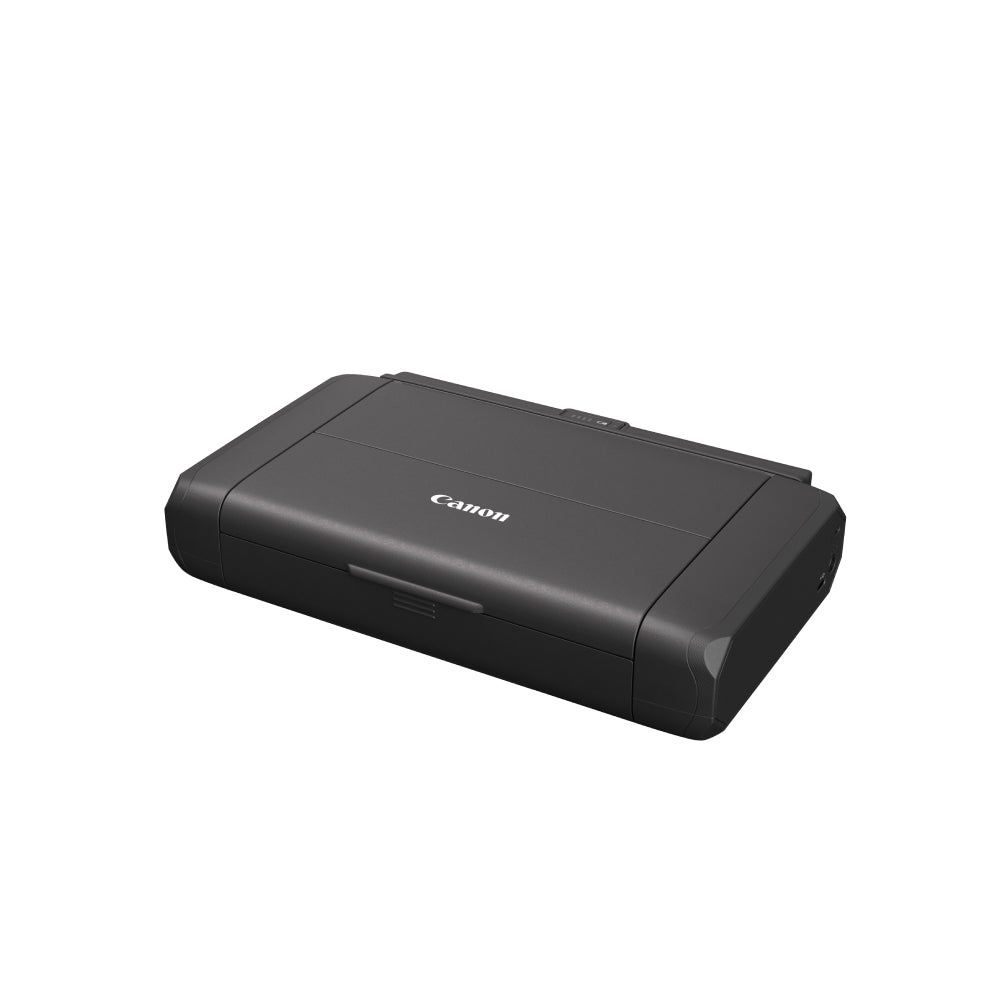

Canon PIXMA TR160 Wireless Portable Printer with Battery
PRODUCT DESCRIPTION
Canon PIXMA TR160 Wireless Portable Printer with Battery (7069C032AA) - 2 Years Local Warranty
The Canon PIXMA TR160 is Canon's wireless Mobile Printer. Designed for ultimate portability and performance, this wireless mobile printer features an intuitive 1.44" OLED display for easy wireless setup and operation. It has a rated print speed of 9 / 5.5 ipm (Mono/Colour), with Wi-Fi and USB connectivity.
Perfect For Those Who Are On The Go
Compact, lightweight and portable, ideal for mobile professionals who need to print high-quality business documents anytime, anywhere.
Direct Printing
Print directly using pre-loaded customised forms or from mobile phones, offering flexibility and convenience for professionals on the move.
High-Contrast OLED Display
Easily monitor ink levels and Wi-Fi signal strength at a glance, ensuring uninterrupted printing and seamless connection for maximum productivity.
10-Min Boost Charge
Up to 36 pages of printing performance are delivered with just a 10-minute quick charge, ensuring reliability for urgent tasks.
Anti-Theft Lock Slot
Allows the printer to be secured for instant peace of mind.
Key Highlights
- Print Speed (A4, ISO): Up to 9 / 5.5 ipm (Mono/Colour)
- Wi-Fi, AirPrint®, Mopria® Print Service, Wireless Direct
- Recommended Monthly Print Volume: 10 - 80 pages
Ideal For
Mobile professionals, sales and service teams, event and pop-up counters, and anyone who needs to print documents or photos away from the office. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
PIXMA TR160 Datasheet — Technical Specifications
General
| Model | PIXMA TR160 |
| Official Product Name | PIXMA TR160 |
| Canon Product Code | 7069C032AA |
| EAN / UPC | 4549292246025 |
| Brand | Canon |
| Warranty | 2 Years Local Warranty (Singapore) - 2 years carry-in warranty by Canon Singapore |
| Number of Nozzles (Total) | 1,856 nozzles |
| Ink Cartridges (Type/Colours) | PGI-35 (Pigment Ink/Black), CLI-36 (Dye-based Ink/Cyan, Magenta, Yellow, Black) |
| Maximum Printing Resolution | 4,800 (Horizontal) x 1,200 (Vertical) dpi |
| Print Speed - Document (ESAT/Simplex) | 9 / 5.5 ipm (Mono/Colour) |
| Print Speed - Document (FPOT Ready/Simplex) | 11 / 15 sec (Mono/Colour) |
| Print Speed - Photo 4 x 6" (PP-201/Borderless) | 53 sec |
Paper Handling
| Borderless Printing margin | Top/Bottom/Left/Right: 0 mm |
| Bordered Printing - Envelopes (COM10, DL) | Top: 3 mm, Bottom: 12.7 mm, Left/Right: 3.4 mm |
| Bordered Printing - Square (127 x 127 mm) | Top/Bottom/Left/Right: 6 mm |
| Bordered Printing - Square (89 x 89 mm, 4 x 4") | Top/Bottom/Left/Right: 5 mm |
| Bordered Printing - LTR, LGL | Top: 3 mm, Bottom: 5 mm, Left: 6.4 mm, Right: 6.3 mm |
| Bordered Printing - Others | Top: 3 mm, Bottom: 5 mm, Left/Right: 3.4 mm |
| Supported Media - Rear Tray | Plain Paper (64 - 105 g/m²), High Resolution Paper (HR-101N), Photo Paper Plus Glossy II (PP-201, PP-208), Matte Photo Paper (MP-101), Envelope |
| Paper Size - Rear Tray | A4, A5, B5, LTR, LGL, 4 x 6", 5 x 7", 7 x 10", 8 x 10", Square (89 x 89 mm, 127 x 127 mm), Card Size (91 x 55 mm), Envelope (COM10, DL) |
| Custom Size | Width: 55 - 215.9 mm, Length: 89 - 676 mm |
| Borderless Printing sizes | A4, LTR, 4 x 6", 5 x 7", 7 x 10", 8 x 10", Square (89 x 89 mm, 127 x 127 mm), Card Size (91 x 55 mm) |
| Paper Weight - Rear Tray Plain Paper | 64 - 105 g/m² |
| Paper Weight - Canon Specialty Paper | Approx. 275 g/m² (Max.) (Photo Paper Plus Glossy II, PP-201) |
| Maximum Capacity - Rear Tray Plain Paper (A4, LTR) | 50 |
| Maximum Capacity - Photo Paper Plus Glossy II (PP-208, 4 x 6") | 10 |
Network
| Protocol | SNMP, HTTP, TCP/IP (IPv4/IPv6) |
| TLS | 1.3 / 1.2 / 1.1 / 1.0 |
| Wireless LAN - Type | IEEE 802.11a/ac/b/g/n |
| Wireless LAN - Frequency Band | 2.4 GHz / 5 GHz |
| Wireless LAN - Channel | 2.4 GHz: 1 - 11, 5 GHz: W52, W53, W58 |
| Wireless LAN - Security | WPA-PSK (AES), WPA2-PSK (AES), WPA3-SAE (AES) |
| Direct Connection (Wireless LAN) | 2.4 GHz: Available |
Printing Solutions
| Canon Printing Apps - Mobile (iOS/Android) | Canon PRINT, Easy-PhotoPrint Editor |
| Canon Printing Apps - PC (Windows/Mac) | Canon PRINT, Easy-PhotoPrint Editor, Easy-Layout Editor (Win only), PosterArtist Lite (Win only), PosterArtist Web (browser-based) |
| Mobile/Cloud Printing Solutions | AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct, Cloud Integration Service (via smartphone/tablet) |
System Requirements
| OS Compatibility | Windows 11 / 10 / 8.1 / 7 SP1, macOS 11.7.6 - 14 or later, ChromeOS |
General
| Display | 1.44" / 3.6 cm OLED (Mono) |
| Interface | USB 2.0 |
| Operating Environment | Temperature: 5 - 35°C; Humidity: 10 - 90% RH (no dew condensation) |
| Recommended Environment | Temperature: 15 - 30°C; Humidity: 10 - 80% RH (no dew condensation) |
| Storage Environment | Temperature: 0 - 40°C; Humidity: 5 - 95% RH (no dew condensation) |
| Quiet Mode | Available |
| Acoustic Noise (PC Print) - Plain Paper | 40.5 dB(A) |
| Power Requirements | AC 100 - 240 V, 50/60 Hz |
| Power Consumption - OFF | 0.15 W |
| Power Consumption - Standby (USB connection to PC) | 1.1 W |
| Power Consumption - Operation | 8 W |
| Duty Cycle | Up to 500 pages/month |
| Dimensions (W x D x H) - with Optional Battery | 322 x 210 x 66 mm |
| Dimensions (W x D x H) - without Optional Battery | 322 x 185 x 66 mm |
| Dimensions (W x D x H) - Output Tray Extended | 322 x 307 x 245 mm |
| Weight - with Optional Battery | 2.3 kg |
| Weight - without Optional Battery | 2.1 kg |
Page Yield
| Plain Paper (A4 Colour Documents) | PGI-35: 200 pages, CLI-36: 260 pages |
| Photo Paper PP-201 (4 x 6" Photos) | PGI-35: N/A, CLI-36: 102 sheets |
External Battery, LK-72 (Optional)
| Type | Lithium-ion |
| Voltage Level | DC 10.8 V; 2170 mAh |
| Charging Time - AC Adaptor | 2 hr 20 min |
| Charging Time - USB 1.5A | 5 hr |
| Printable Pages - Full charge | 330 sheets |
| Printable Pages - 10 min charge with AC Adaptor | 36 sheets |
| Printable Pages - 5 min charge with USB 1.5A | 4 sheets |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the PIXMA TR160. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Wireless LAN - Type | IEEE 802.11a/ac/b/g/n |
| Canon Printing Apps - Mobile (iOS/Android) | Canon PRINT, Easy-PhotoPrint Editor |
| Canon Printing Apps - PC (Windows/Mac) | Canon PRINT, Easy-PhotoPrint Editor, Easy-Layout Editor (Win only), PosterArtist Lite (Win only), PosterArtist Web (browser-based) |
| Mobile/Cloud Printing Solutions | AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct, Cloud Integration Service (via smartphone/tablet) |
| OS Compatibility | Windows 11 / 10 / 8.1 / 7 SP1, macOS 11.7.6 - 14 or later, ChromeOS |
| Interface | USB 2.0 |
Package Contents & Ordering Information
Ordering Information
| Model | PIXMA TR160 |
| Canon Product Code | 7069C032AA |
| EAN / UPC | 4549292246025 |
| Version | With removable battery |
| Recommended Retail Price (incl. GST) | S$589.00 |
| Consumables | PGI-35 PGBK (Pigment Black) - 200 pages (RRP SGD 22.00); CLI-36 (Colour) - 260 pages (RRP SGD 35.00); CLI-36 4x6" photo yield 102 sheets. Optional battery: LK-72. |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — PIXMA TR160
What warranty does the PIXMA TR160 come with?
2 Years Local Warranty from Canon Singapore: 2 years carry-in warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the PIXMA TR160 use?
PGI-35 PGBK (Pigment Black) - 200 pages (RRP SGD 22.00); CLI-36 (Colour) - 260 pages (RRP SGD 35.00); CLI-36 4x6" photo yield 102 sheets. Optional battery: LK-72. Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the PIXMA TR160?
Yes. Canon lists the following mobile and cloud printing support: Canon PRINT, Easy-PhotoPrint Editor; AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct, Cloud Integration Service (via smartphone/tablet)
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
