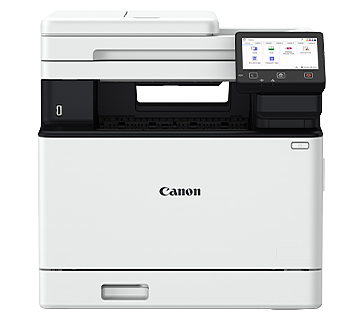

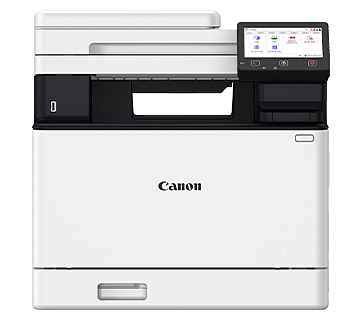

Canon imageCLASS MF752Cdw II Wireless Colour Laser All-in-One Printer
PRODUCT DESCRIPTION
Canon imageCLASS MF752Cdw II Wireless Colour Laser All-in-One Printer (7185C015AA) - 3 Years Local Warranty
The Canon imageCLASS MF752Cdw II is Canon's the MF752Cdw II provides businesses an edge to stay productive while delivering vivid and vibrant colour printouts. Equipped with its 5" colour touchscreen display and customisable shortcuts, the printer helps to simplify workflows for better work efficiency. It has a rated print speed of 33 / 33 ppm, with Wi-Fi, Ethernet and USB connectivity.
V² Colour Profile
Create an impactful business document with beautiful colours that complement the razor-sharp quality text. Canon's V² colour technology delivers vivid and vibrant professional looking printout.
Single Pass Duplex Scan
Maximise scanning efficiency with the 50-sheet single-pass duplex automatic document feeder (DADF) and skip blank page while scanning.
Auto Duplex Printing
Print two-sided documents to effectively reduce paper usage while lowering carbon footprint and operating costs.
Built-In PCL Language
In addition to Canon's proprietary UFR II print language, industry standard PCL6 print language is available, enabling the printer to work with a wide range of business applications.
Application Library
The Application Library helps you work smarter and more efficiently. You can print forms/templates directly from the device with just a tap of the button, create shortcuts for frequently-used function, and scan to/print from third party cloud storage.
Enhanced Data Security
Safeguard print data against tampering by encrypting communication data with the latest protocol, TLS 1.3 and WPA 3. Monitor system integrity during startup with Verify System at Startup.
Expandable Paper Capacity
Expand paper handling capability up to 850 sheets by adding an optional paper feeder.
Key Highlights
- Print, Scan, Copy
- Print Speed (A4): Up to 33 ppm (Mono/Colour)
- Scan Speed (2-sided, A4): Up to 100/80 ipm (Mono/Colour)
- Print resolution: Up to 1,200 x 1,200 dpi (equivalent)
- Gigabit Ethernet, Wi-Fi, Direct Connection
- Recommended Monthly Print Volume: 750 - 4,000 pages
Ideal For
Small and medium offices in Singapore that want colour laser printing, scanning and copying (and fax where fitted) from one managed multifunction device. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
imageCLASS MF752Cdw II Datasheet — Technical Specifications
General
| Model | imageCLASS MF752Cdw II |
| Official Product Name | imageCLASS MF752Cdw II |
| Canon Product Code | 7185C015AA |
| EAN / UPC | 4549292250435 |
| Brand | Canon |
| Warranty | 3 Years Local Warranty (Singapore) - 3 years on-site warranty by Canon Singapore |
| Printing Method | Colour Laser Beam Printing |
| Print Speed - A4 (Mono/Colour) | 33 / 33 ppm |
| Print Speed - Letter (Mono/Colour) | 35 / 35 ppm |
| Print Speed - 2-Sided, A4 (Mono/Colour) | 29 / 29 ipm |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement Technology | 1,200 x 1,200 dpi (equivalent) |
| Warm-Up Time (From Power On) | 14 sec or less |
| First Print Out Time (FPOT) (Approx.) - A4 (Mono/Colour) | 7.1 / 7.1 sec |
| Print Language | UFR II, PCL 6 |
| Auto Duplex Print | Yes |
| Print Margins | Top/Bottom/Left/Right Margin: 5 mm; Top/Bottom/Left/Right Margin: 10 mm (Envelope) |
| Supported File Format for USB Direct Print | JPEG, TIFF, PDF |
Copy
| Copy Speed - A4 (Mono/Colour) | 35 / 35 ppm |
| Copy Resolution | Up to 600 x 600 dpi |
| First Copy Out Time (FCOT) (Approx.) Platen Glass - A4 (Mono/Colour) | 8.3 / 9.4 sec |
| First Copy Out Time (FCOT) (Approx.) ADF - A4 (Mono/Colour) | 7.6 / 8.8 sec |
| Reduce/Enlargement | 25 - 400% in 1% increments |
| Copy Features | Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy, 2-sided originals |
Scan
| Scan Resolution - Optical | Up to 600 x 600 dpi |
| Scan Resolution - Driver Enhanced | Up to 9,600 x 9,600 dpi |
| Scan Type | Colour Contact Image Sensor |
| Maximum Scan Size - Platen Glass | Up to 216 x 297 mm |
| Maximum Scan Size - Auto Document Feeder | Up to 216 x 356 mm |
| Scan Speed - Platen Glass, A4 (Mono/Colour) | 1.8 / 1.9 sec |
| Scan Speed - Auto Document Feeder, A4 (Mono/Colour) | 1-Sided: 50 / 40 ipm; 2-Sided: 100 / 80 ipm |
| Colour Depth | 24-bit |
| Pull Scan | Yes, USB and Network |
| Push Scan (Scan To PC) with MF Scan Utility | Yes, USB and Network |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
Send
| SEND Method | SMB, Email, FTP |
| Colour Mode | Full Colour, Greyscale, Monochrome |
| Scan Resolution | 300 x 600 dpi |
| File Format | JPEG (single page), TIFF, PDF, Compact PDF, PDF (OCR) |
Paper Handling
| Input Tray Capacity (Plain Paper, 80 g/m²) - Standard - Cassette | 250 sheets |
| Input Tray Capacity - Standard - Multi-Purpose Tray | 50 sheets |
| Input Tray Capacity - Standard - Auto Document Feeder | 50-Sheet Duplex, Single Pass |
| Input Tray Capacity - Optional - Paper Feeder | 550 sheets |
| Input Tray Capacity - Maximum | 850 sheets (Cassette + 1 Paper Feeder) |
| Output Tray Capacity (Plain Paper, 80 g/m²) | 150 sheets |
| Media Size - Cassette | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Envelope (COM10, Monarch, DL, C5), Custom (min. 98.0 x 148.0 mm to max. 216.0 x 356.0 mm) Note: The cassette may not fully close when loaded with paper longer than A4 size. |
| Media Size - Paper Feeder | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Custom (min. 100.0 x 148.0 mm to max. 216.0 x 356.0 mm) Note: The cassette may not fully close when loaded with paper longer than A4 size. |
| Media Size - Multi-Purpose Tray | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.0 x 127.0 mm to max. 216.0 x 356.0 mm) |
| Media Size - Auto Document Feeder | A4, A5, A6, Letter, Legal (min. 148 x 105 mm to max. 216 x 356 mm) Business Card: 48 x 85 mm |
| Media Size - 2-Sided Printing | A4, A5, Legal, Letter, Foolscap, Indian Legal, Custom (min.148.0 x 148.0 mm to max. 216 x 356.0 mm) |
| Media Type | Plain Paper, Recycled Paper, Colour Paper, Bond Paper |
| Media Weight - Cassette / Paper Feeder | 60 - 200 g/m² |
| Media Weight - Multi-Purpose Tray | 60 - 200 g/m² |
| Media Weight - Auto Document Feeder | 50 - 105 g/m² (Business Card: 80 - 209 g/m²) |
Connectivity & Software
| Standard Interface - Wired | USB 2.0, 10Base-T/100Base-TX/1000Base-T |
| Standard Interface - Wireless | Wi-Fi 802.11b/g/n (Infrastructure Mode, Access Point, WPS) |
| Network Protocol - Print | LPD, RAW, IPP, IPPS, WSD-Print (IPv4, IPv6) |
| Network Protocol - Scan | Email, SMB, WSD-Scan (IPv4, IPv6), FTP, OAuth 2.0 |
| Network Protocol - TCP/IP Application Services | mDNS, DHCP, Auto IP (IPv4), DHCPv6 (IPv6) |
| Network Protocol - Management | SNMPv3 (IPv4, IPv6), HTTP/HTTPS, SNTP |
| Network Security - Wired | IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1x, IPsec, TLS 1.3 |
| Network Security - Wireless | Infrastructure Mode: WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE(AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES); Access Point Mode: WPA2-PSK(AES), WPA3-SAE(AES) |
| Mobile Solution | Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print |
| Compatible Operating System | Windows®, Windows Server®, macOS®, Linux, Chrome OS™ |
| Other Features | Department ID, Secure Print, Skip Blank Page, Application Library |
| Available Software | Printer Driver, Scanner Driver, MF Scan Utility, Toner Status |
General
| Device Memory | 1 GB |
| Storage (eMMC) | 2 GB |
| Display | 5" LCD Touchscreen |
| Power Requirements | AC 220 - 240 V, 50/60 Hz |
| Power Consumption (Approx.) - Operation | 700 W (max. 1,380 W) |
| Power Consumption (Approx.) - Standby | 24 W |
| Power Consumption (Approx.) - Sleep | 1 W |
| Operating Environment - Temperature | 10 - 30°C |
| Operating Environment - Humidity | 20 - 80% RH (no condensation) |
| Monthly Duty Cycle | 50,000 pages |
| Dimensions (W x D x H) | 425 x 461 x 430 mm |
| Weight (Approx.) | 21.71 kg |
| Toner Cartridge - Standard | Cartridge 069 BK: 2,100 pages (bundled: 2,100 pages) Cartridge 069 CMY: 1,900 pages (bundled: 1,100 pages) |
| Toner Cartridge - High | Cartridge 069H BK: 7,600 pages Cartridge 069H CMY: 5,500 pages |
Optional Accessories
| Paper Feeder | Paper Feeder PF-K1 (550 sheets) |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the imageCLASS MF752Cdw II. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Scan Resolution - Driver Enhanced | Up to 9,600 x 9,600 dpi |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
| Mobile Solution | Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print |
| Compatible Operating System | Windows®, Windows Server®, macOS®, Linux, Chrome OS™ |
Package Contents & Ordering Information
Ordering Information
| Model | imageCLASS MF752Cdw II |
| Canon Product Code | 7185C015AA |
| EAN / UPC | 4549292250435 |
| Recommended Retail Price (incl. GST) | S$949.00 |
| Consumables | Standard: Cartridge 069 BK 2,100 pages (bundled: 2,100 pages); Cartridge 069 CMY 1,900 pages (bundled: 1,100 pages). High yield: Cartridge 069H BK 7,600 pages; Cartridge 069H CMY 5,500 pages. Optional: Paper Feeder PF-K1 (550 sheets). |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — imageCLASS MF752Cdw II
What warranty does the imageCLASS MF752Cdw II come with?
3 Years Local Warranty from Canon Singapore: 3 years on-site warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the imageCLASS MF752Cdw II use?
Standard: Cartridge 069 BK 2,100 pages (bundled: 2,100 pages); Cartridge 069 CMY 1,900 pages (bundled: 1,100 pages). High yield: Cartridge 069H BK 7,600 pages; Cartridge 069H CMY 5,500 pages. Optional: Paper Feeder PF-K1 (550 sheets). Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the imageCLASS MF752Cdw II?
Yes. Canon lists the following mobile and cloud printing support: MF Scan Utility; Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
