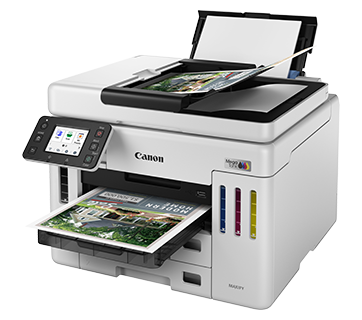

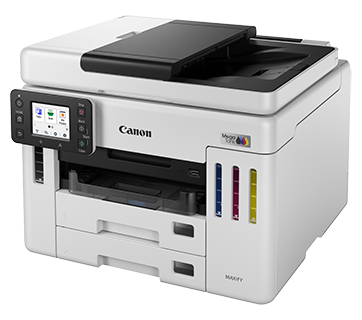

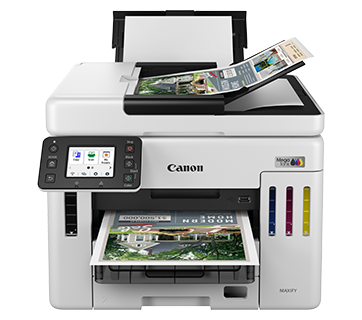

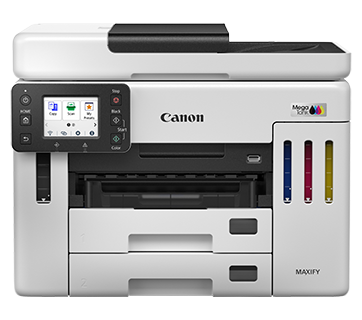

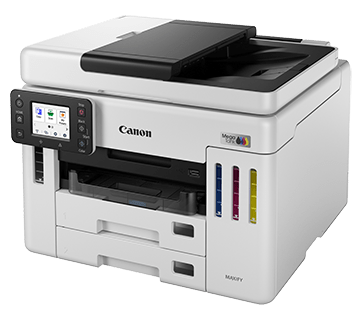

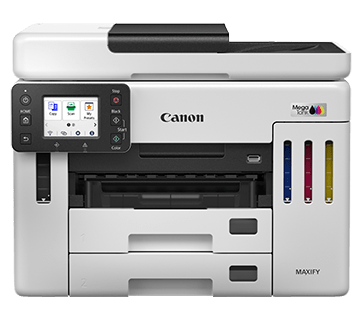

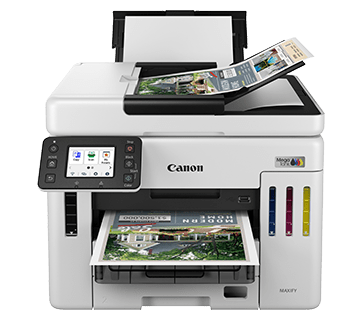

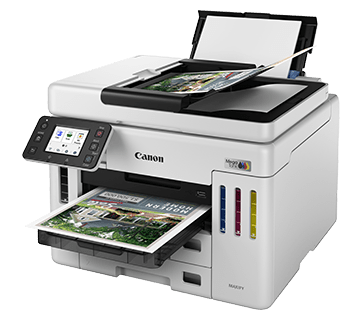

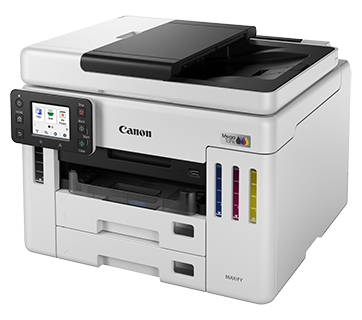

Canon MAXIFY GX7170 MegaTank Wireless Business All-in-One Printer with Fax
Prices in SGD, excluding 9% GST.
PRODUCT DESCRIPTION
Canon MAXIFY GX7170 MegaTank Wireless Business All-in-One Printer with Fax (6880C012AA) - 2 Years Local Warranty
The Canon MAXIFY GX7170 is Canon's megaTank for Business - High Performance Multifunction for Ultra High Volume Printing. It has a rated print speed of 24 / 15.5 ipm (Mono/Colour), with Wi-Fi, Ethernet and USB connectivity.
Ultra High Page Yield Ink Bottles
With ultra high page yield ink bottles that print up to 9,000* mono and 21,000* colour pages, perfect for heavy duty office printing without worry about ink costs! *Printed in Economy mode.
Water Resistant Documents
High density pigment ink produces laser printer-like colour intensity. Text and images stay pristine when in contact with water-spills.
Print Double-sided Documents with Ease
Print on both sides effortlessly and get more done with less paper.
Hands-free Scanning for Multiple Documents
Digitise or make duplicates of two-sided document stacks with the fast Auto Document Feeder and scan both sides in one single pass! Feeds up to 50 sheets at a time.
No Paper Reloading Hassle
Raise productivity with up to 600 sheets total capacity that miminises the need for frequent paper reloads. With see-through windows to observe remaining paper levels.
Easy Maintenance
The easy-to-replace maintenance cartridge makes maintenance fuss-free and extends printer lifespan even when printing in high volumes.
Key Highlights
- Print, Scan, Copy, Fax with ADF
- Print Speed (A4, ISO): Up to 24 / 15.5 ipm (Mono/Colour)
- 50-sheet Auto Document Feeder (Single Pass, Duplex)
- 2.7" Touchscreen LCD
- Auto 2-sided Printing
- Wi-Fi, LAN, Wireless Direct, AirPrint®, Mopria® Print Service
- Mobile Printing
- High Density Pigment Ink: Highlighter and Water Resistant Prints
- Page Yield: Up to 9,000 / 21,000 pages (Mono/Colour)
- Recommended Monthly Print Volume: 300 - 2,500 pages
Ideal For
Small offices, SOHO users, clinics, tuition centres and branch offices in Singapore that print steady daily volumes and want business-grade inkjet economics. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
MAXIFY GX7170 Datasheet — Technical Specifications
General
| Model | MAXIFY GX7170 |
| Official Product Name | MAXIFY GX7170 |
| Canon Product Code | 6880C012AA |
| EAN / UPC | 4549292240313 |
| Brand | Canon |
| Warranty | 2 Years Local Warranty (Singapore) - 2 years on-site or 80,000 prints, whichever comes first |
| Number of Nozzles Total | 4,352 nozzles |
| Ink Bottles (Type/Colours) | GI-76 (Pigment Ink/Black, Cyan, Magenta, Yellow) |
| Maintenance Cartridge | MC-G01 |
| Maximum Print Resolution | 600 (Horizontal) x 1,200 (Vertical) dpi |
| Print Speed (Approx.) Document (ESAT/Simplex) | 24 / 15.5 ipm (Mono/Colour) |
| Print Speed (Approx.) Document (ESAT/Duplex) | 13 / 10 ipm (Mono/Colour) |
| Print Speed (Approx.) Document (FPOT Ready/Simplex) | 5.5 / 7 sec (Mono/Colour) |
| Print Width | Up to 206.0 mm (8") |
Scan
| Scanner Type | Platen / ADF (Auto Document Feeder) |
| Scanner Technology | Contact Image Sensor (CIS) |
| Duplex Scanning | Available (Single Pass, 2-Sided Scan) |
| Optical Resolution | 1,200 x 1,200 dpi |
| Scanning Bit Depth (Output) Greyscale | 8 bit |
| Scanning Bit Depth (Output) Colour RGB | each 8 bit |
| Maximum Document Size Platen | A4, LTR |
| Maximum Document Size ADF | A4, LTR, LGL |
| Scan Features | Save to PC, Attach to E-mail, Multi-Page PDF, Save to USB Flash Memory, Unsharp Mask, Descreen, Reduce Slow-Through, Rescan, Rotate (PDF only), Auto Crop, Scan to Folder |
Copy
| Copy Speed (Approx.) Document (sFCOT/Simplex) | 12 sec (Colour) |
| Copy Speed (Approx.) Document (sESAT/Simplex) | 12.7 ipm (Colour) |
| Copy Speed (Approx.) Document (ADF) (ESAT/Simplex) | 22.2 / 12.2 ipm (Mono/Colour) |
| Maximum Copies | 99 copies |
| Maximum Document Size | A4, LTR |
| Reduction/Enlargement | 25 - 400% |
| Copy Features | Two-sided, 2-on-1, 4-on-1, Collate (ADF only), Frame Erase (Flatbed only), ID Copy, Oversized Copy |
Fax
| Type | Desktop Transceiver (Super G3/Colour Communication) |
| Transmission Speed (Approx.) Mono | 3 sec |
| Transmission Speed (Approx.) Colour | 1 min |
| Modem Speed | Max. 33.6 kbps (Automatic Fall Back) |
| Compression Mono | MH, MR, MMR |
| Compression Colour | JPEG |
| Gradation Mono | 256 levels |
| Gradation Colour | 24 bit Full Colour (RGB each 8 bit) |
| ECM (Error Correction Mode) | Available |
| Coded Speed Dialling | Max. 100 locations |
| Group Dialling | Max. 99 locations |
| Transmission/Reception Memory | Approx. 250 pages |
| Scanning Width | A4, LTR |
PC Fax
| Type | Windows, macOS |
| Mono/Colour | B/W Transmission only |
Paper Handling
| Print Margin - Bordered Printing Envelope (COM10, DL, C5, Monarch) | Top/Bottom: 12.7 mm, Left/Right: 5.6 mm |
| Print Margin - 4 x 6", 5 x 7", 7 x 10", 8 x 10" | Top: 3 mm, Bottom: 5 mm, Left/Right: 3.4 mm |
| Print Margin - Square (127 x 127 mm) | Top/Bottom/Left/Right: 6 mm |
| Print Margin - Others | Top/Bottom/Left/Right: 5 mm |
| Bordered Auto 2-Sided Printing | Top/Bottom/Left/Right: 5 mm |
| Supported Media - Rear Tray | Plain Paper (64 - 105 g/m²), High Resolution Paper (HR-101N), Photo Paper Pro Luster (LU-101), Photo Paper Plus Glossy II (PP-201, PP-208), Matte Photo Paper (MP-101), Envelope |
| Supported Media - Cassette 1 / 2 | Plain Paper (64 - 105 g/m²) |
| Paper Size - Rear Tray | A4, A5, A6, B5, LTR, LGL, 4 x 6", 5 x 7", 7 x 10", 8 x 10", Square (127 x 127 mm), Envelope (COM10, DL, C5, Monarch), B-Oficio, M-Oficio, Foolscap, Legal (India), Executive; Custom Size: Width 89–216 mm, Length 127–1,200 mm |
| Paper Size - Cassette 1 | A4, LTR, A5, B5, Executive; Custom Size: Width 148–215.9 mm, Length 210–297 mm |
| Paper Size - Cassette 2 | A4, LTR, LGL; Custom Size: Width 210–215.9 mm, Length 279.4–355.6 mm |
| Auto 2-Sided Printing (Plain Paper: 64 g/m²) | A4, LTR |
| Paper Weight - Rear Tray Plain Paper | 64 - 105 g/m² |
| Paper Weight - Canon Paper | Approx. 265 g/m² (Max.) (Photo Paper Plus Glossy II, PP-201) |
| Paper Weight - Cassette 1 / 2 Plain Paper | 64 - 105 g/m² |
| Maximum Capacity - Rear Tray Plain Paper (A4/LTR, 64 g/m²) | 100 |
| Maximum Capacity - Photo Paper Plus Glossy II (PP-201/PP-208, 4 x 6") | 20 |
| Maximum Capacity - Matte Photo Paper (MP-101, 4 x 6") | 20 |
| Maximum Capacity - Cassette 1 / 2 Plain Paper (A4/LTR, 64 g/m²) | 250 |
| Maximum Capacity - Auto Document Feeder | A4, LTR = 50; LGL = 10; Others = 1 |
Network
| Protocol | SNMP, HTTP, TCP/IP (IPv4/IPv6) |
| TLS | 1.3 / 1.2 / 1.1 / 1.0 |
| Wired LAN Type | IEEE 802.3u (100BASE-TX) / IEEE 802.3 (10BASE-T) |
| Wired LAN Security | IEEE 802.1X (EAP-TLS/EAP-TTLS/PEAP) |
| Wireless LAN Type | IEEE 802.11b/g/n |
| Wireless LAN Frequency Band | 2.4 GHz |
| Wireless LAN Channel | 2.4 GHz: 1–13 (TW: Supported Channels: 1–11 only) |
| Wireless LAN Security | WPA-PSK (AES), WPA2-PSK (AES), WPA3-SAE (AES), WPA-EAP (AES), WPA2-EAP (AES), WPA3-EAP (AES) |
| Direct Connection (Wireless LAN) | 2.4 GHz: Available |
Printing Solutions
| Canon Printing Apps - Mobile (iOS/Android) | Canon PRINT, Easy-PhotoPrint Editor |
| Canon Printing Apps - PC (Windows/Mac) | Canon PRINT, Easy-PhotoPrint Editor, Easy-Layout Editor (Win only), PosterArtist Lite (Win only), PosterArtist Web (browser-based) |
| Mobile/Cloud Printing Solutions | AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct, Cloud Integration Service |
System Requirements
| OS System Compatibility | Windows 11 / 10 / 8.1 / 7 SP1, macOS 11.7.6 ~ 14 or later, ChromeOS |
General Specifications
| Display | 2.7" LCD (Touchscreen, Colour) |
| Interface | USB 2.0, USB Flash Memory |
| Operating Environment - Temperature | 5 - 35°C |
| Operating Environment - Humidity | 10 - 90% RH (no dew condensation) |
| Recommended Environment - Temperature | 15 - 30°C |
| Recommended Environment - Humidity | 10 - 80% RH (no dew condensation) |
| Storage Environment - Temperature | 0 - 40°C |
| Storage Environment - Humidity | 5 - 95% RH (no dew condensation) |
| Quiet Mode | Available |
| Acoustic Noise (PC Print) Plain Paper | 49 dB(A) |
| Power Requirements | AC 100 - 240 V, 50/60 Hz |
| Power Consumption (Approx.) OFF | 0.06 W |
| Power Consumption (Approx.) Standby (USB connection to PC) | 0.9 W |
| Power Consumption (Approx.) Operation (USB connection to PC) | 21 W |
| Duty Cycle | Up to 45,000 pages/month |
| Dimensions (W x D x H) Factory Configuration | 399 x 410 x 314 mm |
| Dimensions (W x D x H) Output/ADF Trays Extended | 399 x 645 x 387 mm |
| Weight | 13.1 kg |
Page Yield
| Plain Paper A4 Colour Documents | GI-76 PGBK: 6,000 pages (Economy Mode: 9,000 pages); GI-76 C, M, Y: 14,000 pages (Economy Mode: 21,000 pages) |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the MAXIFY GX7170. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Canon Printing Apps - Mobile (iOS/Android) | Canon PRINT, Easy-PhotoPrint Editor |
| Canon Printing Apps - PC (Windows/Mac) | Canon PRINT, Easy-PhotoPrint Editor, Easy-Layout Editor (Win only), PosterArtist Lite (Win only), PosterArtist Web (browser-based) |
| Mobile/Cloud Printing Solutions | AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct, Cloud Integration Service |
| OS System Compatibility | Windows 11 / 10 / 8.1 / 7 SP1, macOS 11.7.6 ~ 14 or later, ChromeOS |
| Interface | USB 2.0, USB Flash Memory |
Package Contents & Ordering Information
Ordering Information
| Model | MAXIFY GX7170 |
| Canon Product Code | 6880C012AA |
| EAN / UPC | 4549292240313 |
| Recommended Retail Price (incl. GST) | S$699.00 |
| Consumables | Ink bottles: GI-76 PGBK 6,000 pages (Economy 9,000) RRP SGD 50.00; GI-76 C / M / Y 14,000 pages each (Economy 21,000) RRP SGD 48.00 each. Maintenance cartridge MC-G01 (no price shown). |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — MAXIFY GX7170
What warranty does the MAXIFY GX7170 come with?
2 Years Local Warranty from Canon Singapore: 2 years on-site or 80,000 prints, whichever comes first. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the MAXIFY GX7170 use?
Ink bottles: GI-76 PGBK 6,000 pages (Economy 9,000) RRP SGD 50.00; GI-76 C / M / Y 14,000 pages each (Economy 21,000) RRP SGD 48.00 each. Maintenance cartridge MC-G01 (no price shown). Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the MAXIFY GX7170?
Yes. Canon lists the following mobile and cloud printing support: Canon PRINT, Easy-PhotoPrint Editor; AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct, Cloud Integration Service
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
