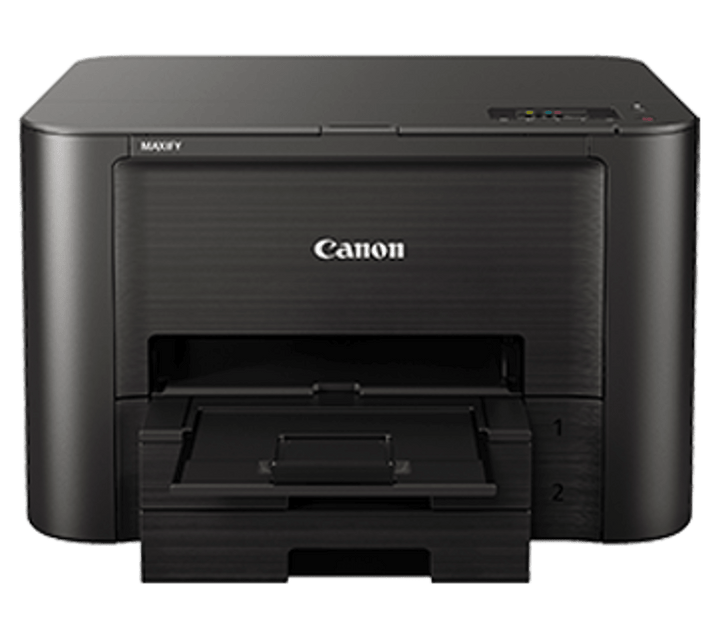

Canon MAXIFY iB4170 Wireless Business Inkjet Printer
Prices in SGD, excluding 9% GST.
PRODUCT DESCRIPTION
Canon MAXIFY iB4170 Wireless Business Inkjet Printer (0972C012) - 1 Year Local Warranty
The Canon MAXIFY iB4170 is Canon's reliable Performance For All Printing Demands. It has a rated print speed of 24 / 15.5 ipm (Mono/Colour), with Wi-Fi, Ethernet and USB connectivity.
Low Printing Cost
Print up to 2,500 pages (B / W) of A4 documents and enjoy at least 50% ink savings
Auto-Duplex Printing
Save on time and resources by printing on both sides of the paper automatically
High Capacity Paper Cassettes
Two high-capacity paper cassettes (up to 500 sheets), saves frequent paper loading
Highlighter and Water Resistant Documents
High density pigment ink produces crisp sharp text, water and highlighter resistant
Status/Error Email Notification
Alerts for ink low/empty, out of paper, print errors, printer problems.
Setting Restrictions
Administrator can perform password restrictions for printer settings to protect office confidentiality
Ideal For
Small offices, SOHO users, clinics, tuition centres and branch offices in Singapore that print steady daily volumes and want business-grade inkjet economics. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
MAXIFY iB4170 Datasheet — Technical Specifications
General
| Model | MAXIFY iB4170 |
| Official Product Name | MAXIFY iB4170 |
| Canon Product Code | 0972C012 |
| Brand | Canon |
| Warranty | 1 Year Local Warranty (Singapore) - 1 year on-site warranty by Canon Singapore |
| Number of Nozzles Total | 4,352 nozzles |
| Ink Cartridges (Type/Colours) | PGI-2700 (Pigment Ink/Black, Cyan, Magenta, Yellow). Optional: PGI-2700XL (Pigment Ink/Black, Cyan, Magenta, Yellow) |
| Maximum Print Resolution | 600 (Horizontal) x 1,200 (Vertical) dpi |
| Print Speed - Document (ESAT/Simplex) | 24 / 15.5 ipm (Mono/Colour) |
| Print Speed - Document (Max.) | 32.5 / 26.5 ppm (Mono/Colour) |
| Print Speed - Document (ESAT/Duplex) | 13 / 9.5 ipm (Mono/Colour) |
| Print Speed - Document (FPOT Ready/Simplex) | 6 / 7 sec (Mono/Colour) |
| Print Speed - Document (FPOT Sleep/Simplex) | 10 / 12 sec (Mono/Colour) |
| Print Width | Up to 203.2 mm (8") |
| Recommended Printing Area | Top margin: 45.8 mm, Bottom margin: 36.8 mm |
Paper Handling
| Bordered Printing margin | LTR, LGL: Top: 3 mm, Bottom: 5 mm, Left: 6.4 mm, Right: 6.3 mm. Others: Top: 3 mm, Bottom: 5 mm, Left/Right: 3.4 mm |
| Bordered Auto Duplex Printing margin | LTR, LGL: Top: 3 mm, Bottom: 5 mm, Left: 6.4 mm, Right: 6.3 mm. Others: Top: 3 mm, Bottom: 5 mm, Left/Right: 3.4 mm |
| Supported Media | Plain Paper (64 - 105 g/m²), High Resolution Paper (HR-101N), Photo Paper Plus Glossy II (PP-201, PP-208), Photo Paper Pro Luster (LU-101), Photo Paper Plus Semi-Gloss (SG-201), Matte Photo Paper (MP-101), Envelope, Label Paper |
| Auto 2-Sided Printing | Plain Paper only: A4, LTR |
| Paper Size - Cassette | A4, A5, A6, B5, LTR, LGL, B-Oficio, M-Oficio, Foolscap, LGL (India), Executive, Envelope (COM10, DL, C5, Monarch), 4 x 6", 5 x 7", 7 x 10", 8 x 10" |
| Custom Size (Upper Cassette) | Width 89-216 mm, Length 127-355.6 mm |
| Custom Size (Lower Cassette) | Width 210-216 mm, Length 279.4-355.6 mm |
| Maximum Capacity - Cassette 1 (Upper) | Plain Paper, 64 g/m² (A4, A5, B5, LTR, LGL): 250 sheets; High Resolution Paper (HR-101N): 65 sheets; Photo Paper Plus Glossy (PP-201, 4 x 6" / A4): 20 / 10 sheets; Photo Paper Plus Semi-Gloss (SG-201, 4 x 6" / A4, 8 x 10"): 20 / 10 sheets; Photo Paper Pro Luster (LU-101, A4): 10 sheets; Matte Photo Paper (MP-101, 4 x 6" / A4): 20 / 10 sheets; Envelope (COM10, DL, C5, Monarch): 10 sheets |
| Maximum Capacity - Cassette 2 (Lower) | Plain Paper, 64 g/m² (A4, LTR, LGL): 250 sheets |
| Maximum Capacity - Auto Document Feeder (as published) | Plain Paper (A4, LTR): 50 sheets; Plain Paper (LGL): 10 sheets; Others: 1 sheet |
| Paper Weight - Cassette 1 (Upper) | Plain Paper: 64 - 105 g/m²; Canon Paper: Approx. 275 g/m² (Max., Photo Paper Plus Glossy II, PP-201) |
| Paper Weight - Cassette 2 (Lower) | Plain Paper: 64 - 105 g/m² |
Network
| Protocol | SNMP (Standard MIB), TCP/IP |
| Wired LAN | IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) |
| Wireless LAN | IEEE802.11b/g/n, 2.4 GHz, Supported Channels: 1 - 13 (TW/HK: 1 - 11 only) |
| Security | WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) |
| Direct Connection (Wireless LAN) | Available |
Printing Solutions
| Canon Printing Apps | Mobile: Canon PRINT, Easy-PhotoPrint Editor; Others: Easy-Layout Editor, PosterArtist Lite, PosterArtist (Web) |
| Mobile/Cloud Printing Solutions | AirPrint®, Mopria® Print Service, Canon Print Service (Android), Cloud Integration Service |
System Requirements
| OS System Compatibility | Windows 10 / 8 / 7 SP1 / Windows Vista SP2, Mac OS X 10.8.5 or later, ChromeOS |
General
| Operation Panel | Full Dot |
| Interface | USB 2.0 |
| Operating Environment | Temperature: 5 - 35°C; Humidity: 10 - 90% RH (no dew condensation) |
| Recommended Environment | Temperature: 15 - 30°C; Humidity: 10 - 80% RH (no dew condensation) |
| Storage Environment | Temperature: 0 - 40°C; Humidity: 5 - 95% RH (no dew condensation) |
| Quiet Mode | Available |
| Acoustic Noise | Plain Paper (A4, Mono): 56 dB(A) |
| Power Requirements | AC 100 - 240 V, 50/60 Hz |
| Power Consumption - OFF | 0.3 W |
| Power Consumption - Standby | 0.9 W |
| Power Consumption - Operation | 27 W |
| Duty Cycle | Up to 30,000 pages/month |
| Dimensions (W x D x H) - Factory Configuration | 463 x 394 x 290 mm |
| Dimensions (W x D x H) - Paper Installed (A4/LTR) | 463 x 459 x 290 mm |
| Dimensions (W x D x H) - Output/ADF Trays Extended (as published) | 463 x 607 x 290 mm |
| Weight | 9.6 kg |
Page Yield
| Plain Paper - A4 Colour Documents | PGI-2700BK: 1,000 pages; PGI-2700C, M, Y: 700 pages; Optional: PGI-2700XL BK: 2,500 pages; PGI-2700XL C, M, Y: 1,500 pages |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the MAXIFY iB4170. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Wireless LAN | IEEE802.11b/g/n, 2.4 GHz, Supported Channels: 1 - 13 (TW/HK: 1 - 11 only) |
| Canon Printing Apps | Mobile: Canon PRINT, Easy-PhotoPrint Editor; Others: Easy-Layout Editor, PosterArtist Lite, PosterArtist (Web) |
| Mobile/Cloud Printing Solutions | AirPrint®, Mopria® Print Service, Canon Print Service (Android), Cloud Integration Service |
| OS System Compatibility | Windows 10 / 8 / 7 SP1 / Windows Vista SP2, Mac OS X 10.8.5 or later, ChromeOS |
| Interface | USB 2.0 |
Package Contents & Ordering Information
Ordering Information
| Model | MAXIFY iB4170 |
| Canon Product Code | 0972C012 |
| Recommended Retail Price (incl. GST) | S$239.00 |
| Consumables | PGI-2700 BK 1,000 pages (SGD 42); PGI-2700 C/M/Y 700 pages each (SGD 26); PGI-2700XL BK 2,500 pages (SGD 64); PGI-2700XL C/M/Y 1,500 pages each (SGD 42). |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — MAXIFY iB4170
What warranty does the MAXIFY iB4170 come with?
1 Year Local Warranty from Canon Singapore: 1 year on-site warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the MAXIFY iB4170 use?
PGI-2700 BK 1,000 pages (SGD 42); PGI-2700 C/M/Y 700 pages each (SGD 26); PGI-2700XL BK 2,500 pages (SGD 64); PGI-2700XL C/M/Y 1,500 pages each (SGD 42). Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the MAXIFY iB4170?
Yes. Canon lists the following mobile and cloud printing support: AirPrint®, Mopria® Print Service, Canon Print Service (Android), Cloud Integration Service
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
