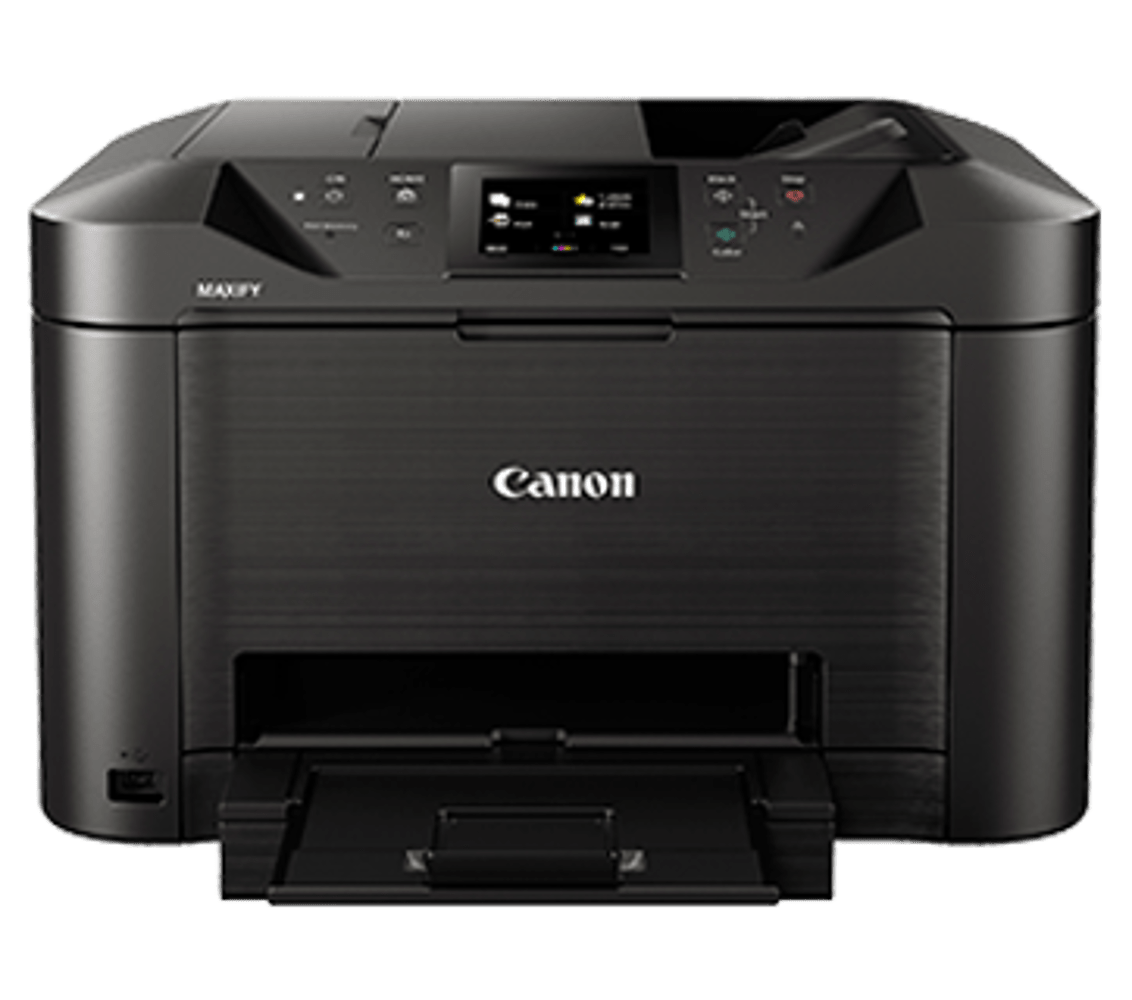

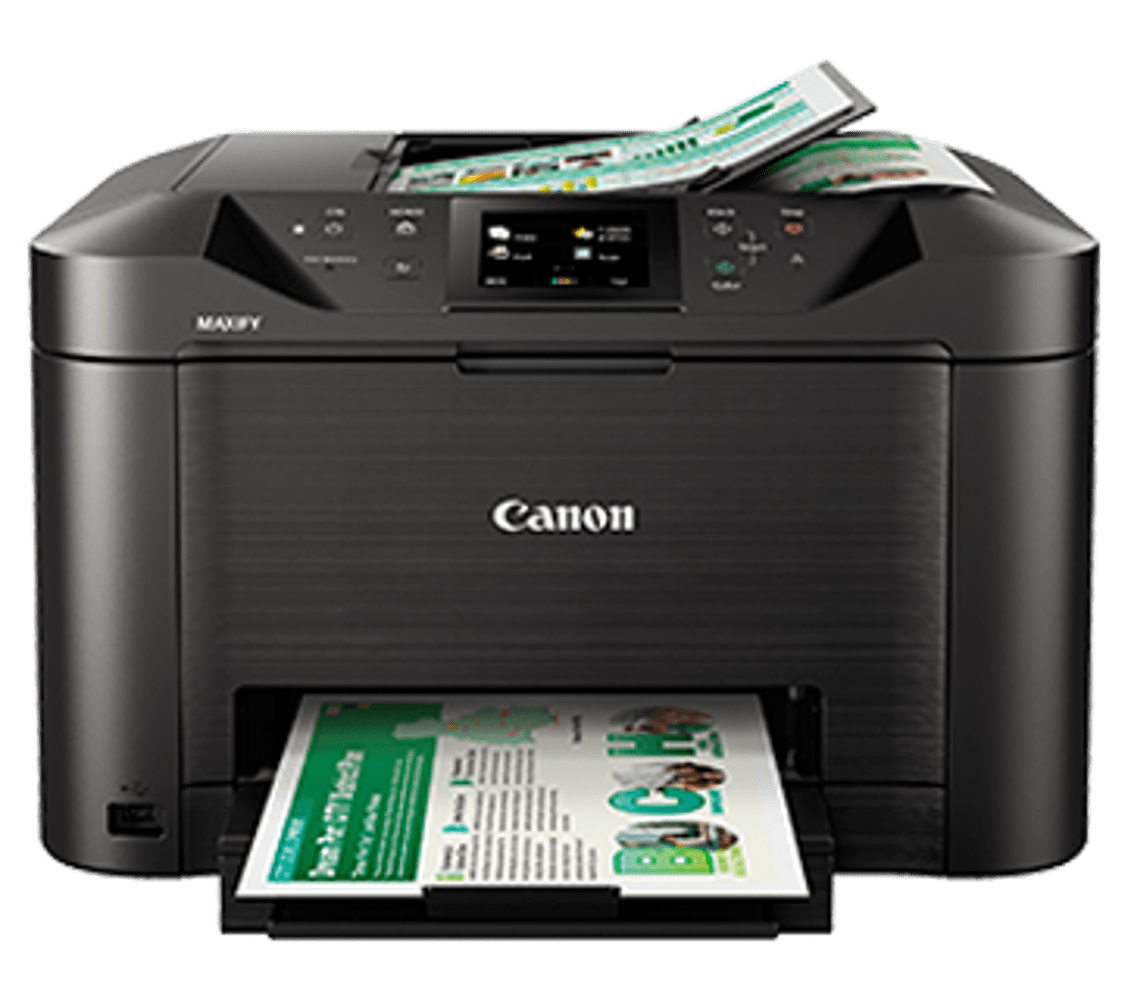

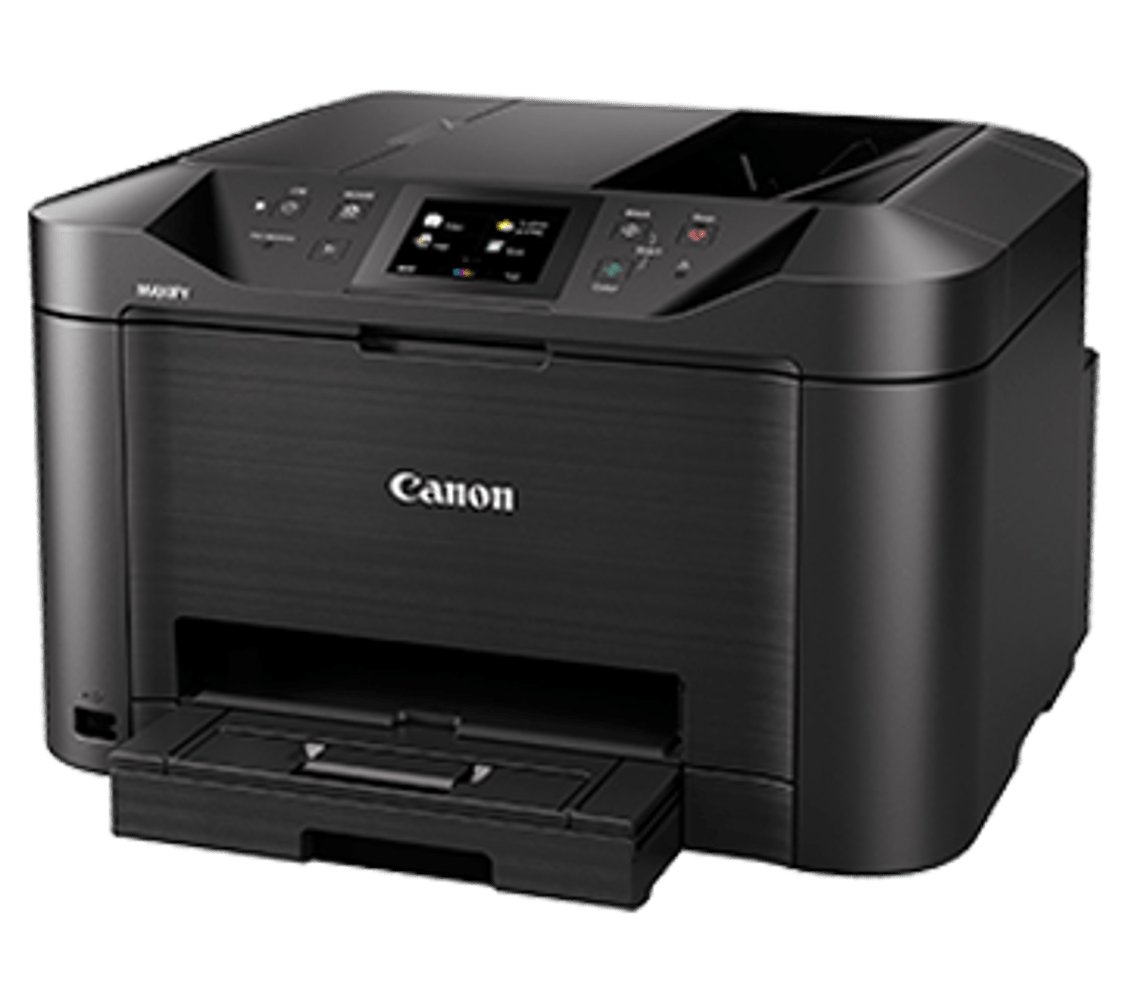

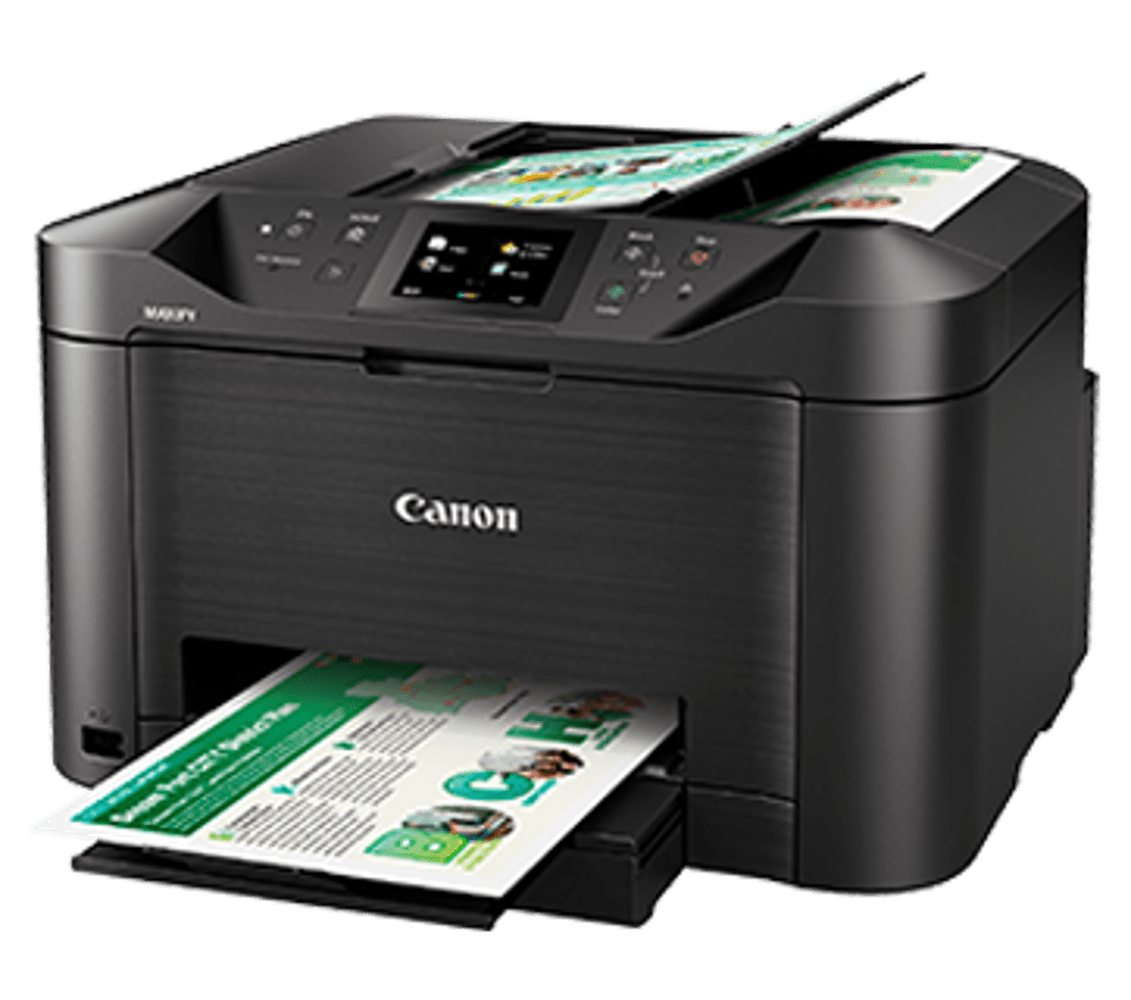

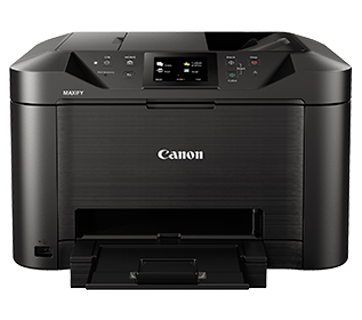

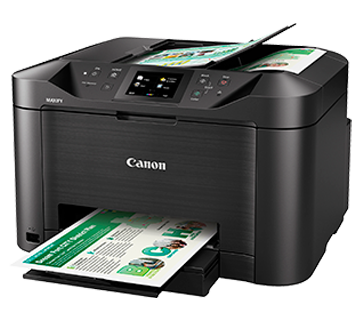

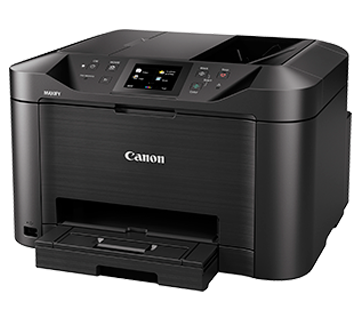

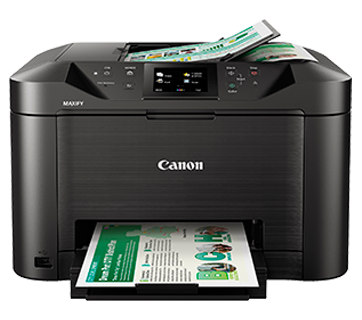

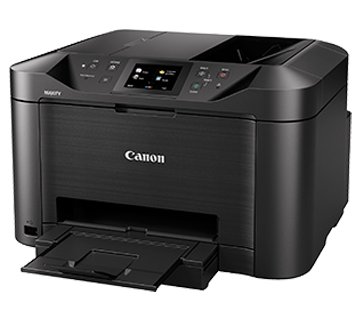

Canon MAXIFY MB5170 Wireless Business All-in-One Inkjet Printer
PRODUCT DESCRIPTION
Canon MAXIFY MB5170 Wireless Business All-in-One Inkjet Printer (0960C012) - 2 Years Local Warranty
The Canon MAXIFY MB5170 is Canon's high Speed Multi-Function Business Printer. It has a rated print speed of 24 / 15.5 ipm (Mono/Colour), with Wi-Fi, Ethernet and USB connectivity.
Low Printing Cost
Print up to 2,500 pages (B / W) of A4 documents and enjoy at least 50% ink savings with Canon's genuine PGI-2700XL ink cartridges.
3.5" Touch-screen LCD Display
Improve visibility and navigation with a large 3.5" Touch-screen LCD display, hence reducing operational errors.
Choose Wired or Wireless
With both wired and wireless connectivity, print from all your devices without a router, from the Cloud, and scan directly to a network folder.
Marker and Highlighter Resistant Documents
The high density pigment ink not only produces crisp and sharp text, it is also water and highlighter resistant.
Auto-Duplex Printing
Save on time and resources by printing on both sides of the paper automatically.
Single Pass 2-Sided Scan
Increase scanning efficiency for double-sided documents with the integration of two Contact Image Sensors (CIS). This new scanning technolgy enables quality scans with maximum productivity.
Key Highlights
- Print, Scan, Copy, Fax
- Print Speed (A4, ISO): Up to 24 / 15.5 ipm (Mono/Colour)
- Print speed (A4): Up to 32.5 / 26.5 ppm (Mono/Colour)
- Wi-Fi, LAN, AirPrint®, Mopria® Print Service, Wireless Direct
- Recommended Monthly Print Volume: 150 - 1,500 pages
Ideal For
Small offices, SOHO users, clinics, tuition centres and branch offices in Singapore that print steady daily volumes and want business-grade inkjet economics. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
MAXIFY MB5170 Datasheet — Technical Specifications
General
| Model | MAXIFY MB5170 |
| Official Product Name | MAXIFY MB5170 |
| Canon Product Code | 0960C012 |
| Brand | Canon |
| Warranty | 2 Years Local Warranty (Singapore) - 2 years on-site warranty by Canon Singapore |
| Number of Nozzles Total | 4,352 nozzles |
| Ink Cartridges (Type/Colours) | PGI-2700 (Pigment Ink/Black, Cyan, Magenta, Yellow). Optional: PGI-2700XL (Pigment Ink/Black, Cyan, Magenta, Yellow) |
| Maximum Print Resolution | 600 (Horizontal) x 1,200 (Vertical) dpi |
| Print Speed - Document (ESAT/Simplex) | 24 / 15.5 ipm (Mono/Colour) |
| Print Speed - Document (Max.) | 32.5 / 26.5 ppm (Mono/Colour) |
| Print Speed - Document (ESAT/Duplex) | 13 / 9.5 ipm (Mono/Colour) |
| Print Speed - Document (FPOT Ready/Simplex) | 6 / 7 sec (Mono/Colour) |
| Print Speed - Document (FPOT Sleep/Simplex) | 10 / 12 sec (Mono/Colour) |
| Print Width | Up to 203.2 mm (8") |
| Recommended Printing Area | Top margin: 45.8 mm, Bottom margin: 36.8 mm |
Scan
| Scanner Type | Flatbed (ADF/Platen) |
| Scanner Technology | Contact Image Sensor (CIS) x2 (2-Sided) |
| Optical Resolution | 1,200 x 1,200 dpi |
| Scanning Bit Depth (Input/Output) | Greyscale: 16 bit / 8 bit; Colour: 48 bit / 24 bit (RGB each 16 bit / 8 bit) |
| Scanning Speed - Document (ADF) (scESAT30secA/Simplex) | 19 / 16 ipm (Mono/Colour) |
| Scanning Speed - Document (ADF) (scESAT30secA/Duplex) | 23 ipm (Mono/Colour) |
| Scanning Speed - Document (ADF) (scEFTP30secF/Simplex) | 17.5 / 15 ipm (Mono/Colour) |
| Scanning Speed - Document (ADF) (scEFTP30secF/Duplex) | 21.5 / 21 ipm (Mono/Colour) |
| Maximum Document Size | Flatbed: A4, LTR (216 x 297 mm); ADF: A4, LTR, LGL |
Copy
| Copy Speed - Document (sFCOT/Simplex) | 11 sec (Colour) |
| Copy Speed - Document (ADF) (ESAT/Simplex) | 22 / 11.5 ipm (Mono/Colour) |
| Copy Speed - Document (ADF) (ESAT/Duplex) | 10 / 6 ipm (Mono/Colour) |
| Maximum Copies | 99 pages |
| Maximum Document Size | Flatbed: A4, LTR; ADF: A4, LTR, LGL |
| Reduction/Enlargement | 25 - 400% |
| Copy Features | Two-sided, Collate, 2-on-1, 4-on-1, Frame Erase, ID Copy |
Fax
| Type | Desktop Transceiver (Super G3/Colour Communication) |
| Transmission Speed | Mono: 3 sec; Colour: 1 min |
| Modem Speed | Max. 33.6 kbps (Automatic fall back) |
| Compression | Mono: MH, MR, MMR; Colour: JPEG |
| Gradation | Mono: 256 levels; Colour: 24-bit Full Colour (RGB each 8-bit) |
| ECM (Error Correction Mode) | ITU-T T.30 compatible |
| Automatic Dialling | Coded Speed Dialing: Max. 100 locations; Group Dialling: Max. 99 locations |
| Transmission/Reception Memory | Approx. 250 pages |
PC Fax
| Type | Windows, macOS |
| Mono/Colour | B/W Transmission only |
Paper Handling
| Bordered Printing margin | LTR, LGL: Top margin: 3 mm, Bottom margin: 5 mm, Left margin: 6.4 mm, Right margin: 6.3 mm. Others: Top margin: 3 mm, Bottom margin: 5 mm, Left/Right margin: 3.4 mm |
| Bordered Auto Duplex Printing margin | LTR, LGL: Top margin: 3 mm, Bottom margin: 5 mm, Left margin: 6.4 mm, Right margin: 6.3 mm. Others: Top margin: 3 mm, Bottom margin: 5 mm, Left/Right margin: 3.4 mm |
| Supported Media - Cassette | Plain Paper (64 - 105 g/m²), High Resolution Paper (HR-101N), Photo Paper Plus Glossy II (PP-201, PP-208), Photo Paper Pro Luster (LU-101), Photo Paper Plus Semi-Gloss (SG-201), Matte Photo Paper (MP-101), Envelope, Label Paper |
| Auto 2-Sided Printing (Plain Paper only) | A4, LTR |
| Paper Size - Cassette | A4, A5, B5, LTR, LGL, B-Oficio, M-Oficio, Foolscap, LGL (India) Executive, Envelope (COM10, DL, C5, Monarch), 4 x 6", 5 x 7", 7 x 10", 8 x 10" |
| Custom Size (Upper Cassette) | Width: 89 - 216 mm, Length: 127 - 355.6 mm |
| Custom Size (Lower Cassette) | Width: 210 - 216 mm, Length: 279.4 - 355.6 mm |
| Maximum Capacity - Cassette | Plain Paper, 64 g/m² (A4, A5, B5, LTR, LGL): 250; High Resolution Paper (HR-101N): 65; Photo Paper Plus Glossy (PP-201, 4 x 6" / A4): 20 / 10; Photo Paper Plus Semi-Gloss (SG-201, 4 x 6" / A4, 8 x 10"): 20 / 10; Photo Paper Pro Luster (LU-101, A4): 10; Matte Photo Paper (MP-101, 4 x 6" / A4): 20 / 10; Envelope (COM10, DL, C5, Monarch): 10 |
| Maximum Capacity - Auto Document Feeder | Plain Paper (A4, LTR): 50; Plain Paper (LGL): 10; Others: 1 |
| Paper Weight | Cassette Plain Paper: 64 - 105 g/m²; Canon Paper: Approx. 275 g/m² (Max.) (Photo Paper Plus Glossy II, PP-201) |
Network
| Protocol | SNMP (Standard MIB), TCP/IP |
| Wired LAN | IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) |
| Wireless LAN | IEEE802.11b/g/n, 2.4 GHz, Supported Channels: 1 - 13 (TW/HK: 1 - 11 only) |
| Security | WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) |
| Direct Connection (Wireless LAN) | Available |
Printing Solutions
| Canon Printing Apps | Mobile: Canon PRINT, Easy-PhotoPrint Editor; Others: Easy-Layout Editor, PosterArtist Lite, PosterArtist (Web) |
| Mobile/Cloud Printing Solutions | AirPrint®, Mopria® Print Service, Canon Print Service (Android), Cloud Integration Service |
System Requirements
| OS System Compatibility | Windows 10 / 8 / 7 SP1 / Windows Vista SP2, Mac OS X 10.8.5 or later, ChromeOS |
General
| Operation Panel Display | 3.5" LCD (Touchscreen, Colour) |
| Interface | USB 2.0, USB Flash Memory |
| Operating Environment | Temperature: 5 - 35°C; Humidity: 10 - 90% RH (no dew condensation) |
| Recommended Environment | Temperature: 15 - 30°C; Humidity: 10 - 80% RH (no dew condensation) |
| Storage Environment | Temperature: 0 - 40°C; Humidity: 5 - 95% RH (no dew condensation) |
| Quiet Mode | Available |
| Acoustic Noise | Plain Paper (A4, Mono): 56 dB(A) |
| Power Requirements | AC 100 - 240 V, 50/60 Hz |
| Power Consumption - OFF | 0.2 W |
| Power Consumption - Standby | 0.9 W |
| Power Consumption - Operation | 25 W |
| Duty Cycle | Up to 30,000 pages/month |
| Dimensions (W x D x H) - Factory Configuration | 463 x 394 x 291 mm |
| Dimensions (W x D x H) - Paper Installed (A4/LTR) | 463 x 459 x 291 mm |
| Dimensions (W x D x H) - Output/ADF Trays Extended | 463 x 607 x 329 mm |
| Weight | 11.4 kg |
Page Yield
| Plain Paper - A4 Colour Documents | PGI-2700BK: 1,000 pages; PGI-2700C, M, Y: 700 pages; Optional: PGI-2700XL BK: 2,500 pages; PGI-2700XL C, M, Y: 1,500 pages |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the MAXIFY MB5170. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Wireless LAN | IEEE802.11b/g/n, 2.4 GHz, Supported Channels: 1 - 13 (TW/HK: 1 - 11 only) |
| Canon Printing Apps | Mobile: Canon PRINT, Easy-PhotoPrint Editor; Others: Easy-Layout Editor, PosterArtist Lite, PosterArtist (Web) |
| Mobile/Cloud Printing Solutions | AirPrint®, Mopria® Print Service, Canon Print Service (Android), Cloud Integration Service |
| OS System Compatibility | Windows 10 / 8 / 7 SP1 / Windows Vista SP2, Mac OS X 10.8.5 or later, ChromeOS |
| Interface | USB 2.0, USB Flash Memory |
Package Contents & Ordering Information
Ordering Information
| Model | MAXIFY MB5170 |
| Canon Product Code | 0960C012 |
| Recommended Retail Price (incl. GST) | S$399.00 |
| Consumables | PGI-2700 BK 1,000 pages (RRP SGD 42); PGI-2700 C/M/Y 700 pages each (RRP SGD 26); PGI-2700XL BK 2,500 pages (RRP SGD 64); PGI-2700XL C/M/Y 1,500 pages each (RRP SGD 42). |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — MAXIFY MB5170
What warranty does the MAXIFY MB5170 come with?
2 Years Local Warranty from Canon Singapore: 2 years on-site warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the MAXIFY MB5170 use?
PGI-2700 BK 1,000 pages (RRP SGD 42); PGI-2700 C/M/Y 700 pages each (RRP SGD 26); PGI-2700XL BK 2,500 pages (RRP SGD 64); PGI-2700XL C/M/Y 1,500 pages each (RRP SGD 42). Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the MAXIFY MB5170?
Yes. Canon lists the following mobile and cloud printing support: AirPrint®, Mopria® Print Service, Canon Print Service (Android), Cloud Integration Service
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
