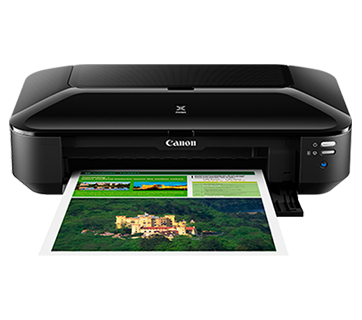

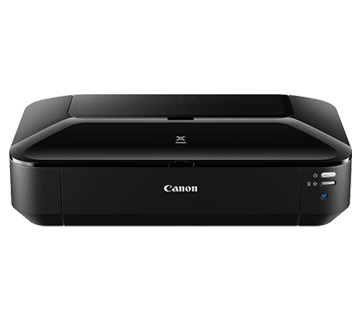

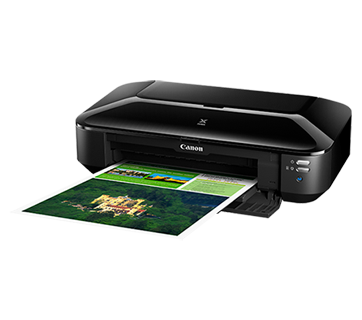

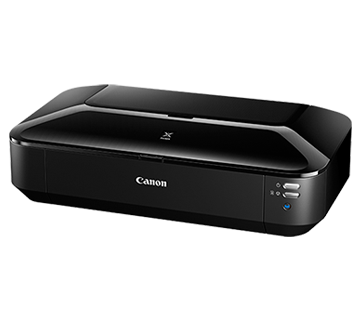

Canon PIXMA iX6870 A3+ Wireless Business Inkjet Printer
PRODUCT DESCRIPTION
Canon PIXMA iX6870 A3+ Wireless Business Inkjet Printer (8747B012) - 1 Year Local Warranty
The Canon PIXMA iX6870 is Canon's high performance, ultra-compact wireless A3 printer with 5-single inks. It has a rated print speed of 14.5 / 10.4 ipm (Mono/Colour), with Wi-Fi, Ethernet and USB connectivity.
Print up to A3+ size
Capable of printing spreadsheets and CAD drawings.
XXL Ink Cartridge
Can print approx. 2.6 times more prints as compared to standard.
Mobile and Cloud Printing
Print from mobile devices via Canon PRINT app.
Auto Power ON/OFF
Detects print command and automatically switches on/off.
Key Highlights
- Print Speed (A4, ISO): Up to 14.5 / 10.4 ipm (Mono/Colour)
Ideal For
Small offices, SOHO users, clinics, tuition centres and branch offices in Singapore that print steady daily volumes and want business-grade inkjet economics. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
PIXMA iX6870 Datasheet — Technical Specifications
General
| Model | PIXMA iX6870 |
| Official Product Name | PIXMA iX6870 |
| Canon Product Code | 8747B012 |
| EAN / UPC | 4960999991252 |
| Brand | Canon |
| Warranty | 1 Year Local Warranty (Singapore) - 1 year on-site warranty by Canon Singapore |
| Number of Nozzles Total | 5,120 nozzles |
| Ink Cartridges (Type/Colours) | PG-750 (Pigment Ink/Black), CLI-751 (Dye-based Ink/Cyan, Magenta, Yellow, BK). Optional: PGI-755XXL (Pigment Ink/Black), PGI-750XL (Pigment Ink/Black), CLI-751XL (Dye-Based Ink/Cyan, Magenta, Yellow, BK) |
| Maximum Print Resolution | 9,600 (Horizontal) x 2,400 (Vertical) dpi |
| Print Speed - Document (ESAT/Simplex) | 14.5 / 10.4 ipm (Mono/Colour) |
| Print Speed - Photo (11 x 14") (PP-201) | 120 sec |
| Print Speed - Photo (4 x 6") (PP-201/Borderless) | 36 sec |
| Print Width | Up to 322.2 mm (12.7"). Borderless: Up to 329 mm (13") |
| Recommended Printing Area | Top margin: 40.7 mm, Bottom margin: 37.4 mm |
Paper Handling
| Borderless Printing margin | Top/Bottom/Left/Right margin: 0 mm |
| Bordered Printing margin | LTR, LGL: Top margin: 3 mm, Bottom margin: 5 mm, Left margin: 6.4 mm, Right margin: 6.3 mm. Others: Top margin: 3 mm, Bottom margin: 5 mm, Left/Right margin: 3.4 mm |
| Supported Media | Plain Paper (64 - 105 g/m²), High Resolution Paper (HR-101N), Photo Paper Pro Platinum (PT-101), Photo Paper Pro Luster (LU-101), Photo Paper Plus Glossy II (PP-201), Photo Paper Plus Semi-Gloss (SG-201), Matte Photo Paper (MP-101), Envelope |
| Paper Size (Rear Tray) | A3+, A3, A4, A5, B4, B5, LTR, LGL, LDR, Envelope (COM10, DL), 4 x 6", 5 x 7", 8 x 10", 10 x 12". Custom Size: Width: 55 - 329 mm, Length: 91 - 676 mm |
| Borderless Printing | A3, A4, LTR, LDR, 4 x 6", 5 x 7", 8 x 10", 10 x 12" |
| Maximum Capacity | Rear Tray Plain Paper, 64 g/m² (A3, A4, A5, B4, B5, LTR, LGL, LDR): 150. High Resolution Paper (HR-101N, A3+/A3/A4): 20/50/80. Photo Paper Pro Platinum (PT-101, A3+/A3/A4/4 x 6"): 1/10/10/20. Photo Paper Plus Glossy (PP-201, A3+/A3/A4/4 x 6"): 1/10/10/20. Photo Paper Plus Semi-Gloss (SG-201, A3+/A3/A4/8 x 10/4 x 6"): 1/10/10/10/20. Matte Photo Paper (MP-101, A3/A4/4 x 6"): 10/10/20. Envelope (COM10, DL): 10 |
| Paper Weight | Rear Tray Plain Paper: 64 - 105 g/m². Canon Paper: Approx. 300 g/m² (Max.) |
Network
| Protocol | TCP/IP |
| Wired LAN | IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) |
| Wireless LAN Type | IEEE802.11b/g/n, 2.4 GHz, Supported Channels: 1 - 13 |
| Security | WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) |
Printing Solutions
| Canon Printing Apps | Mobile: Canon PRINT, Easy-PhotoPrint Editor; Other: Easy-Layout Editor |
| Mobile/Cloud Printing Solutions | AirPrint® |
System Requirements
| OS System Compatibility | Windows 8 / 7 / XP / Vista, macOS X 10.6.8 or later |
General
| Interface | USB 2.0 |
| Operating Environment | Temperature: 5 - 35°C; Humidity: 10 - 90% RH (no dew condensation) |
| Recommended Environment | Temperature: 15 - 30°C; Humidity: 10 - 80% RH (no dew condensation) |
| Storage Environment | Temperature: 0 - 40°C; Humidity: 5 - 95% RH (no dew condensation) |
| Quiet Mode | Available |
| Acoustic Noise (Photo 4 x 6") | 44 dB(A) |
| Power Requirements | AC 100 - 240 V, 50/60 Hz |
| Power Consumption - OFF | 0.3 W |
| Power Consumption - Standby | 2 W |
| Power Consumption - Operation | 24 W |
| Dimensions (W x D x H) Factory Configuration | 584 x 310 x 159 mm |
| Weight | 8.1 kg |
Page Yield
| Plain Paper (A4 Colour Documents) | PGI-750 PGBK: 300 pages. CLI-751 BK: 1645 pages. CLI-751 C, M, Y: 334 pages. Optional: PGI-750XL PGBK: 500 pages. PGI-755XXL PGBK: 800 pages. CLI-751XL BK: 5000 pages. CLI-751XL C, M, Y: 690 pages |
| Photo Paper (PP-201) (4 x 6 Photos) | PGI-750 PGBK: 2390 sheets. CLI-751 BK: 384 sheets. CLI-751 C, M, Y: 128 sheets. Optional: PGI-750XL PGBK: 4720 sheets. PGI-755XXL PGBK: 7685 sheets. CLI-751XL BK: 845 sheets. CLI-751XL C, M, Y: 305 sheets |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the PIXMA iX6870. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Canon Printing Apps | Mobile: Canon PRINT, Easy-PhotoPrint Editor; Other: Easy-Layout Editor |
| Mobile/Cloud Printing Solutions | AirPrint® |
| OS System Compatibility | Windows 8 / 7 / XP / Vista, macOS X 10.6.8 or later |
| Interface | USB 2.0 |
Package Contents & Ordering Information
Ordering Information
| Model | PIXMA iX6870 |
| Canon Product Code | 8747B012 |
| EAN / UPC | 4960999991252 |
| Recommended Retail Price (incl. GST) | S$369.00 |
| Consumables | PGI-750 PGBK 300 pages; PGI-750XL PGBK 500 pages (SGD 39); PGI-755XXL PGBK 800 pages (SGD 47); CLI-751 BK 1,645 pages (SGD 26); CLI-751 C/M/Y 334 pages each; CLI-751XL BK 5,000 pages (SGD 34); CLI-751XL C/M/Y 690 pages each (A4 document yields from the sg.canon spec page). |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — PIXMA iX6870
What warranty does the PIXMA iX6870 come with?
1 Year Local Warranty from Canon Singapore: 1 year on-site warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the PIXMA iX6870 use?
PGI-750 PGBK 300 pages; PGI-750XL PGBK 500 pages (SGD 39); PGI-755XXL PGBK 800 pages (SGD 47); CLI-751 BK 1,645 pages (SGD 26); CLI-751 C/M/Y 334 pages each; CLI-751XL BK 5,000 pages (SGD 34); CLI-751XL C/M/Y 690 pages each (A4 document yields from the sg.canon spec page). Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the PIXMA iX6870?
Yes. Canon lists the following mobile and cloud printing support: AirPrint®
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
