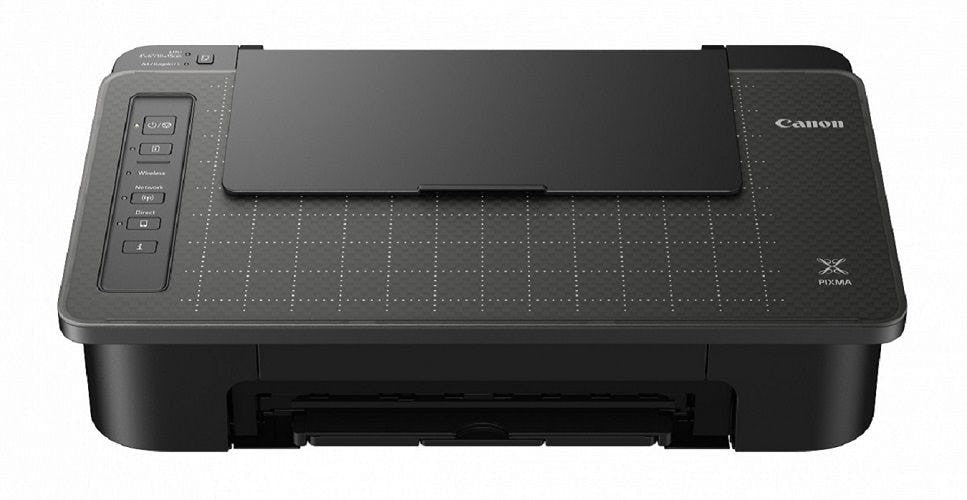

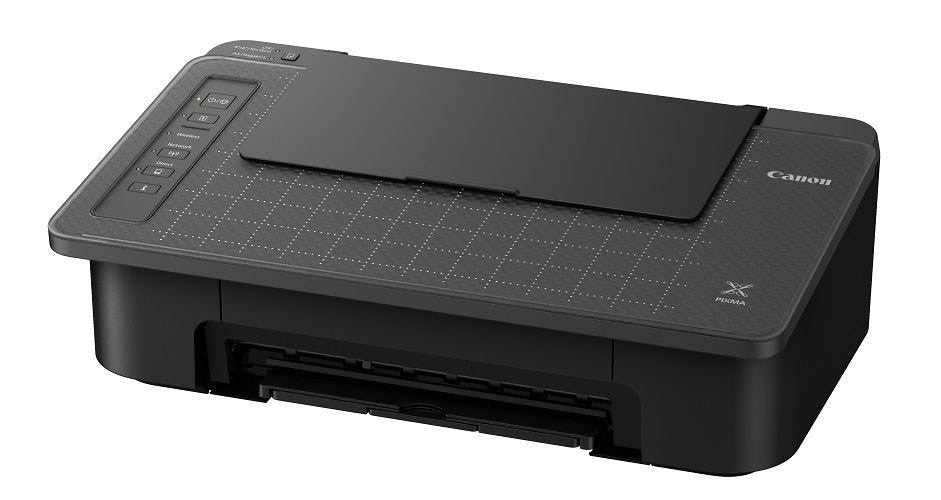

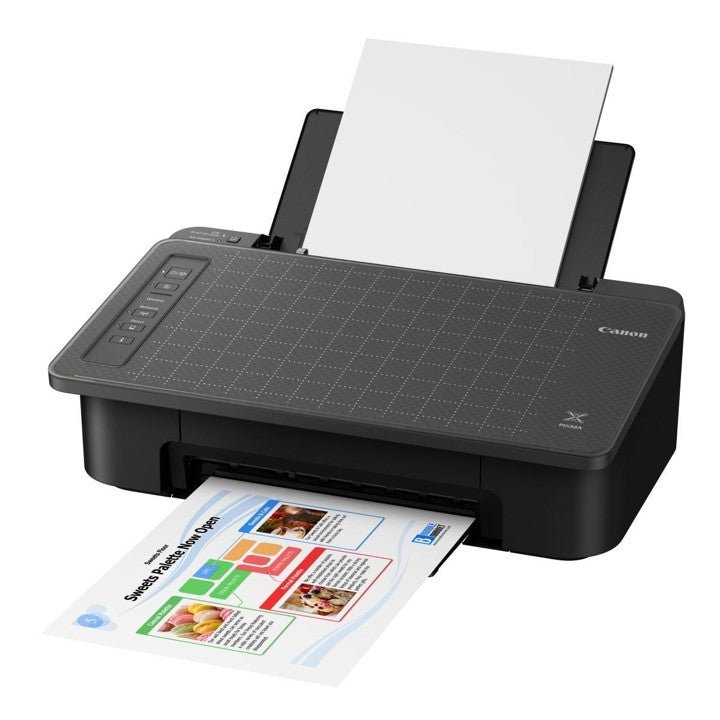

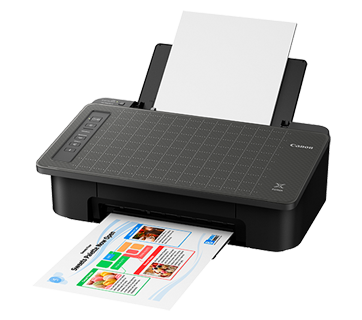

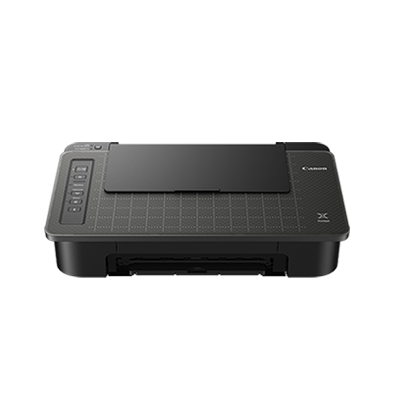

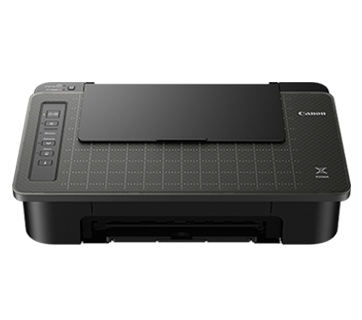

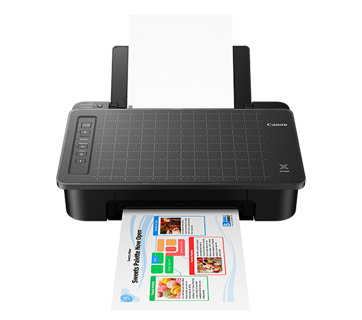

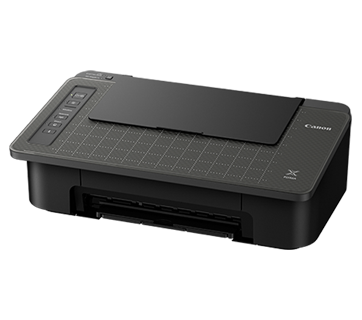

Canon PIXMA TS307 Wireless Single Function Inkjet Printer
PRODUCT DESCRIPTION
Canon PIXMA TS307 Wireless Single Function Inkjet Printer (2321C012AA) - 1 Year Local Warranty
The Canon PIXMA TS307 is Canon's wireless Printer with Smartphone Copy. It has a rated print speed of 7.7 / 4.0 ipm (mono/colour), with Wi-Fi and USB connectivity.
Low Cost Cartridges
Affordable ink cartridges for high quality printing.

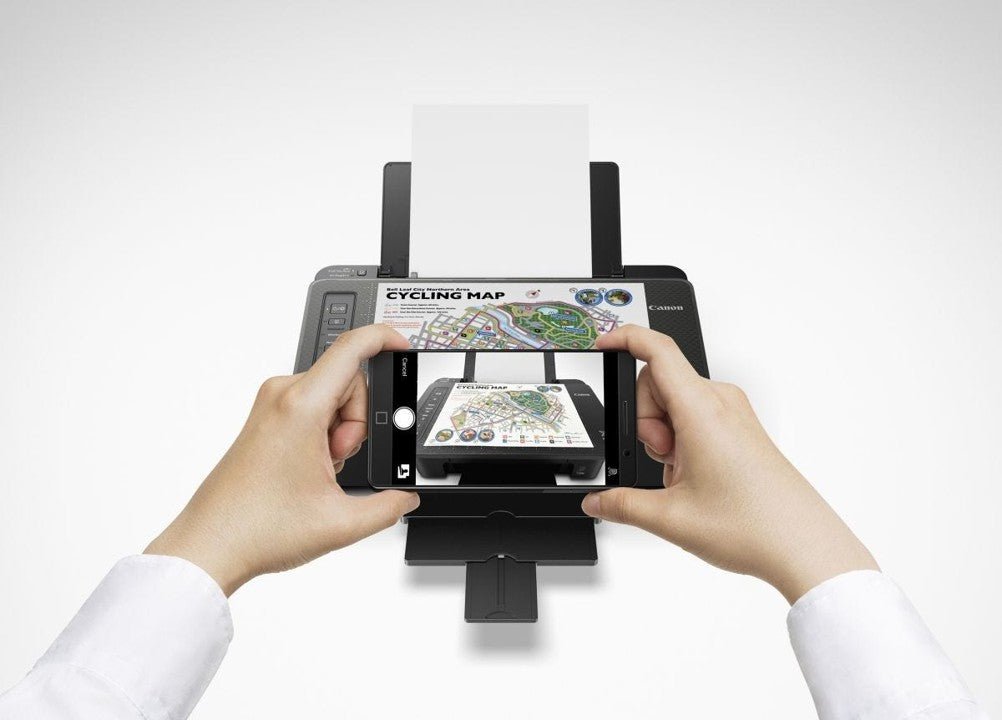

Smartphone Copy
Easy copying of your document or photo with your smartphone via the Canon PRINT app.
One-Touch Direct Wireless Connection
Connect directly to your smartphone easily.
Ideal For
Homes, students and home offices in Singapore that want an affordable, compact printer for everyday documents, school work and photos. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
PIXMA TS307 / TS307a Datasheet — Technical Specifications
General
| Model | PIXMA TS307 / TS307a |
| Official Product Name | PIXMA TS307 |
| Canon Product Code | 2321C012AA |
| Brand | Canon |
| Warranty | 1 Year Local Warranty (Singapore) - 1 year carry-in warranty by Canon Singapore |
| Number of Nozzles Total | 1,280 nozzles |
| Ink Cartridges (Type/Colours) | PG-745S (Pigment Ink/Black), CL-746S (Dye-Based Ink/Colour). Optional: PG-746, CL-746 / PG-745XL, CL-746XL |
| Maximum Print Resolution | 4,800 (horizontal) x 1,200 (vertical) dpi |
| Print Speed - Document (ESAT/Simplex) | 7.7 / 4.0 ipm (mono/colour) |
| Print Speed - Photo (4 x 6") (PP-201/Borderless) | 65 sec |
| Print Width | Up to 203.2 mm (8") |
| Recommended Printing Area | Top margin: 31.6 mm, Bottom margin: 29.2 mm |
Copy
| Maximum Document Size | A4, LTR |
Paper Handling
| Borderless Printing margin | Top/Bottom/Left/Right margin: 0 mm |
| Bordered Printing - LTR | Left margin: 6.4 mm, Right margin: 6.3 mm |
| Bordered Printing - Others | Top margin: 3 mm, Bottom margin: 5 mm, Left/Right margin: 3.4 mm |
| Supported Media - Rear Tray | Plain Paper (64 - 105 g/m²), Photo Paper Plus Glossy II (PP-201, PP-208) |
| Paper Size | A4, LTR, 4 x 6", 5 x 7". Custom Size: Width: 89 - 215.9 mm, Length: 127 - 676 mm |
| Borderless Printing | 4 x 6" |
| Maximum Capacity | Rear Tray Plain Paper, 64 g/m² (A4, LTR): 60; Photo Paper Plus Glossy II (PP-201, PP-208, 4 x 6"): 20; Photo Sticker (PS-208): 1 |
| Paper Weight | Rear Tray Plain Paper: 64 - 105 g/m²; Canon Paper: Approx. 275 g/m² (Max.) |
Network
| Protocol | TCP/IP |
| Wireless LAN Type | IEEE802.11b/g/n, 2.4 GHz, Supported Channels: 1 - 13 |
| Security | WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) |
| Wireless LAN | Available (AP Mode only) |
Printing Solutions
| Canon Printing Apps | Mobile: Canon PRINT, Easy-PhotoPrint Editor, Creative Park; Others: PosterArtist Lite, PosterArtist (Web) |
| Mobile/Cloud Printing Solutions | AirPrint, BLE, Mopria, Cloud Service |
System Requirements
| OS System Compatibility | Windows 10 / 8.1 / 7 SP1, macOS 10.12 or later |
General
| Interface | USB 2.0 |
| PictBridge (Wireless LAN) | Available |
| Operating Environment | Temperature: 5 - 35°C; Humidity: 10 - 90% RH (no dew condensation) |
| Recommended Environment | Temperature: 15 - 30°C; Humidity: 10 - 80% RH (no dew condensation) |
| Storage Environment | Temperature: 0 - 40°C; Humidity: 5 - 95% RH (no dew condensation) |
| Quiet Mode | Available |
| Acoustic Noise (PC Print) - Photo (4 x 6") | 46 dB(A) |
| Power Requirements | AC 100 - 240 V, 50/60 Hz |
| Power Consumption - OFF | 0.2 W |
| Power Consumption - Standby | 2.1 W |
| Power Consumption - Operation | 10 W |
| Duty Cycle | Up to 3,000 pages/month |
| Dimensions (W x D x H) - Factory Configuration | 430 x 282 x 143 mm |
| Dimensions (W x D x H) - Output/ADF Trays Extended | 430 x 558 x 212 mm |
| Weight | 2.9 kg |
Page Yield
| Plain Paper (A4 Colour Documents) | PG-745S / CL-746S: 100 pages; Optional PG-745 / CL-746: 180 pages; PG-745XL / CL-746XL: 300 pages |
| Photo Paper (PP-201) (4 x 6 Photos) | PG-745S: 835; CL-746S: 32; Optional PG-745: 1445; CL-746: 55; PG-745XL: 2720; CL-746XL: 90 |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the PIXMA TS307 / TS307a. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Wireless LAN | Available (AP Mode only) |
| Canon Printing Apps | Mobile: Canon PRINT, Easy-PhotoPrint Editor, Creative Park; Others: PosterArtist Lite, PosterArtist (Web) |
| Mobile/Cloud Printing Solutions | AirPrint, BLE, Mopria, Cloud Service |
| OS System Compatibility | Windows 10 / 8.1 / 7 SP1, macOS 10.12 or later |
| Interface | USB 2.0 |
Package Contents & Ordering Information
Ordering Information
| Model | PIXMA TS307 / TS307a |
| Canon Product Code | 2321C012AA |
| Recommended Retail Price (incl. GST) | S$79.00 |
| Consumables | PG-745S black 100 pages (SGD 17); CL-746S colour 100 pages (SGD 25); PG-745 black 180 pages (SGD 27); CL-746 colour 180 pages (SGD 41); PG-745XL black 300 pages (SGD 33); CL-746XL colour 300 pages (SGD 48). |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — PIXMA TS307 / TS307a
What warranty does the PIXMA TS307 / TS307a come with?
1 Year Local Warranty from Canon Singapore: 1 year carry-in warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the PIXMA TS307 / TS307a use?
PG-745S black 100 pages (SGD 17); CL-746S colour 100 pages (SGD 25); PG-745 black 180 pages (SGD 27); CL-746 colour 180 pages (SGD 41); PG-745XL black 300 pages (SGD 33); CL-746XL colour 300 pages (SGD 48). Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the PIXMA TS307 / TS307a?
Yes. Canon lists the following mobile and cloud printing support: AirPrint, BLE, Mopria, Cloud Service
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
