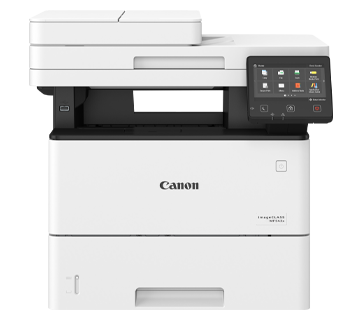

Canon imageCLASS MF543x Mono Laser All-in-One Printer with Fax
PRODUCT DESCRIPTION
Canon imageCLASS MF543x Mono Laser All-in-One Printer with Fax (3513C005AA) - 3 Years Local Warranty
The Canon imageCLASS MF543x is Canon's armed with the full suite of print, scan, copy and fax capabilities, as well as a plethora of features designed for speed and ease of use, enhance your work processes. It has a rated print speed of 43 ppm, with Wi-Fi, Ethernet and USB connectivity.
5" Colour LCD Touchscreen
The display panel comes with a vari-angle mechanism for greater viewing flexibility and broad screen for clarity and ease of navigation.
Application Library
The Application Library is packed with innovations to help you work smarter and more efficiently than ever. You can store and print frequently-used forms directly from the device, or distribute your documents electronically to pre-set destinations with just a tap of the button.
Single Pass Duplex Scan
The 50-sheet single-pass Duplex Auto Document Feeder (DADF) consists of two Contact Image Sensors (CIS), allowing both sides of the document to be scanned simultaneously. This maximises scanning efficiency without any compromise in scan quality.

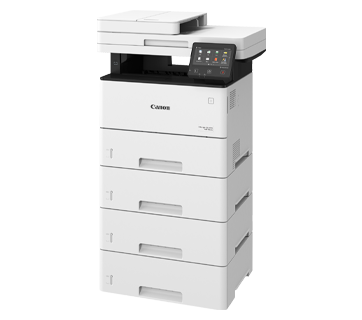

Expandable Paper Capacity
On top of the standard 550-sheet cassette and 100-sheet multipurpose tray, the imageCLASS MF543x has multiple paper options to expand its paper handling capability to as much as 2,300 sheets, making it a highly scalable device, suitable for every print volume environment.
SEND with Ease
With Canon's SEND Technology, you can easily scan documents and send them to one or more destinations. Digitize your paper document and send them to shared folders for convenient data access and management.
Secure Print
Manage the level of confidentiality of sensitive documents with the Secure Print function. Print jobs will be held safe in memory until authentication code is entered into the device.
Minimal Maintenance
Enjoy fuss-free and low maintenance operation with Canon All-in-One toner cartridge design. Optional high cartridge option is also available to cater to high volume printing needs.
Ideal For
Small and medium offices in Singapore that need fast mono laser printing plus scanning and copying (and fax where fitted) from one compact, managed device. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
imageCLASS MF543x Datasheet — Technical Specifications
General
| Model | imageCLASS MF543x |
| Official Product Name | imageCLASS MF543x |
| Canon Product Code | 3513C005AA |
| Brand | Canon |
| Warranty | 3 Years Local Warranty (Singapore) - 3 years on-site warranty by Canon Singapore |
| Printing Method | Monochrome Laser Beam Printing |
| Print Speed A4 | 43 ppm |
| Print Speed Letter | 45 ppm |
| Print Speed 2-Sided | 36 ppm (A4) / 37 ppm (Letter) |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement Technology | 1,200 × 1,200 dpi (eq.) |
| Warm up Time (From Power On) | 14 sec or less |
| First Print Out Time (FPOT) A4 | Approx. 5.7 sec |
| First Print Out Time (FPOT) Letter | Approx. 5.6 sec |
| Recovery Time (From Sleep Mode) | 4 sec or less |
| Print Language | UFR II, PCL 6, Adobe® PostScript® 3™ |
| Auto Duplex Print | Yes |
| Available Paper Size for Auto Duplex Print | A4, Letter, Legal, Indian Legal |
| Print Margins | 5mm - top, bottom, left and right (Envelope: 10mm) |
| Print Features | Poster, Booklet, Watermark, Page Composer, Toner Saver |
| Supported File Format for USB Direct Print | JPEG, TIFF, PDF |
Copy
| Copy Speed A4 | 43 ppm |
| Copy Speed Letter | 45 ppm |
| Copy Resolution | 600 x 600 dpi |
| First Copy Out Time (FCOT) A4 | 6.3 sec |
| First Copy Out Time (FCOT) Letter | 6.0 sec |
| Maximum Number of Copies | Up to 999 copies |
| Reduce/Enlargement | 25 - 400% in 1% increments |
| Copy Features | Erase Frame, Collate, N on 1, ID Card Copy, Passport Copy |
Scan
| Scan Resolution Optical | Platen glass: up to 600 x 600 dpi; Feeder: up to 300 x 300 dpi |
| Scan Resolution Driver Enhanced | Up to 9,600 x 9,600 dpi |
| Scan Type | Colour Contact Image Sensor |
| Maximum Scan Size Platen Glass | 215.9 x 355.6 mm |
| Maximum Scan Size Feeder | 215.9 x 355.6 mm |
| Scan Speed*1 | 1-Sided: 38 ipm (mono), 13 ipm (colour); 2-Sided: 70 ipm (mono), 26 ipm (colour) |
| Colour Depth | 24-bit |
| Pull Scan | Yes, USB and Network |
| Push Scan (Scan To PC) with MF Scan Utility | Yes, USB and Network |
| Scan To USB (via USB Host 2.0) | Yes |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
Send
| SEND Method | SMB, Email, FTP, iFAX Simple |
| Colour Mode | Full Color, Grayscale, Monochrome |
| Scan Resolution | 300 x 600 dpi |
| File Format | JPEG, TIFF, PDF, Compact PDF, PDF (OCR) |
Fax
| Modem Speed | Up to 33.6 Kbps |
| Fax Resolution | Up to 400 x 400 dpi |
| Compression Method | MH, MR, MMR, JBIG |
| Memory Capacity*2 | Up to 512 pages |
| Favourite Dials (in address book) | 19 dials |
| Speed Dial (Coded dials) | Up to 281 dials |
| Group dials / Destinations | Max. 299 dials / Max. 299 destinations |
| Duplex Fax (Transmission) | Yes |
| Sequential Broadcast | Max. 310 destinations |
| Receive Mode | Fax Only, Manual, Answering, Fax/Tel Auto Switch |
| Memory Backup | Permanent fax memory backup (Backup with flash memory) |
| Fax Features | Fax Forwarding, Dual Access, Remote Reception, PC Fax (Transmission only), DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports |
| Transmission Time | Approx. 2.6 sec |
Paper Handling
| Auto Document Feeder (ADF) | Duplex ADF: 50 sheets (80g/m2) |
| Available Paper Size for DADF | A4, B5, A5, A6, Letter, Legal, Statement (Min. 105 x 128 mm to Max. 215.9 x 355.6 mm) |
| Paper Input (based on 80g/m2) Standard Cassette | 550 sheets |
| Paper Input Multi-Purpose Tray | 100 sheets |
| Paper Input Optional Paper Feeder | 550 sheets x 3 |
| Maximum Paper Input Capacity | 2,300 sheets |
| Paper Output | 250 sheets |
| Paper Sizes Cassette | A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Custom (Min. 105.0 x 148.0 mm to Max. 216.0 x 355.6 mm). Note: The cassette may not fully close when loaded with paper longer than A4 size. |
| Paper Sizes Multi-Purpose Tray | A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Custom (Min. 76.2 x 127.0 mm to Max. 216.0 x 355.6 mm) |
| Paper Sizes Optional Paper Feeder | A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Custom (Min. 105.0 x 148.0 mm to Max. 216.0 x 355.6 mm) |
| Paper Types | Plain, Recycled, Coloured, Heavy, Label, Postcard, Envelope |
| Paper Weight ADF | 50 to 105 g/m2 |
| Paper Weight Cassette / Optional Paper Feeder | 60 to 120 g/m2 |
| Paper Weight Multi-Purpose Tray | 60 to 199 g/m2 |
Connectivity & Software
| Standard Interfaces Wired | USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T |
| Standard Interfaces Wireless | Wi-Fi 802.11b/g/n (Infrastructure mode, WPS easy Setup, Direct Connection) |
| Network Protocol Print | LPD, RAW, WSD-Print (IPv4,IPv6) |
| Network Protocol Scan | Email, SMB, WSD-Scan(IPv4, IPv6), FTP |
| Network Protocol TCP/IP Application Services | Bonjour(mDNS), HTTP, HTTPS, POP before SMTP (IPv4,IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6) |
| Network Protocol Management | SNMPv1, SNMPv3 (IPv4,IPv6) |
| Network Security Wired | IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSEC |
| Network Security Wireless | WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES) |
| One-Push Wireless Configuration | Wi-Fi Protected Setup (WPS) |
| Other Features | Department ID, Secure Print, Application Library |
| Mobile Solution | Canon PRINT Business, Canon Print Service, AirPrint®, Mopria® Print Service |
| Address Book | LDAP |
| Compatible Operating Systems*3 | Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008, Mac® OS X 10.9.5 & up*4, Linux*4 |
| Software Included | Printer driver, Fax driver, Scanner driver, MF Scan Utility, Toner Status |
General
| Device Memory | 1 GB |
| LCD Display | WVGA Colour LCD 5.0" Touch Screen Display |
| Dimensions (W x D x H) | 480 x 464 x 452 mm |
| Weight | 19.0 kg |
| Power Consumption Maximum | 1,420 W |
| Power Consumption Operation (Average) | Approx. 590 W |
| Power Consumption Standby (Average) | Approx. 13.6 W |
| Power Consumption Sleep (Average) | Approx. 0.9 W (USB/Wired/Wireless) |
| Noise Levels*5 Operation | Sound Pressure Level: 54 dB; Sound Power Level: 6.8 B |
| Noise Levels*5 Standby | Sound Pressure Level: 24 dB; Sound Power Level: 4.0 B |
| Operating Environment Temperature | 10 - 30°C |
| Operating Environment Humidity | 20% - 80% RH (no condensation) |
| Power Requirements | AC 220-240 V (±10%), 50/60 Hz (±2Hz) |
| Toner Cartridge*6 Standard | Cartridge 056: 10,000 pages (bundled: 5,100 pages) |
| Toner Cartridge*6 Low | Cartridge 056L: 5,100 pages |
| Toner Cartridge*6 High | Cartridge 056H: 21,000 pages |
| Monthly Duty Cycle*7 | 150,000 pages |
Optional Accessories
| Paper Feeder | Paper Feeder PF-C1 (550 sheets) |
| Barcode Printing | Barcode Printing Kit-E1 |
| Attachment kit for NT-Ware Mi-Card | Mi-Card Attachment Kit-B1 |
Footnotes
| *1 | Speed of scanning via the document feeder, A4 size, scan resolution 300 x 300 dpi. |
| *2 | Based on ITU-T #1 Chart ( standard mode). |
| *3 | ScanGear is not available for Windows Server 2003/2008/2012/2016/2019. |
| *4 | The latest drivers for Mac OS and Linux can be downloaded from the https://asia.canon website when available. Only the print function is supported for Linux. |
| *5 | Tested in accordance to ISO 7779 and declared per ISO 9296. |
| *6 | Toner cartridge yield is in accordance with ISO/IEC 19752. |
| *7 | Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Canon multi-function laser devices, and does not refer to actual maximum image output per month. |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the imageCLASS MF543x. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Scan Resolution Driver Enhanced | Up to 9,600 x 9,600 dpi |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
| Mobile Solution | Canon PRINT Business, Canon Print Service, AirPrint®, Mopria® Print Service |
| Compatible Operating Systems*3 | Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008, Mac® OS X 10.9.5 & up*4, Linux*4 |
| Software Included | Printer driver, Fax driver, Scanner driver, MF Scan Utility, Toner Status |
Package Contents & Ordering Information
Ordering Information
| Model | imageCLASS MF543x |
| Canon Product Code | 3513C005AA |
| Recommended Retail Price (incl. GST) | S$1,899.00 |
| Consumables | Cartridge 056: 10,000 pages (bundled: 5,100 pages); Cartridge 056L: 5,100 pages; Cartridge 056H: 21,000 pages (ISO/IEC 19752). sg.canon RRP: 056 SGD 342.00, 056H SGD 477.00, 056L SGD 222.00. Options: Paper Feeder PF-C1 (550 sheets), Barcode Printing Kit-E1, Mi-Card Attachment Kit-B1. |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — imageCLASS MF543x
What warranty does the imageCLASS MF543x come with?
3 Years Local Warranty from Canon Singapore: 3 years on-site warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the imageCLASS MF543x use?
Cartridge 056: 10,000 pages (bundled: 5,100 pages); Cartridge 056L: 5,100 pages; Cartridge 056H: 21,000 pages (ISO/IEC 19752). sg.canon RRP: 056 SGD 342.00, 056H SGD 477.00, 056L SGD 222.00. Options: Paper Feeder PF-C1 (550 sheets), Barcode Printing Kit-E1, Mi-Card Attachment Kit-B1. Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the imageCLASS MF543x?
Yes. Canon lists the following mobile and cloud printing support: MF Scan Utility; Canon PRINT Business, Canon Print Service, AirPrint®, Mopria® Print Service
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
