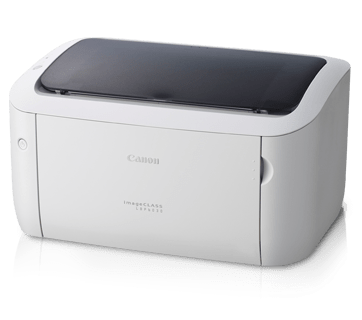

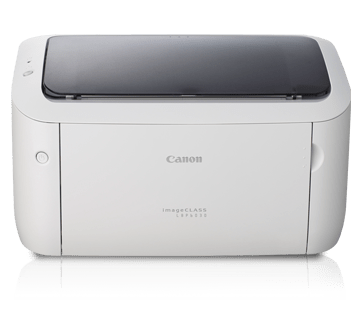

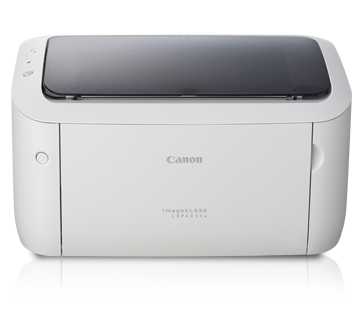

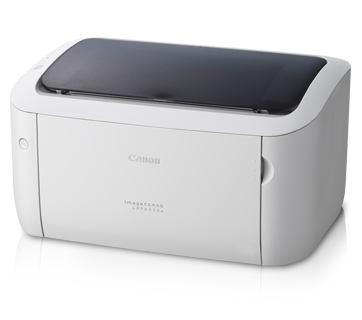

Canon imageCLASS LBP6030w Wireless Mono Laser Printer
PRODUCT DESCRIPTION
Canon imageCLASS LBP6030w Wireless Mono Laser Printer (8468B009) - 1 Year Local Warranty
The Canon imageCLASS LBP6030w is Canon's great performance with a small footprint. It has a rated print speed of Up to 18ppm, with Wi-Fi and USB connectivity.
Compact In Size
With its contemporary compact design, the LBP6030 and LBP6030w allow you to keep them on your desk at work or home office without taking up a whole lot of space, making it the perfect choice for home offices and small businesses.
Quick Prints
On-demand fixing technology transfers heat instantly to the fixing film, so printing can commence almost immediately with minimal warm-up time.
Dollar-Savvy, Earth-Friendly
The new LBP6030 series feature levels of energy efficiency that are among the highest in their class. With a Typical Electricity Consumption (TEC) value of 0.48kWh/week, these printers consume considerably less power in Sleep Mode, in turn saving operation costs while supporting eco-friendliness.
All-in-one Cartridge
An all-in-one toner cartridge (Cartridge 325) integrates the photosensitive drum, cleaning unit and toner reservoir in one compact package, minimising maintenance.
One-Touch Connect
The LBP6030w comes with wireless capabilities, via the WPS button located conveniently on the printer. Just one touch of the WPS button on the printer and router, a Wi-Fi connection is easily established for wireless printing.
Mobile Print
Via the Canon Mobile Printing App, you can print documents, images and web pages on the LBP6030w wirelessly anytime, increasing workforce productivity. Available for both iOS and Android devices.
Ideal For
Offices, workgroups, counters and back-office teams in Singapore that print black-and-white documents all day and want fast, reliable laser output. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
imageCLASS LBP6030w Datasheet — Technical Specifications
General
| Model | imageCLASS LBP6030w |
| Official Product Name | imageCLASS LBP6030w |
| Canon Product Code | 8468B009 |
| EAN / UPC | 4960999996646 |
| Brand | Canon |
| Warranty | 1 Year Local Warranty (Singapore) - 1 year carry-in warranty by Canon Singapore |
| Printing Method | Monochrome Laser Beam Printing |
| Print Speed (A4) | Up to 18ppm |
| Print Speed (Letter) | Up to 19ppm |
| Print Resolution | 600 x 600dpi |
| Print Quality with Image Refinement | 2400 (equivalent) x 600dpi |
| Warm-up Time | 10secs. or less |
| First Printout Time (FPOT) | Approx. 7.8secs. |
| Recovery Time (from Sleep Mode) | Approx. 1sec. |
| Print Language | UFR II LT |
Paper Handling
| Paper Input (Standard) | 150 sheets (based on 80g/m2) |
| Paper Output | 100 sheets (face down) (based on 80g/m2) |
| Paper Sizes | A4, B5, A5, Legal, Letter, Executive, 16K, Envelope COM10, Monarch, C5, DL; Custom: 76.2 - 215.9mm (W) x 188 - 355.6mm (L) |
| Paper Weight | 60 to 163g/m2 |
| Paper Types | Plain paper, Heavy Paper, Transparency, Label, Envelope |
Connectivity & Software
| Interface | USB 2.0 High Speed |
| Network Interface | Wireless LAN IEEE 802.11b/g/n (WPS Easy Set Up) |
| Network Protocol | Print: LPD, RAW, WSD-Print; Management: SNMPv1, SNMPv3, SLP; TCP/IP: WINS (IPv4), DHCP, BOOTP, RARP, DHCPv6 (IPv6), Auto IP, mDNS, DNS, DDNS |
| Network Security | WEP, WPA-PSK (TKIP/AES-CCMP), WPA2-PSK (TKIP/AES-CCMP) |
| Mobile Print | Canon Mobile Printing (iOS & Android) |
| Compatible OS | Windows 8.1 / 8 / 7 / Vista / XP, Windows Server 2012 / 2012 R2 / 2008 / 2008 R2 / 2003; Mac OS 10.6.x - 10.9; Linux; Citrix |
General
| Operation Panel | 3 LED Indicators, 3 Operation Keys |
| Device Memory | 32MB |
| Dimensions (W x D x H) | 364 x 249 x 199mm |
| Weight | Approx. 5.0kg (Without Cartridge) |
| Noise (Operation) | Sound power: 6.53B or less; Sound pressure: Approx. 49.3dB |
| Noise (Standby) | Inaudible |
| Maximum Power Consumption | 870W (spec page) / 840W or less (brochure) |
| Average Power Consumption (Operation) | Approx. 330W (spec page) / Approx. 320W (brochure) |
| Average Power Consumption (Standby) | 2.8W (Wireless) |
| Average Power Consumption (Sleep) | 1.6W (Wireless) |
| Typical Electricity Consumption (TEC) | 0.48kWh/week |
| Operating Temperature | 10 - 30°C |
| Operating Humidity | 20% to 80% RH (no condensation) |
| Power Requirement | 220 - 240V (±10%), 50/60Hz (±2Hz) |
Consumables & Usage
| Toner Cartridge 325 | 1,600 pages (Bundled: 700 pages) |
| Monthly Duty Cycle | Up to 5,000 pages |
| Recommended Monthly Print Volume | 200 - 800 pages |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the imageCLASS LBP6030w. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Interface | USB 2.0 High Speed |
| Mobile Print | Canon Mobile Printing (iOS & Android) |
| Compatible OS | Windows 8.1 / 8 / 7 / Vista / XP, Windows Server 2012 / 2012 R2 / 2008 / 2008 R2 / 2003; Mac OS 10.6.x - 10.9; Linux; Citrix |
Package Contents & Ordering Information
Ordering Information
| Model | imageCLASS LBP6030w |
| Canon Product Code | 8468B009 |
| EAN / UPC | 4960999996646 |
| Recommended Retail Price (incl. GST) | S$199.00 |
| Consumables | Cartridge 325 (all-in-one: drum + toner), ISO/IEC 19752 yield 1,600 pages (RRP SGD 112.00); bundled starter cartridge 700 pages. |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — imageCLASS LBP6030w
What warranty does the imageCLASS LBP6030w come with?
1 Year Local Warranty from Canon Singapore: 1 year carry-in warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the imageCLASS LBP6030w use?
Cartridge 325 (all-in-one: drum + toner), ISO/IEC 19752 yield 1,600 pages (RRP SGD 112.00); bundled starter cartridge 700 pages. Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the imageCLASS LBP6030w?
Yes. Canon lists the following mobile and cloud printing support: Canon Mobile Printing (iOS & Android)
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
