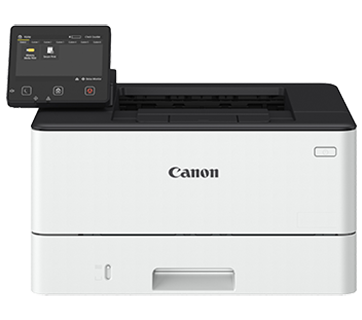

Canon imageCLASS LBP248x Wireless Duplex Mono Laser Printer
PRODUCT DESCRIPTION
Canon imageCLASS LBP248x Wireless Duplex Mono Laser Printer (5952C008AA) - 3 Years Local Warranty
The Canon imageCLASS LBP248x is Canon's maximise Productivity and Workflow Efficiency. It has a rated print speed of 40 ppm, with Wi-Fi, Ethernet and USB connectivity.
Intuitive Touchscreen Display
Navigate and configure the printer settings easily with the colour touchscreen display panel. Information can be displayed at a glance, facilitating easy device management.
Flexible Connectivity
Connect the printer to your office network wirelessly or utilise the printer's built-in Access Point Mode for direct connection to mobile devices without additional router.
Auto Duplex Printing
Do your part for the environment with automatic duplex printing. Print on both sides to eliminate paper waste while reducing carbon footprint and operating costs.
Expandable Paper Capacity
Expand paper handling capability up to 900 sheets by adding an optional paper feeder.
Minimal Maintenance
Canon's all-in-one toner cartridges provide hassle-free, low-maintenance operation. Standard and high yield option Cartridge 070 and Cartridge 070H are available to meet the different requirement in print volume.
Enhanced Data Security
Safeguard print data against tampering by encrypting communication data with the latest protocol, TLS 1.3. Monitor system integrity during startup with Verify System at Startup.
Support Multiple Printing Environments
In addition to Canon's proprietary UFR II print language, industry standard PCL6 and Adobe® PostScript® 3™ print languages are supported to ensure seamless integration with a wide range of business applications.
Ideal For
Offices, workgroups, counters and back-office teams in Singapore that print black-and-white documents all day and want fast, reliable laser output. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
imageCLASS LBP248x Datasheet — Technical Specifications
General
| Model | imageCLASS LBP248x |
| Official Product Name | imageCLASS LBP248x |
| Canon Product Code | 5952C008AA |
| EAN / UPC | 4549292226416 |
| Brand | Canon |
| Warranty | 3 Years Local Warranty (Singapore) - 3 years on-site warranty by Canon Singapore |
| Printing Method | Monochrome Laser Beam Printing |
| Print Speed (A4) | 40 ppm |
| Print Speed (Letter) | 42 ppm |
| Print Speed (2-Sided) | 33 ipm (A4) / 35 ipm (Letter) |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement Technology | 1,200 x 1,200 dpi (equivalent) |
| Warm-Up Time (From Power On) | 14 sec |
| First Print Out Time (FPOT) (Approx.) (A4) | 5 sec |
| Recovery Time (From Sleep Mode) | 4 sec or less |
| Print Language | UFR II, PCL 6, Adobe® PostScript® 3™ |
| Auto Duplex Print | Yes |
| Print Margins | Top/Bottom/Left/Right margin: 5 mm; Top/Bottom/Left/Right margin: 10 mm (Envelope) |
| Supported File Format for USB Direct Print | JPEG, TIFF, PDF |
Paper Handling
| Input Tray Capacity (Standard) | Cassette 250 sheets; Multi-Purpose Tray 100 sheets (Plain Paper, 80 g/m²) |
| Input Tray Capacity (Optional) | Paper Feeder 550 sheets |
| Input Tray Capacity (Maximum) | 900 sheets (Standard + 1 Paper Feeder) |
| Output Tray Capacity (Plain Paper, 80 g/m²) | 150 sheets |
| Media Size (Cassette / Paper Feeder) | A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Custom (min. 105 x 148 mm to max. 216 x 355.6 mm) |
| Media Size (Multi-Purpose Tray) | A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm) |
| Media Size (2-Sided Printing) | A4, Legal, Letter, Foolscap, Indian Legal, Custom (min. 210 x 279.4 mm to max. 216 x 355.6 mm) |
| Media Type | Plain Paper, Recycled Paper, Label, Postcard, Envelope |
| Media Weight (Cassette / Paper Feeder) | 60 - 120 g/m² |
| Media Weight (Multi-Purpose Tray) | 60 - 199 g/m² |
Connectivity & Software
| Standard Interfaces (Wired) | USB 2.0, 10Base-T/100Base-TX/1000Base-T |
| Standard Interfaces (Wireless) | Wi-Fi 802.11b/g/n (Infrastructure Mode, WPS, Direct Connection) |
| Network Protocol (Print) | LPD, RAW, WSD-Print (IPv4, IPv6) |
| Network Security (Wired) | IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3 |
| Network Security (Wireless) | Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES); Access Point Mode: WPA2-PSK (AES) |
| Mobile/Cloud Printing Solutions | Canon PRINT Business, Canon Print Service (Android), AirPrint®, Mopria® Print Service, Microsoft Universal Print |
| Operating System Compatibility | Windows 10/11, Windows Server 2012/2012 R2/2016/2019/2022, macOS 10.13 or later, Linux, Chrome OS |
| Other Features | Department ID, Secure Print, Application Library |
| Software Included | Printer Driver, Toner Status |
General
| Device Memory | 1 GB |
| Display | 5" Colour Touchscreen LCD |
| Power Requirements | AC 220 - 240 V, 50/60 Hz |
| Power Consumption (Approx.) (Operation) | 480 W (max. 1,250 W) |
| Power Consumption (Standby) | 6 W |
| Power Consumption (Sleep) | 0.9 W |
| Operating Temperature | 10 - 30°C |
| Operating Humidity | 20 - 80% RH (no condensation) |
| Monthly Duty Cycle | 80,000 pages |
| Dimensions (W x D x H) (Approx.) | 438 x 373 x 312 mm |
| Weight (Approx.) | 9.1 kg |
Consumables
| Toner Cartridge (Standard) Cartridge 070 | 3,000 pages (Bundled: 3,000 pages) |
| Toner Cartridge (High) Cartridge 070H | 10,200 pages |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the imageCLASS LBP248x. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Mobile/Cloud Printing Solutions | Canon PRINT Business, Canon Print Service (Android), AirPrint®, Mopria® Print Service, Microsoft Universal Print |
| Operating System Compatibility | Windows 10/11, Windows Server 2012/2012 R2/2016/2019/2022, macOS 10.13 or later, Linux, Chrome OS |
| Software Included | Printer Driver, Toner Status |
Package Contents & Ordering Information
Ordering Information
| Model | imageCLASS LBP248x |
| Canon Product Code | 5952C008AA |
| EAN / UPC | 4549292226416 |
| Recommended Retail Price (incl. GST) | S$859.00 |
| Consumables | Cartridge 070 Black (ISO/IEC 19752, 3,000 pages, RRP SGD 189.00); Cartridge 070H Black (ISO/IEC 19752, 10,200 pages, RRP SGD 352.00); bundled cartridge 3,000 pages. Optional Paper Feeder (550 sheets). |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — imageCLASS LBP248x
What warranty does the imageCLASS LBP248x come with?
3 Years Local Warranty from Canon Singapore: 3 years on-site warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the imageCLASS LBP248x use?
Cartridge 070 Black (ISO/IEC 19752, 3,000 pages, RRP SGD 189.00); Cartridge 070H Black (ISO/IEC 19752, 10,200 pages, RRP SGD 352.00); bundled cartridge 3,000 pages. Optional Paper Feeder (550 sheets). Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the imageCLASS LBP248x?
Yes. Canon lists the following mobile and cloud printing support: Canon PRINT Business, Canon Print Service (Android), AirPrint®, Mopria® Print Service, Microsoft Universal Print
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
