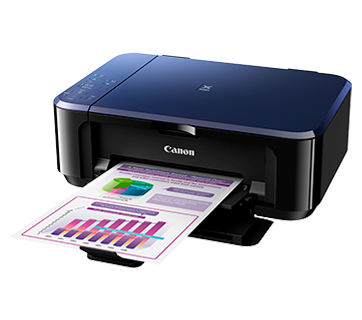

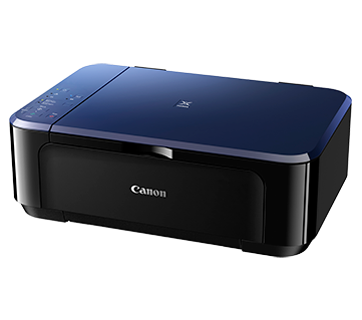

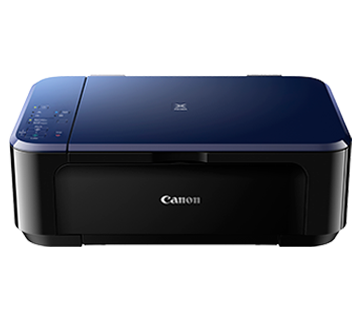

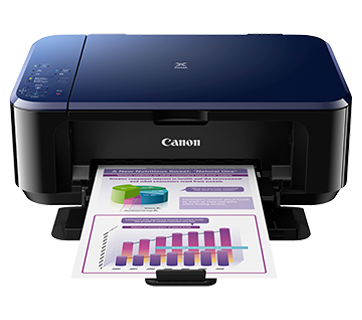

Canon PIXMA E560 Ink Efficient Wireless All-in-One Printer - Blue
PRODUCT DESCRIPTION
Canon PIXMA E560 Ink Efficient Wireless All-in-One Printer - Blue (PIXMA E560 / E560R) - 2 Years Local Warranty
The Canon PIXMA E560 / E560R is Canon's advanced Wireless All-In-One with Auto Duplex Printing for Low-Cost Printing. It has a rated print speed of Approx. 9.9 / 5.7 ipm (Mono/Colour), with Wi-Fi and USB connectivity.
Low Cost Cartridges
Affordable ink cartridges for high quality printing.
Mobile and Cloud Printing
Experience the freedom to print from social media and scan to cloud storage services via Canon PRINT app.
Wireless Connectivity
Print, scan, and perform printer operations with ease, without the need to be tethered to a PC via USB.
Auto-Duplex Printing
Save on time and resources by printing on both sides of the paper automatically.
Auto Power ON/OFF
Auto Power ON detects a print command and will automatically switch the printer on with a USB connection and automatically switches off after a specific timing.
Key Highlights
- Print, Scan, Copy
- Print Speed (A4, ISO): Up to 9.9 / 5.7 ipm (Mono/Colour)
- Auto 2-sided Printing
- Wi-Fi
- Mobile Printing
- Borderless Printing Up to A4
- Black ink @ $23 (800 pages)
- Colour ink @ $28 (300 pages)
- Recommended Monthly Print Volume: 80 - 300 pages
Ideal For
Homes, students and home offices in Singapore that want an affordable, compact printer for everyday documents, school work and photos. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
PIXMA E560 / E560R Datasheet — Technical Specifications
General
| Model | PIXMA E560 / E560R |
| Official Product Name | PIXMA E560 / E560R |
| EAN / UPC | 4960999999647 |
| Colour | Blue |
| Brand | Canon |
| Warranty | 2 Years Local Warranty (Singapore) - 2 years carry-in warranty by Canon Singapore |
| Number of Nozzles | Total 1,792 nozzles |
| Ink Cartridges (Type/Colours) | PG-89 (Pigment Ink/Black), CL-99 (Dye-based Ink/Colour) |
| Maximum Print Resolution | 4,800 (horizontal) x 1,200 (vertical) dpi |
| Print Speed - Document (ESAT/Simplex) | Approx. 9.9 / 5.7 ipm (Mono/Colour) |
| Print Speed - Photo (4 x 6") (PP-201/Borderless) | Approx. 44 sec |
| Print Width | Up to 203.2 mm (8"); Borderless: up to 216 mm (8.5") |
| Recommended Printing Area | Top margin: 32.5 mm; Bottom margin: 33.5 mm |
Scan
| Scanner Type | Flatbed (Platen) |
| Scanner Technology | Contact Image Sensor (CIS) |
| Optical Resolution | 1,200 x 2,400 dpi |
| Scanning Bit Depth (Input/Output) - Greyscale | 16 bit / 8 bit |
| Scanning Bit Depth (Input/Output) - Colour | 48 bit / 24 bit (RGB each 16 bit / 8 bit) |
| Maximum Document Size | Flatbed: A4, LTR (216 x 297 mm) |
Copy
| Copy Speed - Document (Colour) (sFCOT/Simplex) / (sESAT/Simplex) | Approx. 25 sec / 2.5 ipm |
| Maximum Copies | 21 pages |
| Maximum Document Size | A4, LTR |
Paper Handling
| Print Margin - Borderless Printing | Top/Bottom/Left/Right margin: 0 mm |
| Print Margin - Bordered LTR/LGL | Left margin: 6.4 mm, Right margin: 6.3 mm |
| Print Margin - Bordered Others | Top margin: 3 mm, Bottom margin: 5 mm, Left/Right margin: 3.4 mm |
| Print Margin - Bordered Auto 2-sided LTR/LGL | Top/Bottom: 5 mm, Left margin: 6.4 mm, Right margin: 6.3 mm |
| Print Margin - Bordered Auto 2-sided Others | Top/Bottom: 5 mm, Left/Right: 3.4 mm |
| Supported Media - Front Tray | Plain Paper (64 - 105 g/m²), High Resolution Paper (HR-101N), Photo Paper Plus Glossy II (PP-201, PP-208), Photo Paper Pro Platinum (PT-101), Photo Paper Pro Luster (LU-101), Photo Paper Plus Semi-Gloss (SG-201), Matte Photo Paper (MP-101), Envelope |
| Paper Size - Front Tray | A4, A5, B5, LTR, LGL, Envelope (COM10, DL), 4 x 6", 5 x 7", 8 x 10" |
| Paper Size - Custom Size | Width: 89 - 215.9 mm, Length: 127 - 676 mm |
| Paper Size - Borderless Printing | A4, LTR, 4 x 6", 5 x 7", 8 x 10" |
| Paper Size - Auto 2-sided Printing (Plain Paper only) | A4, A5, B5, LTR |
| Maximum Capacity - Plain Paper 64 g/m² (A4, A5, B5, LTR / LGL) | 100 / 10 |
| Maximum Capacity - High Resolution Paper (HR-101N, A4) | 80 |
| Maximum Capacity - Photo Paper Pro Platinum (PT-101, 4 x 6" / A4) | 20 / 10 |
| Maximum Capacity - Photo Paper Plus Glossy II (PP-201, PP-208, 4 x 6" / A4) | 20 / 10 |
| Maximum Capacity - Photo Paper Plus Semi-Gloss (SG-201, 4 x 6" / A4) | 20 / 10 |
| Maximum Capacity - Matte Photo Paper (MP-101, 4 x 6" / A4) | 20 / 10 |
| Maximum Capacity - Envelope (COM10, DL) | 5 |
| Paper Weight - Plain Paper | 64 - 105 g/m² |
| Paper Weight - Canon Paper | Approx. 300 g/m² max. (Photo Paper Pro Platinum, PT-101) |
Network
| Protocol | TCP/IP |
| Wireless LAN - Type | IEEE802.11b/g/n, 2.4 GHz, Supported Channels: 1 - 13 (TW/HK: 1 - 11 only) |
| Wireless LAN - Security | WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) |
Printing Solutions
| Canon Printing Apps - Mobile | Canon PRINT |
System Requirements
| OS System Compatibility | Windows 8 / 7 / XP / Vista, Mac OS X 10.6.8 or later |
General
| Interface | USB 2.0 |
| Operating Environment | Temperature: 5 - 35°C; Humidity: 10 - 90% RH (no dew condensation) |
| Recommended Environment | Temperature: 15 - 30°C; Humidity: 10 - 80% RH (no dew condensation) |
| Storage Environment | Temperature: 0 - 40°C; Humidity: 5 - 95% RH (no dew condensation) |
| Acoustic Noise (PC Print) - Photo (4 x 6") | 42.5 dB(A) |
| Power Requirements | AC 100 - 240 V, 50/60 Hz |
| Power Consumption | OFF: approx. 0.3 W; Standby: approx. 1.7 W; Operation: approx. 16 W |
| Dimensions (W x D x H) | 449 x 304 x 152 mm |
| Weight | 5.4 kg |
Page Yield
| Plain Paper A4 Colour Documents | PG-89: 800 pages; CL-99: 300 pages |
| Photo Paper (PP-201) 4 x 6" Photos | PG-89: 6540 sheets; CL-99: 114 sheets |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the PIXMA E560 / E560R. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Wireless LAN - Type | IEEE802.11b/g/n, 2.4 GHz, Supported Channels: 1 - 13 (TW/HK: 1 - 11 only) |
| Canon Printing Apps - Mobile | Canon PRINT |
| OS System Compatibility | Windows 8 / 7 / XP / Vista, Mac OS X 10.6.8 or later |
| Interface | USB 2.0 |
Package Contents & Ordering Information
Ordering Information
| Model | PIXMA E560 / E560R |
| EAN / UPC | 4960999999647 |
| Colour | Blue |
| Recommended Retail Price (incl. GST) | S$189.00 |
| Consumables | PG-89 PGBK (Pigment Black) - 800 pages (RRP SGD 23.00); CL-99 (Colour, dye) - 300 pages (RRP SGD 28.00) |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — PIXMA E560 / E560R
What warranty does the PIXMA E560 / E560R come with?
2 Years Local Warranty from Canon Singapore: 2 years carry-in warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the PIXMA E560 / E560R use?
PG-89 PGBK (Pigment Black) - 800 pages (RRP SGD 23.00); CL-99 (Colour, dye) - 300 pages (RRP SGD 28.00) Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the PIXMA E560 / E560R?
Yes. Canon lists the following mobile and cloud printing support: Canon PRINT
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
