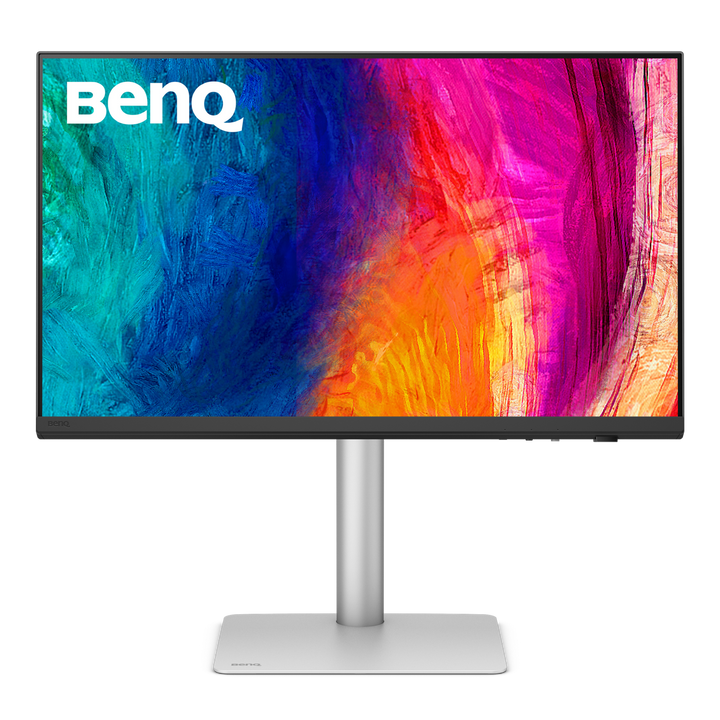

BenQ PD2730S 27" 5K Thunderbolt 4 Designer Monitor
PRODUCT DESCRIPTION
BenQ PD2730S 27" 5K Thunderbolt 4 Designer Monitor (PD2730S) - 3 Year Local Warranty
Delta E ≤ 2 With a Calibration Report, Across sRGB, Rec.709 and P3
The PD2730S is a DesignVue monitor, so colour accuracy leads the specification. Average Delta E is rated at 2 or lower and each unit ships with its own factory calibration report, which is the difference between a panel that claims accuracy and one that has been measured. Coverage runs to 100% sRGB, 100% Rec.709 and 98% Display P3 over 1.07 billion colours — enough for a design to move between web delivery, broadcast and Apple-device viewing without changing character.
5K Resolution at 218 PPI on a 27-Inch Panel
At 5120 x 2880 the PD2730S puts 218 pixels per inch on a 27-inch screen. Type renders with the crispness a Retina MacBook gives, vector edges stop showing their stair-steps at working zoom, and a 4K timeline fits on screen with room around it for tool palettes. For UI design, print layout and retouching — work judged at 100% — the extra pixels do more for the result than a larger 4K panel would.
2000:1 Native Contrast and DisplayHDR 400
Native contrast is 2000:1, roughly double the usual IPS figure, at 400 nits with HDR10 and VESA DisplayHDR 400 certification. Dark interface panels, shadow areas in product photography and graded footage keep their separation instead of collapsing into a single grey. The Nano Matte coating diffuses ceiling lighting without the sparkle coarser anti-glare finishes add to fine type, which keeps the panel usable on a bright open-plan floor.
Thunderbolt 4 Docking, Hotkey Puck G3 and a 150 mm Stand
One Thunderbolt 4 cable carries 5K video, 40 Gbps of data and 90W of charging to a MacBook Pro or a Thunderbolt Windows laptop, with a downstream Thunderbolt port for daisy-chaining and HDMI 2.1 and DisplayPort 1.4 inputs for a workstation. The supplied Hotkey Puck G3 switches colour modes from the desk. The stand travels 150 mm, swivels 30 degrees each way and pivots 90 degrees, with VESA 100 x 100 mm mounting for arms.
BenQ PD2730S Datasheet — Technical Specifications
General
| Product | BenQ PD2730S 27" 5K Thunderbolt 4 Designer Monitor |
| Part Number (SKU) | PD2730S |
| Series | BenQ DesignVue PD Series |
| Panel Type | IPS, LED backlight |
| Panel Finish | Nano Matte |
| Local Warranty (Singapore) | 3 Year Local Warranty — supplied by SourceIT with GST invoice |
Colour & Calibration
| Colour Gamut | 100% sRGB, 100% Rec.709, 98% Display P3 |
| Delta E (avg.) | ≤ 2 |
| Calibration Report | Included with each unit |
| Display Colours | 1.07 billion colours |
Display
| Screen Size | 27 inch, 16:9 |
| Resolution (max.) | 5120 x 2880 (5K) |
| Pixel Density | 218 PPI |
| Brightness (typ.) | 400 nits |
| Native Contrast | 2000:1 |
| Response Time (GtG) | 5 ms |
| Refresh Rate | 60 Hz |
| HDR | HDR10, VESA DisplayHDR 400 |
Audio
| Built-in Speakers | 3W x 2 |
| Headphone Jack | Yes |
Connectivity

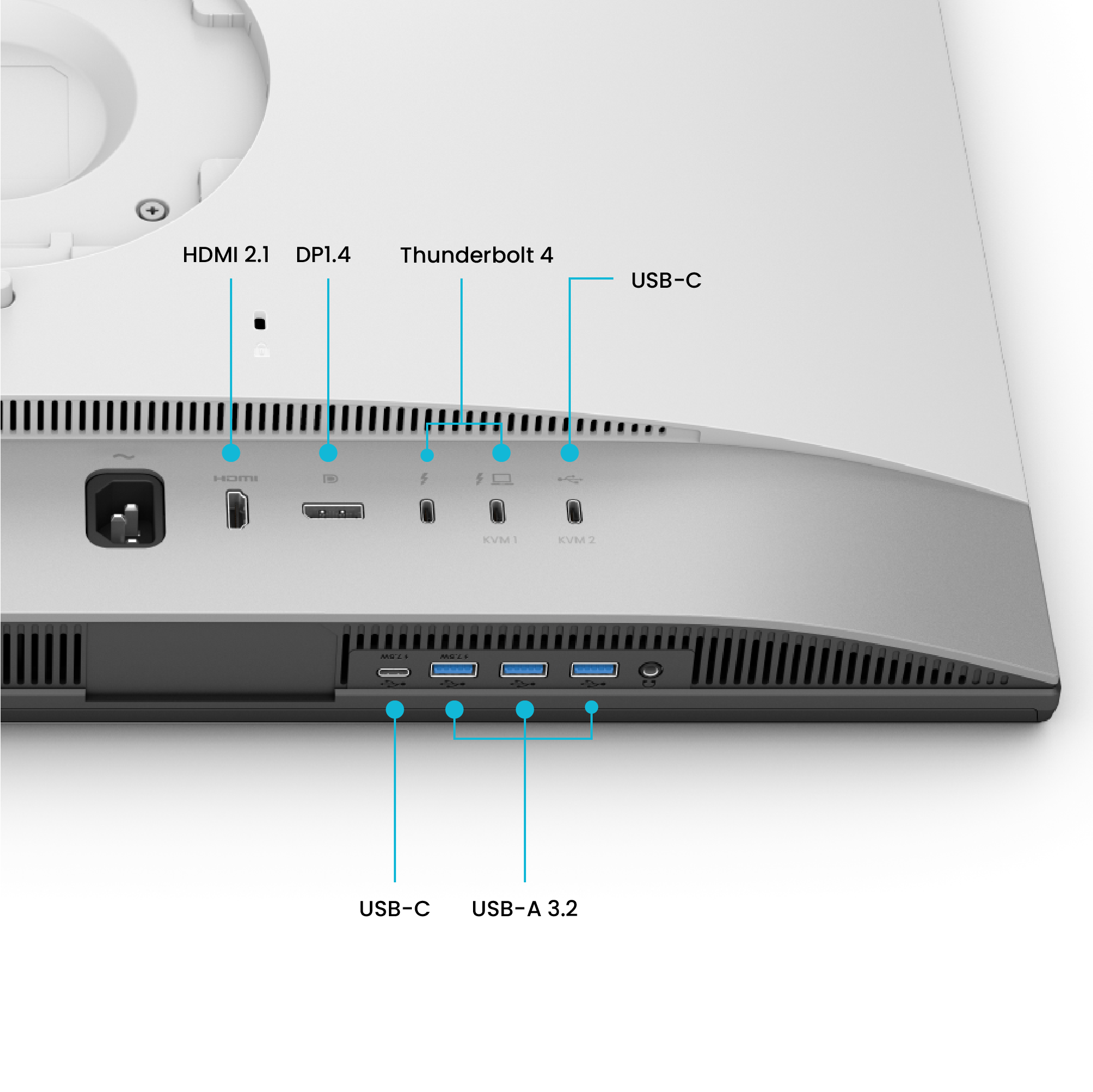

| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 1 x DisplayPort 1.4 |
| Thunderbolt 4 (upstream) | 1 x Thunderbolt 4 — 90W Power Delivery, DisplayPort Alt Mode, data |
| Thunderbolt 4 (downstream) | 1 x Thunderbolt 4 out — daisy-chain |
Ergonomics & Physical
| Height Adjustment | 150 mm |
| Tilt (down/up) | -5° to 20° |
| Swivel (left/right) | 30° / 30° |
| Pivot | 90° |
| VESA Wall Mount | 100 x 100 mm |
| Dimensions (H x W x D) | 427.58-577.58 x 614 x 242.07 mm |
| Net Weight | 8.3 kg |
Power
| Power Consumption (normal) | 40 W |
| Power Delivery to Host | 90 W over Thunderbolt 4 |
Specifications are taken from BenQ's published product data for this model. Where BenQ does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
What it connects to
The Thunderbolt 4 port docks a MacBook Pro, Mac mini, Mac Studio or Thunderbolt Windows laptop with one cable for 5K video, 40 Gbps data and 90W of charging. HDMI 2.1 and DisplayPort 1.4 inputs take a desktop workstation or a second machine. Driving 5120 x 2880 is a Thunderbolt or DisplayPort task, so use those inputs where full resolution matters.
Daisy-chaining
A downstream Thunderbolt 4 port carries a second display or Thunderbolt storage from the same host connection.
Colour management workflow
Every unit ships with a calibration report and is rated to an average Delta E of 2 or lower across 100% sRGB, 100% Rec.709 and 98% Display P3. The supplied Hotkey Puck G3 switches colour modes without going into the on-screen menu.
Mounting and orientation

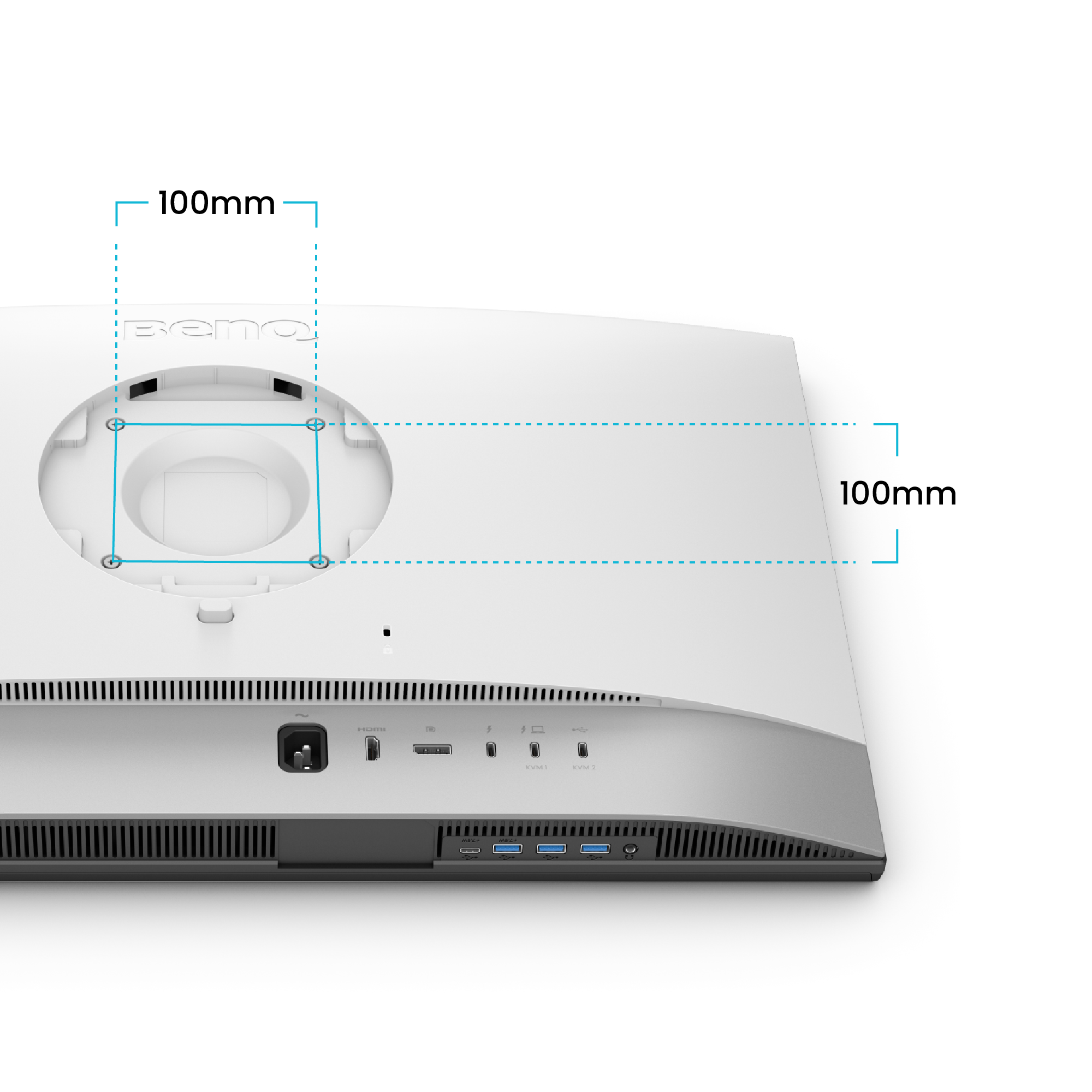

150 mm of height travel, -5° to 20° tilt, 30° swivel each way and a 90° pivot for portrait layout work. VESA 100 x 100 mm mounting is provided for arms and wall brackets.
Elsewhere in the range
For a larger 4K panel at 144 Hz, see the PD3226G; for 16-bit 3D LUT colour management work, the PD2770U; for a lower-cost 27-inch 4K designer panel, the PD2706U.
Package Contents & BenQ DesignVue PD Range
In the box
- BenQ PD2730S monitor with stand
- DisplayPort 1.4, HDMI (v2.1) and Thunderbolt 4 (1 m) signal cables (may vary by region)
- Power cable
- Hotkey Puck G3
- Calibration Report
- Quick Start Guide, Warranty Card and Safety Instruction
Package contents follow BenQ's product data for this model; items not listed by BenQ are not claimed here.
BenQ DesignVue PD range at SourceIT
| Model | Size & Description |
| PD2705U | 27", 4K HDR |
| PD2705UA | 27", 4K HDR with Ergo Stand |
| PD2706U | 27", 4K UHD USB-C designer monitor |
| PD2706UA | 27", 4K creative monitor with Ergo Stand |
| PD2725U | 27", 4K HDR IPS |
| PD2730S (this listing) | 27", 5K Thunderbolt 4, 98% P3 |
| PD2770U | 27", 4K colour management, 16-bit 3D LUT |
| PD3205U | 31.5", 4K HDR |
| PD3205UA | 31.5", 4K HDR with Ergo Stand |
| PD3225U | 32", 4K IPS Black Thunderbolt |
| PD3226G | 31.5", 4K UHD 144 Hz Thunderbolt 4 |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the PD2730S on request with a quotation.
Frequently Asked Questions — BenQ PD2730S
What does Delta E ≤ 2 mean for design sign-off?
Delta E is the measured gap between the colour a file specifies and the colour the panel displays. An average of 2 or lower sits at the limit of what most people can distinguish side by side, so a client approval on screen is meaningful. Each PD2730S ships with its own calibration report recording the measurement for that unit.
Why 5K rather than 4K?
At 27 inches, 5K gives 218 PPI against 163 PPI for 4K. Type, vector edges and fine retouching detail are visibly cleaner, and macOS maps 5K to its default scaling exactly. If you want more desktop area rather than more density, a 31.5-inch 4K panel such as the PD3226G is the alternative.
Which colour spaces does it cover?
100% sRGB, 100% Rec.709 and 98% Display P3 — web, broadcast and Apple-device delivery respectively, on one panel.
Will one Thunderbolt cable run and charge my laptop?
Yes. The Thunderbolt 4 upstream port carries 5K video, 40 Gbps data and 90W of Power Delivery. A downstream Thunderbolt 4 port is provided for daisy-chaining a second display or a Thunderbolt drive.
Is 2000:1 contrast meaningful on an IPS panel?
Yes — it is roughly double the typical IPS figure. In practice dark UI panels, shadow detail in product shots and graded footage hold their separation rather than flattening to grey, which is what designers notice first when moving from an ordinary IPS screen.
What is the Hotkey Puck G3?
A desk controller supplied in the box for switching colour modes and adjusting settings without navigating the on-screen menu — useful when you check the same file in sRGB, Rec.709 and P3 repeatedly.
Can I mount it on an arm or use it in portrait?
Yes. The stand pivots 90°, swivels 30° each way and travels 150 mm in height; the rear carries a VESA 100 x 100 mm pattern.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every BenQ PD2730S sold by SourceIT carries the 3 year BenQ Singapore local warranty on monitors, and a GST invoice is issued with every unit.
