BenQ PD2706U 27" 4K UHD USB-C Designer Monitor
PRODUCT DESCRIPTION
BenQ PD2706U 27" 4K UHD USB-C Designer Monitor (PD2706U) - 3 Year Local Warranty
Factory-Calibrated Colour for Everyday Design Work
The PD2706U is the DesignVue panel for studios that need dependable colour on every desk rather than reference-grade colour on one. Average Delta E is rated at 3 or lower and each unit ships with its own factory calibration report, so a layout approved on one machine looks the same on the next. Coverage runs to 99% sRGB, 99% Rec.709 and 95% Display P3 over 1.07 billion colours — the spaces web, broadcast and Apple-device delivery are judged in.
4K UHD at 163 PPI on 27 Inches
3840 x 2160 on a 27-inch panel gives 163 pixels per inch, so type, vector edges and UI mock-ups stay clean at working zoom and a full artboard fits on screen beside its layer stack. HDR10 and VESA DisplayHDR 400 support are provided for reviewing HDR content, with 350 nits of brightness and 1200:1 native contrast for standard-dynamic-range work. DualView shows two colour modes side by side when a deliverable has to be checked against its master.
90W USB-C Docking Plus DisplayPort and HDMI
One USB-C cable carries 4K video, USB data and 90W of Power Delivery, so a MacBook Pro or Windows ultrabook runs and charges from the monitor. DisplayPort 1.4 and an HDMI input take a desktop workstation or a second machine, and a downstream USB-C port serves peripherals. For an agency or in-house team that hot-desks, single-cable docking cuts the setup at each seat to one connector.
Hotkey Puck G2, Ergonomic Stand and Eye Care

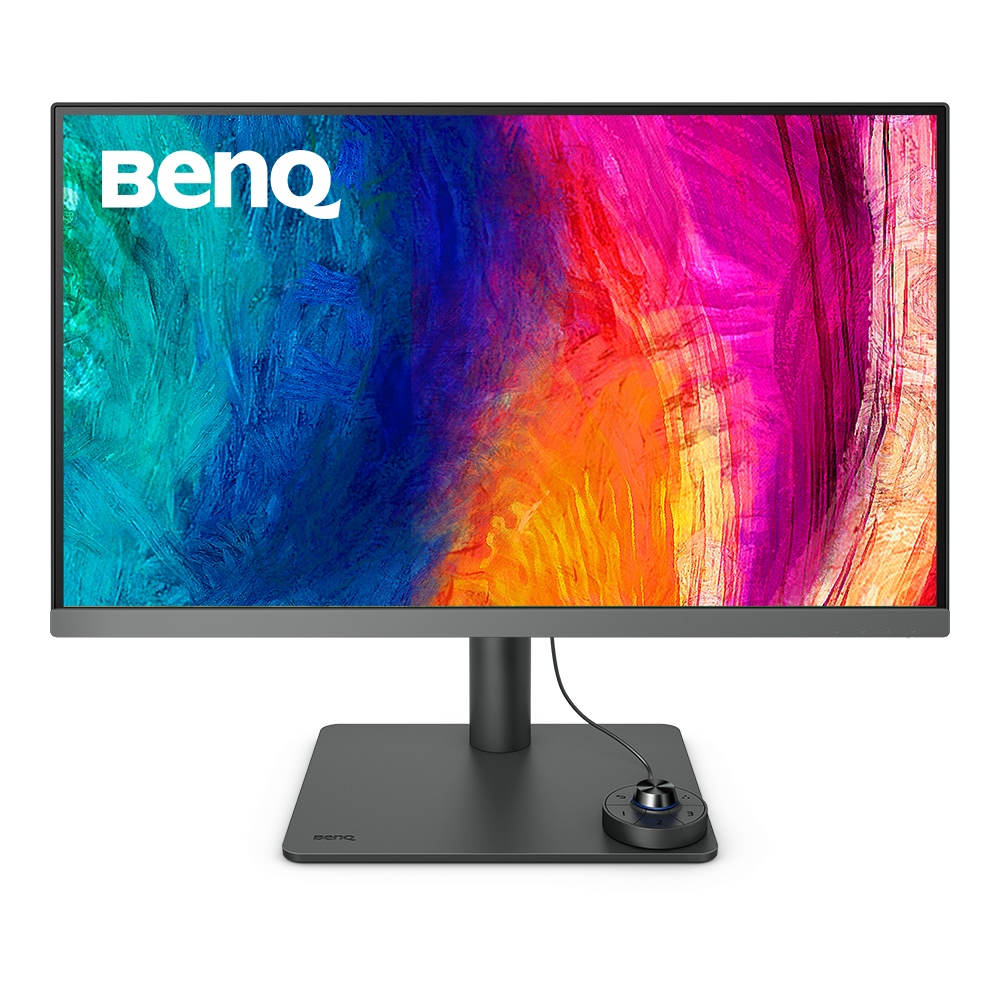

The supplied Hotkey Puck G2 switches colour modes and settings from the desk instead of through an on-screen menu. The stand offers 110 mm of height adjustment, tilt, 15 degrees of swivel each way and a 90-degree pivot for portrait layout and code review, with VESA 100 x 100 mm mounting for arms. Built-in 2.5W speakers and a headphone jack cover calls and rough audio checks without another box on the desk.
BenQ PD2706U Datasheet — Technical Specifications
General
| Product | BenQ PD2706U 27" 4K UHD USB-C Designer Monitor |
| Part Number (SKU) | PD2706U |
| Series | BenQ DesignVue PD Series |
| Panel Type | IPS, LED backlight |
| Local Warranty (Singapore) | 3 Year Local Warranty — supplied by SourceIT with GST invoice |
Colour & Calibration
| Colour Gamut | 99% sRGB, 99% Rec.709, 95% Display P3 |
| Delta E (avg.) | ≤ 3 |
| Calibration Report | Included with each unit |
| Display Colours | 1.07 billion colours |
Display
| Screen Size | 27 inch, 16:9 |
| Resolution (max.) | 3840 x 2160 (4K UHD) |
| Pixel Density | 163 PPI |
| Brightness (typ.) | 350 nits |
| Native Contrast | 1200:1 |
| Response Time (GtG) | 5 ms |
| Refresh Rate | 60 Hz |
| HDR | HDR10, VESA DisplayHDR 400 |
Audio
| Built-in Speakers | 2.5W x 2 |
| Headphone Jack | Yes |
Connectivity
| HDMI | 1 x HDMI 2.0 |
| DisplayPort | 1 x DisplayPort 1.4 |
| USB-C (upstream) | 1 x USB-C — 90W Power Delivery, DisplayPort Alt Mode, data |
| USB-C (downstream) | 1 x USB-C |
Ergonomics & Physical
| Height Adjustment | 110 mm |
| Tilt (down/up) | -5° to 20° |
| Swivel (left/right) | 15° / 15° |
| Pivot | 90° |
| VESA Wall Mount | 100 x 100 mm |
| Dimensions (H x W x D) | 450.9-560.9 x 613.8 x 238.3 mm |
| Net Weight | 8.3 kg |
Power
| Power Consumption (normal) | 45 W |
| Power Delivery to Host | 90 W over USB-C |
Specifications are taken from BenQ's published product data for this model. Where BenQ does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
What it connects to
The USB-C upstream port docks a MacBook Pro, MacBook Air or a Windows laptop with DisplayPort Alt Mode, carrying 4K video, USB data and 90W of charging on one cable. DisplayPort 1.4 and an HDMI 2.0 input take a desktop workstation or a second machine, and a downstream USB-C port serves peripherals.
Colour management workflow
Each unit ships with a factory calibration report and is rated to an average Delta E of 3 or lower over 99% sRGB, 99% Rec.709 and 95% Display P3. The supplied Hotkey Puck G2 switches colour modes from the desk, and DualView shows two modes side by side for comparison.
Mounting and orientation
110 mm of height travel, -5° to 20° tilt, 15° swivel each way and a 90° pivot into portrait. A VESA 100 x 100 mm pattern is provided for arms and wall brackets.
Elsewhere in the range
For colour-critical grading and prepress, see the PD2770U; for 5K density, the PD2730S; for the same panel on an ergonomic arm stand, the PD2706UA.
Package Contents & BenQ DesignVue PD Range
In the box
- BenQ PD2706U monitor with stand
- DisplayPort, HDMI, USB 3.0 and USB-C signal cables (may vary by region)
- Power cable
- Hotkey Puck G2
- IO cover
- Calibration Report
- Quick Start Guide, Warranty Card and Safety Instruction
Package contents follow BenQ's product data for this model; items not listed by BenQ are not claimed here.
BenQ DesignVue PD range at SourceIT
| Model | Size & Description |
| PD2705U | 27", 4K HDR |
| PD2705UA | 27", 4K HDR with Ergo Stand |
| PD2706U (this listing) | 27", 4K UHD, 90W USB-C |
| PD2706UA | 27", 4K creative monitor with Ergo Stand |
| PD2725U | 27", 4K HDR IPS |
| PD2730S | 27", 5K Thunderbolt 4 |
| PD2770U | 27", 4K colour management, 16-bit 3D LUT |
| PD3205U | 31.5", 4K HDR |
| PD3205UA | 31.5", 4K HDR with Ergo Stand |
| PD3225U | 32", 4K IPS Black Thunderbolt |
| PD3226G | 31.5", 4K UHD 144 Hz Thunderbolt 4 |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the PD2706U on request with a quotation.
Frequently Asked Questions — BenQ PD2706U
What does Delta E ≤ 3 mean, and is it enough?
Delta E is the measured difference between the colour a file asks for and the colour shown. An average of 3 or lower is accurate enough for layout, UI and general design work where colour must be consistent across a team. For grading, prepress or print proofing, step up to the PD2770U at Delta E ≤ 1.5 with a 16-bit 3D LUT.
Which colour spaces does it cover?
99% sRGB, 99% Rec.709 and 95% Display P3 — web, broadcast and Apple-device delivery. Each unit ships with its own factory calibration report.
Will one USB-C cable charge my laptop?
Yes. The USB-C upstream port supplies 90W of Power Delivery with 4K video and USB data on the same cable, which suits a MacBook Air, a 14-inch MacBook Pro or most Windows ultrabooks.
What is the difference between the PD2706U and the PD2706UA?
The PD2706UA is the same class of panel supplied with BenQ's ergonomic arm stand rather than the standard base. Choose the UA where desk space is tight or the screen has to be swung between two people.
What is the Hotkey Puck G2?
A small desk controller supplied in the box that switches colour modes and adjusts settings without opening the on-screen menu — useful when a file is checked repeatedly in more than one colour space.
Does it have speakers?
Yes, 2.5W x 2 built-in speakers plus a headphone jack, which covers conference calls and rough audio checks.
Can I use it in portrait or on an arm?
Yes. The stand pivots 90° and adjusts 110 mm in height, and the rear carries a VESA 100 x 100 mm pattern.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every BenQ PD2706U sold by SourceIT carries the 3 year BenQ Singapore local warranty on monitors, and a GST invoice is issued with every unit.
