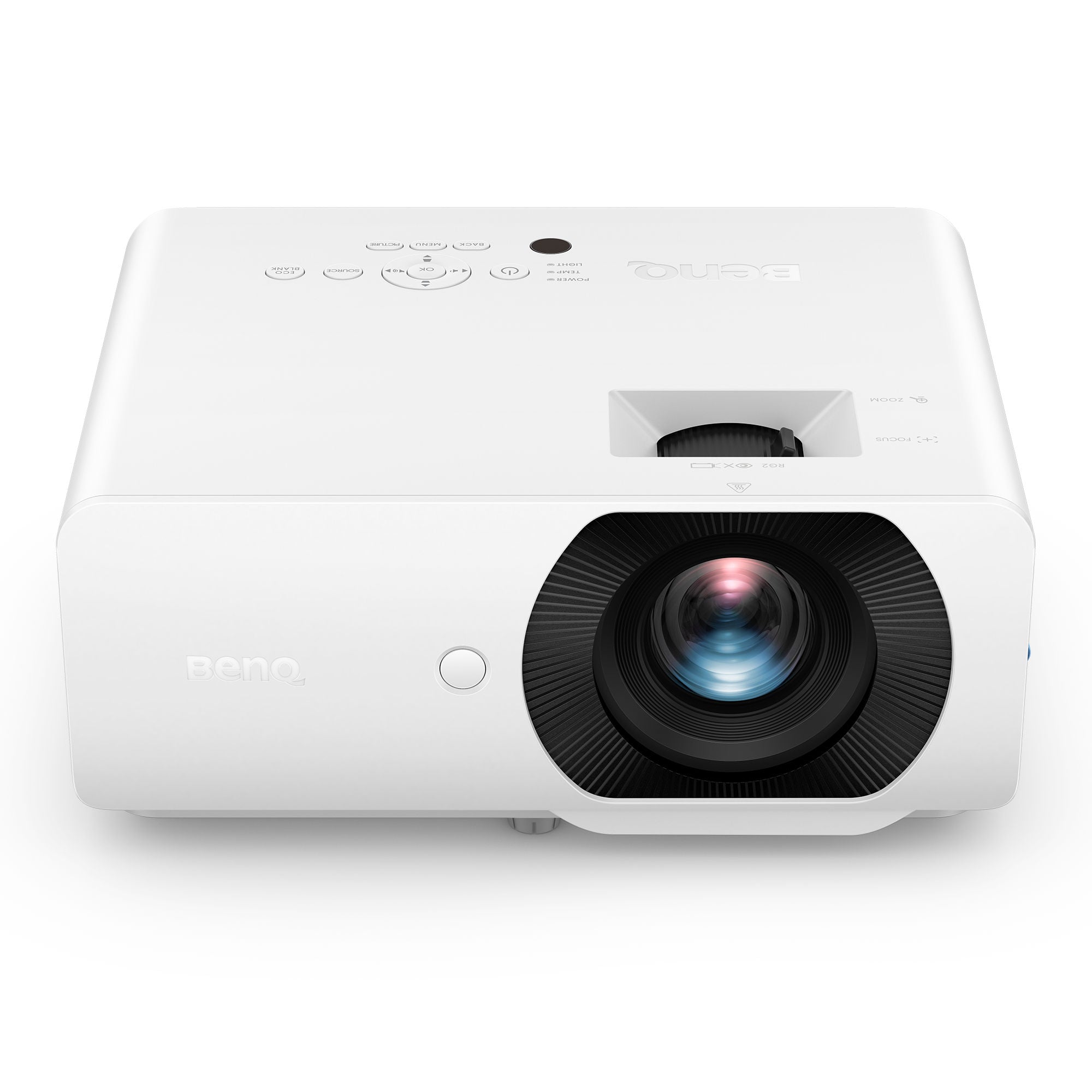

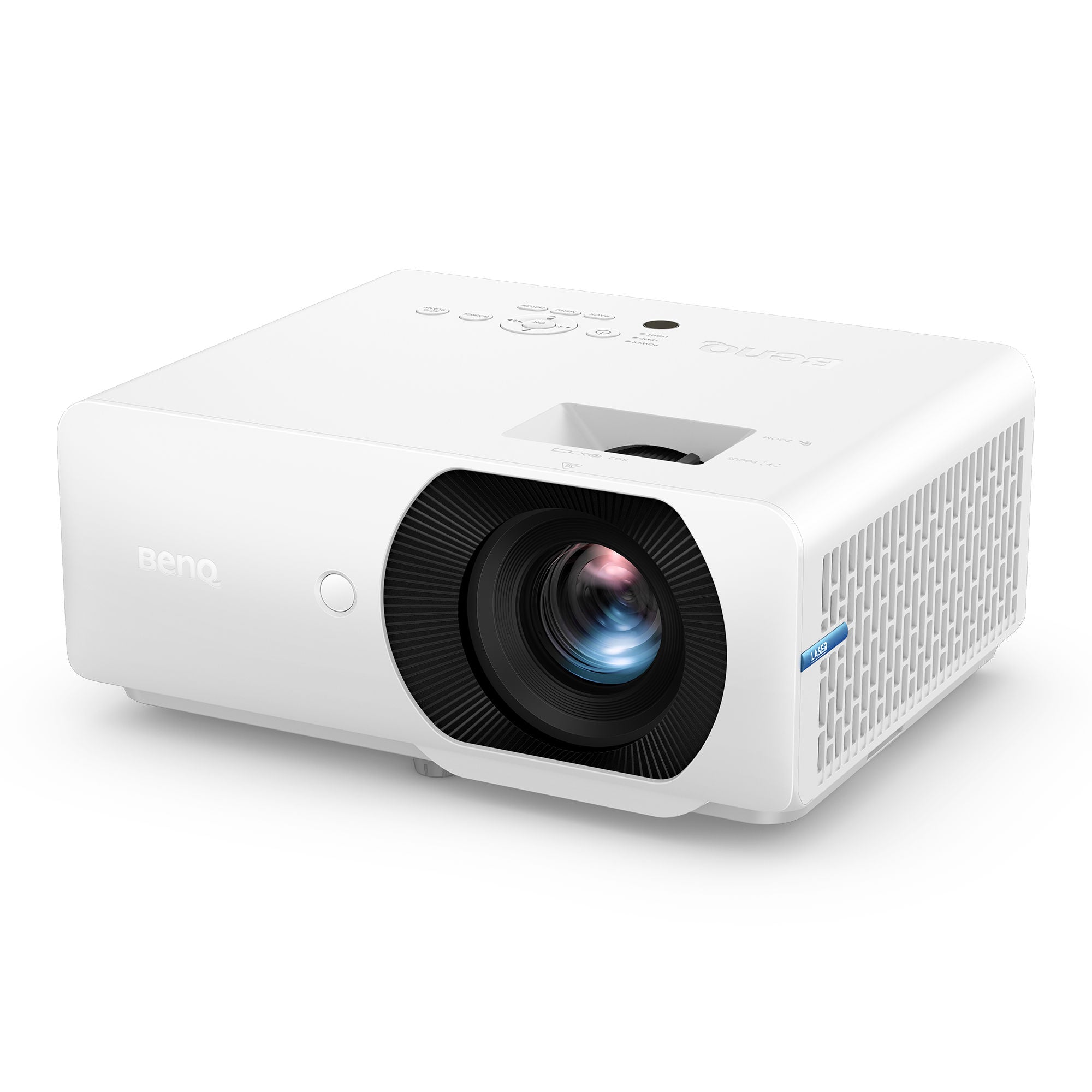

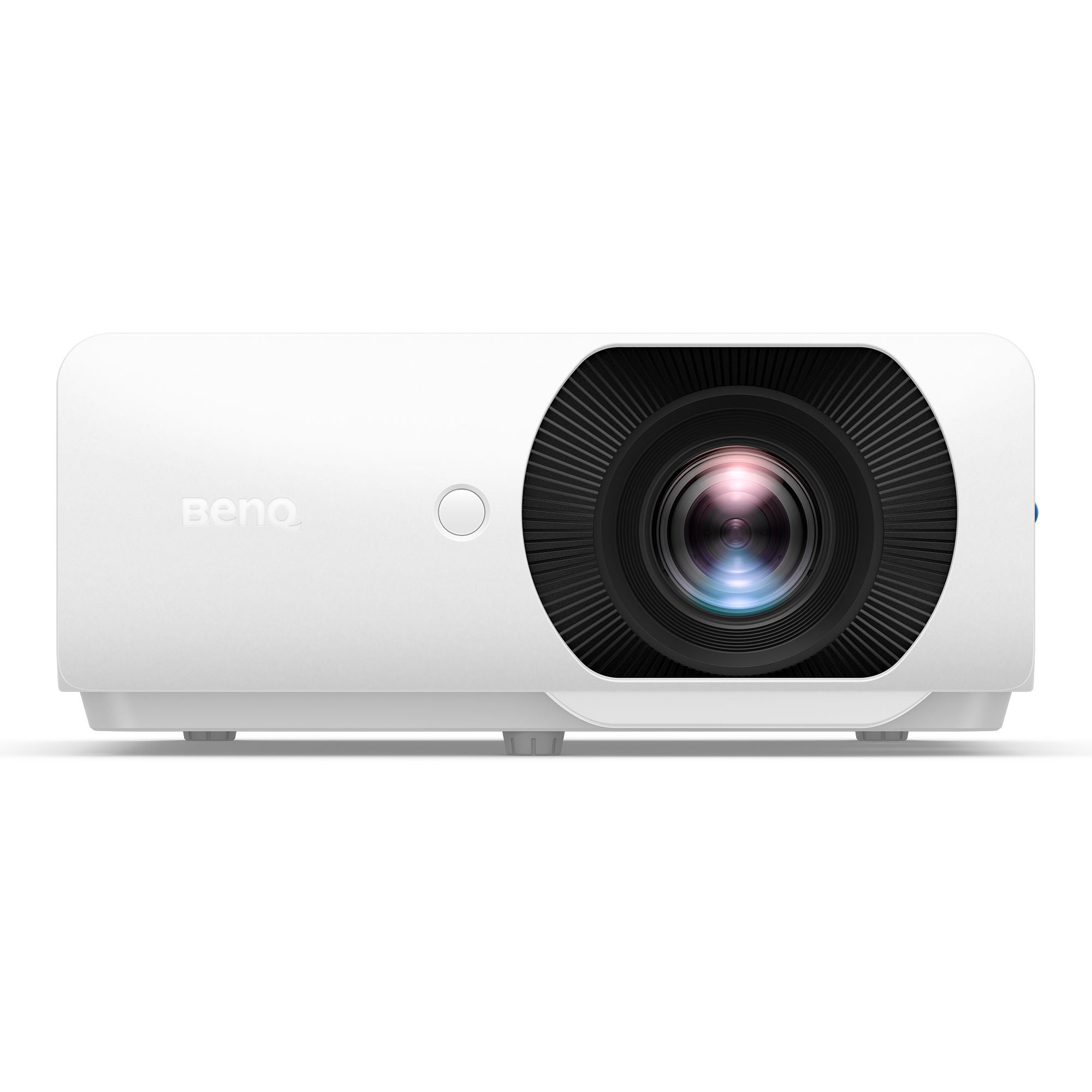

BenQ LW655 WXGA 4000lm Laser Meeting Room Projector
PRODUCT DESCRIPTION
BenQ LW655 WXGA 4000lm Laser Meeting Room Projector (LW655) - Local Warranty Support
Laser Light Source: 20,000 to 30,000 Hours, No Lamp Module
The LW655 runs on a laser light source rated at 20,000 hours in Normal mode and 30,000 hours in ECO. A meeting room used eight hours a day, five days a week, takes about ten years to reach the Normal rating, so lamp replacement disappears from the facilities budget along with the access equipment and the room downtime it requires. Laser reaches full brightness immediately, which matters where rooms are booked back to back, and it holds its colour balance far more consistently over time than a lamp that dims gradually from the day it is fitted.
WXGA 16:10 at 4,000 Lumens for Presentation Content
WXGA (1280x800) is a 16:10 panel, which is a better fit than 16:9 for the documents, spreadsheets and slide decks that fill a meeting room screen - a 16:10 image gives more vertical space for the same screen width. At 4,000 ANSI lumens with a published 3,000,000:1 contrast ratio and 30-bit colour, the LW655 stays legible with the room lights on, which is the condition a working meeting actually happens in. For a training room or a departmental meeting room where budget per room matters, it delivers the same brightness and chassis as the Full HD LH655 at a lower price.
1.3x Zoom and Auto Keystone for Retrofits
With a 1.187 to 1.544 throw ratio and 1.3x optical zoom, the LW655 usually fits an existing ceiling mount position rather than requiring a new one - useful when replacing an ageing lamp projector across a floor of rooms. 2D auto keystone corrects +/-40 degrees vertically and +/-40 degrees horizontally for a bracket that is off the screen centre line. At 3.0 kg and 279 x 225 x 121 mm it is small enough for a slim ceiling void, and the published noise figures of 32 dB normal and 29 dB in Eco keep it out of the way of a conversation.

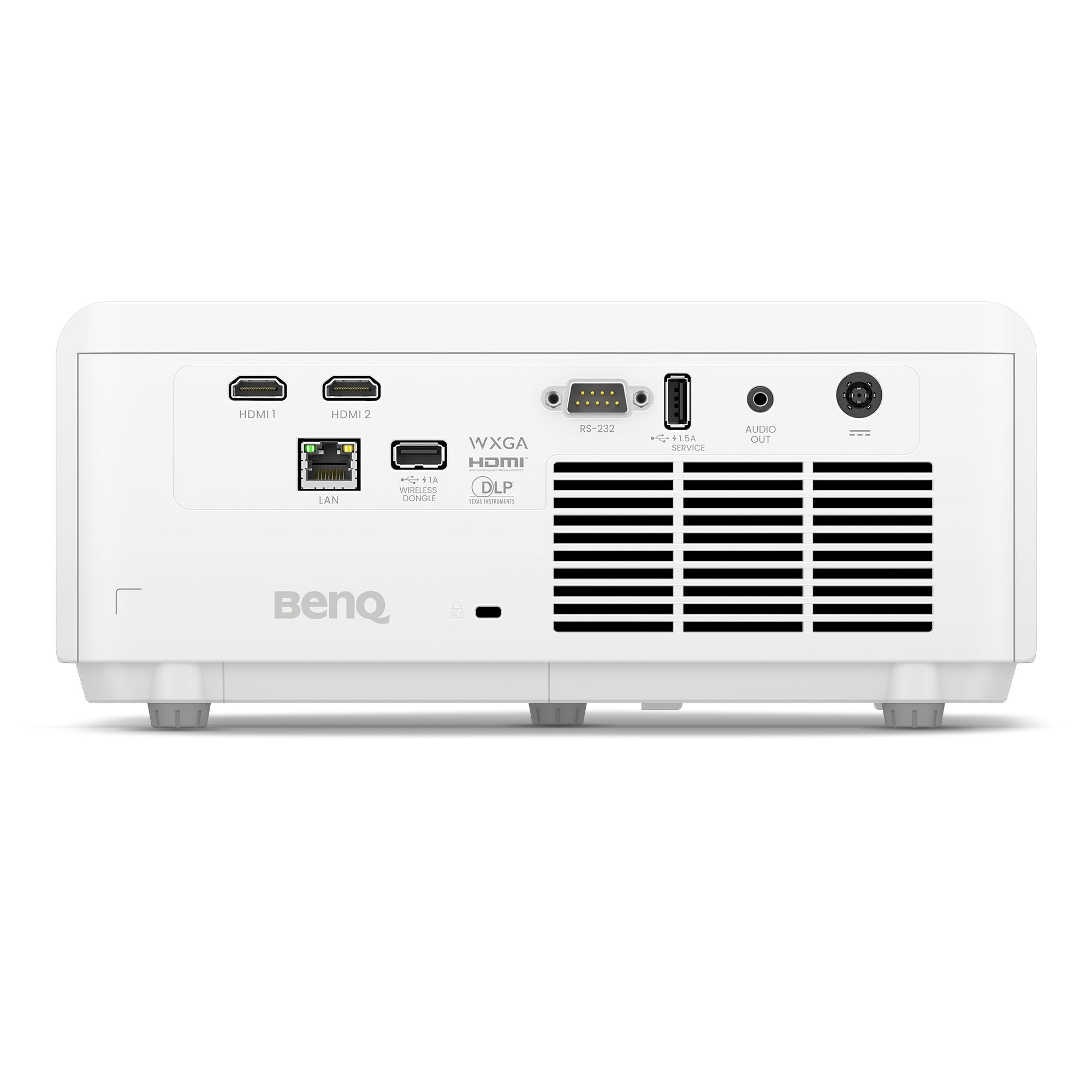

Dual HDMI, LAN Control and Two USB Ports
Two HDMI inputs take a room PC and a guest laptop or video bar without an external switcher. An RJ45 LAN port lets the AV team power, monitor and switch the projector from a central management point - the practical way to run a floor of meeting rooms - and RS-232 covers a hardware room controller. Two USB Type-A ports handle service and supply power to a wireless presentation receiver or streaming stick, a 3.5mm audio input feeds the 15W speaker, and standby power is under 0.5W so idle rooms cost almost nothing.
BenQ LW655 Datasheet — Technical Specifications
General
| Product | BenQ LW655 WXGA Laser Meeting Room Projector |
| Part Number (SKU) | LW655 |
| Projection System | DLP |
| Light Source | Laser |
| Platform | None - network control over LAN and RS-232 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice and local warranty support |
Optics & Light Source
| Light Source Life | Normal 20,000 hrs; ECO 30,000 hrs |
| Throw Ratio | 1.187 ~ 1.544 |
| Zoom Ratio | 1.3x |
| Projection Offset | 110% |
| Keystone Adjustment | 2D, auto vertical +/-40 degrees; horizontal +/-40 degrees |
| Native Resolution | WXGA (1280 x 800) |
| Brightness | 4,000 ANSI lumens |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 30-bit (1.07 billion colours) |
Connectivity
| HDMI | x2 (1.4a / HDCP1.4) |
| LAN | RJ45 x1 |
| USB Type-A | x2 |
| RS-232 | DB-9 pin x1 |
| Audio In | 3.5mm mini jack x1 |
Audio
| Speaker | 15W |
| Noise Level | 32 dB (typical) / 29 dB (Eco) |
Physical & Environmental
| Dimensions (W x H x D) | 279.2 x 224.8 x 120.5 mm |
| Net Weight | 3.0 kg +/- 100g |
Power
| Power Consumption | 175W typical (110V) |
| Standby Power | <0.5W |
Specifications are taken from BenQ's published product data for this model. Where BenQ does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Throw distance and screen size
Throw ratio is 1.187 to 1.544 with 1.3x zoom, so throw distance equals screen width multiplied by that ratio. A 100-inch 16:10 screen is 2.15 metres wide and needs roughly 2.6 to 3.3 metres; a 120-inch 16:10 screen is 2.58 metres wide and needs roughly 3.1 to 4.0 metres; an 80-inch 16:10 screen is 1.72 metres wide and needs roughly 2.0 to 2.7 metres. Projection offset is 110%.
Mounting and alignment
Table and inverted ceiling mounting are both supported, and the 1.3x zoom gives enough latitude to reuse most existing bracket positions on a refresh. 2D auto keystone corrects +/-40 degrees vertically and +/-40 degrees horizontally where the projector cannot sit on the screen centre line.
What it connects to
Two HDMI 1.4a inputs with HDCP 1.4 take a room PC, a laptop or a video bar. A 3.5mm audio input feeds the built-in 15W speaker. Two USB Type-A ports cover service and powering a small device such as a wireless presentation receiver or a streaming stick.
Network and management
An RJ45 LAN port allows the projector to be controlled and monitored over the building network, and RS-232 supports a hardware room controller. Pair it with a BenQ InstaShow WDC10 where guest laptops need to present without installing software.
Related models
The BenQ LH655 is the Full HD version of the same chassis. For a lamp-based WXGA room projector at a lower entry price, see the BenQ MW560C.
Package Contents & BenQ Installation and Meeting Room Range
In the box
- BenQ LW655 projector
- Remote control
- Power cord
- HDMI cable (1.5m)
- Quick start guide
- Warranty card
Package contents follow BenQ's product data for this model; items not listed by BenQ are not claimed here.
BenQ installation and meeting room range
| Model | Key specification |
| LW655 (this listing) | WXGA, 4,000 lm, laser, 1.3x zoom, LAN |
| LH655 | 1080p, 4,000 lm, laser, 1.3x zoom, LAN |
| LH750 | 1080p, 5,000 lm, conference room |
| MH560 | 1080p, lamp, meeting room |
| MW560C | WXGA, 4,000 lm, lamp (current revision) |
| MX560C | XGA, 4,000 lm, lamp (current revision) |
| MW560 | WXGA, 4,000 lm, lamp |
| MX560 | XGA, 4,000 lm, lamp |
| MS560 | SVGA, 4,000 lm, lamp |
Datasheet & Downloads
SourceIT can email the current data sheet revision together with a quotation, including throw distance tables for your room, ceiling mount options and wireless presentation accessories.
Frequently Asked Questions — BenQ LW655
What light source does it use, and is there a lamp to replace?
A laser light source rated at 20,000 hours in Normal mode and 30,000 hours in ECO. There is no lamp module, so nothing has to be stocked, ordered or fitted during normal service life, and there is no room downtime for a lamp change.
How does laser compare with lamp over a room's life?
A lamp model such as the MW560C is rated at 6,000 hours in Normal mode and its module is a consumable that dims as it ages. A room running eight hours a day, five days a week, reaches 6,000 hours in roughly three years. The LW655's laser engine is rated at 20,000 hours in the same mode, so across a ten-year refresh cycle the lamp model needs several modules and the laser model needs none.
What does WXGA mean, and is it enough?
WXGA is 1280 x 800 in a 16:10 aspect ratio. The extra vertical space compared with 16:9 suits documents and slide decks. For video-heavy content or fine detail, the Full HD LH655 in the same chassis is the better choice.
How far back does it mount?
The throw ratio is 1.187 to 1.544 with 1.3x zoom. A 100-inch 16:10 screen is 2.15 metres wide, so it needs roughly 2.6 to 3.3 metres of throw distance. A 120-inch 16:10 screen needs roughly 3.1 to 4.0 metres.
Can it be managed over the network?
Yes. An RJ45 LAN port provides network control and monitoring, and RS-232 supports a hardware room controller. Standby draws under 0.5W.
Does it need external speakers?
A 15W speaker is built in, which covers a normal meeting room. A 3.5mm audio input is provided to feed it from a source that carries audio separately.
What is the difference between the LW655 and the LH655?
Light source, brightness, contrast, ports, speaker and chassis are the same. The LW655 has a native WXGA (1280x800) 16:10 panel and a 1.187-1.544 throw ratio; the LH655 has a native 1080p (1920x1080) 16:9 panel and a 1.13-1.47 throw ratio.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every unit sold by SourceIT is supplied with local Singapore warranty support and a GST invoice. BenQ's projector warranty terms vary by model and by light source, and the laser light engine is normally covered on its own separate terms, so please ask us to confirm both in writing with your quotation.
