BenQ LH655 1080p 4000lm Laser Meeting Room Projector
PRODUCT DESCRIPTION
BenQ LH655 1080p 4000lm Laser Meeting Room Projector (LH655) - Local Warranty Support
Laser Light Source: 20,000 to 30,000 Hours With No Lamp Budget
The LH655 uses a laser phosphor light source rated at 20,000 hours in Normal mode and 30,000 hours in ECO. For a meeting room that runs eight hours a day, five days a week, that is roughly ten years on the Normal rating before any decline is expected - which removes lamp modules from the facilities budget entirely, along with the ladder work and the room downtime that goes with changing them. Laser also strikes instantly, so a room booked back to back does not lose two minutes to warm-up, and it holds colour and brightness far more steadily across its life than a lamp does.
4,000 Lumens for Rooms With the Lights On
Meeting rooms are not cinemas: people take notes, read documents and see each other's faces, so the lights stay on. At 4,000 ANSI lumens with a published 3,000,000:1 contrast ratio, the LH655 puts a legible Full HD image on a screen in a normally lit boardroom or classroom without anyone reaching for the blinds. Native 1080p (1920x1080) with 30-bit colour handles the things business content is actually made of - spreadsheet gridlines, small type in a slide footer, a CAD drawing, a video call - rather than being optimised for film.
1.3x Zoom, Auto Keystone and an IP6X Dustproof Engine
A 1.13 to 1.47 throw ratio with 1.3x optical zoom means the LH655 will fill a 100-inch screen from anywhere between roughly 2.5 and 3.25 metres, so an existing ceiling mount position usually works without moving it. 2D auto keystone of +/-40 degrees vertically and horizontally squares the image when the projector cannot sit on the screen centre line. BenQ builds the optical engine to IP6X dustproof rating, which in a Singapore installation - ceiling voids, air-conditioning, renovation dust - is what keeps the image clean and the maintenance interval long.

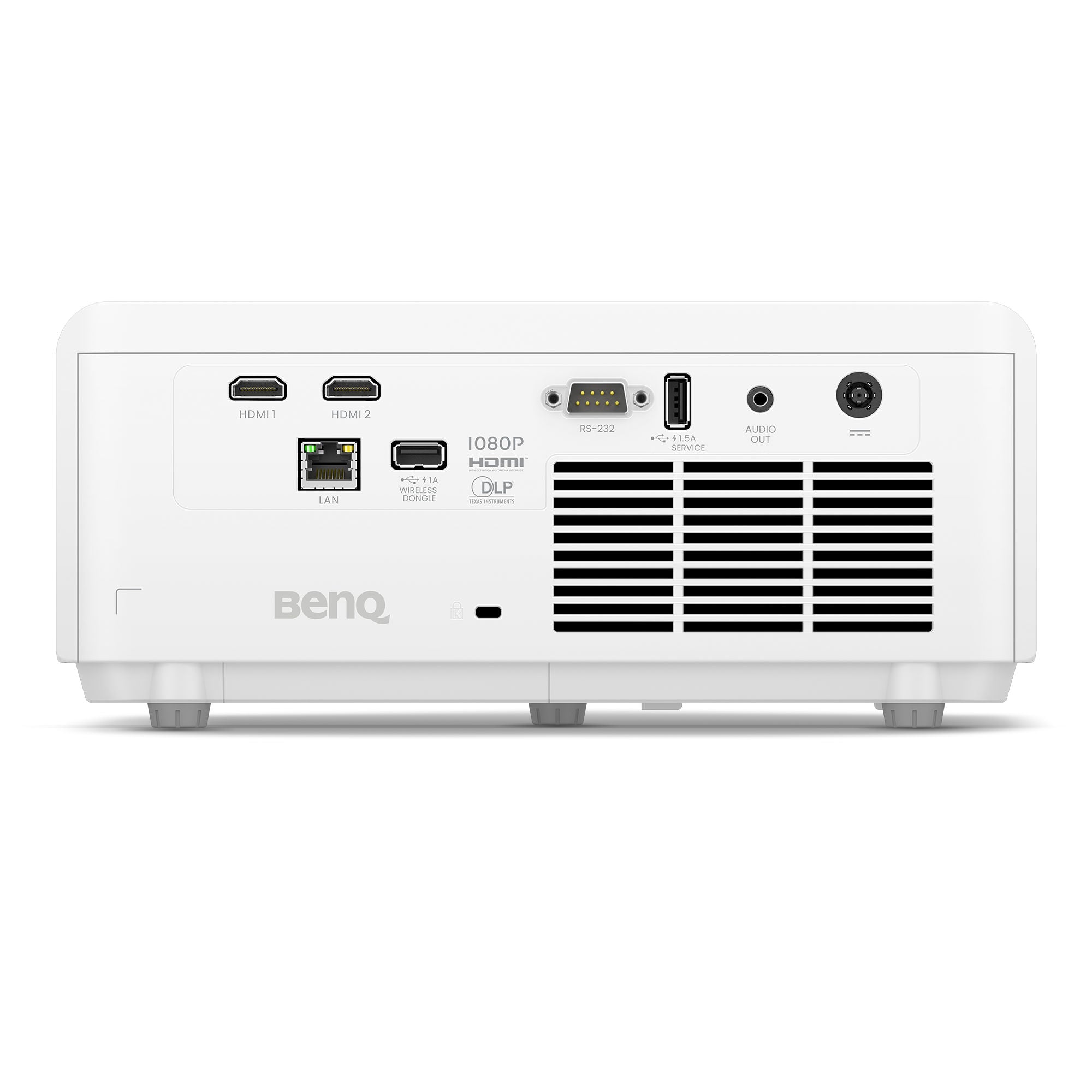

Dual HDMI, LAN Control and Two USB Ports
Two HDMI inputs take the room PC and a guest laptop or a video bar without an external switcher. An RJ45 LAN port allows the projector to be powered, monitored and switched from the building's AV management system, which is how a site with a dozen rooms keeps track of usage and faults; RS-232 is there for a hardware room controller. Two USB Type-A ports cover firmware service and a 1.5A power supply for a wireless presentation receiver or a streaming stick, a 3.5mm audio input feeds the 15W speaker, and standby draws under 0.5W.
BenQ LH655 Datasheet — Technical Specifications
General
| Product | BenQ LH655 1080p Laser Meeting Room Projector |
| Part Number (SKU) | LH655 |
| Projection System | DLP |
| Light Source | Laser |
| Platform | None - network control over LAN and RS-232 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice and local warranty support |
Optics & Light Source
| Light Source Life | Normal 20,000 hrs; ECO 30,000 hrs |
| Throw Ratio | 1.13 ~ 1.47 |
| Zoom Ratio | 1.3x |
| Lens | F = 2.43 ~ 2.78, f = 16.901 ~ 21.6076 |
| Projection Offset | 113% |
| Keystone Adjustment | 2D, auto vertical +/-40 degrees; horizontal +/-40 degrees |
| Optical Engine | IP6X dustproof |
| Native Resolution | 1080p (1920 x 1080) |
| Brightness | 4,000 ANSI lumens |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 30-bit (1.07 billion colours) |
Connectivity
| HDMI | x2 (1.4a / HDCP1.4) |
| LAN | RJ45 x1 |
| USB Type-A | x2 - Type A-1 (1.0), Type A-2 (3.0) |
| RS-232 | DB-9 pin x1 |
| Audio In | 3.5mm mini jack x1 |
Audio
| Speaker | 15W |
| Noise Level | 32 dB (Normal) / 29 dB (Eco) |
Physical & Environmental
| Dimensions (W x H x D) | 279.2 x 224.8 x 120.5 mm |
| Net Weight | 3.1 kg +/- 100g |
Power
| Power Consumption | 175W typical (110V) |
| Standby Power | <0.5W |
Specifications are taken from BenQ's published product data for this model. Where BenQ does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Throw distance and screen size
Throw ratio is 1.13 to 1.47 with 1.3x zoom, so throw distance equals screen width multiplied by that ratio. A 100-inch 16:9 screen is 2.21 metres wide and needs roughly 2.5 to 3.25 metres; a 120-inch screen is 2.66 metres wide and needs roughly 3.0 to 3.9 metres; an 80-inch screen is 1.77 metres wide and needs roughly 2.0 to 2.6 metres. Projection offset is 113%, so a ceiling-mounted unit sits above the top of the image.
Mounting and alignment
Table and inverted ceiling mounting are both supported. The 1.3x zoom gives useful tolerance when reusing an existing bracket position. 2D auto keystone corrects +/-40 degrees vertically and +/-40 degrees horizontally, which covers a projector mounted off the screen centre line. The IP6X dustproof optical engine suits ceiling voids and rooms served by ducted air-conditioning.
What it connects to
Two HDMI 1.4a inputs with HDCP 1.4 take a room PC, a laptop or a video bar. A 3.5mm audio input feeds the built-in 15W speaker. Two USB Type-A ports are provided - one USB 1.0 and one USB 3.0 - for service and for powering a small device such as a wireless presentation receiver or a streaming stick at up to 1.5A.
Network and management
An RJ45 LAN port allows the projector to be controlled and monitored over the building network, and RS-232 supports a hardware room controller. BenQ lists the optional QP30 wireless dongle for screen casting on this model, at 1080p 60Hz with upscaling to 4K 30p. Pair it with a BenQ InstaShow WDC10 where guest laptops need to present without software.
Related models
The BenQ LW655 is the WXGA version of the same chassis. For higher output, see the BenQ LH750.
Package Contents & BenQ Installation and Meeting Room Range
In the box
- BenQ LH655 projector
- Remote control
- Power cord (1.0m)
- HDMI cable (1.5m)
- Quick start guide
Package contents follow BenQ's product data for this model; items not listed by BenQ are not claimed here.
BenQ installation and meeting room range
| Model | Key specification |
| LH655 (this listing) | 1080p, 4,000 lm, laser, 1.3x zoom, LAN |
| LW655 | WXGA, 4,000 lm, laser, 1.3x zoom, LAN |
| LH750 | 1080p, 5,000 lm, conference room |
| MH560 | 1080p, lamp, meeting room |
| MW560C | WXGA, 4,000 lm, lamp (current revision) |
| MX560C | XGA, 4,000 lm, lamp (current revision) |
| MW560 | WXGA, 4,000 lm, lamp |
| MX560 | XGA, 4,000 lm, lamp |
| MS560 | SVGA, 4,000 lm, lamp |
Datasheet & Downloads
SourceIT can email the current data sheet revision together with a quotation, including throw distance tables for your room, ceiling mount options and wireless presentation accessories.
Frequently Asked Questions — BenQ LH655
What light source does it use, and is there a lamp to replace?
A laser phosphor light source rated at 20,000 hours in Normal mode and 30,000 hours in ECO. There is no lamp module, so there is no consumable to stock, no replacement cost and no downtime for a lamp change. This is the main reason a laser model costs more up front than a lamp projector and less to keep running.
How does laser compare with lamp on a meeting room's total cost?
A lamp model such as the MW560C is rated at 6,000 hours in Normal mode and uses a replaceable module that dims over its life. A room used eight hours a day, five days a week, passes 6,000 hours in about three years. The LH655's laser engine is rated at 20,000 hours in the same mode, so over a typical ten-year room refresh cycle the lamp model needs several modules fitted and the laser model needs none.
Where should it be mounted?
The throw ratio is 1.13 to 1.47 with 1.3x zoom. A 100-inch screen needs roughly 2.5 to 3.25 metres of throw distance; a 120-inch screen needs roughly 3.0 to 3.9 metres. Projection offset is 113%.
Can it be controlled over the network?
Yes. It has an RJ45 LAN port for network control and monitoring, plus RS-232 for a hardware room controller. Standby draws under 0.5W.
How do guests present wirelessly?
BenQ lists the optional QP30 dongle for casting to this model at 1080p 60Hz with upscaling to 4K 30p. For a button-based system that needs no software on the guest laptop, pair it with a BenQ InstaShow receiver. One of the projector's USB Type-A ports supplies up to 1.5A for a receiver or streaming stick.
Is it bright enough to use without dimming the room?
4,000 ANSI lumens is specified for normally lit meeting rooms and classrooms. Screen size, screen gain and how much daylight the room takes will all affect the result - tell us the room and we will sense-check it.
What is the difference between the LH655 and the LW655?
The chassis, light source, brightness, ports, speaker and dimensions are the same. The LH655 has a native 1080p (1920x1080) 16:9 panel; the LW655 has a native WXGA (1280x800) 16:10 panel. Choose 1080p where content is video or detailed documents, WXGA where budget matters more than pixel count.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every unit sold by SourceIT is supplied with local Singapore warranty support and a GST invoice. BenQ's projector warranty terms vary by model and by light source, and the laser light engine is normally covered on its own separate terms, so please ask us to confirm both in writing with your quotation.
