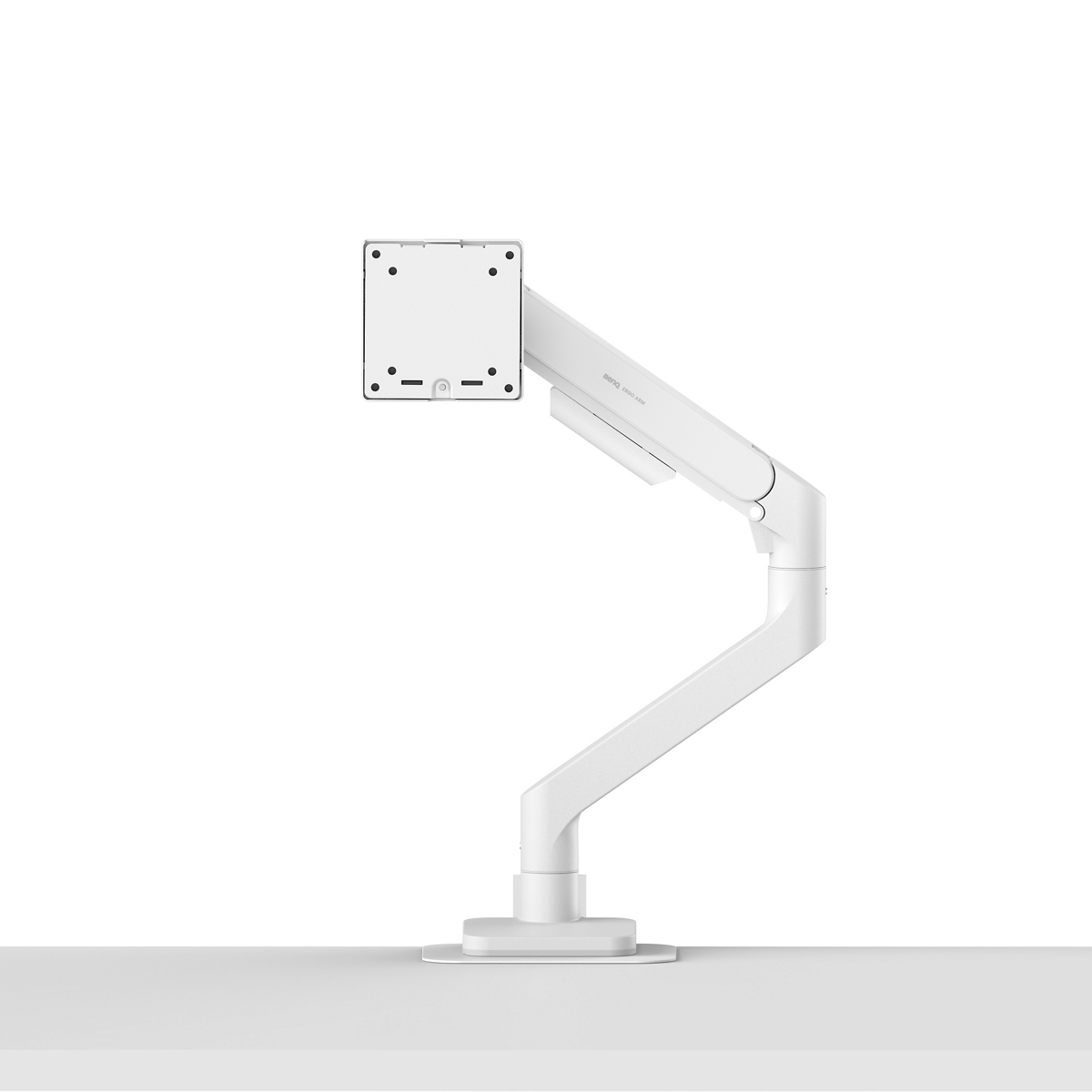

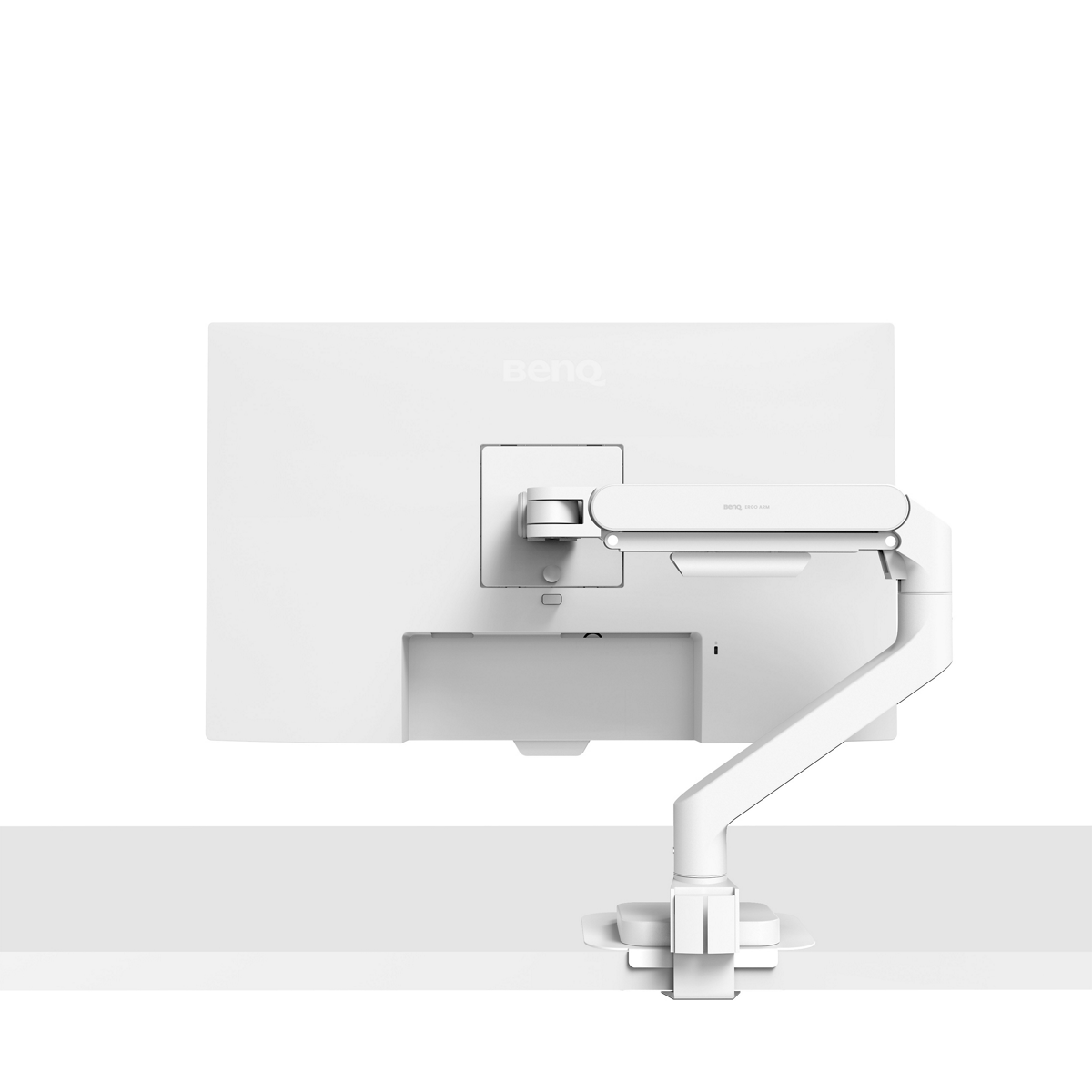

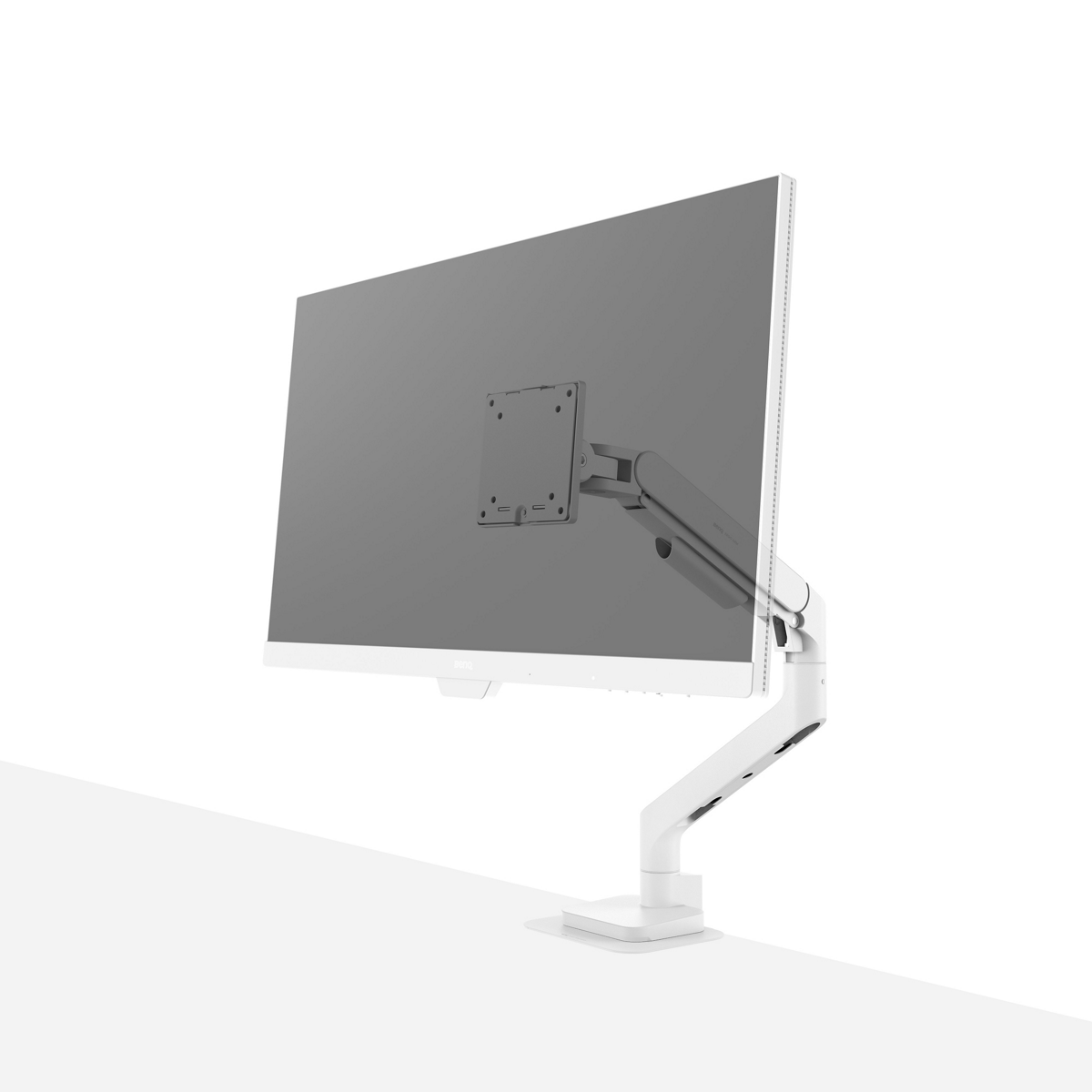

BenQ BSH02 Single Monitor Arm 17"-45" 20kg Gas Spring Ergo Arm (White)
PRODUCT DESCRIPTION
BenQ BSH02 Single Monitor Arm 17"-45" 20kg Gas Spring Ergo Arm, White (BSH02) - Local Warranty
Where the BSH02 Sits in BenQ's Five-Arm Ergo Range
The BSH02 is the white finish of BenQ's heavy-duty single Ergo Arm. BenQ publishes an identical specification for the BSH01 and BSH02 — same gas spring rated to 25,000 cycles, same 2-20 kg load window, same 17" to 45" screen range, same reinforcement plate in the box — so the only decision between them is colour. Against the lighter BSL01 and BDL01, which use a mechanical spring and carry 2-11 kg, the BSH02 is the arm to specify for larger panels. The BDH01 is the dual-screen equivalent in black.
A White Arm for White Desks and Bright Interiors
Most monitor arms are black, which is fine against a dark desk and conspicuous against a light one. Singapore offices increasingly specify white or pale oak desking in agile work areas, showrooms, reception and client-facing meeting rooms, and a black arm reads as service equipment in those spaces. The BSH02 gives procurement the identical mechanical package in white, so a fit-out can hold its colour scheme without compromising on load rating or reach. Specify the BSH01 where the desking is dark and the BSH02 where it is not.
20 kg Per Screen, 17" to 45", Gas Spring Tested to 25,000 Cycles
The BSH02 carries 2-20 kg per screen and takes panels from 17" to 45", which covers 34" and 38" curved ultrawides as well as a standard screen loaded with a webcam and monitor light bar. BenQ fatigue-tests the gas spring to 25,000 cycles and pairs it with an optimised tilt structure, addressing the two failures that make staff give up on an arm: a screen that sinks overnight and a screen that will not hold the angle set for it. VESA 75 x 75 mm and 100 x 100 mm are both supported with a quick-release head.

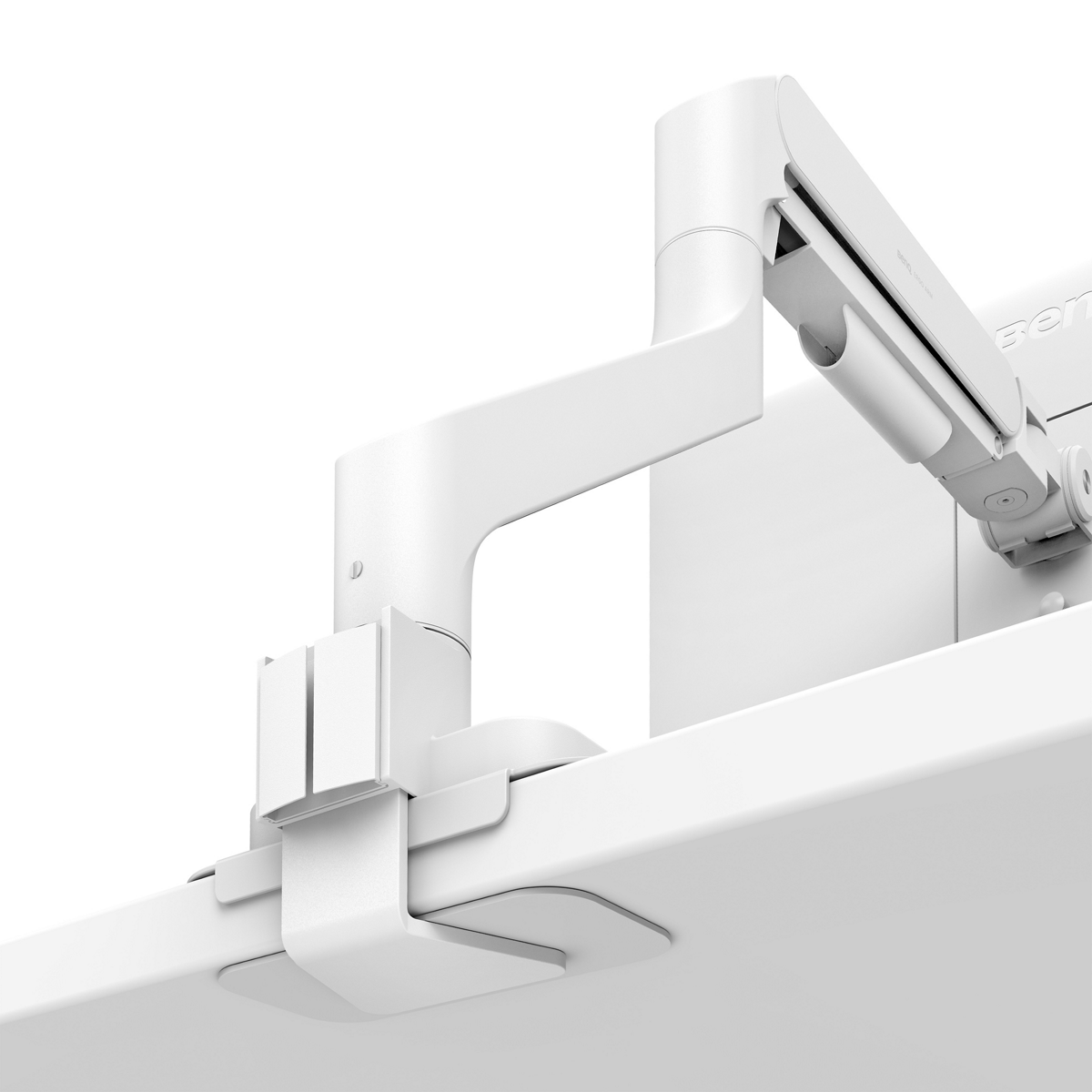

Clamp or Grommet, Top-Mounted, with Desk Protection
Fitting is by C-clamp on the desk edge or through a grommet hole, and both methods tighten from above, so no one has to work underneath a loaded workstation. Clamp fitting suits desks 17 to 50 mm thick without the reinforcement plate, or 12 to 45 mm with it. The steel plate is included and spreads load across thin, glass and veneered tops — worth having in a leased office where the furniture is not yours to mark. Cable channels run the length of the arm to keep video and power runs off the desktop.
BenQ BSH02 Datasheet — Technical Specifications
General
| Product | BenQ Ergo Arm BSH02 Single Monitor Arm |
| Part Number (SKU) | BSH02 |
| Product Type | Desk-mounted monitor arm |
| Mount Configuration | Single screen |
| Finish | White |
| Spring Mechanism | Gas spring, tested to 25,000 cycles |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Compatibility
| Fits Screen Size | 17" - 45" |
| VESA Compatible | 75 x 75 mm, 100 x 100 mm |
| Weight Capacity (per screen) | 2 - 20 kg (4 - 44 lbs) |
| Mounting Option | Clamp, Grommet |
| Fits Desk Thickness | Without reinforcement plate: 17 to 50 mm; with reinforcement plate: 12 to 45 mm |
Range of Motion
| Extension | Max 568 mm (22.4") |
| Tilt Range | 50° to -20° |
| Swivel Range | 90° to -90° |
| Screen Rotation (pivot) | 180° to -180° |
Installation & Cable Management
| Cable Management | Yes, integrated |
| Reinforcement Plates | Yes, included |
| Installation Method | Top mounting |
Physical
| Arm Dimensions | 130 x 573 x 548 mm |
| Net Weight | 4.43 kg |
Specifications are taken from BenQ's published product data for this model. Where BenQ does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Desk mounting
C-clamp onto the rear edge of the desk, or grommet mount through an existing cable hole. Both are top-mounted. Without the reinforcement plate the clamp fits desks 17 to 50 mm thick; with the plate fitted it covers 12 to 45 mm. The plate is included and is intended for thin, glass and other fragile tabletops.
What it holds
Any monitor from 17" to 45" with a VESA 75 x 75 mm or 100 x 100 mm mounting pattern, weighing between 2 kg and 20 kg. Anything bolted to the panel — webcam, light bar, soundbar — counts towards the 20 kg limit.
Movement
Extension up to 568 mm from the mount, tilt 50° to -20°, swivel 90° either side, and full 180° pivot in each direction for portrait use.
Cable management
Integrated cable channels run along the arm so video and power cables follow the arm rather than crossing the desktop.
Other arms in this range
See BSH01 for the same arm in black, BDH01 for the dual-screen version, and BSL01 for the lighter 11 kg single arm.
Package Contents & BenQ Ergo Arm Range
In the box
- BSH02 Ergo arm x 1
- Reinforcement plate x 1
- Warranty card x 1
- Quick start guide x 1
- Regulation sheet x 1
- Spare parts x 1
Package contents follow BenQ's product data for this model; items not listed by BenQ are not claimed here.
BenQ Ergo Arm range
| Model | Mount | Screen Size | Weight Capacity |
| BSH01 (Black) | Single | 17" - 45" | 2 - 20 kg |
| BSH02 (this listing) | Single | 17" - 45" | 2 - 20 kg |
| BSL01 | Single | 17" - 40" | 2 - 11 kg |
| BDH01 (Black) | Dual | 17" - 35" per arm | 2 - 20 kg per screen |
| BDL01 | Dual | 17" - 35" per arm | 2 - 11 kg per screen |
Datasheet & Downloads
SourceIT can email the current data sheet revision and user manual with a quotation. Ask for it when you request pricing for a multi-desk rollout.
Frequently Asked Questions — BenQ BSH02
Is the BSH02 different from the BSH01 in any way other than colour?
No. BenQ publishes the same specification for both — same dimensions, same 4.43 kg net weight, same gas spring, same 2-20 kg capacity and same 17" to 45" range. The BSH02 is white, the BSH01 is black.
How does it compare with the BSL01?
The BSH02 uses a gas spring tested to 25,000 cycles, carries 2-20 kg, fits screens to 45" and includes a reinforcement plate. The BSL01 uses a mechanical spring tested to 20,000 cycles, carries 2-11 kg and fits screens to 40". The BSL01 tilts further (68° to -45°) if extreme angle matters more than load.
Will it hold a 34" ultrawide?
Yes, provided the panel weighs between 2 kg and 20 kg and uses a VESA 75 x 75 mm or 100 x 100 mm pattern.
Can I mount it on a glass desk?
The included steel reinforcement plate is intended for thin, glass and other fragile tabletops. With the plate fitted the clamp covers desk thicknesses of 12 to 45 mm.
Does it rotate to portrait?
Yes, 180° to -180° screen rotation, in either direction.
Does the arm have USB ports?
No. BenQ does not list an integrated USB hub on the BSH02. The arm routes cables but does not carry data or power itself.
Do I need access under the desk?
No. Both clamp and grommet fittings are top-mounted, and components arrive pre-installed.
What warranty and invoice do I get?
Every unit sold by SourceIT carries a local Singapore warranty and is supplied with a GST invoice.
