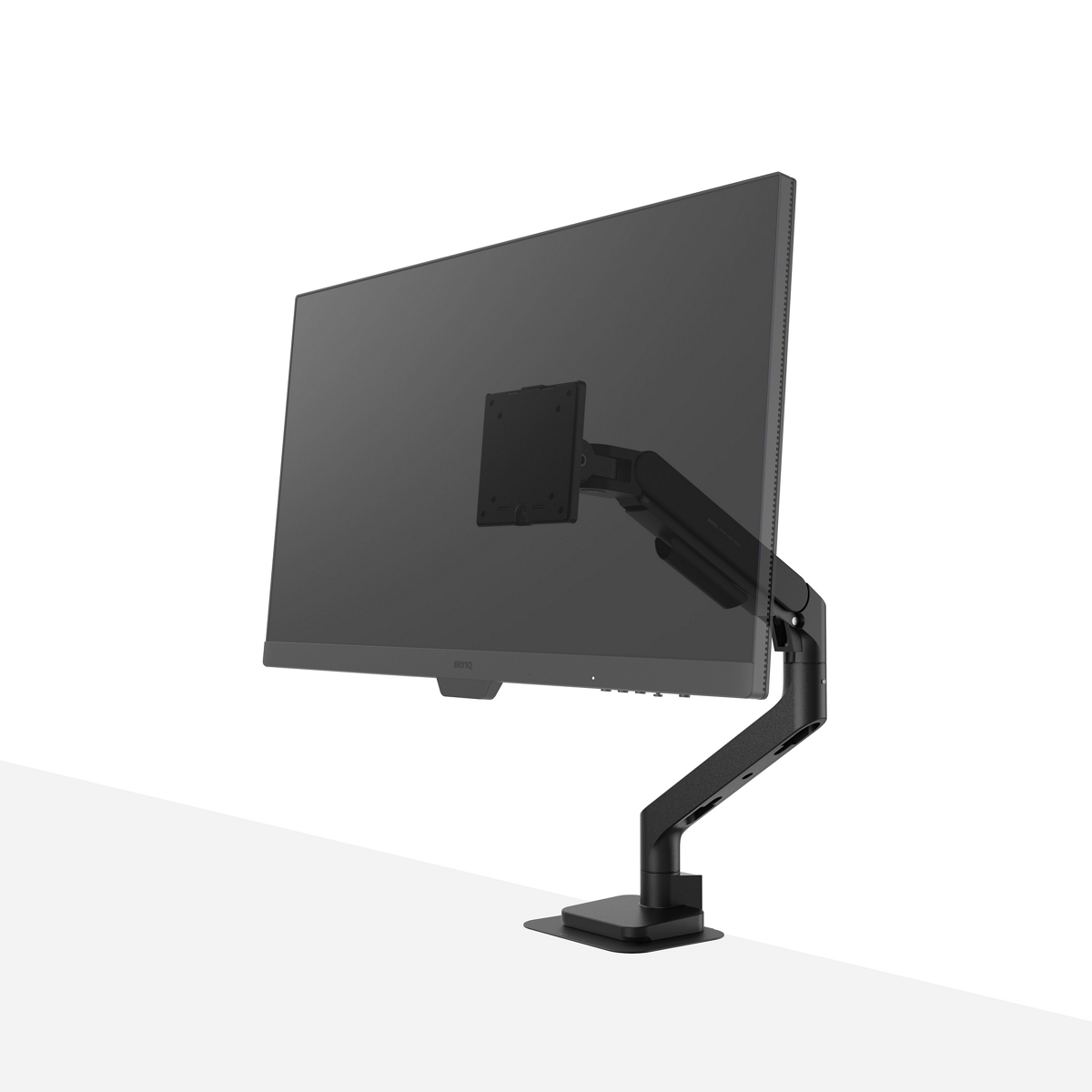

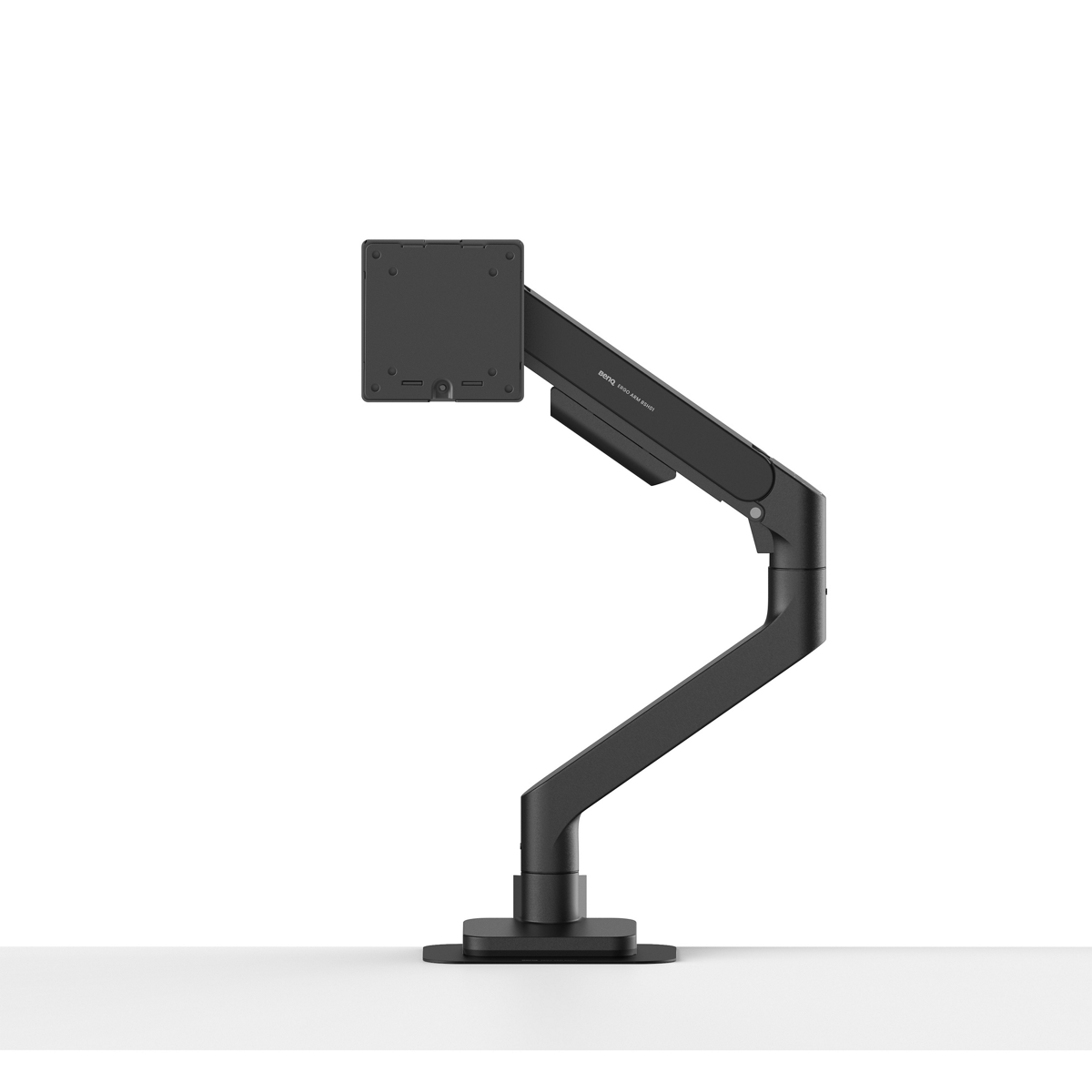

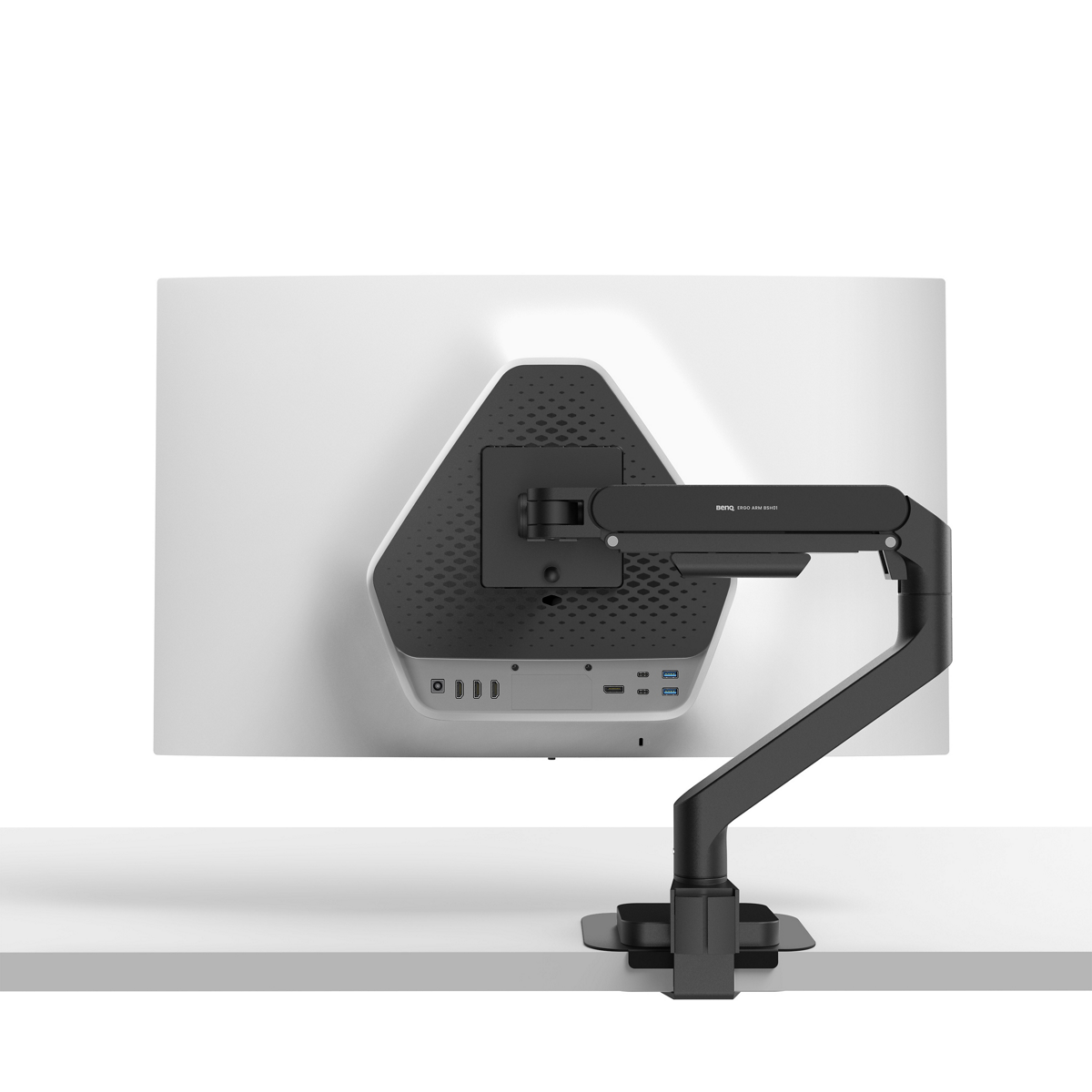

BenQ BSH01 Single Monitor Arm 17"-45" 20kg Gas Spring Ergo Arm (Black)
PRODUCT DESCRIPTION
BenQ BSH01 Single Monitor Arm 17"-45" 20kg Gas Spring Ergo Arm, Black (BSH01) - Local Warranty
Where the BSH01 Sits in BenQ's Five-Arm Ergo Range
BenQ builds its Ergo Arm range in two tiers. The BSH01 is the single-screen model in the heavy-duty tier: a gas spring rated to 25,000 cycles, 2-20 kg per screen, screens from 17" to 45", and a steel reinforcement plate supplied in the box. The BSH02 is the identical arm in white; the BDH01 is the dual version. The lighter BSL01 and BDL01 use a mechanical spring, carry 2-11 kg and ship without a reinforcement plate. If you are mounting a 32" or larger panel, a curved ultrawide, or a screen carrying a webcam and light bar, the BSH01 is the one to specify.
20 kg Per Screen and 17" to 45" of Panel Range
A 2-20 kg load window and a 17" to 45" screen range cover almost every desk monitor a Singapore office deploys, including 34" and 38" curved ultrawides that defeat lighter arms. The 2 kg lower limit matters too: a spring arm that is too strong for a light panel will drift upward, and the BSH01's preset tension is designed for the full range rather than one point in it. VESA 75 x 75 mm and 100 x 100 mm patterns are both supported, and a quick-release VESA head lets one person lift the screen onto the arm without a second pair of hands.
Gas Spring Tested to 25,000 Cycles, Plus Desk Protection
Monitor arms fail in predictable ways: the screen sinks overnight, or it will not hold the angle you set. The BSH01 uses a gas spring BenQ has fatigue-tested to 25,000 cycles together with an optimised tilt structure, so the height and angle you set in the morning are the ones you find after lunch. The steel reinforcement plate in the box spreads clamp load across thin, glass and veneered tabletops, which is the difference between a clean install and a dented desk in a hot-desking area or a leased office where the furniture is not yours to mark.
Clamp or Grommet, Top-Mounted, with Cable Management Built In
The BSH01 mounts by C-clamp or through a grommet hole, and both methods are fitted from the top of the desk, so nobody has to lie underneath a workstation to tighten a bolt. Clamp fitting suits desks 17 to 50 mm thick without the reinforcement plate, or 12 to 45 mm with it. Cable routing is integrated along the arm, which keeps HDMI, DisplayPort, USB-C and power runs off the desktop and out of the way of cleaning staff and cable-snagging chairs. Components arrive pre-assembled to shorten a multi-desk rollout.
BenQ BSH01 Datasheet — Technical Specifications
General
| Product | BenQ Ergo Arm BSH01 Single Monitor Arm |
| Part Number (SKU) | BSH01 |
| Product Type | Desk-mounted monitor arm |
| Mount Configuration | Single screen |
| Finish | Black |
| Spring Mechanism | Gas spring, tested to 25,000 cycles |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Compatibility
| Fits Screen Size | 17" - 45" |
| VESA Compatible | 75 x 75 mm, 100 x 100 mm |
| Weight Capacity (per screen) | 2 - 20 kg (4 - 44 lbs) |
| Mounting Option | Clamp, Grommet |
| Fits Desk Thickness | Without reinforcement plate: 17 to 50 mm; with reinforcement plate: 12 to 45 mm |
Range of Motion
| Extension | Max 568 mm (22.4") |
| Tilt Range | 50° to -20° |
| Swivel Range | 90° to -90° |
| Screen Rotation (pivot) | 180° to -180° |
Installation & Cable Management
| Cable Management | Yes, integrated |
| Reinforcement Plates | Yes, included |
| Installation Method | Top mounting |
Physical
| Arm Dimensions | 130 x 573 x 548 mm |
| Net Weight | 4.43 kg |
Specifications are taken from BenQ's published product data for this model. Where BenQ does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation

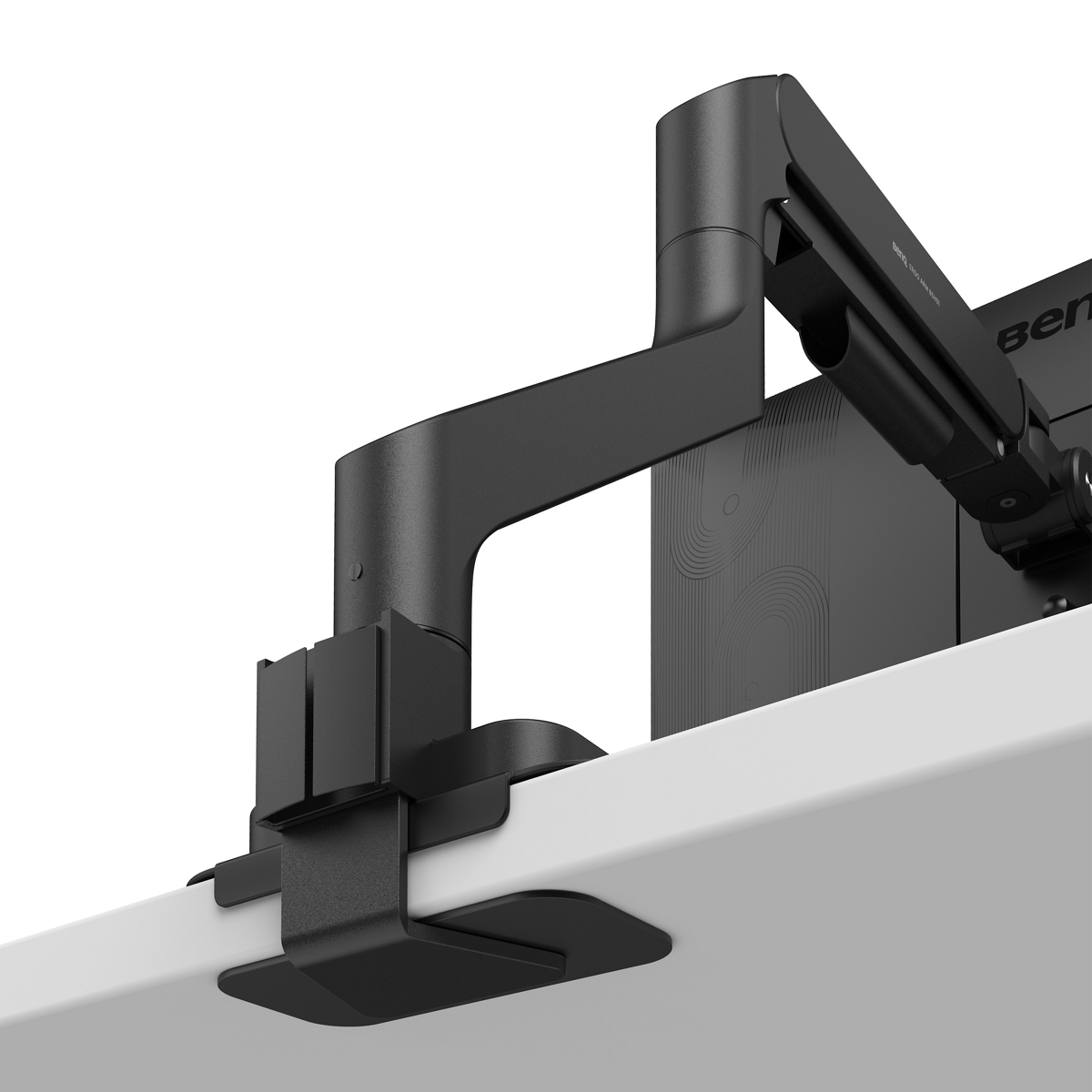

Desk mounting
Two options are supported: a C-clamp onto the rear edge of the desk, or a grommet mount through an existing cable hole. Both are fitted from above. Without the reinforcement plate the clamp fits desks 17 to 50 mm thick; with the plate fitted it covers 12 to 45 mm. The plate is included and is intended for thin, glass and other fragile tabletops.
What it holds
Any monitor from 17" to 45" with a VESA 75 x 75 mm or 100 x 100 mm mounting pattern, weighing between 2 kg and 20 kg. The weight budget includes anything bolted to the panel, so a webcam, light bar or soundbar can be added within the 20 kg limit.
Movement
The arm extends up to 568 mm from the mount, tilts 50° to -20°, swivels 90° either side and pivots a full 180° in each direction, so the screen can be rotated into portrait for code, long documents or CCTV walls.
Cable management
Cable channels run along the arm so video and power cables follow the arm rather than hanging across the desk. This matters most on hot-desks and in meeting rooms where screens are moved daily.
Other arms in this range
See BSH02 for the same arm in white, BDH01 for the dual-screen version, and BSL01 for the lighter 11 kg single arm.
Package Contents & BenQ Ergo Arm Range
In the box
- BSH01 monitor arm x 1
- Reinforcement plate x 1
- Warranty card x 1
- Quick start guide x 1
- Regulation sheet x 1
- Spare parts x 1
Package contents follow BenQ's product data for this model; items not listed by BenQ are not claimed here.
BenQ Ergo Arm range
| Model | Mount | Screen Size | Weight Capacity |
| BSH01 (this listing) | Single | 17" - 45" | 2 - 20 kg |
| BSH02 (White) | Single | 17" - 45" | 2 - 20 kg |
| BSL01 | Single | 17" - 40" | 2 - 11 kg |
| BDH01 (Black) | Dual | 17" - 35" per arm | 2 - 20 kg per screen |
| BDL01 | Dual | 17" - 35" per arm | 2 - 11 kg per screen |
Datasheet & Downloads
SourceIT can email the current data sheet revision and user manual with a quotation. Ask for it when you request pricing for a multi-desk rollout.
Frequently Asked Questions — BenQ BSH01
What is the difference between the BSH01 and the BSH02?
Nothing mechanical. BenQ lists both as the Single Ergo Arm with identical specifications; the BSH01 is black and the BSH02 is white. Choose on finish alone.
How does the BSH01 differ from the BSL01?
The BSH01 uses a gas spring tested to 25,000 cycles, carries 2-20 kg, fits screens to 45" and includes a steel reinforcement plate. The BSL01 uses a mechanical spring tested to 20,000 cycles, carries 2-11 kg, fits screens to 40" and has no reinforcement plate. The BSL01 does tilt further (68° to -45° against 50° to -20°), so for a light panel that needs an extreme angle it is not simply the lesser arm.
Will it hold a 34" ultrawide?
Yes, provided the panel is within 2-20 kg and uses a VESA 75 x 75 mm or 100 x 100 mm pattern. The arm is rated to 45".
Can I mount it on a glass desk?
The included steel reinforcement plate is intended for thin, glass and other fragile tabletops and spreads the clamp load. Check that the desk thickness falls within 12 to 45 mm when the plate is used.
Does it rotate to portrait?
Yes. Screen rotation is 180° to -180°, so the panel can be turned into portrait in either direction.
Does the arm have USB ports?
No. BenQ does not list any integrated USB hub on the BSH01. Cables are routed through the arm, but the arm does not carry data or power to the screen.
Do I need to get under the desk to install it?
No. Both the clamp and the grommet fitting are top-mounted, and BenQ ships the arm with components pre-installed to shorten setup.
What warranty and invoice do I get?
Every unit sold by SourceIT carries a local Singapore warranty and is supplied with a GST invoice.
