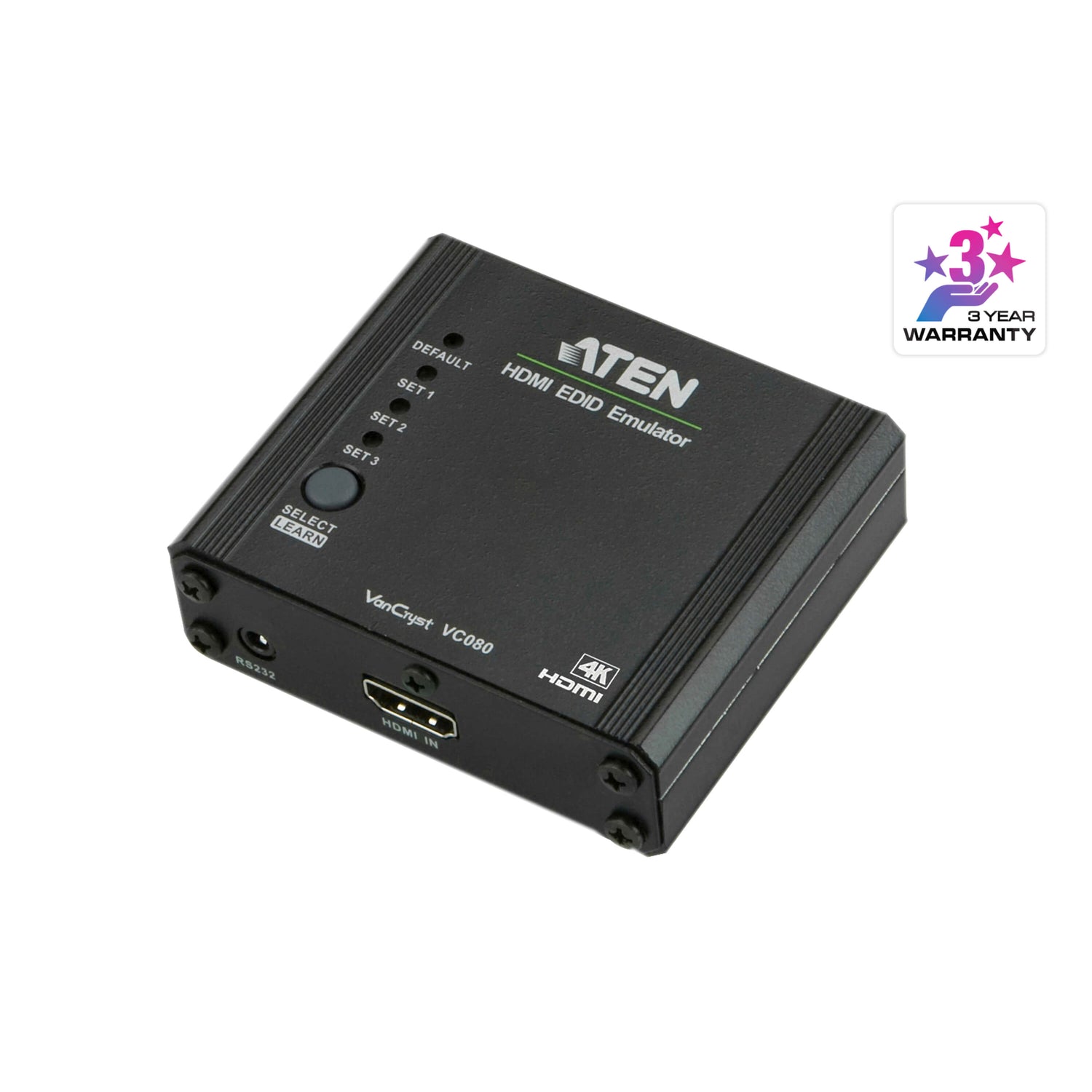

ATEN VC080 4K HDMI EDID Emulator with Programmer
PRODUCT DESCRIPTION
ATEN VC080 4K HDMI EDID Emulator with Programmer - 2 Years Local Warranty
Keep Sources at the Right Resolution
The VC080 sits between a HDMI source and the downstream switch, extender or display and presents a stable EDID to the source. PCs and media players keep their resolution and window layout even when displays are switched, turned off or disconnected.
4K HDMI with Audio Pass-Through
Supports up to 4096 x 2160 or 3840 x 2160 at 30 Hz 4:4:4 at a 10.2 Gbps data rate, HDMI 1.4 3D and Deep Color, HDCP and CEC, and passes Dolby TrueHD and DTS-HD Master Audio.
Three EDID Modes, Including Full Programming
Choose Default mode, Learning mode to copy the EDID of a connected display, or Programming mode, where ATEN's EDID Wizard software on a PC writes a custom EDID via the supplied RS-232 configuration cable.
Flexible Power
A DC jack and supplied USB-to-DC power cord power the unit (0.17 W), and ATEN also supports non-powered operation. The compact metal housing measures 7.90 x 7.76 x 2.45 cm.
Specifying EDID management for a control room or signage project? Email sales@sourceit.com.sg for configuration advice and a project quote.
ATEN VC080 Datasheet — Technical Specifications
General
| Product Name | ATEN 4K HDMI EDID Emulator with Programmer |
| Model | VC080 |
| Order Code | VC080-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors

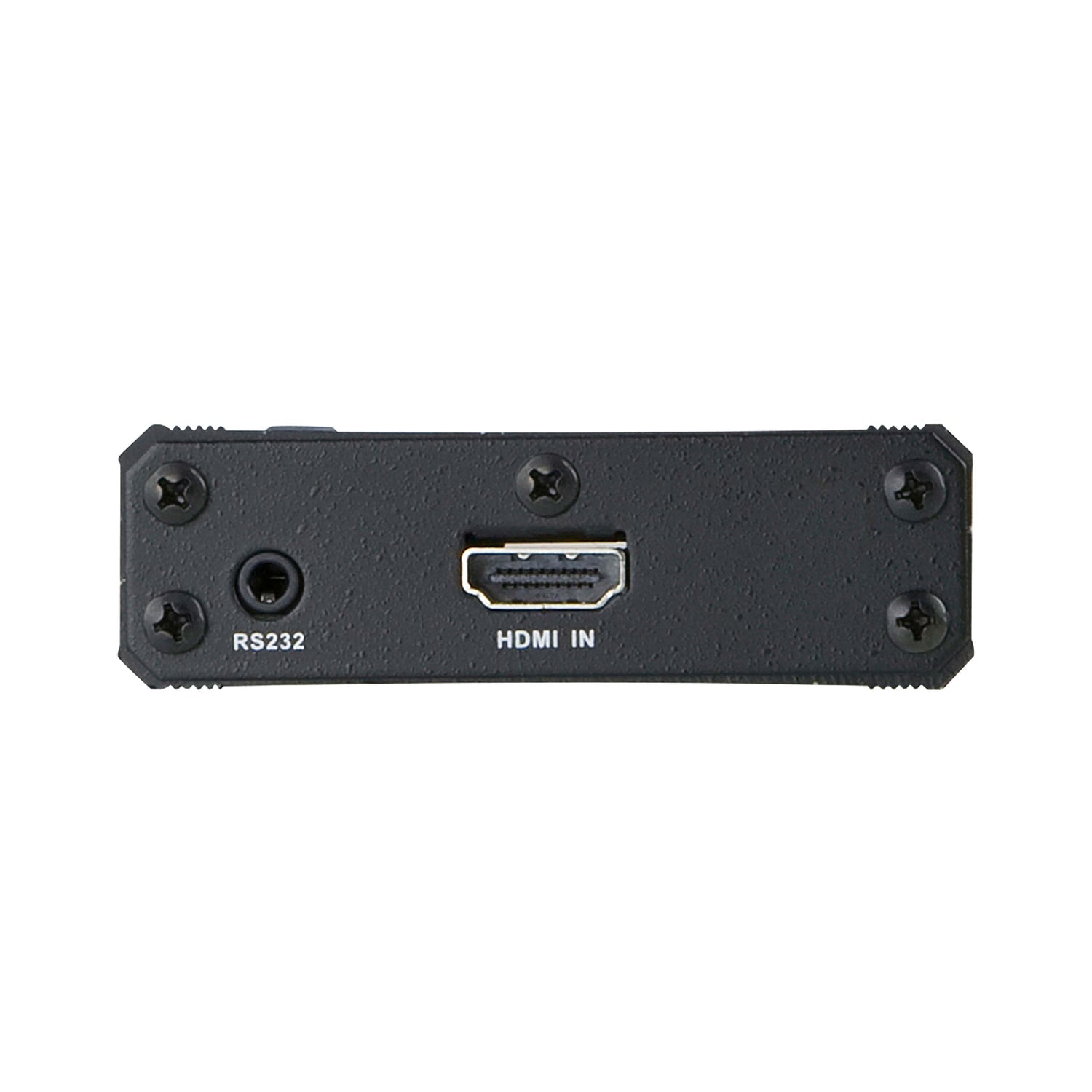

| Input | 1 x HDMI Type A Female |

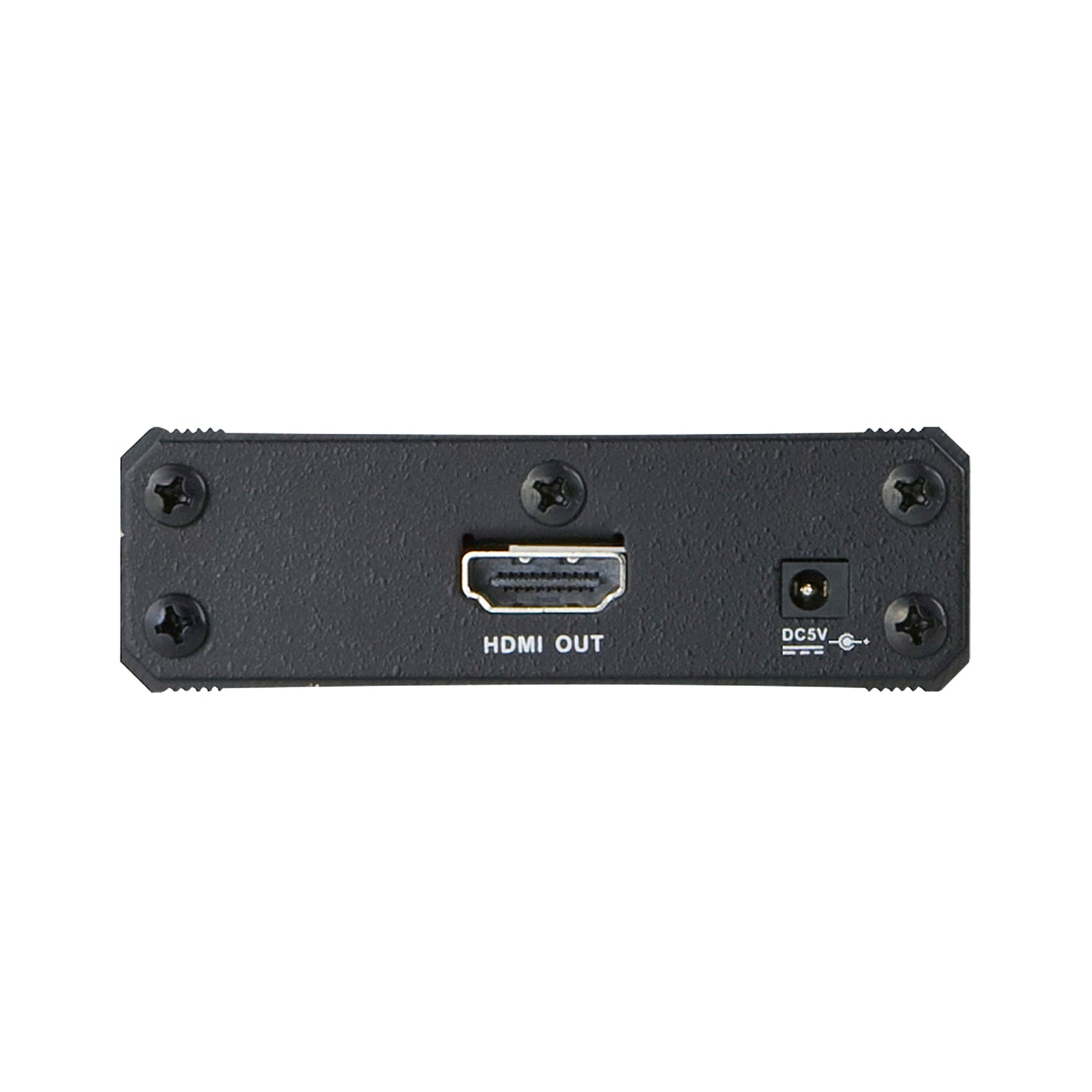

| Output | 1 x HDMI Type A Female |
Video
| Max. Resolution | 4096 x 2160 @ 30 Hz (4:4:4) / 3840 x 2160 @ 30 Hz (4:4:4) |
| Data Rate | 10.2 Gbps |
| Compliance | HDMI 1.4 (3D, Deep Color); HDCP compatible; CEC |
| Audio | Supports Dolby TrueHD and DTS-HD Master Audio |
EDID
| EDID Modes | Default / Learning / Programming (EDID Wizard via RS-232) |
Power
| Power | DC jack (USB-to-DC power cord supplied); non-powered operation supported |
| Power Consumption | 0.17 W |
Physical
| Housing | Metal |
| Weight | 0.15 kg |
| Dimensions | 7.90 x 7.76 x 2.45 cm |
Compatibility & Applications
Typical Devices
PCs, servers, media players and signage players with HDMI outputs, feeding HDMI switches, KVM switches, extenders, splitters and displays.
Typical Use
Control rooms, digital signage, KVM and AV switching systems and test benches where the source must hold a fixed resolution.
Selection Tip
Use Learning mode for a quick copy of your display's EDID, or Programming mode when you need a custom resolution that no attached display reports.
Package Contents & ATEN EDID Emulator Ordering Information
In the Box
1 x VC080 4K HDMI EDID Emulator with Programmer, 1 x RS-232 Configuration Cable (1.8 m), 1 x USB to DC Power Cord, 1 x User Instructions.
ATEN EDID Emulator Models
| Model | Key feature |
| VC010 | VGA EDID emulator with programmer |
| VC060 | DVI EDID emulator with programmer |
| VC080 (this listing) | 4K HDMI EDID emulator with programmer |
| VC081A | True 4K HDMI EDID emulator adapter, bus-powered |
Datasheet & Downloads
| Datasheet | VC010 / VC060 / VC080 Datasheet (PDF) |
| User manual | VC010 / VC060 / VC080 User Manual (PDF) |
| Quick start guide | VC010 / VC060 / VC080 Quick Start Guide (PDF) |
| ATEN product page | VC080 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC080-AT.
Frequently Asked Questions — ATEN VC080
What does an EDID emulator do?
It presents a fixed display identity (EDID) to the source, so the source does not change resolution or rearrange windows when the display is switched, powered off or unplugged.
How do I program a custom EDID?
Connect the supplied RS-232 configuration cable to a PC and use ATEN's EDID Wizard software in Programming mode.
Does it need power?
A USB-to-DC power cord is supplied for the DC jack; ATEN also supports non-powered operation.
What is the maximum resolution?
4096 x 2160 @ 30 Hz (4:4:4) / 3840 x 2160 @ 30 Hz (4:4:4)
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
