ATEN CL5808N 19" 8-Port PS/2-USB VGA Dual Rail LCD KVM Switch
PRODUCT DESCRIPTION
ATEN CL5808N 19" 8-Port PS/2-USB VGA Dual Rail LCD KVM Switch - 2 Years Local Warranty
Dual Rail Console with 8-Port KVM

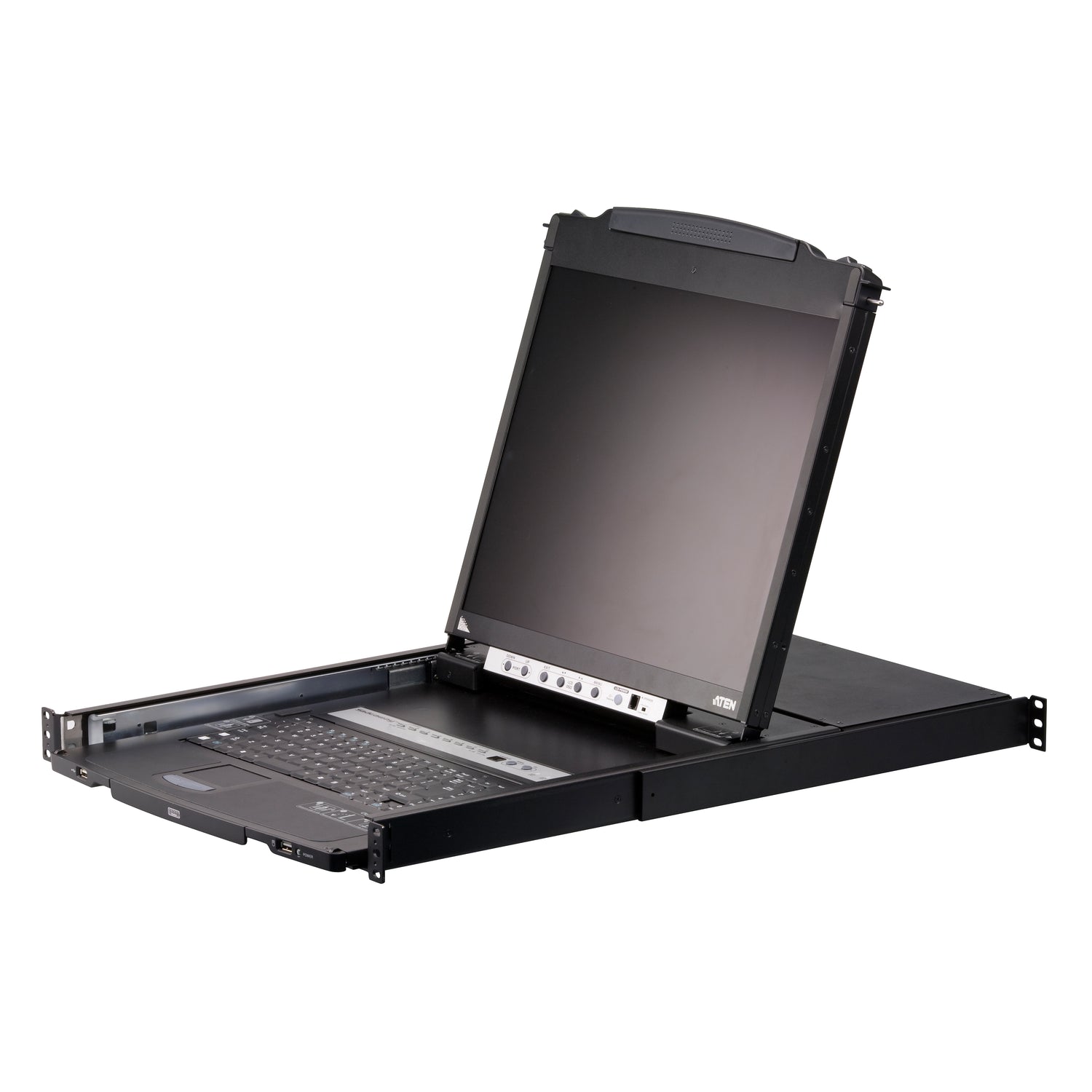

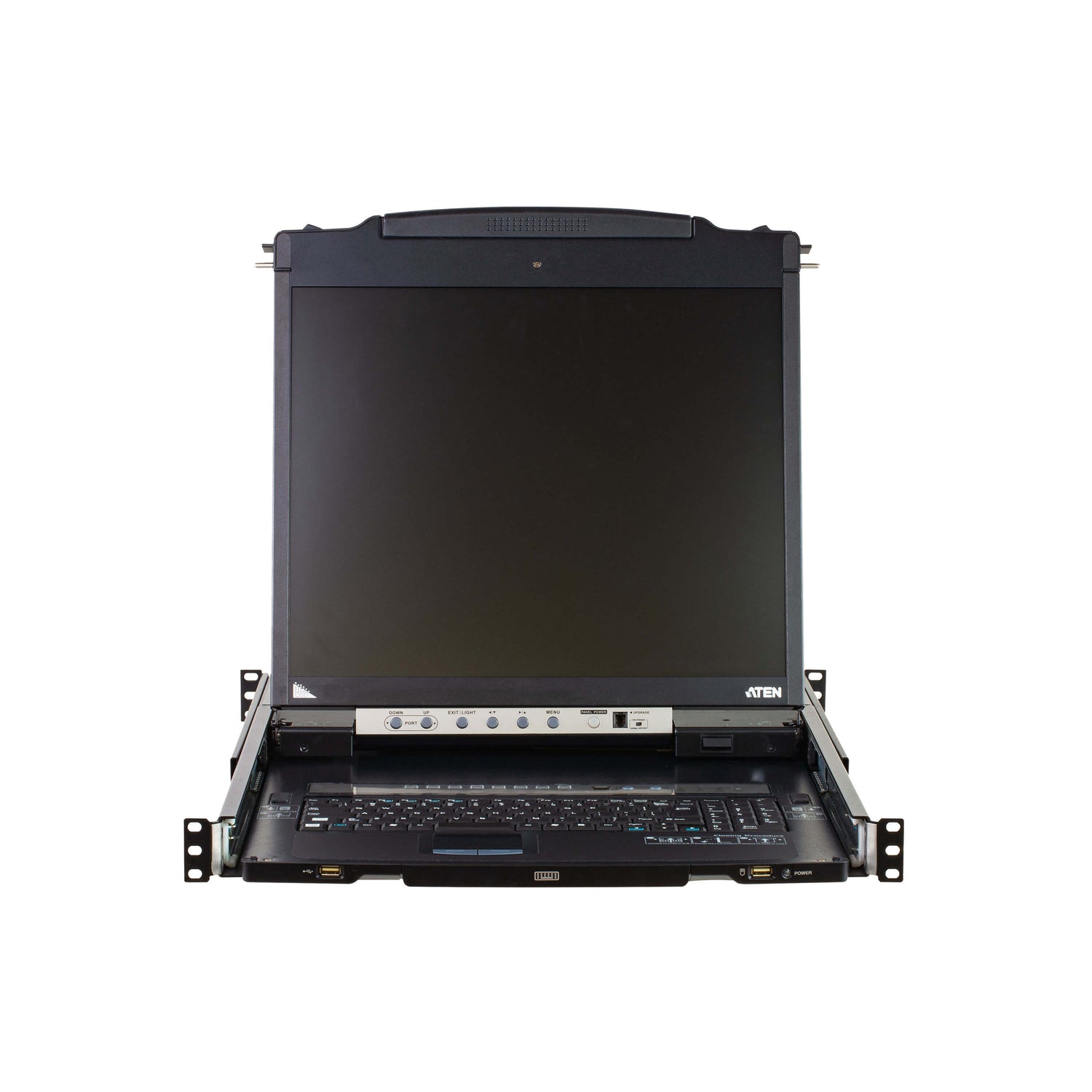

The CL5808N integrates a 19" LED-backlit LCD, keyboard, touchpad and an 8-port KVM switch in a 1U dual rail drawer. The monitor and keyboard slide independently, so the screen can stay out while the keyboard is stowed.
Scale to 256 Servers
Control eight computers directly, or daisy-chain up to 31 additional units for up to 256. Select ports by pushbutton, hotkey or OSD, with two-level password security.
PS/2 or USB, Mixed Platforms
Dual Interface auto-detects PS/2 or USB keyboards and mice, and Windows, Linux, Mac and Sun systems are supported. An external console port and front USB ports add an outside monitor, keyboard, mouse or peripheral.
Clear 19" Panel
The panel runs at 1280 x 1024 at 75 Hz with 5 ms response and accepts input up to 1920 x 1200 at 60 Hz. It rotates up to 120 degrees, and console lock and the LED illumination light suit busy server rooms.
Fitting out racks with dual rail consoles? Email sales@sourceit.com.sg for a project quote including KVM cables.
ATEN CL5808N Datasheet — Technical Specifications
General
| Product Name | ATEN 8-Port PS/2-USB VGA Dual Rail LCD KVM Switch |
| Model | CL5808N (19") |
| Order Code | CL5808N-ATA-AE |
| Keyboard | US English keyboard layout (-ATA-AE order code) |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Direct | 8 |
| Maximum | 256 (via daisy-chain) |
| Port Selection | OSD, hotkey, pushbutton |
Connectors

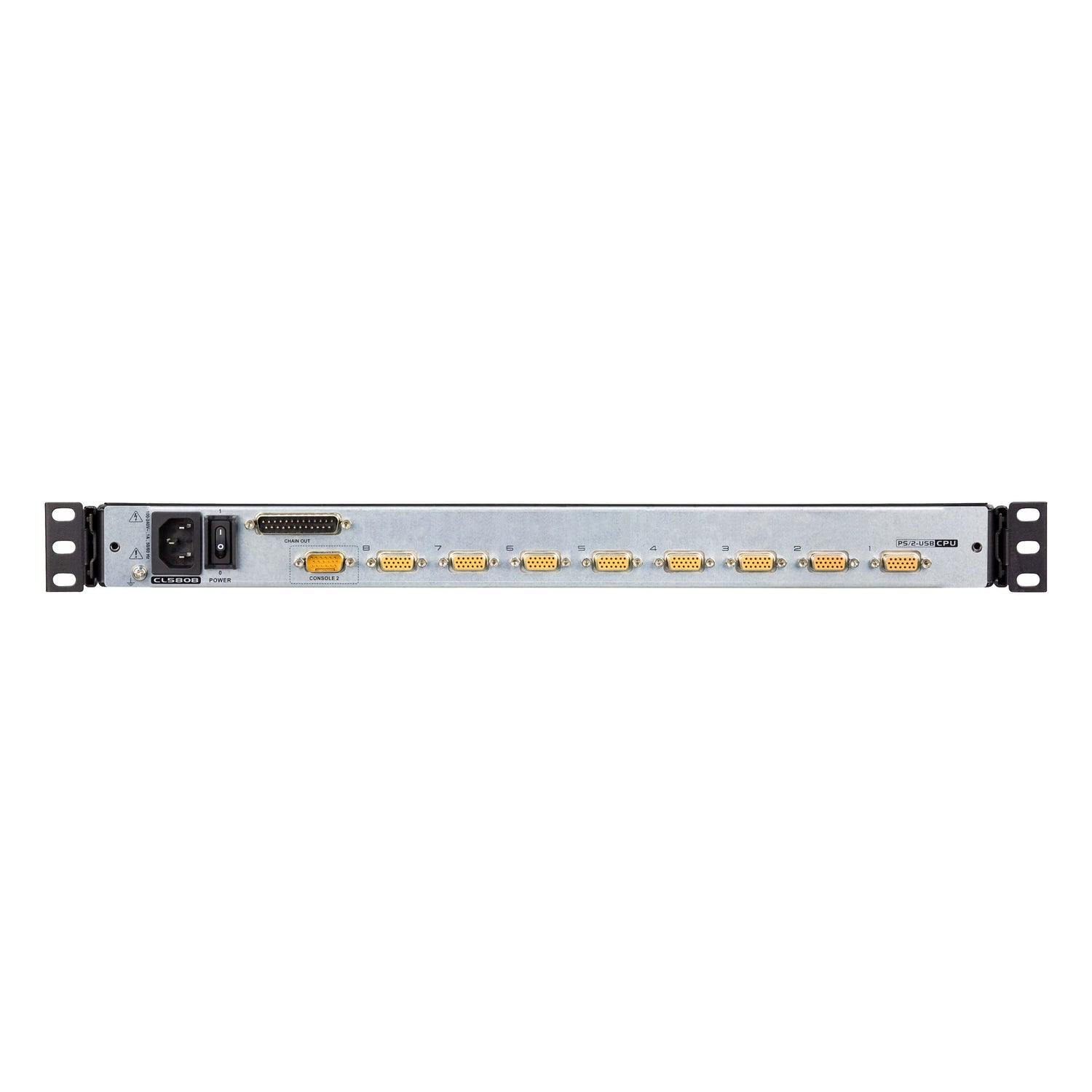

| KVM Ports | 8 x SPHD Female (yellow) |
| Daisy Chain | 1 x DB-25 Male |
| External Console | 1 x SPHD Male (yellow) |
| External Mouse | 1 x USB Type-A Female (front) |
| USB Port | 1 x USB Type-A Female (front) |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x IEC 60320/C14 |
LCD Panel
| LCD Module | 19" TFT-LCD, LED-backlit |
| Native Resolution | 1280 x 1024 @ 75 Hz |
| Response Time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Pixel Pitch | 0.294 x 0.294 mm |
| Colours | 16.77 M |
| Contrast Ratio | 1000:1 |
| Luminance | 250 cd/m² |
Video & Emulation
| Input Resolution | Up to 1920 x 1200 @ 60 Hz; 1280 x 1024 @ 75 Hz; DDC2B |
| Keyboard / Mouse | PS/2, USB (auto-detect) |
| Scan Interval | 1–255 seconds |
| Operating Systems | Windows, Linux, Mac, Sun |
Power & Environmental
| Input Power | 100–240 V AC, 50/60 Hz, 1 A |
| Power Consumption | 25.2 W (AC110V); 27.2 W (AC220V) |
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal + plastic |
| Rail Type | Dual rail, 1U; LCD rotates up to 120° |
| Weight | 14.48 kg |
| Dimensions (L x W x H) | 48.00 x 68.04 x 4.40 cm |
Compatibility & Applications
Typical Computers
Rack servers and PCs with VGA video and PS/2 or USB keyboard/mouse, connected via ATEN SPHD custom KVM cables.
Typical Use
Data centre and server room racks where technicians want the screen and keyboard to slide out independently during maintenance.
Cabling Tip
Two custom KVM cables and a console cable are included. Order additional ATEN SPHD KVM cables for the other six ports.
Package Contents & ATEN LCD KVM Switch Ordering Information
In the Box
1 x CL5808N LCD KVM switch with standard rack mounting kit, 2 x custom KVM cables (1.8 m), 1 x console cable (27 cm), 1 x firmware upgrade cable, 1 x power cord, 1 x extension kit, 1 x user instructions.
ATEN LCD KVM Console Models
| Model | Key feature |
| CL1000M | 17" single rail LCD console (PS/2-USB, VGA) |
| CL6700MW | 17.3" FHD single rail LCD console (USB, HDMI / DVI / VGA) |
| CL3700NW | 18.5" FHD ultra short depth LCD console (USB, HDMI) |
| CL5800N | 19" dual rail LCD console (PS/2-USB, VGA) |
| CL5716M | 17" 16-port VGA single rail LCD KVM switch |
| CL1308N | 19" 8-port VGA single rail LCD KVM switch |
| CL3108NX | 18.5" 8-port VGA widescreen single rail LCD KVM switch |
| CL5808N (this listing) | 19" 8-port VGA dual rail LCD KVM switch |
| KL1108VN | 19" 8-port Cat 5 dual rail LCD KVM over IP switch |
| CL5708IN | 19" 8-port VGA LCD KVM over IP switch |
Datasheet & Downloads
| Datasheet | CL5808 / CL5816 Datasheet (PDF) |
| User manual | CL5808 / CL5816 User Manual (PDF) |
| Quick start guide | CL5808 / CL5816 Quick Start Guide (PDF) |
| Rack installation guide | LCD KVM Standard Rack Mount Installation Guide (PDF) |
| ATEN product page | CL5808 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CL5808N-ATA-AE.
Frequently Asked Questions — ATEN CL5808N
What does dual rail mean?
The LCD and the keyboard/touchpad are on separate rails and slide out independently.
How many servers can it control?
Eight directly, or up to 256 by daisy-chaining 31 additional units.
How many KVM cables are included?
Two custom KVM cables plus a console cable. Additional cables are needed for the other ports.
Can I connect an external monitor and keyboard?
Yes. There is an external console port (SPHD) and front USB ports.
What is the screen resolution?
19", native 1280 x 1024 at 75 Hz, with input up to 1920 x 1200 at 60 Hz.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
