ATEN US4224 2 x 4 USB 2.0 Sharing Switch
PRODUCT DESCRIPTION
ATEN US4224 2 x 4 USB 2.0 Sharing Switch - 2 Years Local Warranty
Share Keyboard, Mouse and Printer Between Two PCs
The US4224 connects two computers to four USB 2.0 devices, so a single keyboard, mouse, printer and scanner can serve both machines. Press one button to move all four devices to the other computer.
InstaSync for Fast Switching
ATEN InstaSync technology keeps switching quick, and the switch is hot-pluggable with no drivers to install on Windows, macOS or Linux.
Compact essentials Design

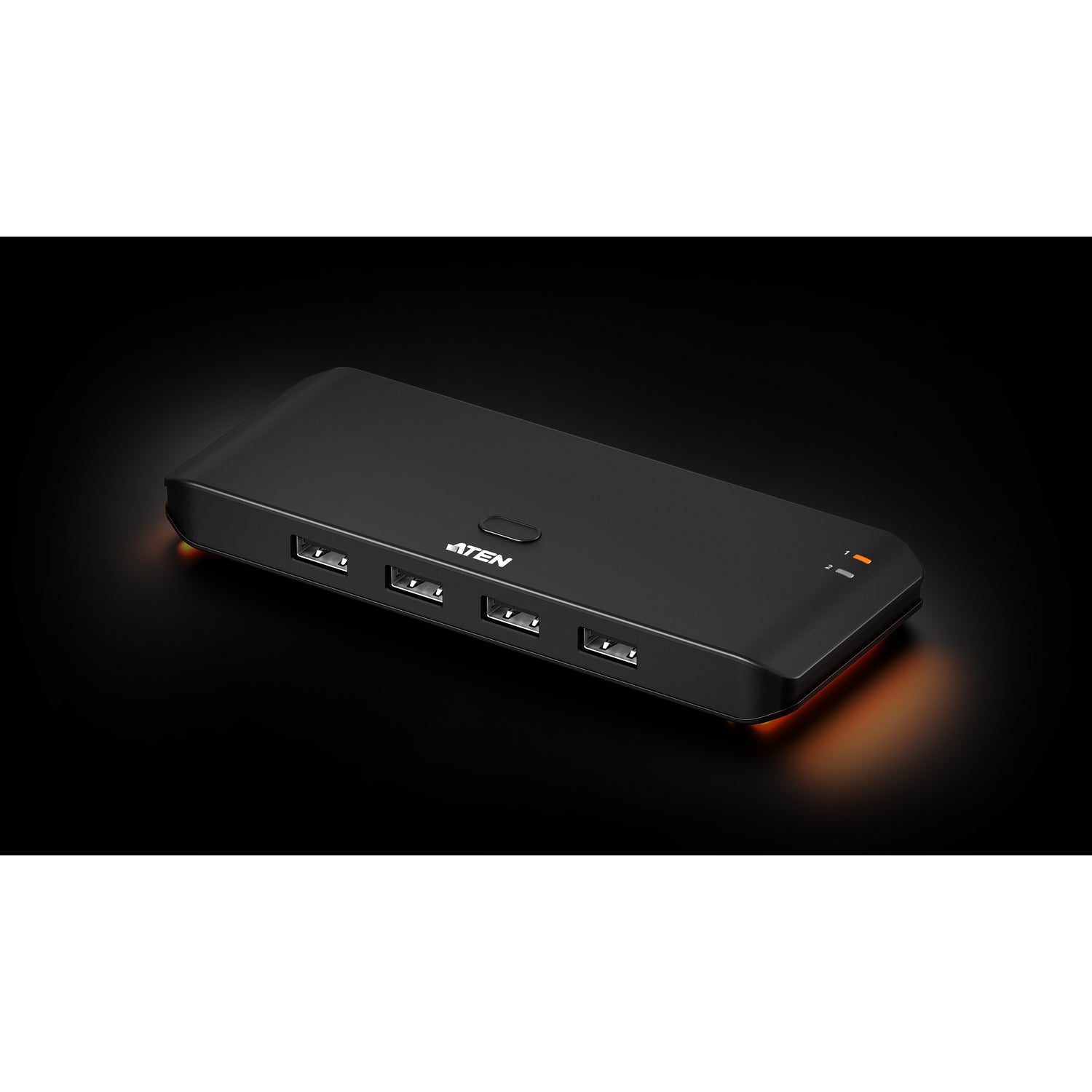

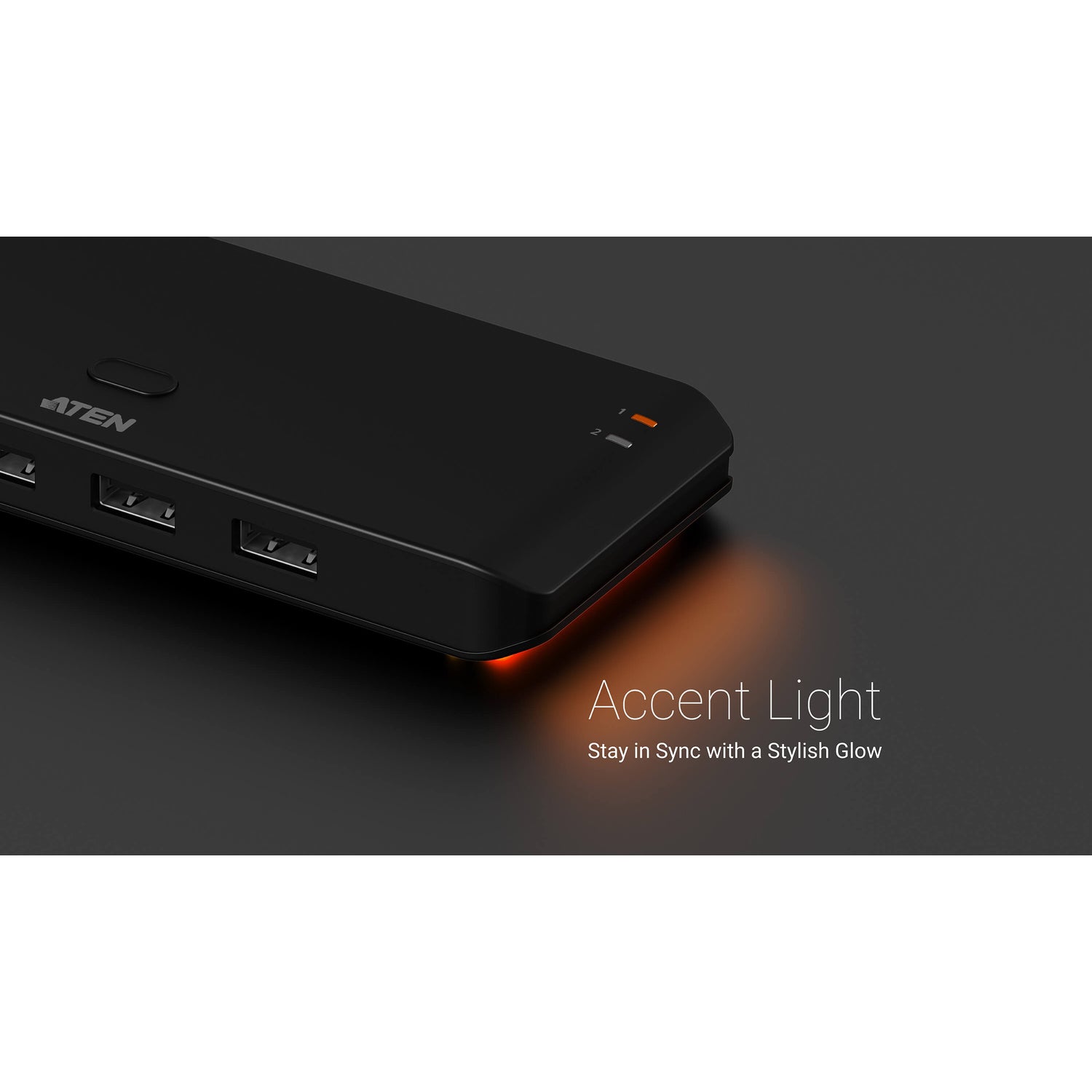

Part of the ATEN essentials range, the US4224 has a slim 14.5 cm body with accent lighting that sits neatly on a desk. Two 1.5 m USB-A to USB-A cables are included to connect both computers.
Optional Power Input
A USB-C power input is provided for optional external power when attached devices need more current.
Equipping a home office or several workstations? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN US4224 Datasheet — Technical Specifications
General
| Product Name | ATEN 2 x 4 USB 2.0 Sharing Switch |
| Model | US4224 |
| Order Code | US4224-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Computer Connections | 2 |

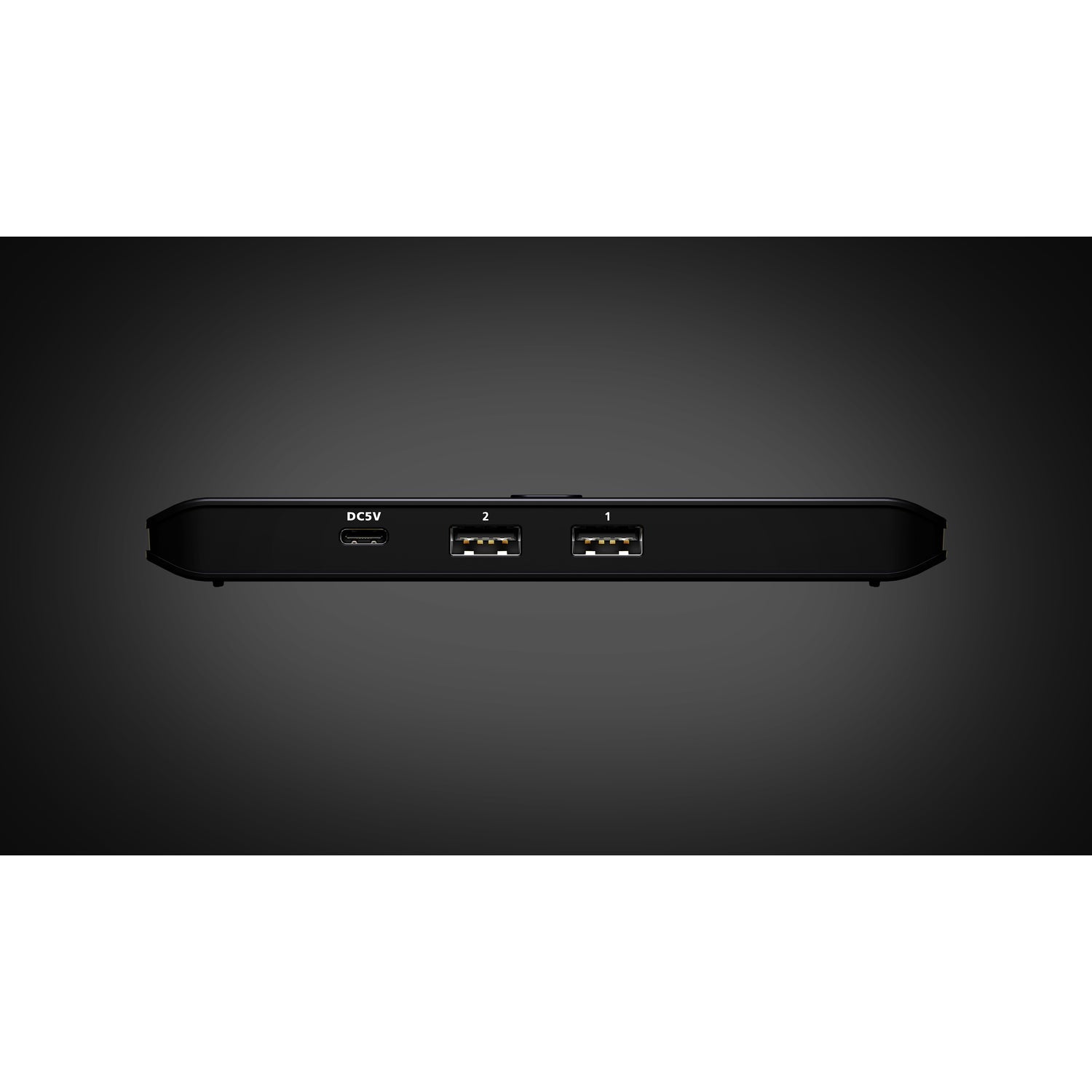

| Computer Ports | 2 x USB Type-A Female |

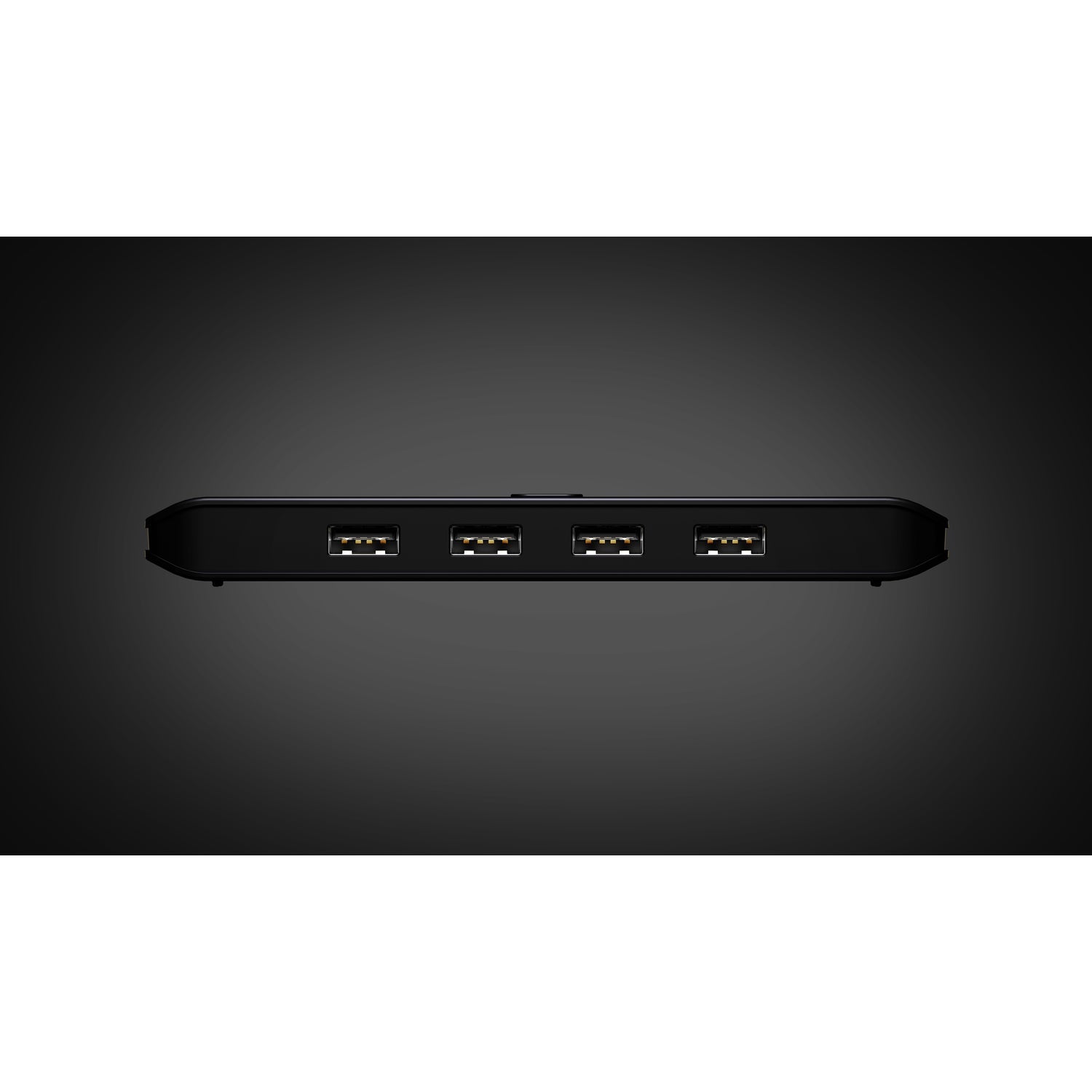

| Device Ports | 4 x USB Type-A Female |
| Power | 1 x USB-C Female (optional) |
Performance
| USB Standard | USB 2.0 |
| Data Rate | 480 Mbps |
| Port Selection | Pushbutton |
| LEDs | 2 x Selected (Orange); 2 x Power (Orange, bottom side) |
| Cables Included | 2 x USB 2.0 Type-A to Type-A (1.5 m) |
| Operating Systems | Windows, macOS, Linux |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 10–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 76 g |
| Dimensions (L x W x H) | 14.5 x 5.65 x 1.52 cm |
Compatibility & Applications
Typical Devices
USB keyboards, mice, printers, scanners, card readers and other USB 2.0 peripherals.
Typical Use
Home offices with a work laptop and a personal PC, reception counters, and small offices where two computers share one printer.
Selection Tip
For USB 2.0 peripherals the US4224 is ideal. If you share external drives or other high-speed devices, choose the USB 3.2 Gen 1 US4324 instead.
Package Contents & ATEN USB Sharing Switch Ordering Information
In the Box
1 x US4224 2 x 4 USB 2.0 Sharing Switch, 2 x USB Type-A to USB Type-A cables (1.5 m).
ATEN USB Sharing Switch Models
| Model | Key feature |
| US221A | 2 computers share 1 USB 2.0 device |
| US224 | 2 computers share 4 USB 2.0 devices, remote port selector |
| US4224 (this listing) | 2 computers share 4 USB 2.0 devices, compact essentials design |
| US4322 | 2 computers share 2 USB 3.2 Gen 1 devices |
| US4324 | 2 computers share 4 USB 3.2 Gen 1 devices |
| US5324 | 2 x 4 USB 3.2 Gen 1, one Type-A and one Type-C host |
Datasheet & Downloads
| Datasheet | US4224 Datasheet (PDF) |
| Quick start guide | US4224 Quick Start Guide (PDF) |
| ATEN product page | US4224 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting US4224-AT.
Frequently Asked Questions — ATEN US4224
Do I need to install drivers?
No. The US4224 is plug-and-play and hot-pluggable on Windows, macOS and Linux.
Are the computer cables included?
Yes. Two 1.5 m USB Type-A to Type-A cables are supplied.
Does it need a power adapter?
A USB-C power input is available for optional power; it is not required for typical keyboard, mouse and printer use.
Does it switch video?
No. It shares USB devices only. Each computer keeps its own monitor connection.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
