ATEN US3312 2-Port 4K DisplayPort USB-C Cable KVM Switch

SKU: US3312-AT

S$120.96
Unit price per
Save S$73.16

Shipping calculated at checkout.

PRODUCT DESCRIPTION

ATEN US3312 2-Port 4K DisplayPort USB-C Cable KVM Switch - 2 Years Local Warranty

Switch Two USB-C Computers on One Desk

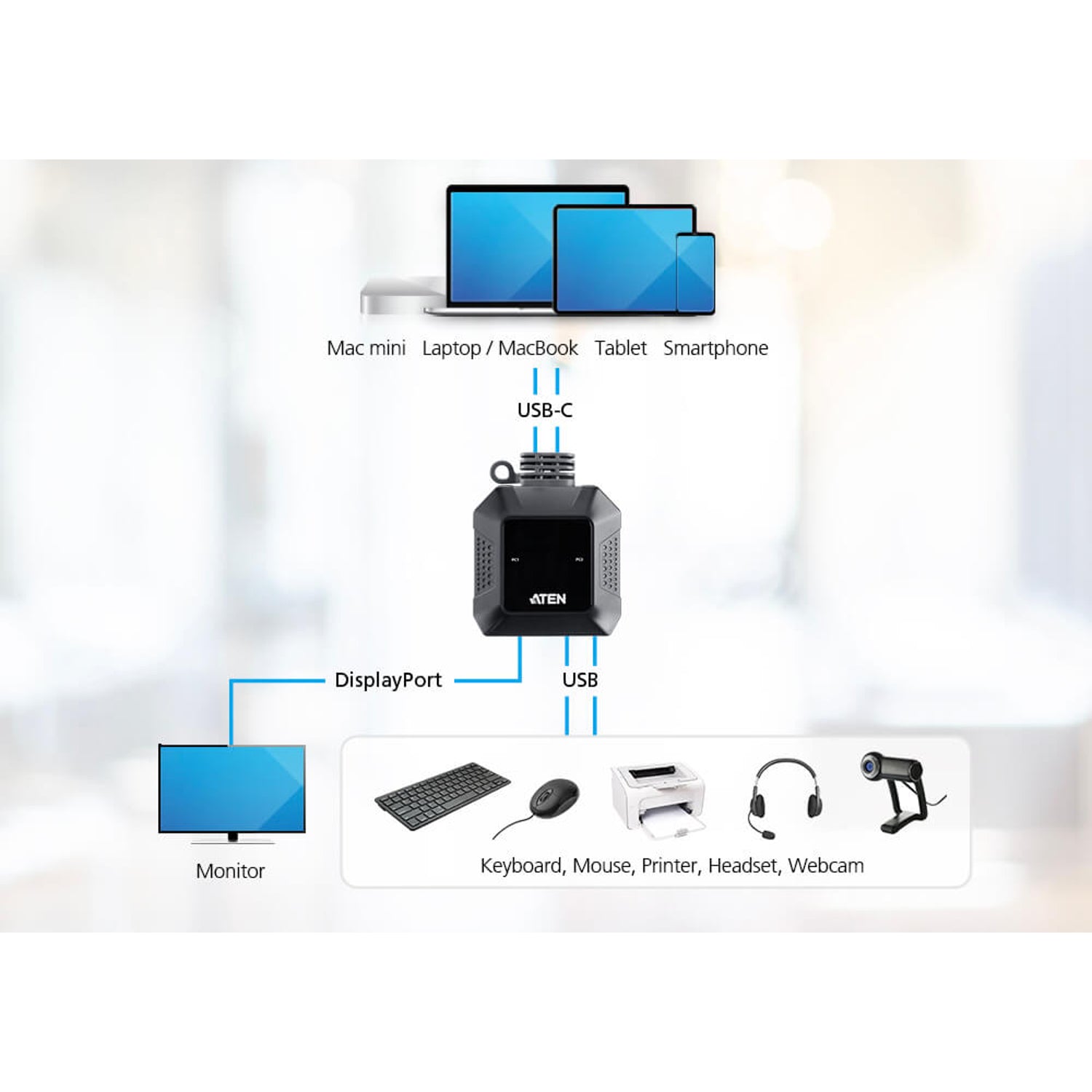

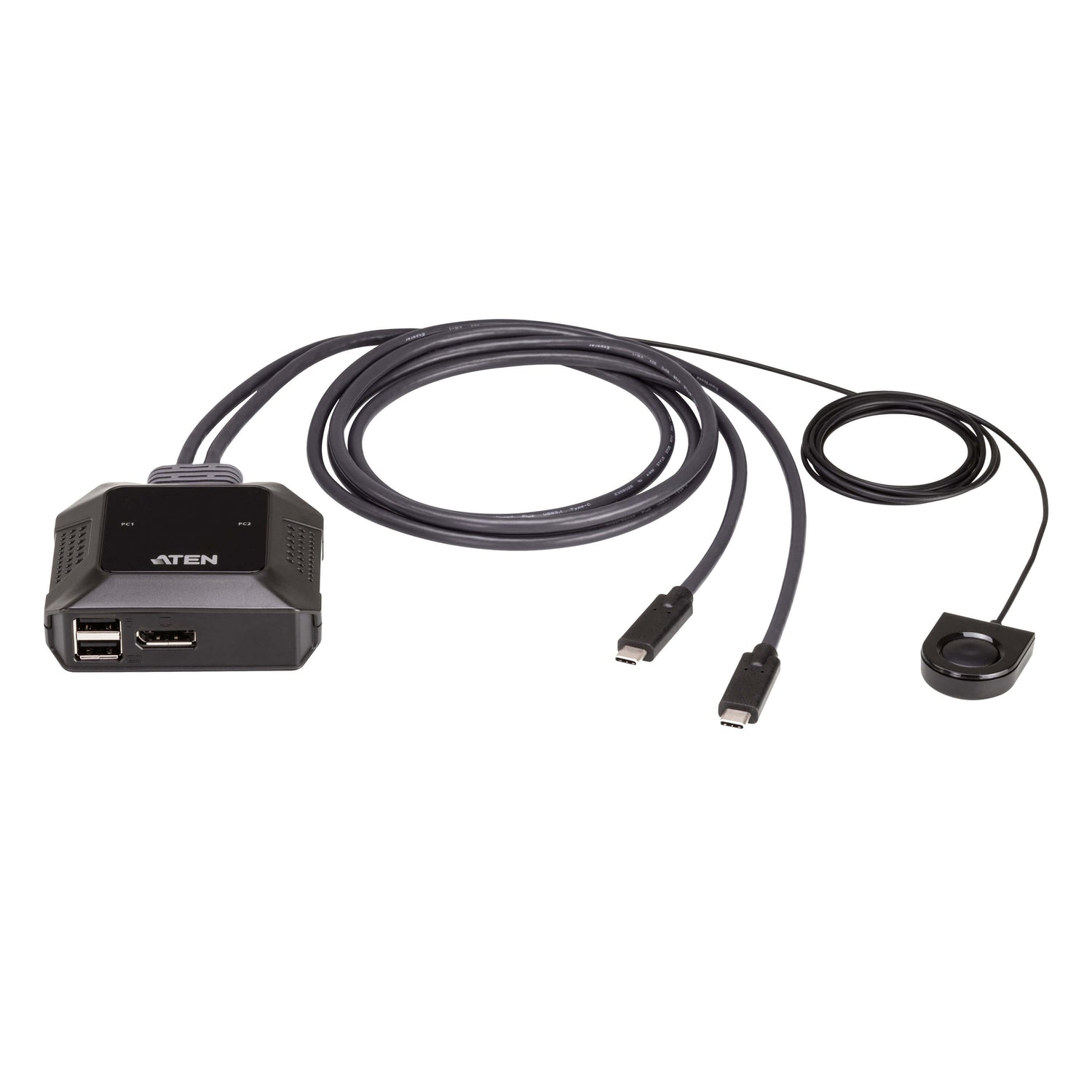

The ATEN US3312 lets one DisplayPort monitor, USB keyboard and mouse control two USB-C computers, such as a work notebook and a personal MacBook. Each computer connects with a single built-in 1.2 m USB-C cable.

Sharp 4K at 60Hz

Video up to 4096 x 2160 @ 60Hz (4:4:4) over DisplayPort 1.2, so text and images stay crisp on a 4K monitor.

Remote Port Selector

Switch computers instantly with the remote port selector on its 1.8 m cable, with white LEDs showing which computer is online and selected.

Bus-Powered, No Drivers

No external power adapter or driver is needed. USB hot-plugging is supported, and the compact housing with hook keeps the desk clear.

Moving staff to USB-C notebooks with shared desks? Email sales@sourceit.com.sg for volume pricing.

ATEN US3312 Datasheet — Technical Specifications

General

Product Name	ATEN 2-Port 4K DisplayPort USB-C Cable KVM Switch with Remote Port Selector
Model	US3312
Order Code	US3312-AT
Local Warranty (Singapore)	2 years carry-in warranty

Connectors

Computer Connections	2

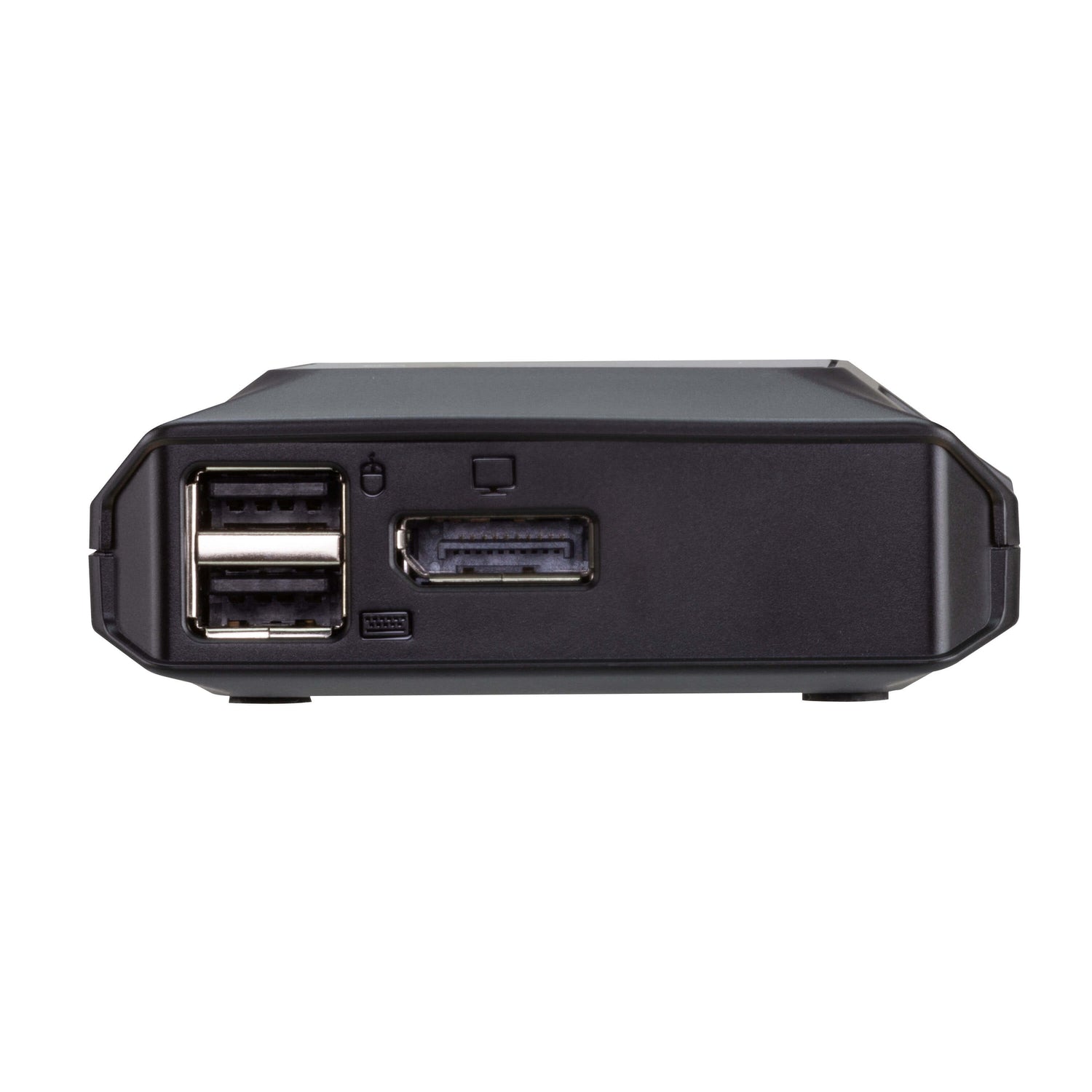

Console Ports	1 x DisplayPort Female, 2 x USB Type-A Female
KVM Ports	CPU1: 1 x USB Type-C Male; CPU2: 1 x USB Type-C Male (built-in cables)

Video

Video Resolution	4096 x 2160 @ 60Hz (4:4:4)
Compliance	DisplayPort 1.2

Control

Port Selection	Remote port selector
LEDs	2 (white, KVM port online/selected)

Cables

KVM Cables	2 x 1.2 m (built-in)
Remote Port Selector Cable	1.8 m

Power

Power Mode	Bus-powered
Power Consumption	DC 5V, 0.74 W, 8 BTU/h

Environmental

Operating Temperature	0–50 °C
Storage Temperature	-20–60 °C
Humidity	0–80% RH, non-condensing

Physical

Housing	Plastic
Weight	0.19 kg
Dimensions (L x W x H)	8.34 x 8.42 x 2.99 cm

System Requirements

Windows	Windows 10 (32/64-bit) and above; Intel 7th-gen Core or later
macOS	MacBook 2015+, MacBook Pro 2016+; OS X 10.12+
Mobile	Android 8.0+; iPadOS 13.1+; iPhone 15 Pro or later

Compatibility & Applications

Typical Computers

Notebooks, tablets and phones with a USB-C port that supports DisplayPort Alternate Mode, meeting the system requirements listed by ATEN.

Typical Use

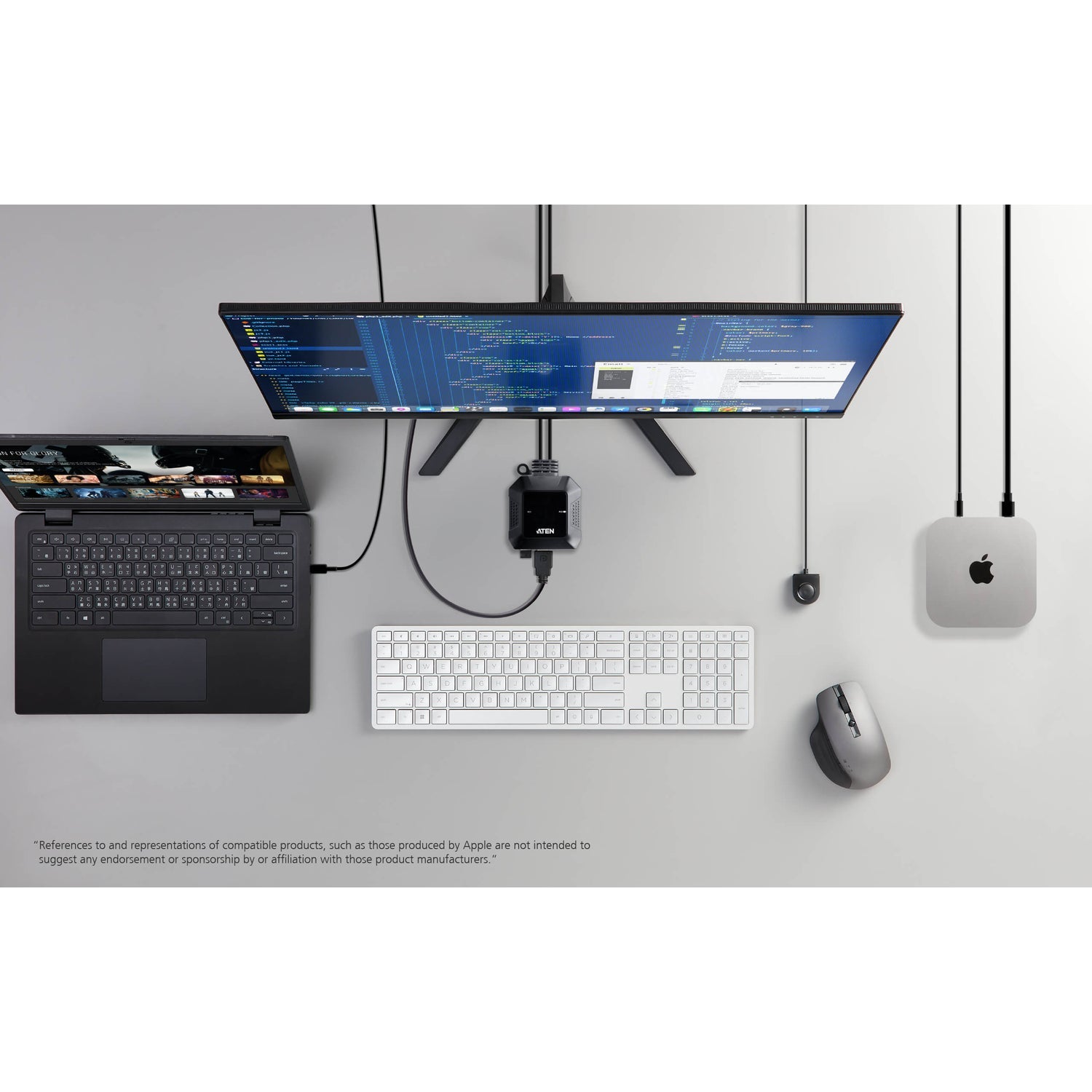

Hot desks and home offices where a work notebook and a personal computer share one 4K monitor, keyboard and mouse.

Selection Tip

The USB-C port on each computer must output video (DP Alt Mode). ATEN does not list notebook charging for the US3312. For HDMI desktops choose the CS22H, and for DisplayPort desktops the CS22DP.

Package Contents & ATEN Cable KVM Switch Ordering Information

In the Box

1 x US3312 2-Port 4K DisplayPort USB-C Cable KVM Switch with Remote Port Selector, 1 x user instructions.

ATEN Cable KVM Switch Models

Model	Key feature
US3312 (this listing)	2-port USB-C, 4K@60Hz DisplayPort output
US3311	2-port 4K DisplayPort USB-C KVM dock switch, 100 W PD
CS52DP	2-port USB-C DisplayPort hybrid cable KVM switch
CS22H	2-port USB 4K HDMI cable KVM switch
CS22DP	2-port USB DisplayPort cable KVM switch
CS692	2-port USB HDMI/audio cable KVM switch
CS62KM	2-port USB boundless KM switch

Datasheet & Downloads

US3312 datasheet	US3312 Datasheet (PDF)
US3312 user manual	US3312 User Manual (PDF)
Quick start guide	US3312 Quick Start Guide (PDF)
ATEN product page	US3312 on aten.com

Need a PDF sent directly? Email sales@sourceit.com.sg quoting US3312-AT.

Frequently Asked Questions — ATEN US3312

Does my computer's USB-C port need to support video?

Yes. The US3312 takes video over USB-C, so each computer's USB-C port must support DisplayPort output.

What monitor connection does it use?

One DisplayPort female console port, up to 4096 x 2160 @ 60Hz.

Will it charge my notebook?

ATEN does not list power delivery for the US3312. For charging plus switching, look at the US3311 KVM dock switch.
