ATEN CS1792 2-Port USB HDMI/Audio KVMP Switch
PRODUCT DESCRIPTION
ATEN CS1792 2-Port USB HDMI/Audio KVMP Switch - 2 Years Local Warranty
Two HDMI Computers, One Workstation
The CS1792 lets one HDMI monitor, USB keyboard and mouse, speakers and microphone control two computers, at up to 1920 x 1080 or 1920 x 1200 @ 60 Hz.
Share USB Peripherals
A built-in 2-port USB hub (one front, one rear) shares a printer, drive or webcam between both computers.
Independent Switching
KVM, USB and audio focus can be switched independently, so you can print from one computer or keep listening to another while working on the first. Dolby TrueHD and DTS-HD Master Audio are supported.
Simple and Reliable

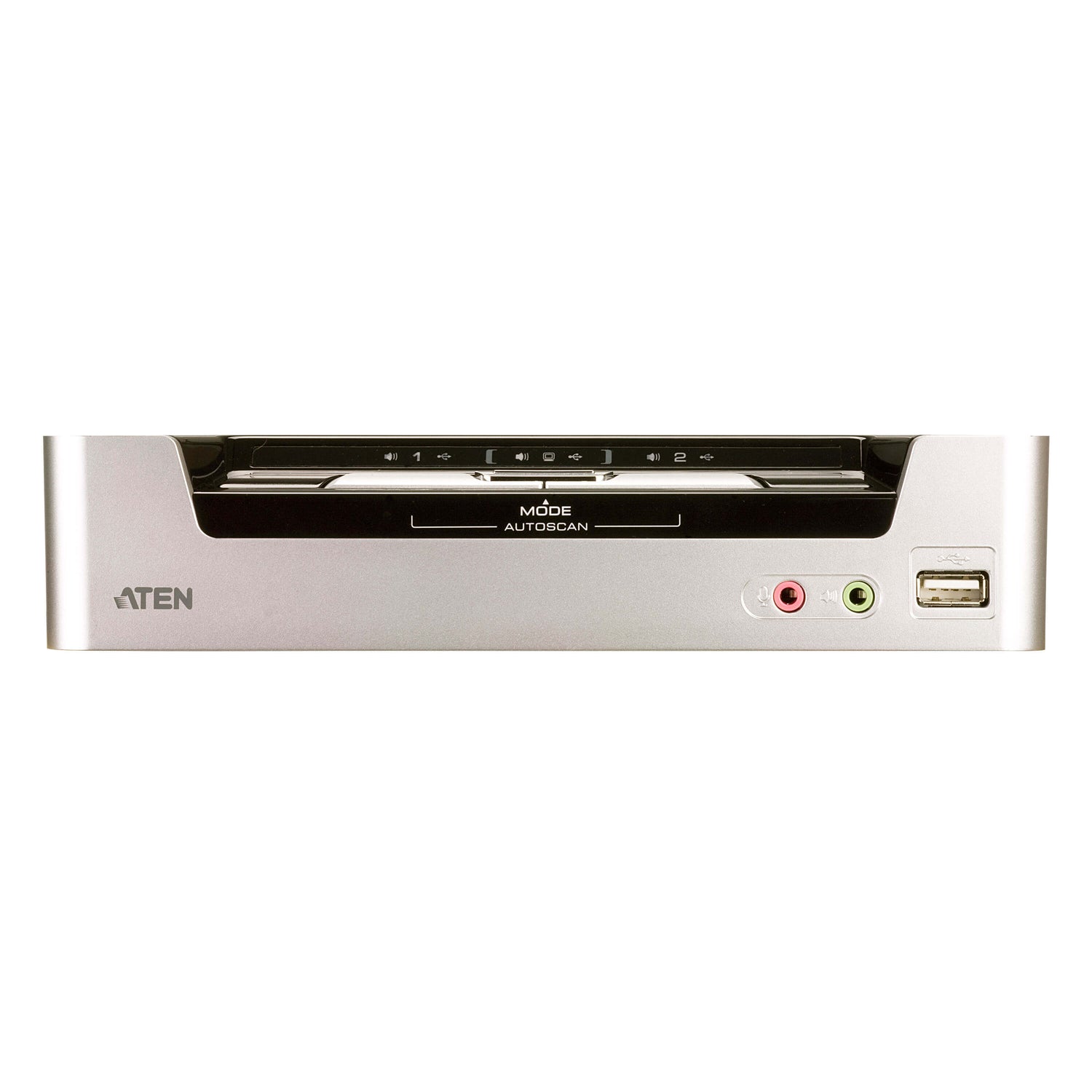

Switch with front pushbuttons or hotkeys. Video DynaSync keeps display settings stable, and power-on detection switches to the next powered computer automatically. Works with Windows, Linux and Mac.
Setting up dual-computer desks across an office? Email sales@sourceit.com.sg for volume pricing.
ATEN CS1792 Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port USB HDMI/Audio KVMP Switch |
| Model | CS1792 |
| Order Code | CS1792-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Computer Connections | 2 |

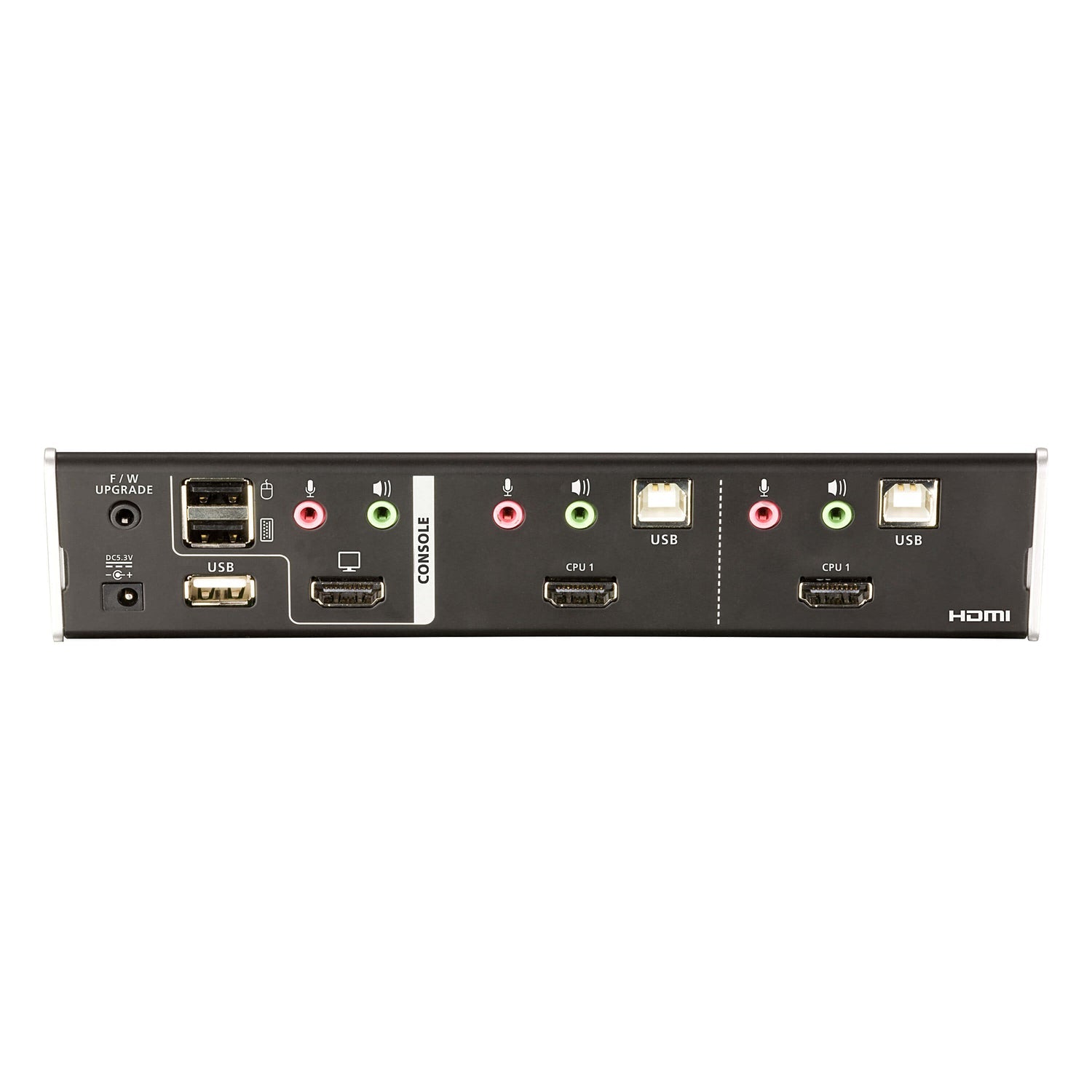

| Console Ports | 2 x USB Type-A Female (rear); 1 x HDMI Female; 2 x 3.5 mm speaker jacks (front and rear); 2 x 3.5 mm microphone jacks (front and rear) |
| KVM Ports | 2 x USB Type-B Female; 2 x HDMI Female; 2 x 3.5 mm speaker jacks; 2 x 3.5 mm microphone jacks |
| USB Hub | 2 x USB Type-A Female (1 front, 1 rear) |
| Firmware Upgrade | 1 x 3.5 mm jack |
| Power | 1 x DC jack |
Switching & Indicators
| Port Selection | Hotkey, pushbutton |
| LEDs | Audio 3 (green); KVM 3 (orange); USB 3 (green) |
| Scan Interval | 1–99 seconds (default 5 s) |
Video & Audio
| Video | 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz |
| Audio | Dolby TrueHD and DTS-HD Master Audio supported |
| Video DynaSync | Yes |
Emulation
| Keyboard / Mouse | USB |
Power
| Power Consumption | DC 5.3 V, 3.53 W |
| Power Adapter | Included |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.42 kg |
| Dimensions (L x W x H) | 20.63 x 7.24 x 4.40 cm |
Compatibility
| Operating Systems | Windows, Linux, Mac |
Compatibility & Applications
Typical Setups
Two desktops or laptops with HDMI output and USB, such as a work PC and a personal PC, sharing one Full HD monitor, keyboard, mouse, speakers and microphone.
Typical Use
Home and corporate offices, finance and admin desks, labs and control rooms where two computers are used at one desk.
Selection Tip
Need 4K or a high refresh rate monitor? Choose the CS1822. For four computers, see the CS1794.
Package Contents & ATEN HDMI KVMP Switch Ordering Information
In the Box
1 x CS1792, 2 x KVM cables (HDMI, USB, audio; 1.8 m), 1 x firmware upgrade cable, 1 x power adapter, 1 x user instructions.
ATEN HDMI KVM Switch Models
| Model | Key feature |
| CS1792 (this listing) | 2-port USB HDMI/audio KVMP switch, 1080p |
| CS1794 | 4-port USB HDMI KVMP switch |
| CS1822 | 2-port USB 3.0 4K HDMI KVMP switch with audio mixer mode |
| CS742H | 2-port USB 4K HDMI dual display KVMP switch |
| CS784H | 4-port USB 4K HDMI KVMP switch |
| CS1844 | 4-port USB 3.0 4K HDMI dual display KVMP switch |
| CS18208 | 8-port USB 3.0 4K HDMI KVM switch |
Datasheet & Downloads
| Datasheet | CS1792 / CS1794 Datasheet (PDF) |
| User manual | CS1792 / CS1794 User Manual (PDF) |
| Quick start guide | CS1792 / CS1794 Quick Start Guide (PDF) |
| ATEN product page | CS1792 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS1792-AT-E.
Frequently Asked Questions — ATEN CS1792
What resolution does it support?
Up to 1920 x 1080 and 1920 x 1200 @ 60 Hz. For 4K choose the CS1822.
Can USB and audio be switched separately from the KVM?
Yes. KVM, USB and audio focus can be switched independently.
Are cables included?
Yes. Two 1.8 m KVM cable sets (HDMI, USB and audio) are included.
Does it work with Mac?
Yes. ATEN lists Windows, Linux and Mac support.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
